Black Wind BW-0002 pressure switch for 230 V piston compressors 230/50 V/Hz · 2 poles · 15 A · max. 12 bar · factory set to zapínací 6 / vypínací 8 bar
Code: BW-0002
Related products
Product detailed description
The simplest pressure switch in the range. It comes set to 6 and 8 bar — switches on at six, off at eight — so there's nothing to adjust after installation. Inlet 1/4" and three outlets 1/4" on the connection block.
Who it's for
For a small hobby compressor on 230 V, where nothing needs to be configured and the switch just needs to turn on and off. Anyone who needs a different pressure can readjust it using the screws under the cover — the switch can withstand up to 12 bar.
Unlike Condor units, it doesn't include an unloader valve, only an outlet for the unloader hose 6/4 mm with a cutting ring. If the compressor has trouble starting, this is the first place to check.
What is in the box
- Outlet for the unloader tube 6/4 mm, cutting ring.
- Rated current 15 A.
- Connection 1/4" + 3× 1/4" — one inlet and three outlets on a single block.
- Factory set to switch-on 6 / switch-off 8 bar, can be changed using the screws under the cover.
Connection close-up

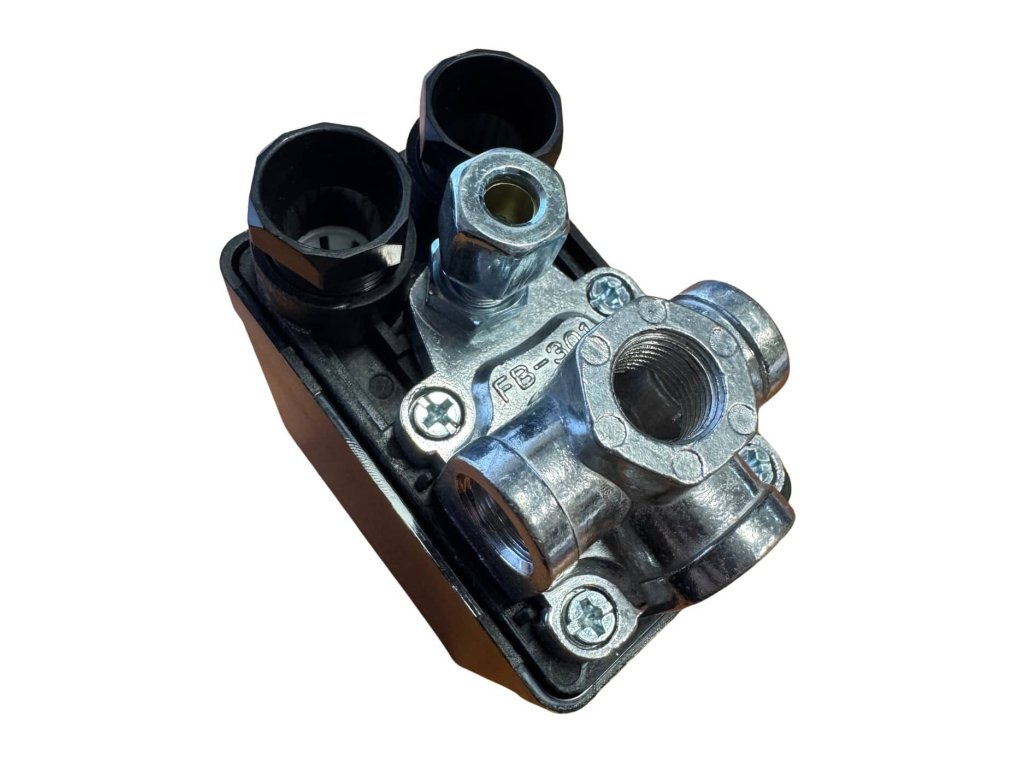

Connection block from below: 1/4" inlet and three 1/4" outlets for the pressure gauge, safety valve, and air.
How it differs from its siblings
A slightly better equipped option is the TS220 with a wider 3/8" inlet. The 230 V Condors are the MDR1/11 and MDR2/11. The full overview by voltage and pressure is available in the category overview.
Ventilek’s advice
A fixed setting is not a disadvantage. On a small compressor, it's one thing you can't get wrong.
Technical data correspond to the manufacturer's datasheet and the supplier's catalogue. The switch must be connected by a person with the appropriate electrical qualification. The pressure is set under pressure and with the electrical supply disconnected.
Additional parameters
| Category: | Pressure switches for compressors: Condor and NE-MA |
|---|---|
| Poles: | 2 |
| Switching voltage: | 230/50 V/Hz |
| Pressure range: | 0 - 12 bar |
| In stock: | In store, External warehouse |
| Switch-on pressure: | 6 bar |
| Cut-off pressure: | 8 bar |
| Pressure vessel connection: | 1/4" |
| Outputs: | 3 x 1/4" |
| Relief tube: | 6/4 mm - Notch ring |
