Portable compressor ABAC L20N-1.5-6CM motor power 1.5 kW, air intake 220 l/min, pressure 8 bar, air receiver 6 l, voltage 230/50 V/Hz
Code: L20N-1-5-6CM
Related products
Product detailed description

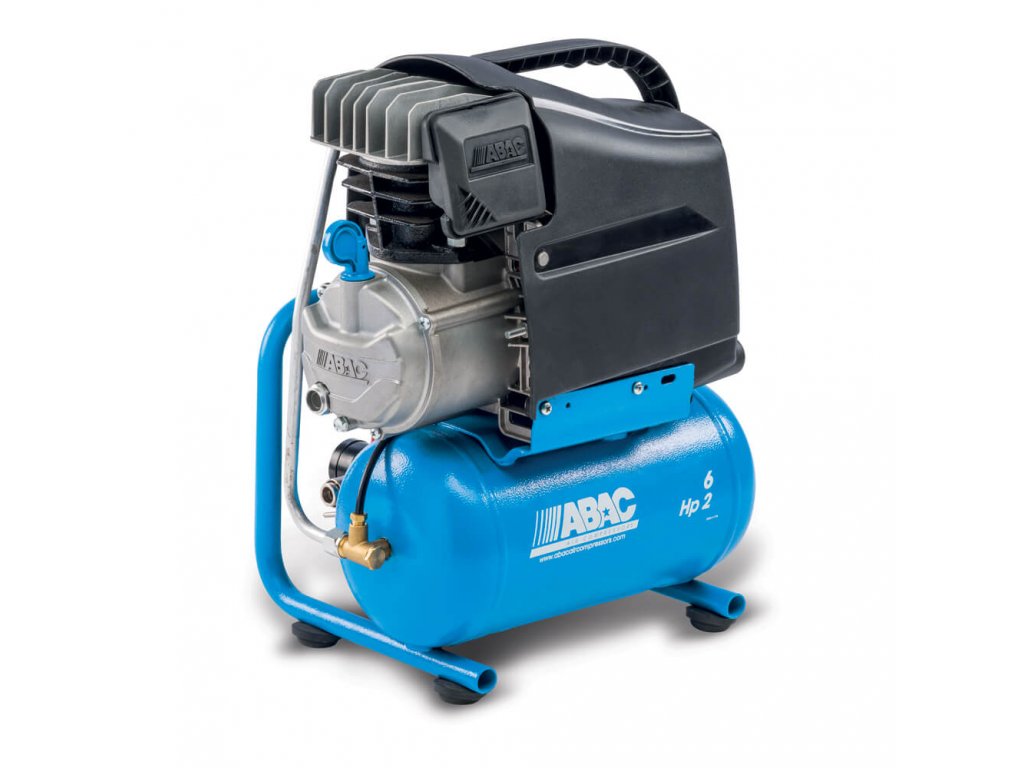

6 l · 8 bar · 14 kgA compressor you carry in one hand. The L20N-1.5-6CM weighs 14 kg: the L20 pump with 1.5 kW and 220 l/min sits on a six-litre tank, the whole machine is carried by the handle on the cover and a tubular hoop protects the panel and the gauges. The switch cuts out at 8 bar — exactly what a stapler, a nailer, a tyre inflator and a blow gun need. From an ordinary socket, anywhere.
Why six litres and 8 bar
A small tank is no weakness when the tools take air in bursts: the stapler fires, the pressure drops by a few tenths of a bar and the pump tops it up before you pull the trigger again. Eight bar is all such tools need, and it means the switch cuts out sooner — the tank is full in no time. In return you get a machine you lift with one hand, stand on its rubber feet next to the bench and put back in the cupboard after work. If you want a ratchet wrench or longer blowing off as well, take the twenty-four.
Equipment and details
What the L20N-1.5-6CM has from the factory
- single-cylinder oil-lubricated L20 pump with direct drive, 1.5 kW, 2,850 rpm
- single-phase 230 V / 50 Hz motor, thermal overload protection, cover with a fan and a recessed intake filter
- horizontal 6 l tank on rubber feet, 8 bar, condensate drain valve underneath
- automatic stop/start pressure switch, outlet pressure regulator, two gauges, DN 7.2 quick coupling
- handle on the pump cover and a tubular hoop around the panel
- oil sight glass on the outside, fill volume approximately two decilitres
- QR code on the tank opens service videos in the AirTube app
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the L20N-1.5-6CM is not the right fit
If you want a ratchet wrench and longer blowing off alongside the nailer, take the L20N-1.5-24CM — the same pump, 24 l, 10 bar. If you do not want oil in the car, there is the oil-free SUITCASE. How the six compares with its siblings is on the L20N range page; if weight is all that matters, compare it with portable compressors with a 6 l tank. To go with the six, add a nailer or a stapler.
Values apply to a 230 V / 50 Hz supply. The noise figure is the sound power level, 95 dB Lwa; at 4 m from the machine that is roughly 75 dB. The machine is built for intermittent duty S3 30%, not for continuous operation.
Ventilek’s tip
Fourteen kilos and a handle on top — a compressor that rides out to the customer in the boot of the car, not one you walk over to.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779119 |
| Compressor type: | Piston compressor |
| Pressure: | 8 bar |
| Suction power: | 220 l/min |
| Air delivery: | 121 l/min |
| Pressure vessel volume: | 6 L |
| Design of pressure vessel: | Integrated |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 2850 rpm |
| Number of cylinders: | 1 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Dimensions: | 400 × 280 × 480 mm |
| Weight: | 14 kg |
| Accessories: | Silent blocks, Pressure regulator, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Semi-professional |
| Development: | Portable |
| In stock: | External warehouse |
