Compressor Pro Line Extensive A39BT-3-90CT, 90 l, 400 V Extensive, motor power 3 kW, air displacement 486 l/min, pressure 10 bar, air receiver 90 l, voltage 400/50 V/Hz, 96 dB Lwa / 76 dB at 4 m
Code: A39BT-3-90CT
Related products
Product detailed description
Extensive · 90 l · 400 V · 486 l/minThe lightest machine with 486 l/min. The A39BT-3-90CT gives the A39B pump a 3 kW motor on 400 V and a 90 l tank: 486 l/min at 1,300 rpm, 10 bar, 67 kg, one front swivel castor with a brake. For a garage with a three-phase socket, where one person runs a sander or an impact wrench in longer bursts and the machine is now and then pulled over to another bay.
Why 3 kW with the ninety
The three-phase 3 kW motor turns the A39B pump at 1,300 rpm and it draws in 486 l/min — 93 l/min more than the 2.2 kW version. With 90 l it is a machine that tops the tank up quickly and yet weighs just 67 kg and is 983 mm long, so you can pull it across the garage on the open handle without help. The reserve is short, though: for a gun spraying in long passes take 200 or 270 l. The 3 kW motor adds one decibel over the 2.2 kW: 96 dB Lwa, 76 dB at 4 m.
Equipment and details
What the A39BT-3-90CT has from the factory
- single-stage twin-cylinder oil-lubricated A39B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,300 rpm
- three-phase 3 kW (4 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air displacement 486 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 90 l tank with a ball valve for draining condensate

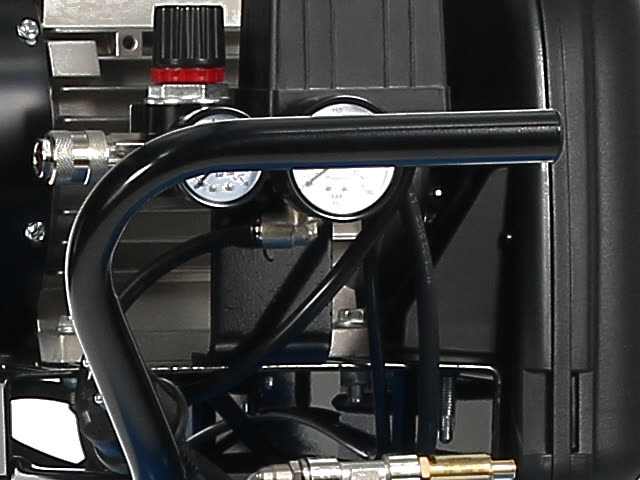

- pressure regulator, two gauges (tank and outlet) and a DN 7.2 quick coupling

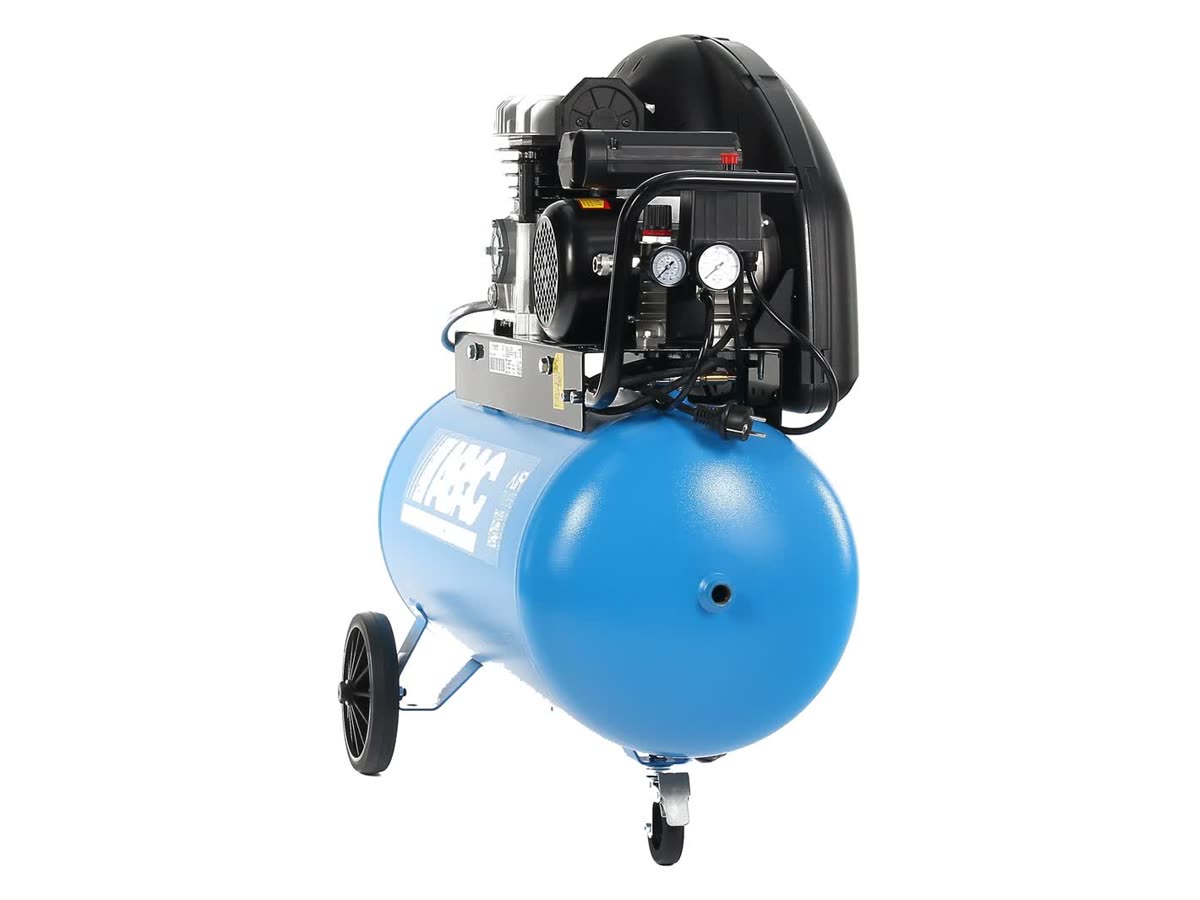

- one front swivel castor with a brake, two 200 mm rear wheels, open tubular handle
- noise 96 dB Lwa, 76 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A39BT-3-90CT is not the right fit

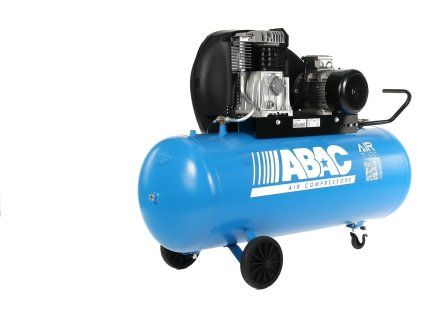

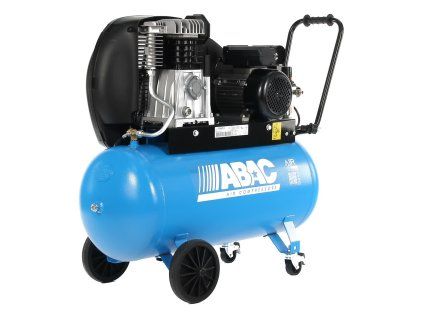

The same ninety on 400 V with 2.2 kW, an outlet filter and a handle comes as the Expert A39BP-2.2-90CT; a bigger reserve for the 3 kW motor is held by the A39BT-3-200CT. Both spec levels and both motors are set side by side on the A39B range page; three-kilowatt machines of all brands are compared among compressors with a 3 kW motor. A ninety with 486 l/min pairs well with an impact wrench.
Values apply to a 50 Hz supply. Air displacement is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise: the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles, not continuously.
Ventilek advises
The ninety with 3 kW: 486 l/min and 67 kg — the lightest way to more air on 400 V.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 486 l/min |
| Displacement: | 350 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 3.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 96 dB - Lwa, 76 dB - Lwp(4m) |
| Weight: | 67 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| In stock: | External warehouse |
| Dimensions: | 983 x 502 x 921 mm |
