Compressor Pro Line Expert A39BP-2.2-150CT, 150 l, 400 V Expert, motor power 2.2 kW, air intake 393 l/min, pressure 10 bar, air receiver 150 l, voltage 400/50 V/Hz, 95 dB Lwa / 75 dB at 4 m
Code: A39BP-2-2-150CT
Related products
Product detailed description

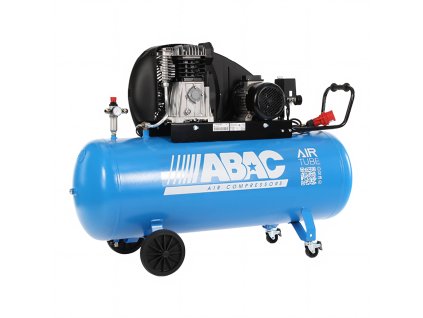

Expert · 150 l · 400 V · 393 l/minThe 150 Expert for a three-phase socket. The A39BP-2.2-150CT: the A39B pump with a 2.2 kW motor on 400 V above a 150 l tank, with a handle, two front castors with brakes and an outlet filter — 393 l/min of displacement at 1,050 rpm, 10 bar, 72 kg. For a workshop with 400 V, where the machine moves between workstations and a gun or a sander draws air for a long time.
Why 150 l with a three-phase motor and the Expert spec
The three-phase 2.2 kW motor can start more often without troubling the breaker, and 150 l gives the tool a reserve for longer passes; the A39B pump tops it up at 393 l/min. The dimensions of 1,391 × 500 × 977 mm and 72 kg are the same as on the single-phase version. Thanks to the handle with a rubber grip and the two front swivel castors with brakes, one person wheels the machine and fixes it in place; the outlet filter keeps condensate out of the hose. The handle, castors and filter add no noise: 95 dB Lwa, 75 dB at 4 m.
Equipment and details
What the A39BP-2.2-150CT has from the factory
- single-stage twin-cylinder oil-lubricated A39B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,050 rpm
- three-phase 2.2 kW (3 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 393 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 150 l tank with a ball valve for draining condensate
- pressure regulator with an outlet filter, two gauges (tank and outlet) and a DN 7.2 quick coupling
- two front swivel castors with brakes, two 200 mm rear wheels, closed handle with a rubber grip
- noise 95 dB Lwa, 75 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A39BP-2.2-150CT is not the right fit
The same spec for an ordinary 230 V socket is offered by the A39BP-2.2-150CM; if you want an even longer reserve on 400 V with a filter and a handle, take the A39BP-2.2-200CT. Both voltages and both spec levels are side by side on the A39B range page; workshop machines across brands are grouped together under workshop compressors. Dry air goes from the outlet filter straight into a spray gun.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise: the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles, not continuously.
Ventilek advises
The 150 Expert on 400 V: a handle, brakes and a filter — for a workshop where the machine travels between workstations.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 393 l/min |
| Air delivery: | 255 l/min |
| Pressure vessel volume: | 150 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Weight: | 72 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Filtration |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| In stock: | External warehouse |
| Dimensions: | 1 391 x 500 x 977 mm |
