Compressor Pro Line Expert A39BP-2.2-270CT, 270 l, 400 V Expert, motor power 2.2 kW, air intake 393 l/min, pressure 10 bar, air receiver 270 l, voltage 400/50 V/Hz, 95 dB Lwa / 75 dB at 4 m
Code: A39BP-2-2-270CT
Related products
Product detailed description

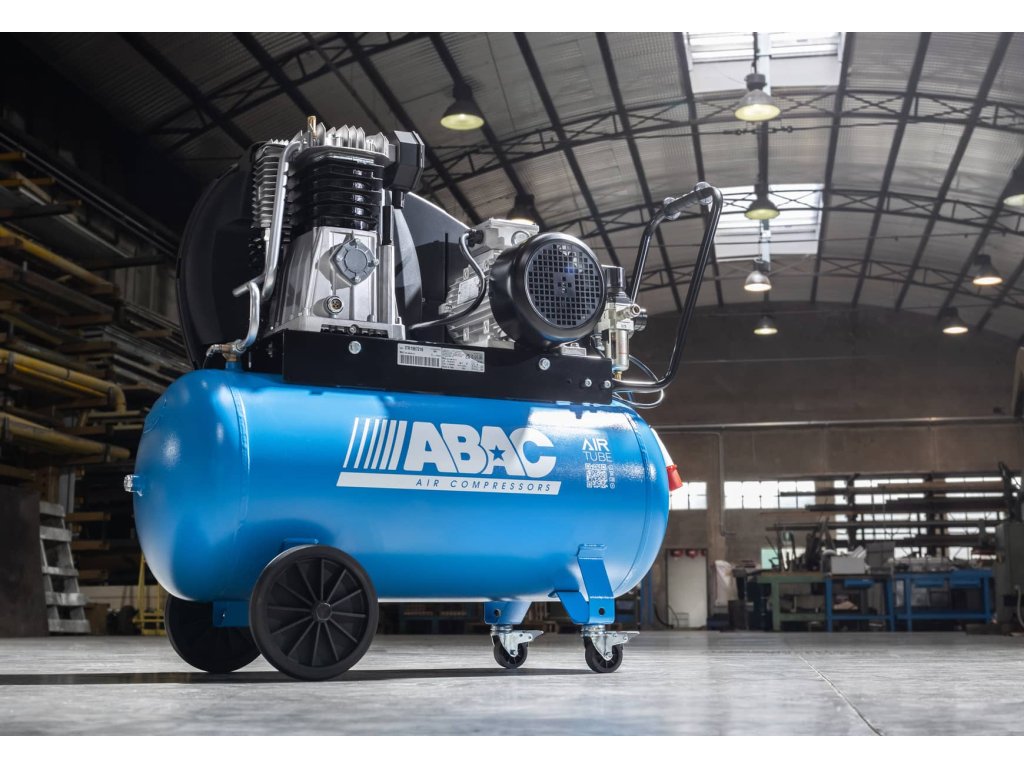

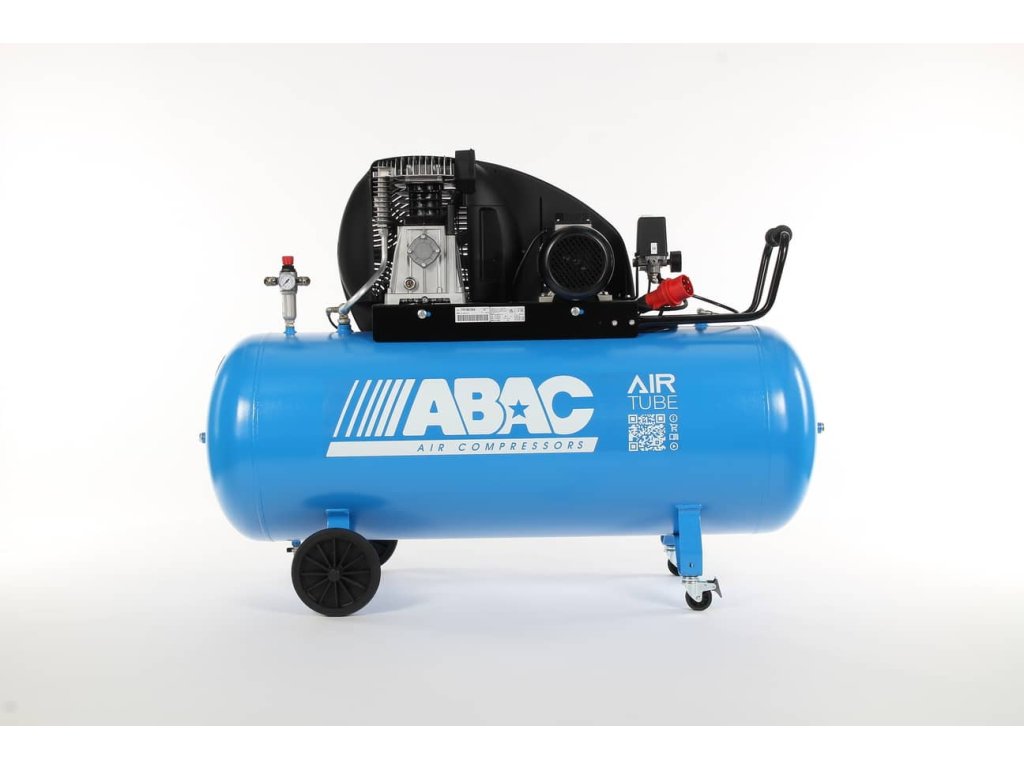

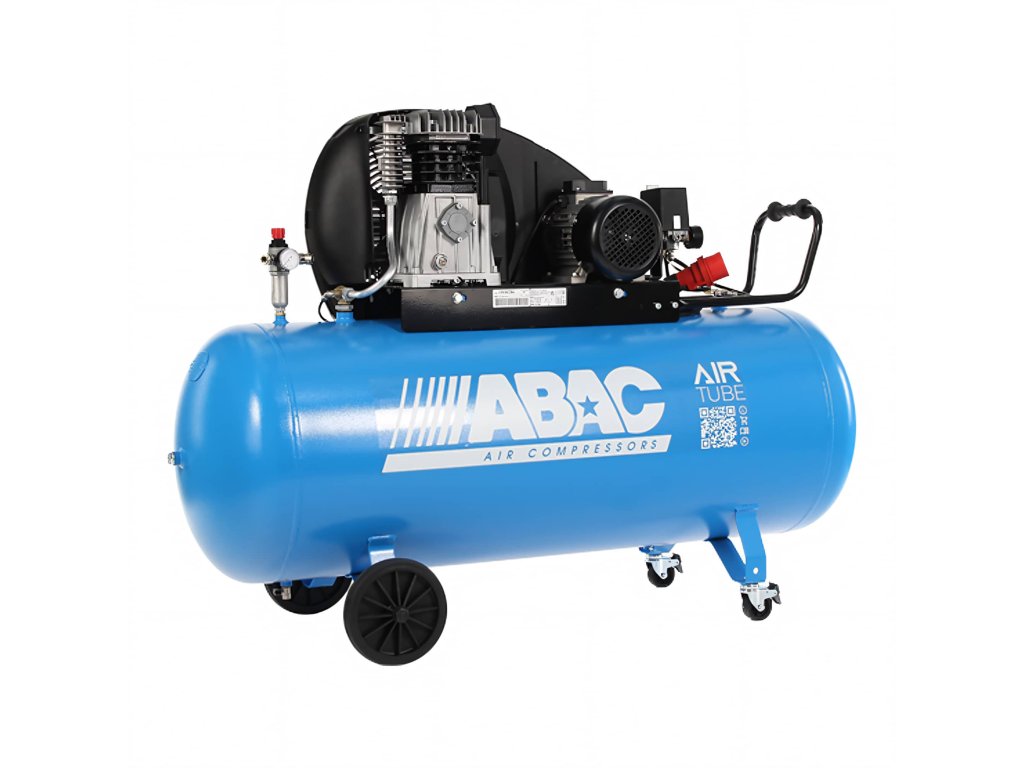

Expert · 270 l · 400 V · 393 l/minThe biggest Expert in the range. On the A39BP-2.2-270CT a 270 l tank carries the A39B pump with a 2.2 kW motor on 400 V — 393 l/min of displacement at 1,050 rpm, 10 bar, 138 kg; the Expert adds a closed handle, two front swivel castors with brakes and a filter next to the regulator. For an operation where several tools take turns on one machine and the air should leave without condensate.
Why 270 l in the Expert spec
The longest reserve in the range lets two people with a short draw or one gun in long passes feed from the tank while the A39B pump tops it up at 393 l/min; the motor starts less often than with the smaller tanks. The outlet filter keeps condensate out of the hose, the handle with a rubber grip and the two front swivel castors with brakes shift and fix a machine of 1,495 × 588 × 1,079 mm and 138 kg. If you want 486 l/min with this tank, take the 3 kW in the Extensive spec. The noise does not change with the tank size: 95 dB Lwa, 75 dB at 4 m.
Equipment and details
What the A39BP-2.2-270CT has from the factory

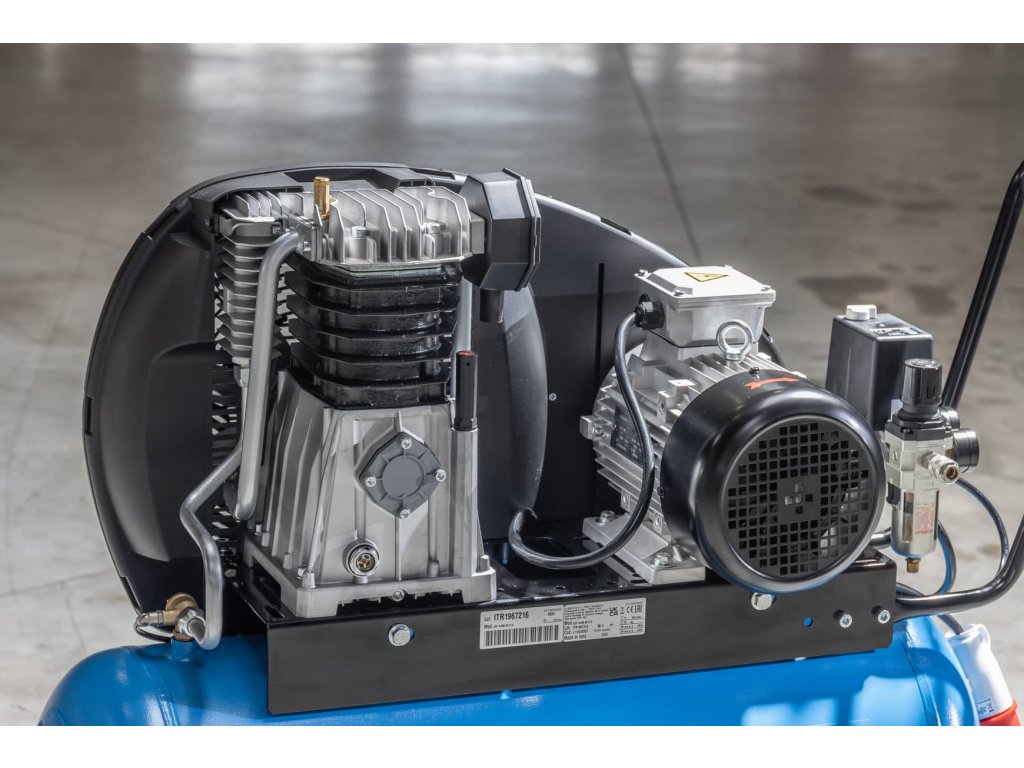

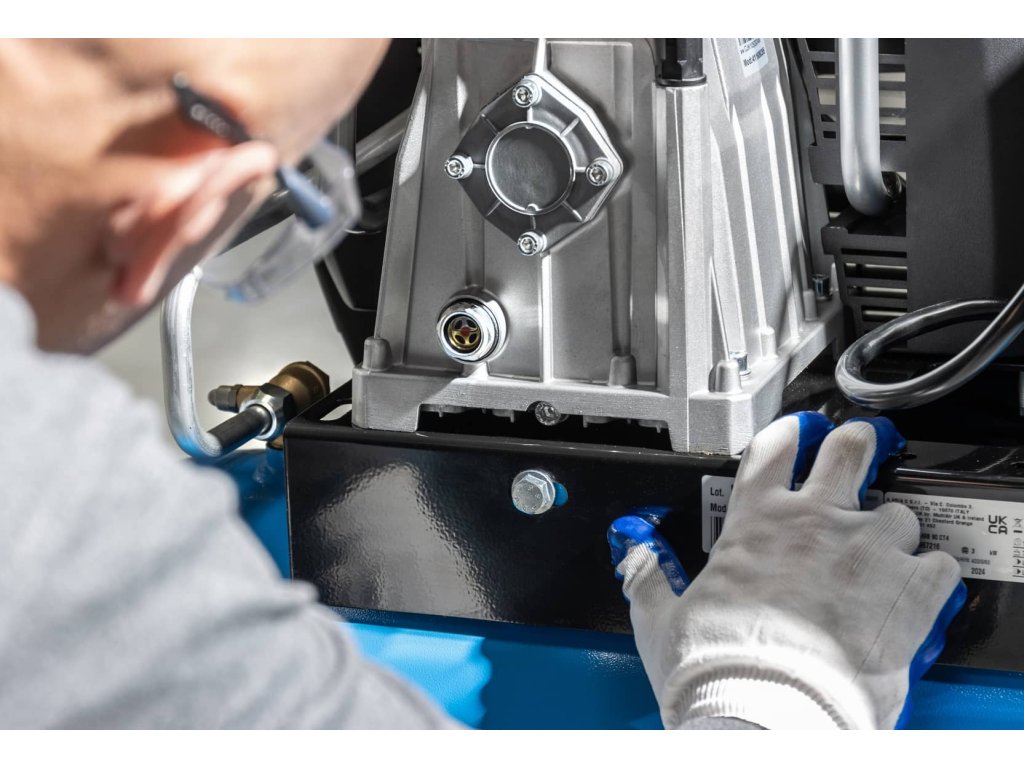

- single-stage twin-cylinder oil-lubricated A39B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,050 rpm
- three-phase 2.2 kW (3 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 393 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 270 l tank with a ball valve for draining condensate

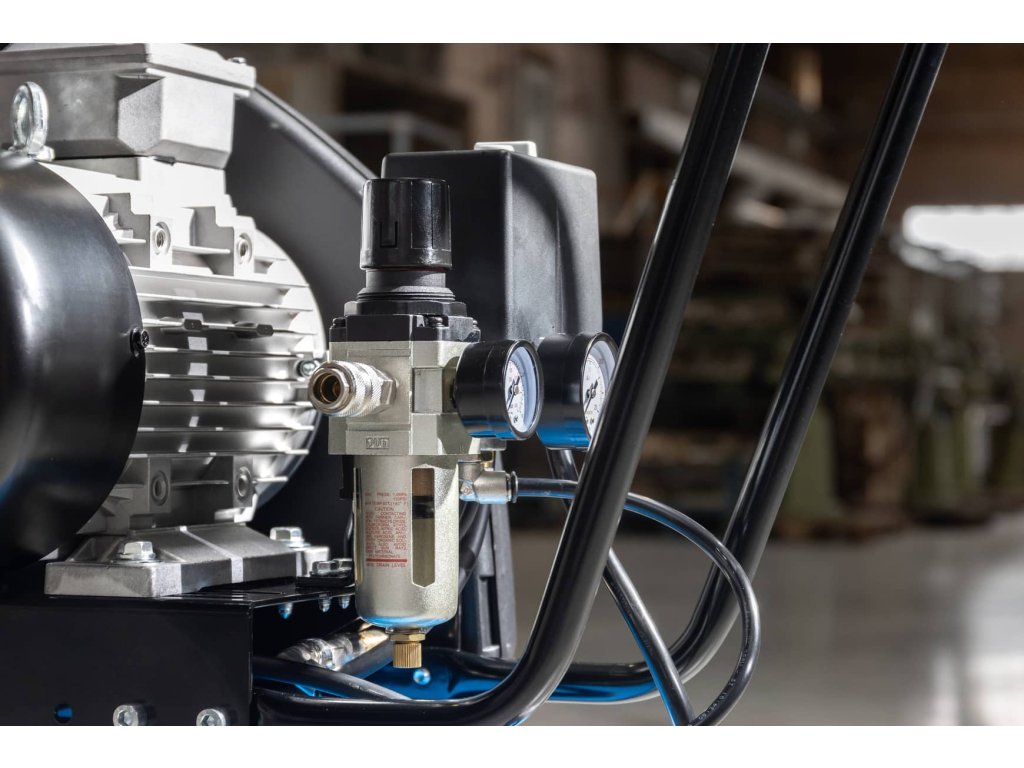

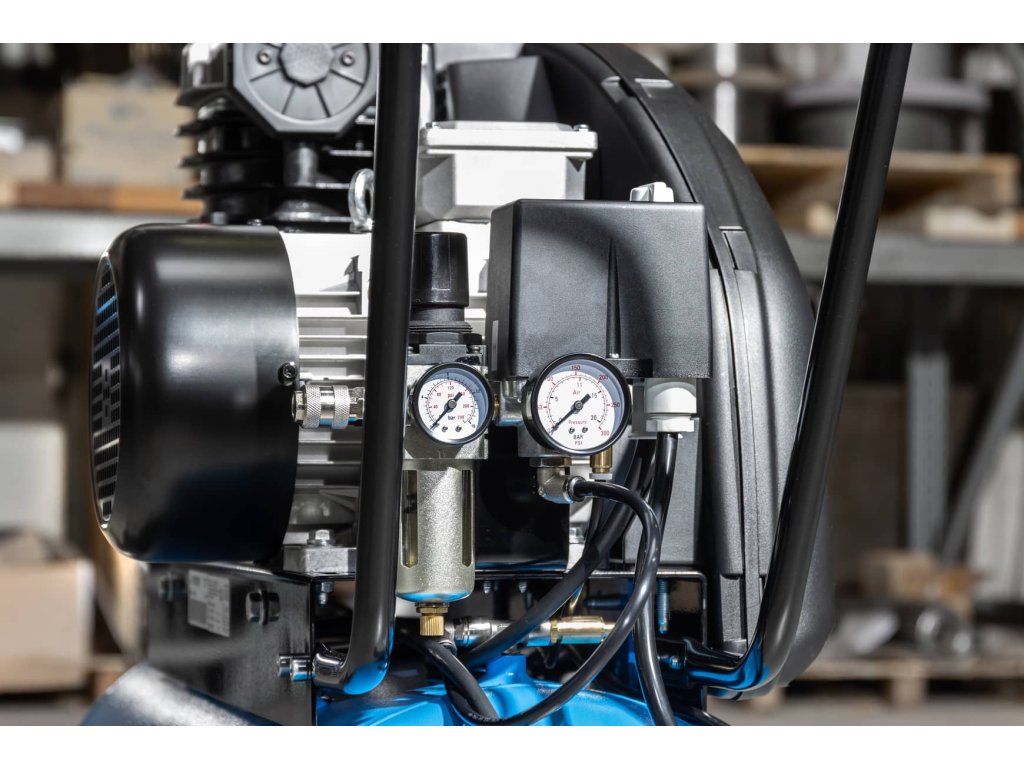

- pressure regulator with an outlet filter, two gauges (tank and outlet) and a DN 7.2 quick coupling

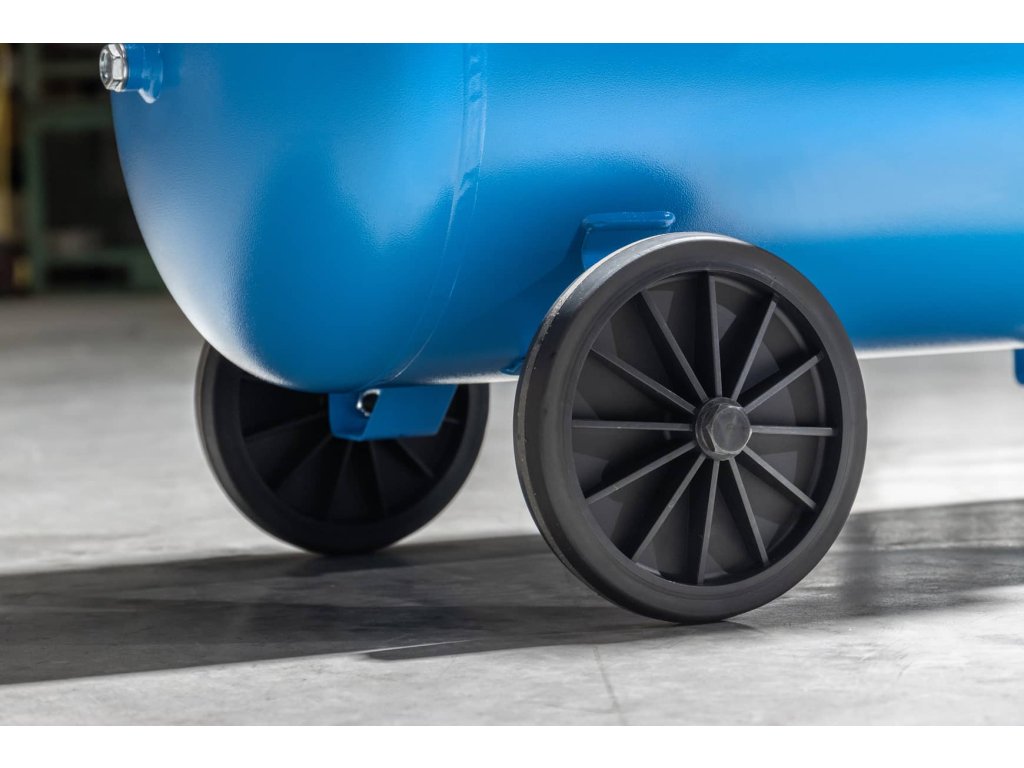

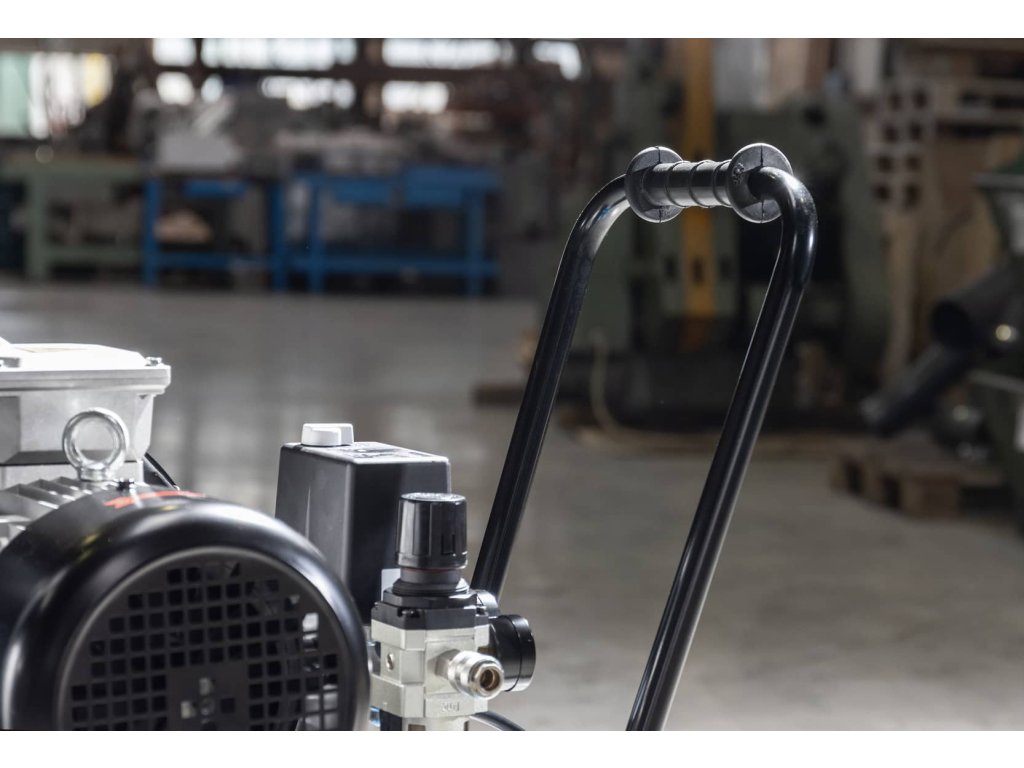

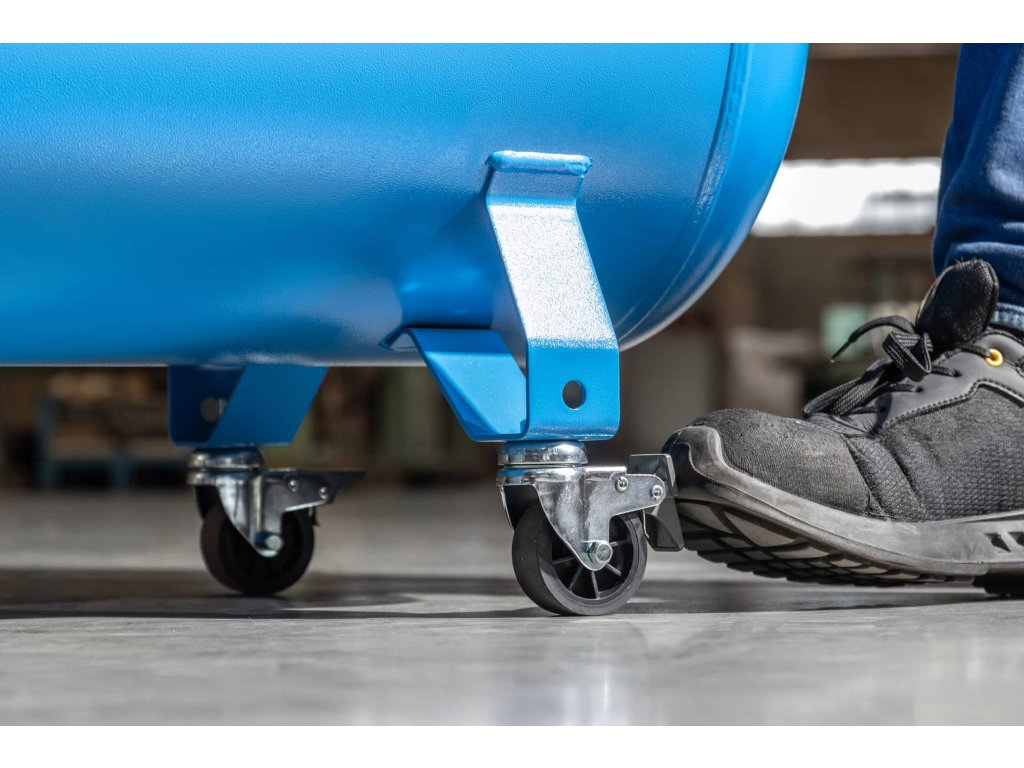

- two front swivel castors with brakes, two 200 mm rear wheels, closed handle with a rubber grip
- noise 95 dB Lwa, 75 dB at 4 m

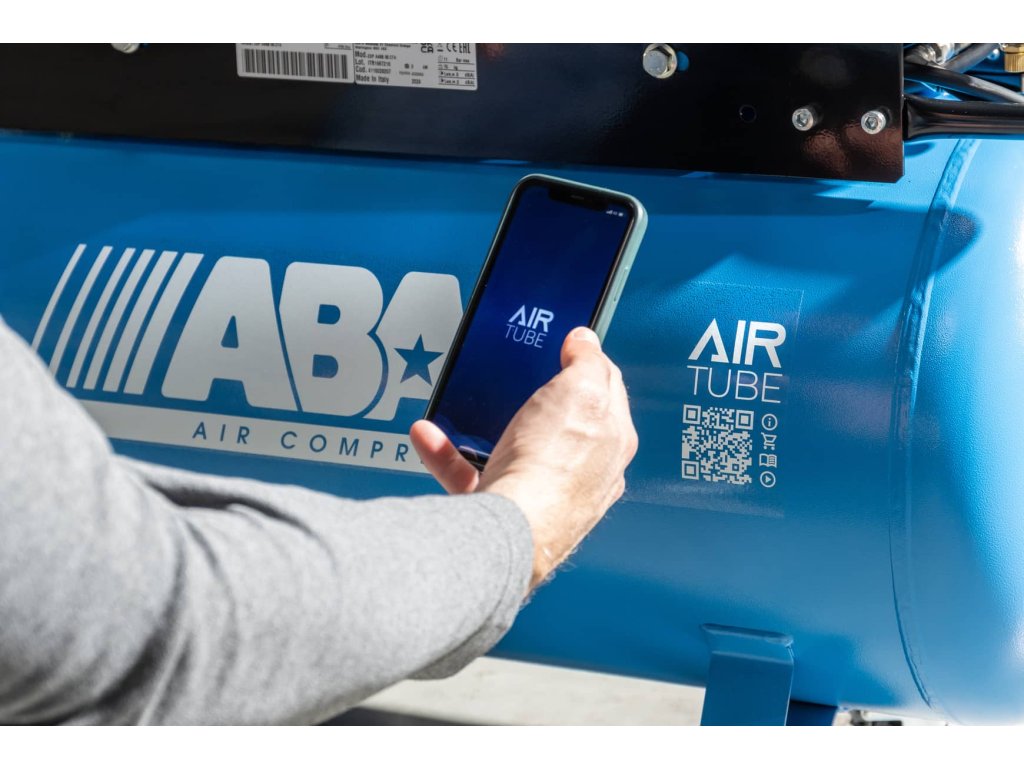

- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A39BP-2.2-270CT is not the right fit
The same tank with 3 kW and 486 l/min is the Extensive A39BT-3-270CT, for an ordinary socket the A39BT-2.2-270CM. How it differs from the smaller Experts and from the 3 kW is shown on the A39B range page; the biggest tanks of other brands are among compressors with a 270 l tank. A higher pressure of 11 bar comes with the two-stage A49B.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise: the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles, not continuously.
Ventilek advises
The biggest Expert: 270 l, a filter on the outlet, a handle and brakes — for an operation where several people take turns on the machine and the air should be dry.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 393 l/min |
| Air delivery: | 255 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Weight: | 138 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Filtration |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 1 495 x 588 x 1 079 mm |
