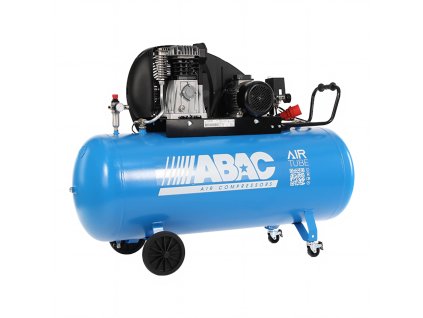

Compressor Expert Zero A39B0P-2.2-270CT, 270 l, 400 V motor power 2.2 kW, air intake 393 l/min, pressure 10 bar, air receiver 270 l, voltage 400/50 V/Hz, 96 dB Lwa / 76 dB at 4 m
Code: A39B0P-2-2-270CT
Related products
Product detailed description
270 l · 400 V · 393 l/minThe biggest tank with the A39B0 pump on 2.2 kW for a 400 V supply. The A39B0P-2.2-270CT draws in 393 l/min at 1,050 rpm and holds 270 l at 10 bar; it weighs 116 kg. Oil-free air through a filter-regulator for premises where several people draw on one reserve and the machine stands by a three-phase socket — when the 486 l/min of the 3 kW is not yet needed.
A big reserve, a smaller motor: when not to take the 3 kW
Two hundred and seventy litres with a 2.2 kW motor is the choice for premises where air is drawn in bursts — staplers, blowing off, a gun with breaks — and the tank catches up in between. The motor is one class smaller than on the 3 kW, so the machine draws less from the supply and is a decibel quieter: 96 dB Lwa, 76 dB at 4 m. If you draw air continuously rather than in bursts, you need the 3 kW with 486 l/min on the same tank.
Equipment and details
What the A39B0P-2.2-270CT has from the factory
- oil-free single-stage A39B0 pump with Teflon-coated cylinders, V-belt drive, 1,050 rpm
- 2.2 kW electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 393 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 270 l tank, ball valve for draining condensate
- filter-regulator with a gauge and a DN 7.2 quick coupling on the outlet
- two front swivel castors with brakes, two fixed wheels at the rear, closed handle with a rubber grip
- noise 96 dB Lwa, 76 dB at 4 m
- QR code on the tank opens service videos in the AirTube app; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A39B0P-2.2-270CT is not the right fit
For a 230 V socket the same machine exists as the A39B0P-2.2-270CM; if you draw air continuously, choose the A39B0P-3-270CT, with 486 l/min. When 2.2 kW is enough and when the 3 kW is a must is shown on the Expert Zero range page; the other 400 V machines are among 400 V compressors. For blowing off at several workstations, it goes well with a blow gun.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
Two hundred and seventy litres on 400 V with a 2.2 kW motor — for premises where air is drawn in bursts and the tank catches up in between.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 393 l/min |
| Air delivery: | 255 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 96 dB - Lwa|76 dB - Lwp(4m) |
| Dimensions: | 1495 × 588 × 1078 mm |
| Weight: | 116 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional|Industrial |
| Development: | Mobile |
