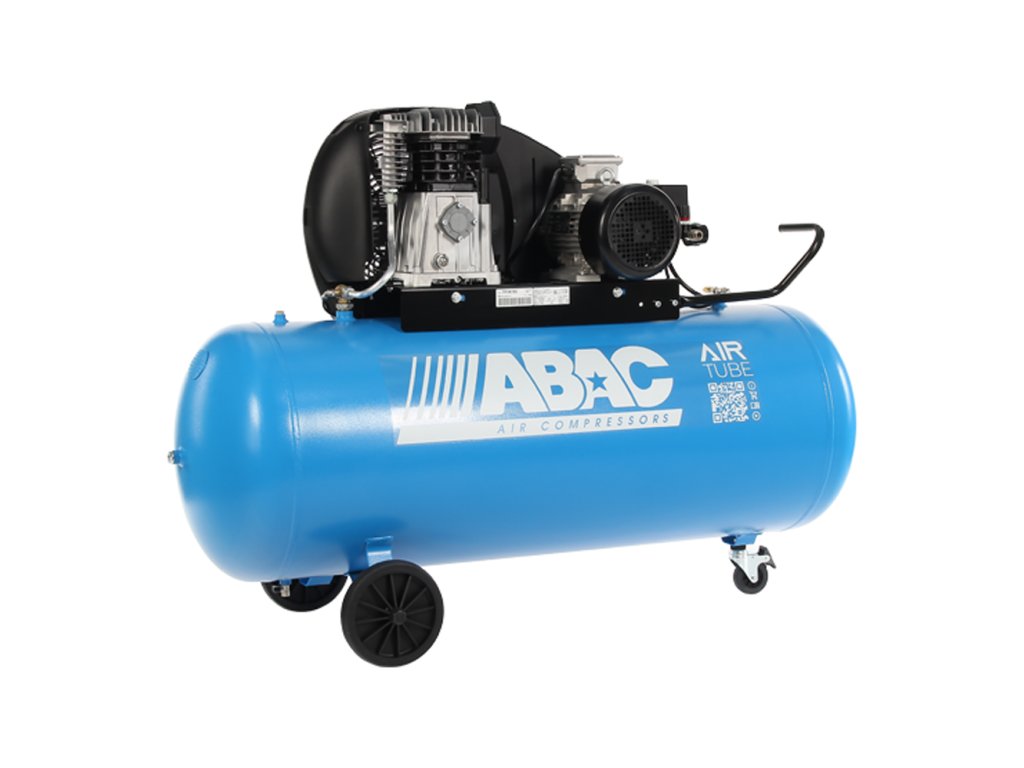

Compressor Pro Line Extensive A39BT-3-270CT, 270 l, 400 V Extensive, motor power 3 kW, air intake 486 l/min, pressure 10 bar, air receiver 270 l, voltage 400/50 V/Hz, 96 dB Lwa / 76 dB at 4 m
Code: A39BT-3-270CT
Related products
Product detailed description
Extensive · 270 l · 400 V · 486 l/minThe most air and the biggest reserve in one machine. The top of the range, the A39BT-3-270CT, pairs the biggest motor, 3 kW on 400 V, with the biggest tank, 270 l — the A39B pump at 1,300 rpm draws in 486 l/min, 10 bar, 138 kg. For a paint shop, a joiner's workshop or a garage where two people work on one machine or a gun sprays in long passes.
Why the top of the range with 3 kW and 270 l
The combination of 486 l/min and 270 l of reserve is the biggest the single-stage A39B pump offers: two people with a ratchet and a sander or one gun in long passes draw on the tank, and the pump at 1,300 rpm tops it up before the pressure at the tool drops. The machine measures 1,495 × 588 × 1,067 mm and weighs 138 kg — it stays in one place, and the one front castor with a brake and the open handle serve for lining it up. If you need 11 bar or a sander running non-stop, you move up to a two-stage pump. The noise is 96 dB Lwa, which means 76 dB at 4 m from the machine.
Equipment and details
What the A39BT-3-270CT has from the factory
- single-stage twin-cylinder oil-lubricated A39B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,300 rpm
- three-phase 3 kW (4 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 486 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 270 l tank with a ball valve for draining condensate
- pressure regulator, two gauges (tank and outlet) and a DN 7.2 quick coupling
- one front swivel castor with a brake, two 200 mm rear wheels, open tubular handle
- noise 96 dB Lwa, 76 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A39BT-3-270CT is not the right fit
The same tank with 2.2 kW for a 230 V socket is the A39BT-2.2-270CM; with an outlet filter and a handle, but only with 2.2 kW, there is the Expert A39BP-2.2-270CT. Where the top of the range belongs among the others is shown on the A39B range page; at 11 bar it is followed by the two-stage A49B. Upstream of a spray gun belongs a regulator with a filter at the workstation.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise: the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles, not continuously.
Ventilek advises
The top of the range: 486 l/min, 270 l and 400 V — for two people with tools or a gun that sprays for a long time.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 486 l/min |
| Air delivery: | 316 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 3.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 96 dB - Lwa, 76 dB - Lwp(4m) |
| Weight: | 138 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| In stock: | External warehouse |
| Dimensions: | 1 495 x 588 x 1 067 mm |
