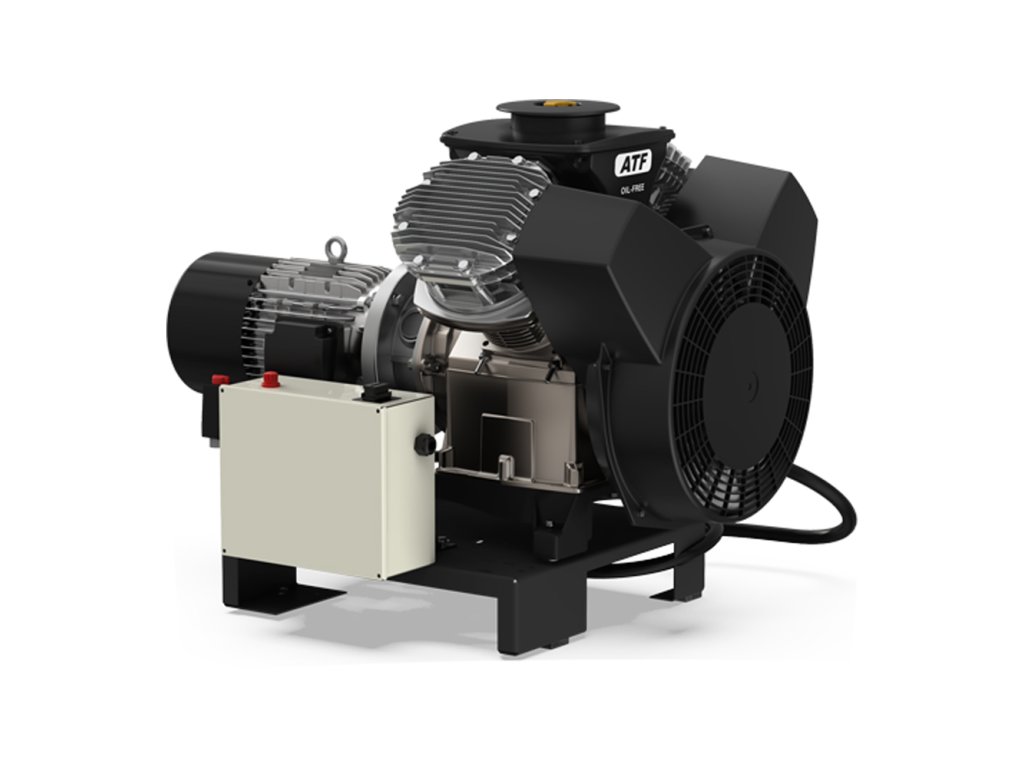

Oil-free ABAC Tech compressor - ATF-4-BTX motor 4 kW, 396 l/min at 10 bar, intake 918 l/min, on a base frame, supply 400/50 V/Hz, 103 dB Lwa / 83 dB at 4 m
Code: ATF-4-BTX
Product detailed description
ABAC Tech ATF · oil-free · star-deltaTwice the air. The ATF-4-BTX delivers 396 l/min at 10 bar — against 2.2 kW that is more than double, and the machine weighs only seven kilograms more and fits the same installation space. The letter X in the code means star-delta starting: the motor runs up in two steps, so the current peak at start-up is markedly lower.
Why four kilowatts in particular
The four-kilowatt airend is the turning point of the range: it draws in 918 l/min and sends 396 l/min into the pipework at full working pressure. That is enough for several workplaces at once or for a process with a constant draw — and because the motor runs in duty type S1, no cooling break has to be planned for.
The machine is supplied only on a base frame, that is ready to be placed and anchored. The installation space is the same as for the smaller machines of the range, the weight is 80 kg.
Equipment and details
What ATF-4-BTX does as delivered
- oil-free single-stage airend with two cylinders in a V, 1,500 rpm
- 4 kW motor in duty type S1, that is a 100% duty cycle with no pauses to cool down
- direct drive without belts — the airend sits straight on the motor
- mounted on a steel base frame with a control box; the machine can be anchored to the floor or set on anti-vibration mounts
- electric motor 400/50 V/Hz, three-phase supply, star-delta starting
- intake 918 l/min, delivery 396 l/min at a working pressure of 10 bar
- nickel-plated aluminium cylinders with heavy finning, Teflon-coated pistons, stainless steel valves
- crankshaft bearings filled with grease at the factory for their whole service life
- no pressure vessel — the air goes into the pipework or into a separate receiver
- weight 80 kg, dimensions 686 × 575 × 671 mm; noise 103 dB Lwa, 83 dB at 4 m
- 2-year warranty
Machine details
Where to go if ATF-4-BTX does not fit
Half the delivery comes from ATF-2,2-BT, half as much again from ATF-5,5-BTX. The full overview is in the overview of the whole category, the machines already on a receiver in the version on a receiver.
The delivered figure is the air the machine supplies at a working pressure of 10 bar; the intake is the volume the airend draws in. Noise is given as the sound power level Lwa from the machine plate and as the sound pressure at 4 m from the machine. Performance data according to ISO 1217, Annex C, noise according to ISO 2151.
Ventilek recommends
From four kilowatts up it is worth thinking about where the machine will stand. 103 dB of sound power is a lot and there is no enclosure here — a plant room, an annex or at least a wall between the compressor and people.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 918 l/min |
| Air delivery: | 396 l/min |
| Pressure vessel volume: | It isn't |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1500 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 103 dB - Lwa, 83 dB - Lwp(4m) |
| Dimensions: | 686 × 575 × 671 mm |
| Weight: | 80 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Starting the machine: | Y/D - Star triangle |
| Air dryer: | No |
| Retrieved from: | Industrial |
| Development: | Stationary |
