Oil-free ABAC Tech compressor - ATF-7,5-TX motor 7.5 kW, 786 l/min at 10 bar, intake 1,470 l/min, bare unit, supply 400/50 V/Hz, 106 dB Lwa / 86 dB at 4 m
Code: ATF-7-5-TX
Product detailed description

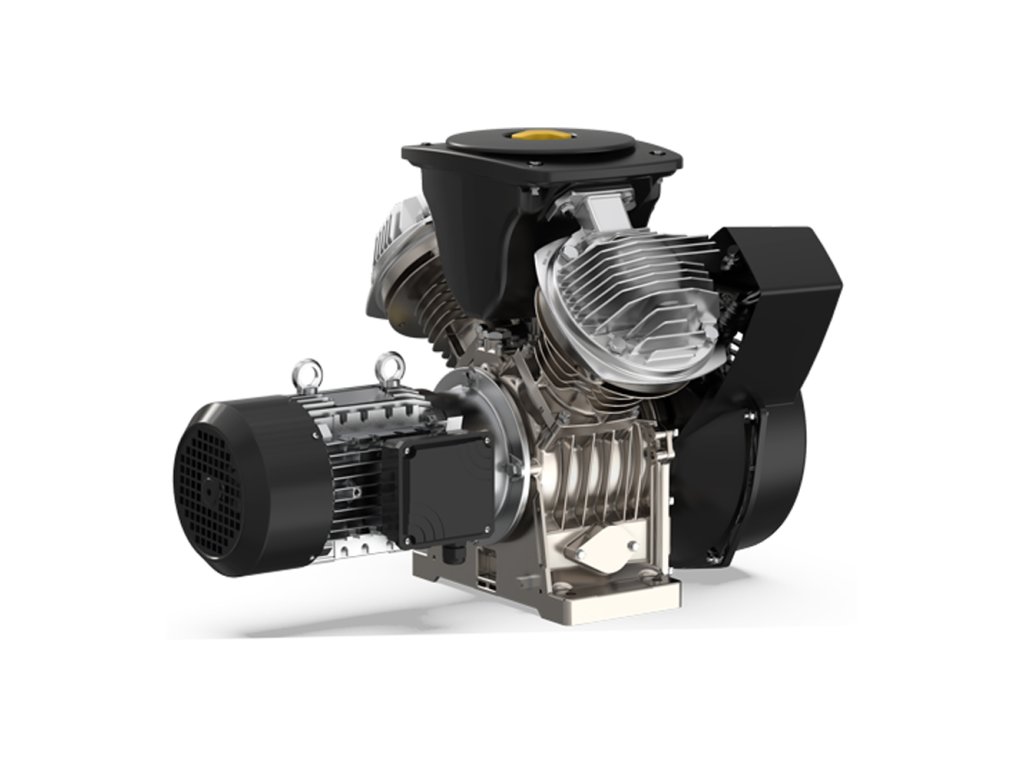

ABAC Tech ATF · oil-free · 786 l/minThe most air the ATF range gives. The ATF-7.5-TX delivers 786 l/min at 10 bar and draws in 1,470 l/min. It is a bare unit with a motor, that is the airend and motor on a common base plate without a frame, with star-delta starting. At 102 kilograms it is the heaviest machine in the category, yet its dimensions are smaller than those of the frame-mounted 5.5 kW machine.
Why the largest machine is a bare unit
Seven and a half kilowatts come in this category without a frame. That makes sense where the machine goes into an installation of your own anyway — onto a supporting structure, to an existing receiver or into a plant room with anchoring already prepared. The frame that would have been removed simply falls away.
In output it is a jump: 786 instead of 576 l/min against the 5.5 kW machine, that is 36 % more air. The dimensions are smaller than those of the frame-mounted 5.5 kW machine — 860 × 591 × 625 mm — because the bare version needs no steel frame around it.
Equipment and details
What ATF-7,5-TX does as delivered
- oil-free single-stage airend with two cylinders in a V, 1,500 rpm
- 7.5 kW motor in duty type S1, that is a 100% duty cycle with no pauses to cool down
- direct drive without belts — the airend sits straight on the motor
- bare unit with motor on a common base plate, no frame — for your own installation or an existing set-up
- electric motor 400/50 V/Hz, three-phase supply, star-delta starting
- intake 1,470 l/min, delivery 786 l/min at a working pressure of 10 bar
- nickel-plated aluminium cylinders with heavy finning, Teflon-coated pistons, stainless steel valves
- crankshaft bearings filled with grease at the factory for their whole service life
- no pressure vessel — the air goes into the pipework or into a separate receiver
- weight 102 kg, dimensions 860 × 591 × 625 mm; noise 106 dB Lwa, 86 dB at 4 m
- 2-year warranty
Machine details
Where to go if ATF-7,5-TX does not fit
A third less air comes from ATF-5,5-BTX, the smallest machine of the range is ATF-1,5-T. The full overview is in the overview of the whole category, the machines already on a receiver in the version on a receiver.
The delivered figure is the air the machine supplies at a working pressure of 10 bar; the intake is the volume the airend draws in. Noise is given as the sound power level Lwa from the machine plate and as the sound pressure at 4 m from the machine. Performance data according to ISO 1217, Annex C, noise according to ISO 2151.
Ventilek recommends
Seven and a half kilowatts without oil is a serious machine — 106 dB of sound power is the level where you can no longer talk in the room. Into a plant room, onto anti-vibration mounts and with a proper receiver: without one the motor would cut in over and over, which does it no good.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 1 470 l/min |
| Air delivery: | 786 l/min |
| Pressure vessel volume: | It isn't |
| Motor power: | 7.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1500 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 106 dB - Lwa, 86 dB - Lwp(4m) |
| Dimensions: | 860 × 591 × 625 mm |
| Weight: | 102 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Starting the machine: | Y/D - Star triangle |
| Air dryer: | No |
| Retrieved from: | Industrial |
| Development: | Stationary |
