Soundproofed ABAC piston compressor - B59-4-L2T motor 4 kW, intake 570 l/min, pressure 11 bar, no receiver, L2 cabinet, supply 400/50 V/Hz, 87 dB Lwa / 67 dB at 4 m
Code: B59-4-L2T
Related products
Product detailed description

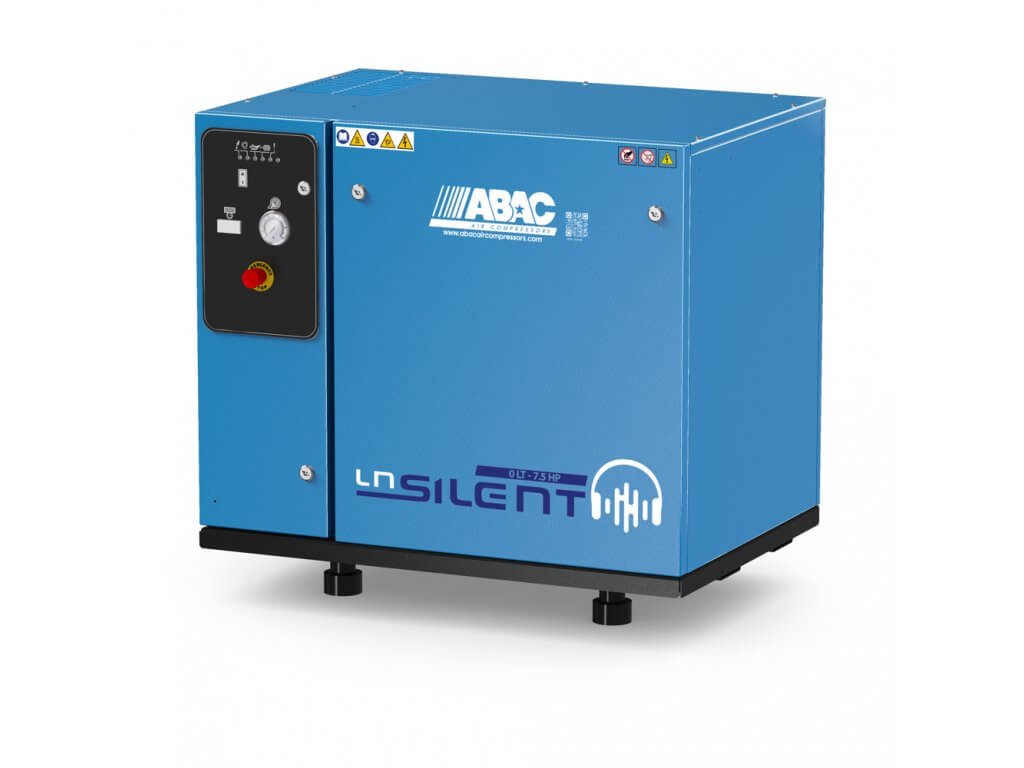

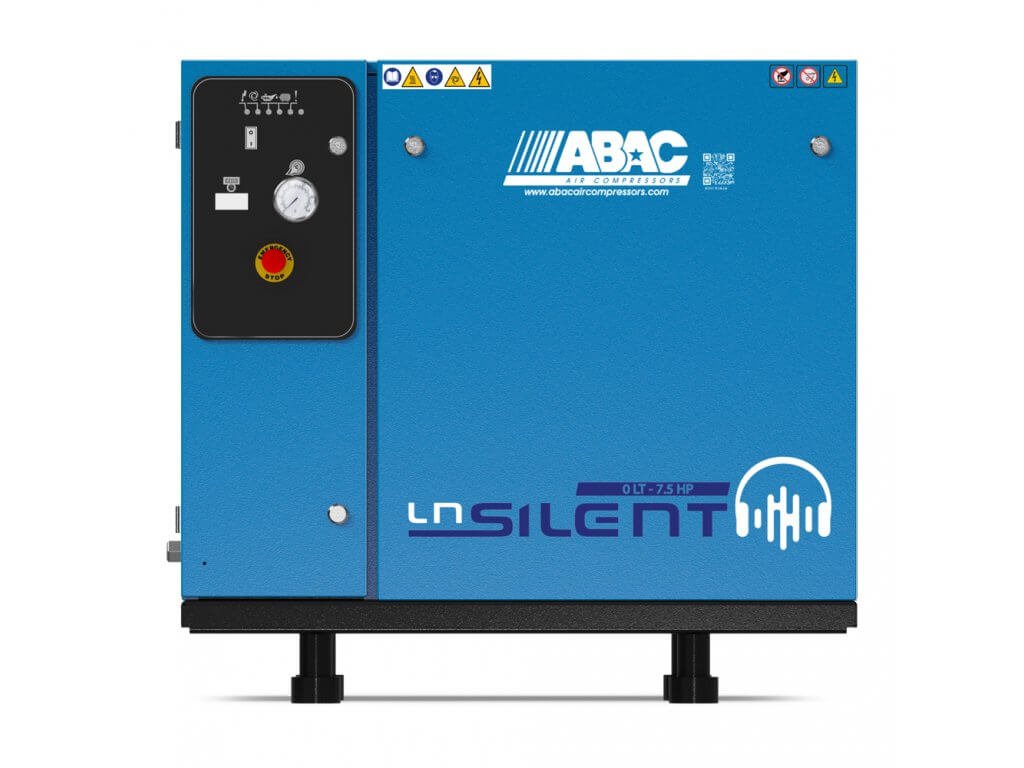

Silent Line LN · L2 cabinet · 87 dB LwaQuiet in a large cabinet. The B59-4-L2T pairs the slow-running four-kilowatt B59 pump with the L2 cabinet — 570 l/min at 11 bar, 87 dB Lwa and a control panel with LED fault indication. It weighs 177 kg, seven kilos more than the version in the small cabinet.
Why a large cabinet for a slow-running pump
The B59 pump runs at 1,200 rpm, which makes it the calmest machine in the category. The large cabinet adds service access and LED indication — a combination that makes sense where the compressor runs daily and nobody stands next to it.
The open version at four kilowatts reads 97 dB Lwa; here it is 87 dB. Four metres from the machine that corresponds to 67 dB of sound pressure.
Equipment and details
What the B59-4-L2T comes with
- two-stage oil-lubricated B59 pump with an aftercooler, V-belt drive, 1,200 rpm
- acoustic cabinet in size L2, sheet-steel panels lined with acoustic foam, each panel removable on its own
- cooling by a pulley whose spokes are shaped like fan blades and drive air onto the cylinders of the pump
- three-phase electric motor, 4 kW, 400 V / 50 Hz, thermal protection, pressure switch
- intake 570 l/min, working pressure 11 bar
- central control panel with main switch, gauge, pressure regulator and hour counter; LED fault indication
- no receiver of its own — the machine connects to pipework or to a separate pressure vessel
- weight 177 kg, dimensions 1 000 × 738 × 955 mm; noise 87 dB Lwa, 67 dB at 4 m
- two-year warranty, a third year for a surcharge
Machine details
Where to go if the B59-4-L2T does not fit
With a star-delta start the same machine is the B59-4-L2TX. In the smaller cabinet there is the B59-4-L1T (170 kg). More air comes from the B60-5,5-L2TX at 660 l/min. The full overview is in the overview of the ten cabinet machines.
The values apply to a 400 V / 50 Hz supply. Intake is the volume of air the pump draws in. Noise is given as the sound power level Lwa and as sound pressure at 4 m from the machine. A piston compressor works in cycles, not without a break.
Ventilek advises
The calmest machine that can be put into a large cabinet. Seven kilos more than the L1 is the price of the panel and of getting inside.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 570 l/min |
| Air delivery: | 439 l/min |
| Pressure vessel volume: | 27 L |
| Design of pressure vessel: | Integrated |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1200 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 87 dB - Lwa, 67 dB - Lwp(4m) |
| Dimensions: | 1 000 × 738 × 955 mm |
| Weight: | 177 kg |
| Accessories: | Silent blocks, Pressure regulator, Quick coupler, Cover, Electronic LED signaling |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
