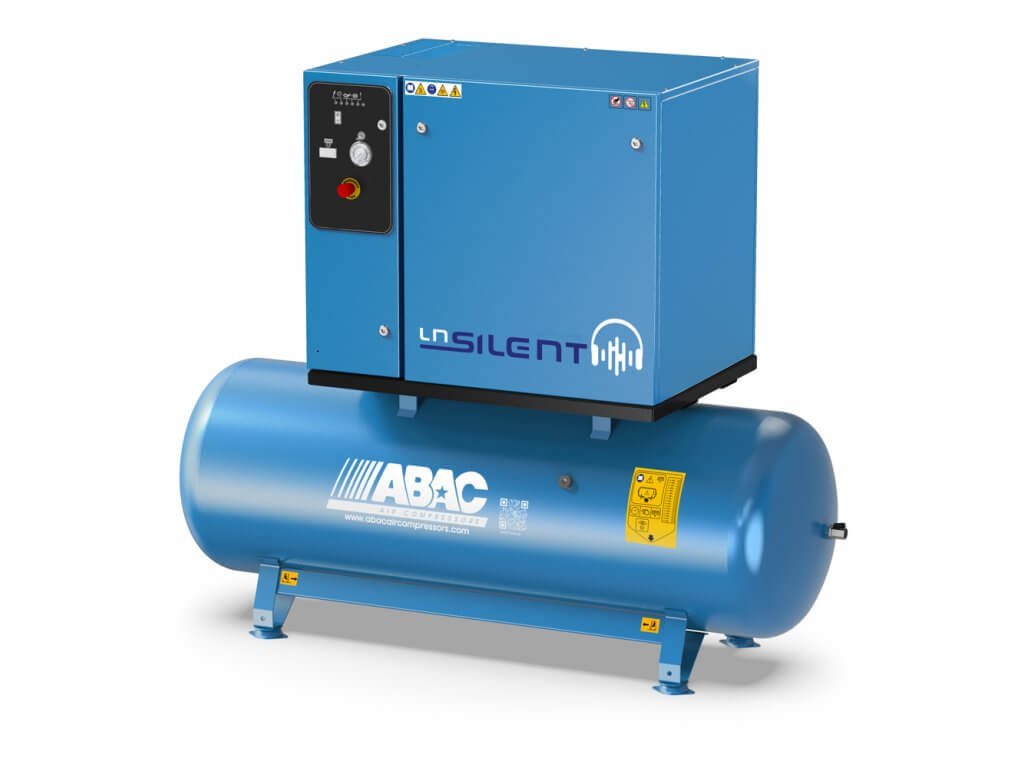

Soundproofed ABAC piston compressor - B59-4-270L2TX motor 4 kW, intake 570 l/min, pressure 11 bar, receiver 270 l, L2 cabinet, supply 400/50 V/Hz, 87 dB Lwa / 67 dB at 4 m
Code: B59-4-270L2TX
Related products
Product detailed description
Silent Line LN · 270 l · star-deltaA calm run and a soft start. B59-4-270L2TX is the same machine as B59-4-270L2T, only with star-delta starting — the motor runs up in two steps, so the current surge at start-up is gentler. It delivers 570 l/min at 11 bar and holds 87 dB Lwa.
Why star-delta starting
On a direct start a three-phase motor draws a surge several times its rated current. Star-delta starting splits it into two steps: the winding is first connected in star at a lower voltage, and once the motor is up to speed it switches to delta. The surge is lower and the run-up softer.
It pays off where the supply is weak or long, where the breaker trips at start-up, or where the compressor cuts in many times an hour. Otherwise the machine behaves exactly like the direct-start version: the slowed pump delivers 570 l/min instead of the 653 l/min the open Pro Line version manages, and instead of 97 dB Lwa it comes out at 87 dB at 252 kg.
Equipment and details
What B59-4-270L2TX does as standard
- two-stage oil-lubricated B59 pump with an air aftercooler, V-belt drive, 1,200 rpm
- L2 cabinet of sheet-metal panels lined with sound-absorbing foam, each panel removable on its own
- pulley cooling: the spokes are shaped like fan blades and drive air onto the pump cylinders
- horizontal 270 l pressure receiver forming the base of the machine; condensate drained by a ball valve
- 4 kW electric motor, 400/50 V/Hz, three-phase supply, thermal protection, pressure switch, star-delta starting
- intake 570 l/min, working pressure 11 bar
- central control panel with main switch, pressure gauge, pressure regulator and hour counter
- weight 252 kg, dimensions 1,516 × 738 × 1,513 mm; noise 87 dB Lwa, 67 dB at 4 m
- two-year warranty, extension to three years available at extra cost
Machine details
Where to go next if B59-4-270L2TX is not the one
Without the soft start the same machine is B59-4-270L2T. A larger air reserve with the same pump is in B59-4-500L2T. The full overview is in the overview of the whole category.
Intake is the volume of air the pump draws in. Noise is given as the sound power level Lwa and as the sound pressure at 4 m from the machine. A piston compressor works in cycles, not without a break. All figures are manufacturer data.
Ventilek recommends
Star-delta is not a power feature, it is consideration for the wiring. If the lights flicker when the compressor starts, this is the answer.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 570 l/min |
| Air delivery: | 439 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1200 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 87 dB - Lwa, 67 dB - Lwp(4m) |
| Dimensions: | 1 516 × 738 × 1 513 mm |
| Weight: | 252 kg |
| Accessories: | Silent blocks, Pressure regulator, Quick coupler, Cover, Star triangle, Hour counter |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
