Screw compressor SPN-15/10 power input 15 kW, displacement 1,680 l/min, pressure 10 bar, without air receiver, voltage 400/50 V/Hz
Code: SPN-15/10
Related products
Product detailed description
Highest output in the rangeThe 15 kW is the ceiling of the standalone machines in the SPINN Maxi range. It delivers 1,680 litres a minute at 10 bar — still from an 850 × 720 × 980 mm canopy. The output is paid for in noise: 71 dB(A) is six decibels more than the 7.5 kW.
For operations where compressed air is drawn continuously and the pipework serves several workstations at once. Typically an engineering hall or a paint shop with several booths.
What sets the SPN-15/10 apart
1,680 l/min from an ordinary footprint
Fifteen kilowatts in the same box as the 7.5. In a plant room with limited space that is the range’s main argument.
A hundred litres of air a second
A hundred cubic metres an hour minus one will feed pipework serving a whole workshop at once — from impact wrenches to sandblasting.
V-belt drive
V-belts carry the motor’s power to the C55 block. They are parts that get tensioned and eventually replaced; allow for them in the service plan.
Infologic2 controller
The display reports running hours and approaching service, so the oil and filter change does not get forgotten.
What is inside

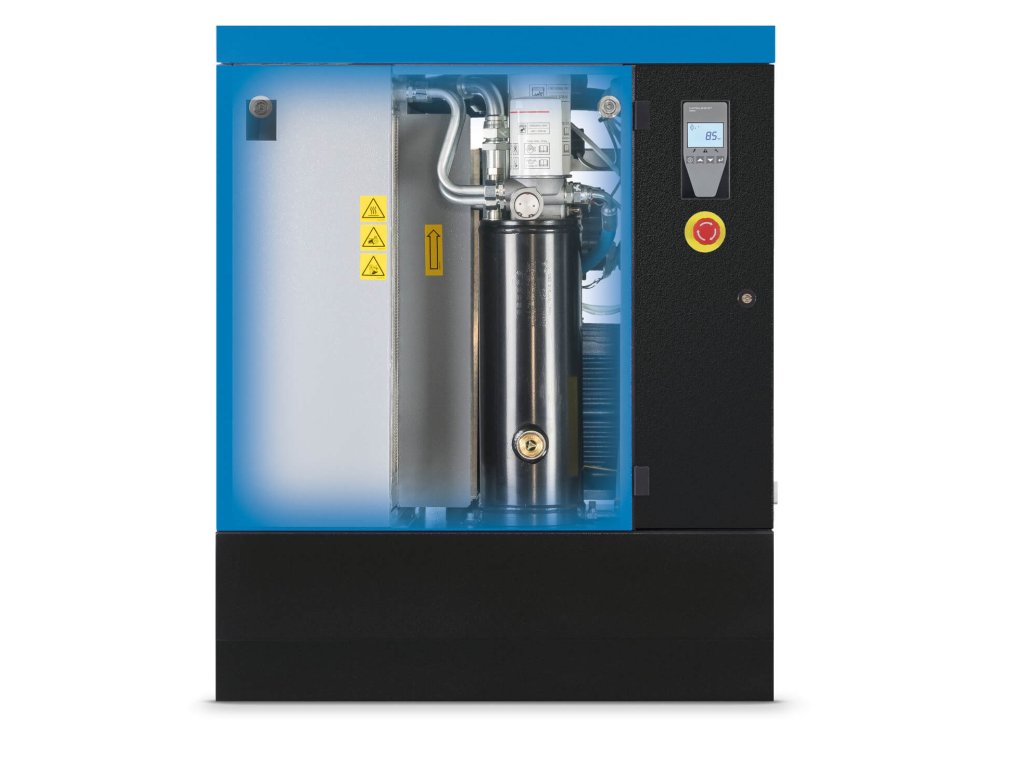

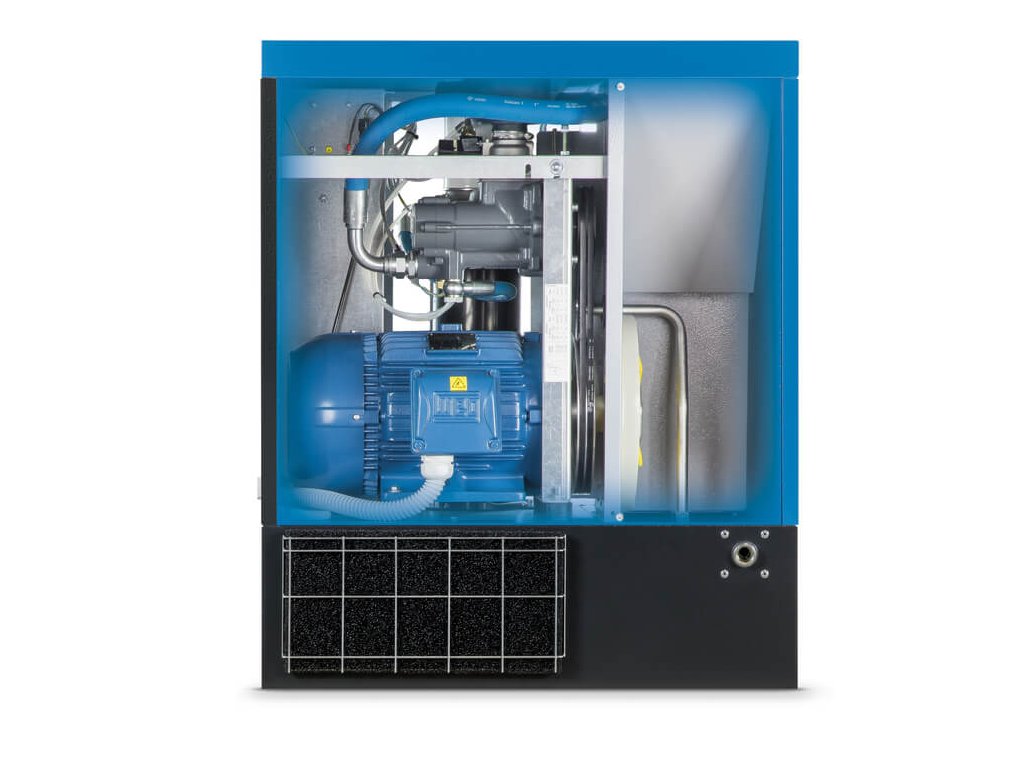

Under the canopy sits the C55 screw block, driven from the motor by V-belts. Beside it the cooler, the oil circuit and the separator.
Control is handled by the Infologic2 unit with a display. The oil sight glass is on the outside of the canopy and the panels come off, so checking the oil or changing filters does not take half a day.

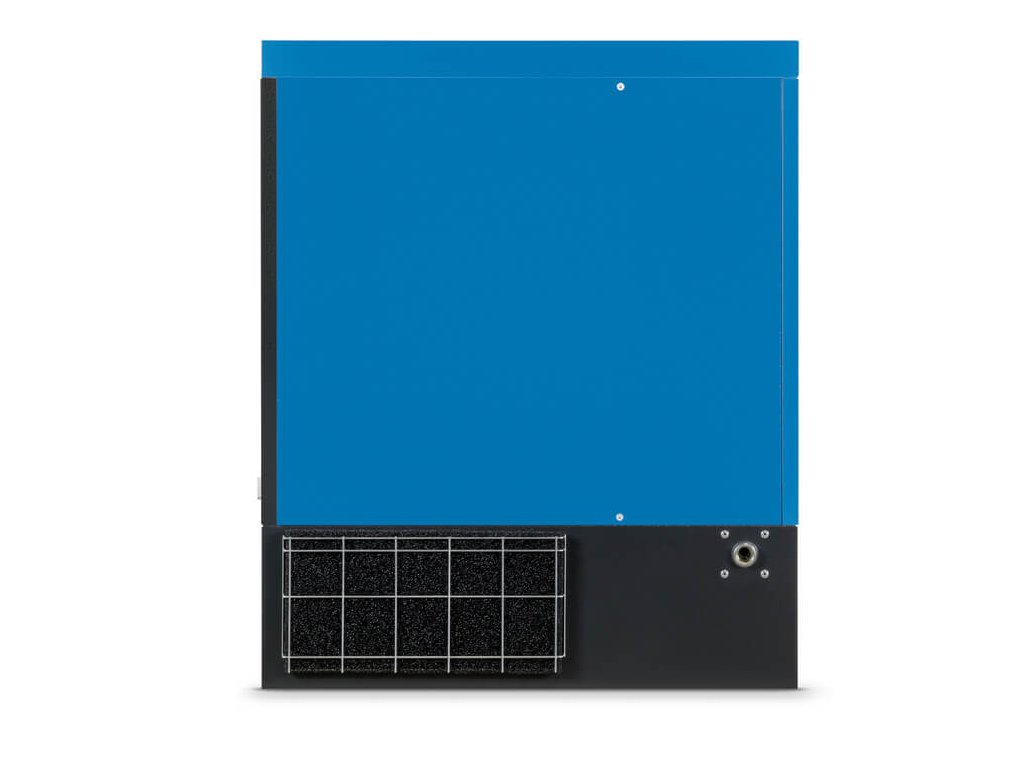

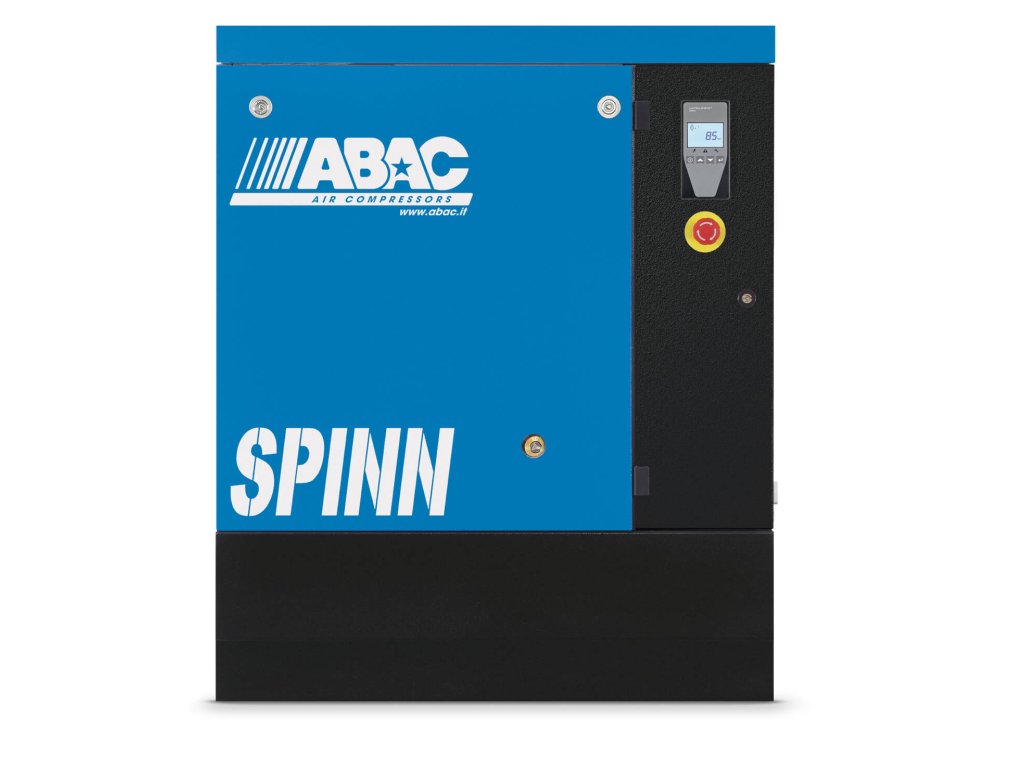

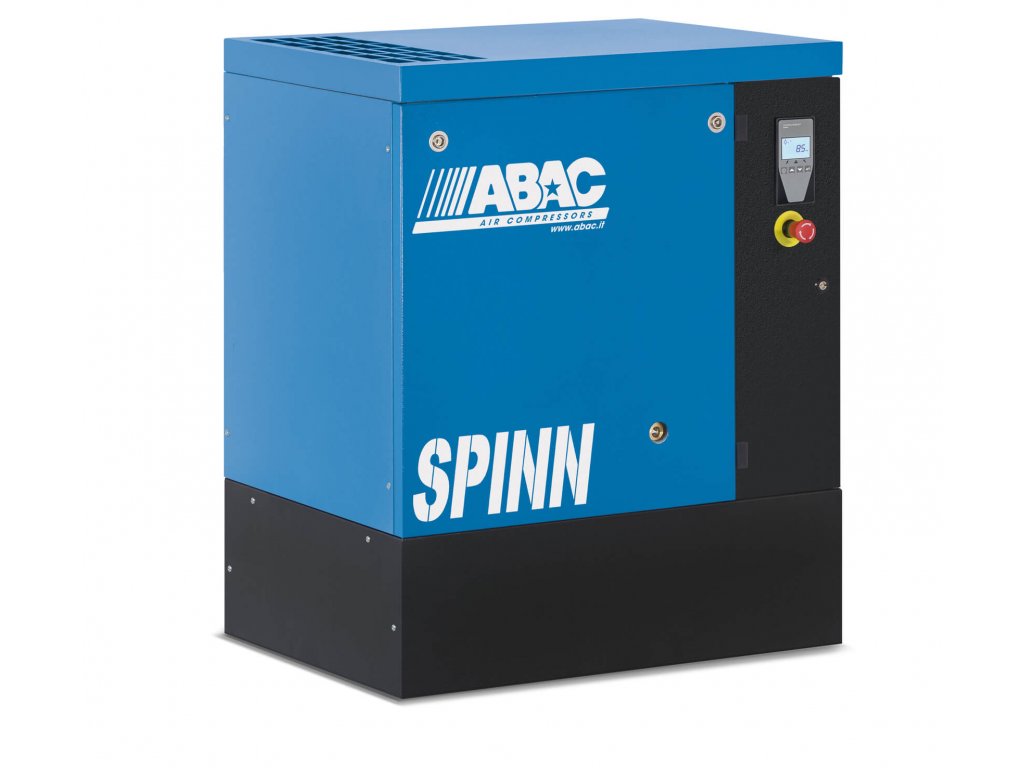

Photographs of the model
Dimensions and specifications
- Output 1,680 l/min at 10 bar
- Dimensions 850 × 720 × 980 mm, weight 200 kg
- Outlet G 3/4", power supply 400/50 V/Hz, three-phase
- Without a dryer and without a receiver
- Extending the warranty to five years carries the ABAC code ABA-5R and costs 5 % of the machine price — with us you get it as a gift with the product.
Where the SPN-15/10 sits in the range
| Technical specifications of the ABAC SPINN Maxi range | ||||||
|---|---|---|---|---|---|---|
| Model | Output | Motor power | Receiver | Dryer | Noise | Weight |
| SPN-7,5/10X | 996 l/min | 7,5 kW | — | — | 65 dB(A) | 170 kg |
| SPN-11/10 | 1,416 l/min | 11 kW | — | — | 69 dB(A) | 185 kg |
| SPN-15/10 — this model | 1,680 l/min | 15 kW | — | — | 71 dB(A) | 200 kg |
| SPN-5,5/10DX-270 | 696 l/min | 5,5 kW | 270 l | yes | 64 dB(A) | 242 kg |
| SPN-7,5/10DX-500 | 996 l/min | 7,5 kW | 500 l | yes | 65 dB(A) | 270 kg |
| SPN-11/10DX-500 | 1,416 l/min | 11 kW | 500 l | yes | 69 dB(A) | 285 kg |
| SPN-15/10DX-500 | 1,680 l/min | 15 kW | 500 l | yes | 71 dB(A) | 300 kg |
FAD output measured to ISO 1217, annex C. Noise measured to ISO 2151:2004 using ISO 9614/2. Working pressure is 10 bar on every model, power supply 400/50 V/Hz, three-phase.
With a 500-litre receiver and a built-in dryer the same output is sold as the SPN-15/10DX-500. 264 l/min less and two decibels quieter is the SPN-11/10. Above fifteen kilowatts the range does not continue — from there you look at the rest of our screw compressors.
One impact wrench is handled by the 7.5 kW too. You notice the difference the moment three workstations draw on the line together and the pressure must not drop.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 1,680 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 3/4" |
| Motor power: | 15 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 71 dB - Lwp(4m) |
| Dimensions: | 850 × 720 × 980 mm |
| Weight: | 200 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | No |
| In stock: | External warehouse |
