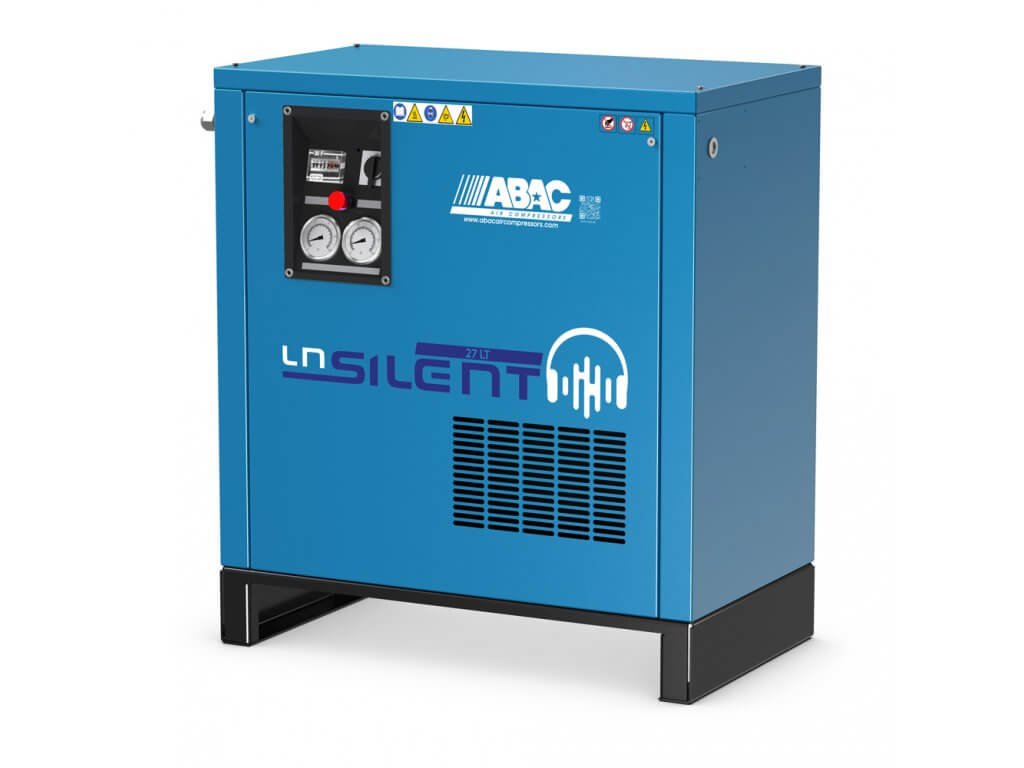

Soundproof piston compressor ABAC - A29-1.5-27L0T
Single-stage compressor from the Silent LN series in oil-lubricated design with electric motor and low-speed compressor unit connected by V-belts. Perfect soundproofing with a metal housing with foam panels and optimum machine operating temperature through suitable ventilation openings. The compressor also has the following benefits and standard equipment:
- machine casing made of easily removable panels
- oil reservoir equipped with oil sight glass for easy reading of oil level
- solenoid valves for pressure relief from the cylinder head
- electric motor equipped with temperature protection
- rubber bases to reduce vibration transmission
- operation control by start and stop button
- mechanical hour counter
- two pressure gauges for reading the outlet pressure and the pressure in the air tank
- integrated 27 litre pressure vessel in the metal housing of the machine
- 2 outlets via standard DN7.2 quick coupling
- easy condensate drainage without dismantling the cabinet
Easy installation and maintenance thanks to service videos available via the AIRTUBE app after downloading the QR code from the pressure vessel.
We provide a standard warranty period of 2 years with the possibility of extending it to 3 years and a 10-year warranty against rust-through of the pressure vessel.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900716955 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 255 l/min |
| Air delivery: | 184 l/min |
| Pressure vessel volume: | 27 L |
| Design of pressure vessel: | Integrated |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 1.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1075 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 81 dB - Lwa, 61 dB - Lwp(4m) |
| Dimensions: | 761 × 430 × 845 mm |
| Weight: | 86 kg |
| Accessories: | Silent blocks, Pressure regulator, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
