Abac Tech ATFS Soundproofed Industrial Compressors

small mobile compressors for the most demanding industrial operations
direct drive between the compressor unit and the motor
electric motor with low speed for continuous duty S1 100%

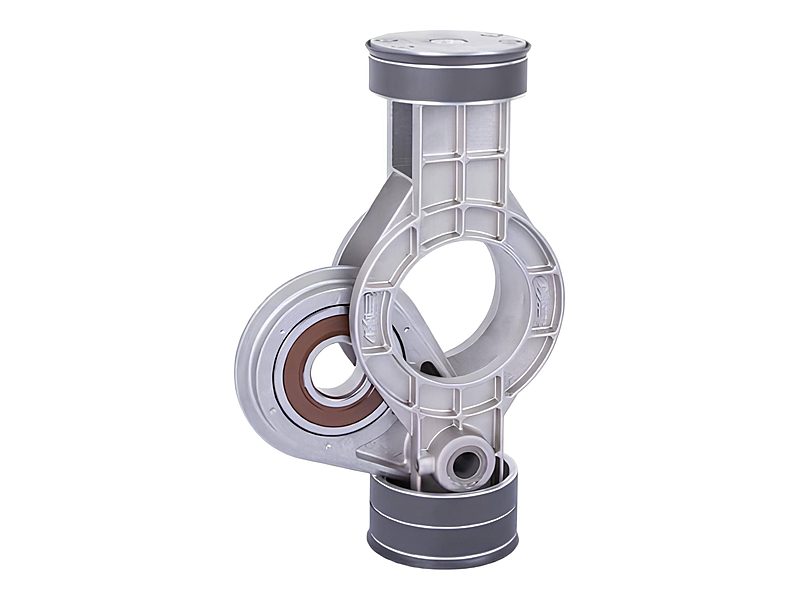

oil-free unit with 2 pistons, with patented connecting rod, two Teflon piston rings and ceramic cylinder surface
reinforced bearings for operation at high temperatures
design modifications for noise reduction
compact version with tubular frame to protect components from damage during transport
robust wheels for easy handling in tough terrain

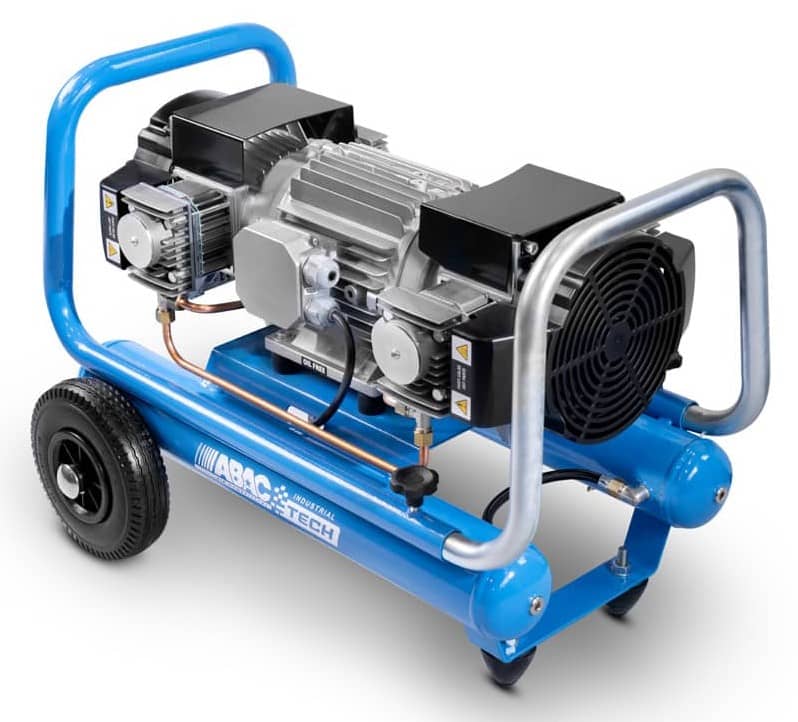

Industrial compressors Abac Tech ATFS-2,2 soundproofed
Ordering number	Suction l/min	Displacement l/min	Vessel l	Pressure bar	Power consumption kW	Voltage V/Hz	Speeds min	Dimensions mm			Weight kg	Noise db(A)
Ordering number	Suction l/min	Displacement l/min	Vessel l	Pressure bar	Power consumption kW	Voltage V/Hz	Speeds min	d	with	in	Weight kg	Noise db(A)

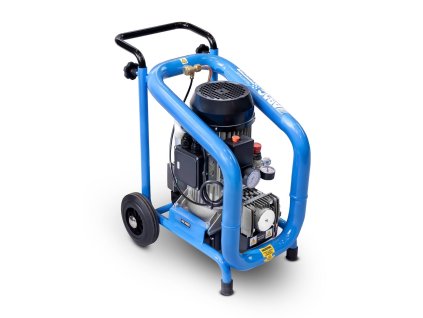

ATFS-2.2-3CM	330	201	3	10	2,2	230/50	1 400	470	400	600	32	68
ATFS-2.2-24CM	330	201	24	10	2,2	230/50	1 400	550	480	790	36	68
ATFS-2.2-50CM	330	201	50	10	2,2	230/50	1 400	550	480	1 030	44	68
Industrial compressors Abac Tech ATFS-2,2 soundproofed

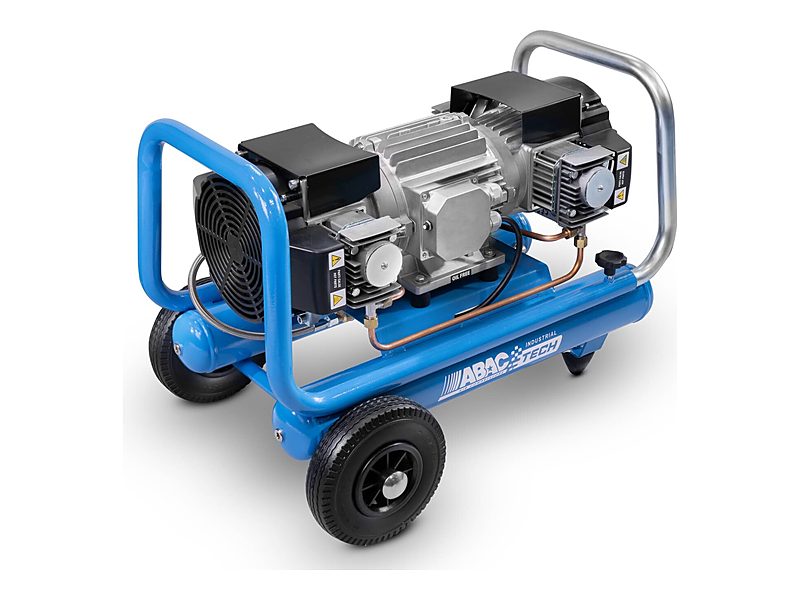

ATFS-3-2x5CM	430	309	2 x 5	10	3,2	230/50	1 400	580	790	570	50	72

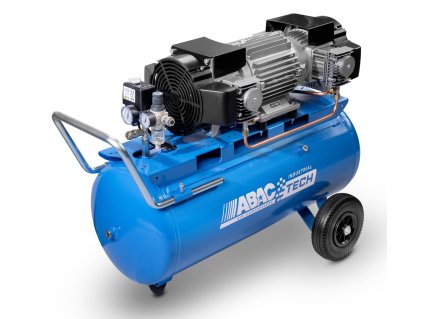

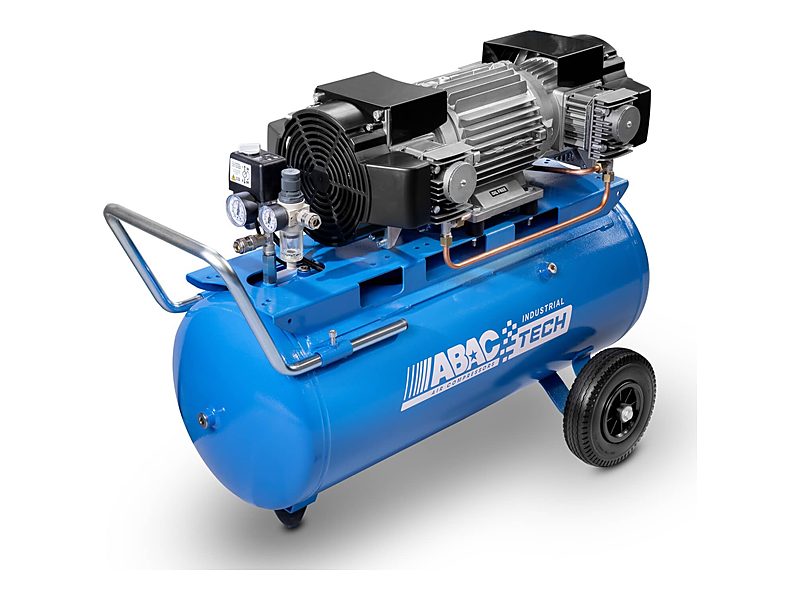

ATFS-3-100CM	430	309	100	10	3,2	230/50	1 400	1 030	530	730	76	72
ATFS-3-100CT	430	309	100	10	3,2	230/50	1 400	1 030	530	730	76	72
C - Wheeled version, T - 400 V version, M - 230 V version, S - Soundproofed version
