Compressor Pro Line B70-7.5-500FTXH, 500 l, 15 bar, 400 V Biggest displacement at 15 bar: B70 pump unit, 7.5 kW on 400 V, 930 l/min at 1,000 rpm, star-delta start, 500 l, 102 dB Lwa / 82 dB at 4 m

Product detailed description

B70 · 500 l · 930 l/min · 15 bar · 400 V · Y-D

The bigger of the two 15 bar machines. The B70-7.5-500FTXH draws in 930 l/min with the cast-iron two-stage B70 pump unit at 1,000 rpm and a 7.5 kW motor, and fills a horizontal 500 l receiver to 15 bar; 102 dB Lwa, 82 dB at 4 m. For a tyre shop with several workstations, material cutting or pressure testing of pipework — where air is drawn in long bursts and the receiver has to be topped up quickly.

Why the B70 at 15 bar instead of the B70 at 11 bar

At 11 bar the same B70 pump unit draws in 1,210 l/min at 1,300 rpm; here the belt drive slows it to 1,000 rpm and the displacement drops to 930 l/min. In exchange for those 280 litres a minute you get 15 bar in the receiver — the pressure for tools and processes that want more than 10 bar at the tool, and about a third more air in reserve in the same 500 litres. The star-delta starter panel with the unloading solenoid valve starts the 7.5 kW motor with a lower inrush current and with no pressure in the head; the 2,030 × 670 mm footprint is the same as on the 500-litre machine at 11 bar. If your demand is steady, without peaks, and 11 bar is enough, you get more air from the basic version; if you want 15 bar without pauses for the whole shift, you need a machine built for it — the ATH range.

Equipment and details

What the B70-7.5-500FTXH has from the factory

• two-stage B70 pump unit with cast-iron cylinders and a finned intercooler, oil-lubricated, with an oil sight glass; V-belt drive geared down to 1,000 rpm under a moulded guard
• three-phase 7.5 kW (10 hp) electric motor, 400 V / 50 Hz, thermal overload protection
• starter panel with a main switch and star-delta start, unloading solenoid valve for starting — the motor spins up with no pressure in the head
• air intake 930 l/min, pressure 15 bar, aftercooler on the outlet of the pump unit

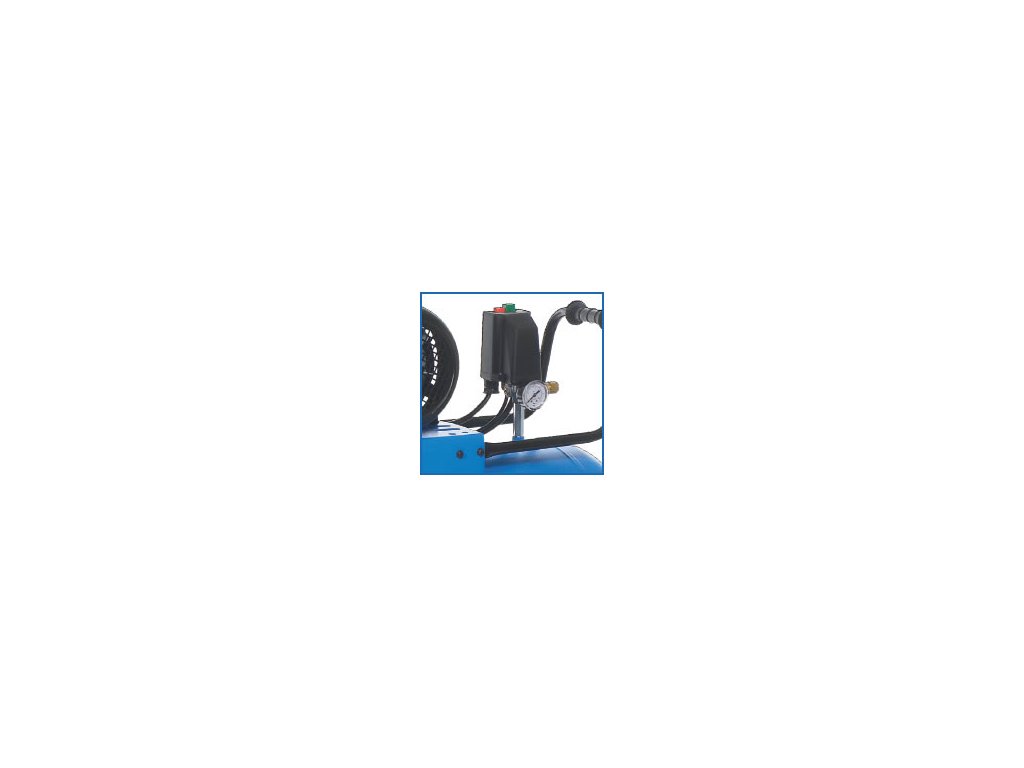

• pressure switch with a gauge — automatic stop/start according to the pressure in the receiver
• horizontal 500 l receiver with a thicker wall for 15 bar, on feet with holes for bolting down; safety valve, condensate valve in the bottom; air outlet through a ball valve into the pipework (regulator, filter and quick couplings at the workstation)
• noise 102 dB Lwa, 82 dB at 4 m
• AirTube QR code on the receiver opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the receiver against rusting through

Machine details

Where next if the B70-7.5-500FTXH is not the right fit

The smaller 15 bar machine with the same receiver is the B60-5.5-500FTXH with the B60 pump unit and a 5.5 kW motor; the same B70 pump unit with 1,210 l/min is the B70-7.5-500FT at 11 bar. A draw without pauses for the whole shift at 15 bar is covered by the ATH piston machines built for it. What happens at every start is explained in the glossary entry on the star-delta start. Where the machine sits in the range is shown by the overview of the 15 bar version.

Values apply to a 50 Hz supply. Air intake is the amount of air the pump unit draws in at 1,000 rpm; how much of it reaches the tool depends on the pressure and the receiver. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. The dimensions given in the text are those of the machine without packaging. A piston compressor works in cycles (topping up the receiver and pausing), not continuously.
