Tandem compressor Pro Line B60-2x5.5-900FT, 900 l, 400 V Two B60 pump units, 2 × 5.5 kW on 400 V, air intake 1,654 l/min at 1,400 rpm, 11 bar, horizontal 900 l tank, 100 dB Lwa / 80 dB at 4 m
Code: B60-2X5-5-900FT
Related products
Product detailed description
2 × B60 · 900 l · 1,654 l/min · 11 bar · 400 VB60 pump units on the biggest tank of the range. The B60-2x5.5-900FT: the same two cast-iron B60 pump units with 5.5 kW motors and a displacement of 1,654 l/min at 1,400 rpm, but a horizontal 900 l tank at 11 bar; noise 100 dB Lwa, 80 dB at 4 m. For a production shop with long peaks and pipework across the whole hall, where the 900 has something to hold and both pump units run longer at a stretch instead of frequent short starts.
Why a 900 under two B60 pump units
We carry the same B60 pump units with 5.5 kW motors on a 500 l tank as well; 900 l does not add displacement, but it changes the rhythm of the machine. It takes longer for the pressure in the tank to drop to the cut-in value, so the pump units start less often, and once they run, they run longer at a stretch — which does them more good than short cycles. Pipework across a hall with long runs has something to draw on even while both pump units are standing still. You pay for it in floor space: a 2,070 × 800 mm footprint and 1,570 mm of height instead of 2,030 × 670 × 1,400 mm on the 500.
Equipment and details
What the B60-2x5.5-900FT has from the factory

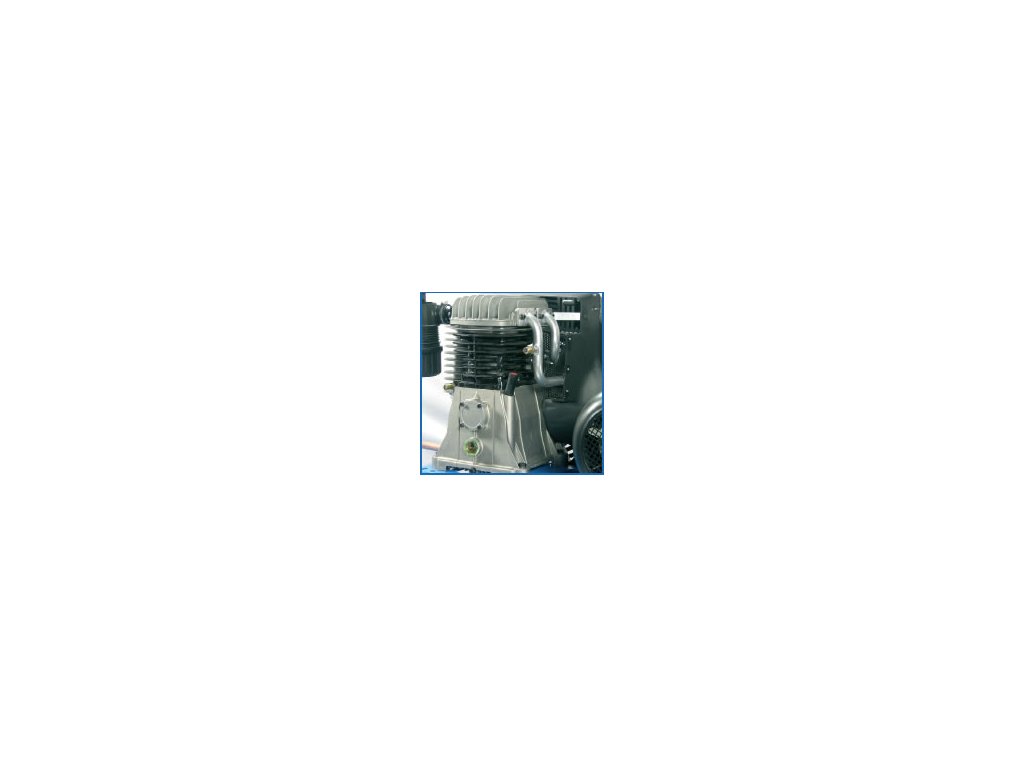

- two two-stage B60 pump units with cast-iron cylinders and an intercooler, oil-lubricated, each with an oil sight glass; V-belt drive turning them at 1,400 rpm under sheet-metal belt guards
- two three-phase 5.5 kW (7.5 hp) electric motors, 400 V / 50 Hz, thermal overload protection; the second motor starts after a delay
- air intake 2 × 827 = 1,654 l/min, pressure 11 bar, aftercooler on the outlet of each pump unit

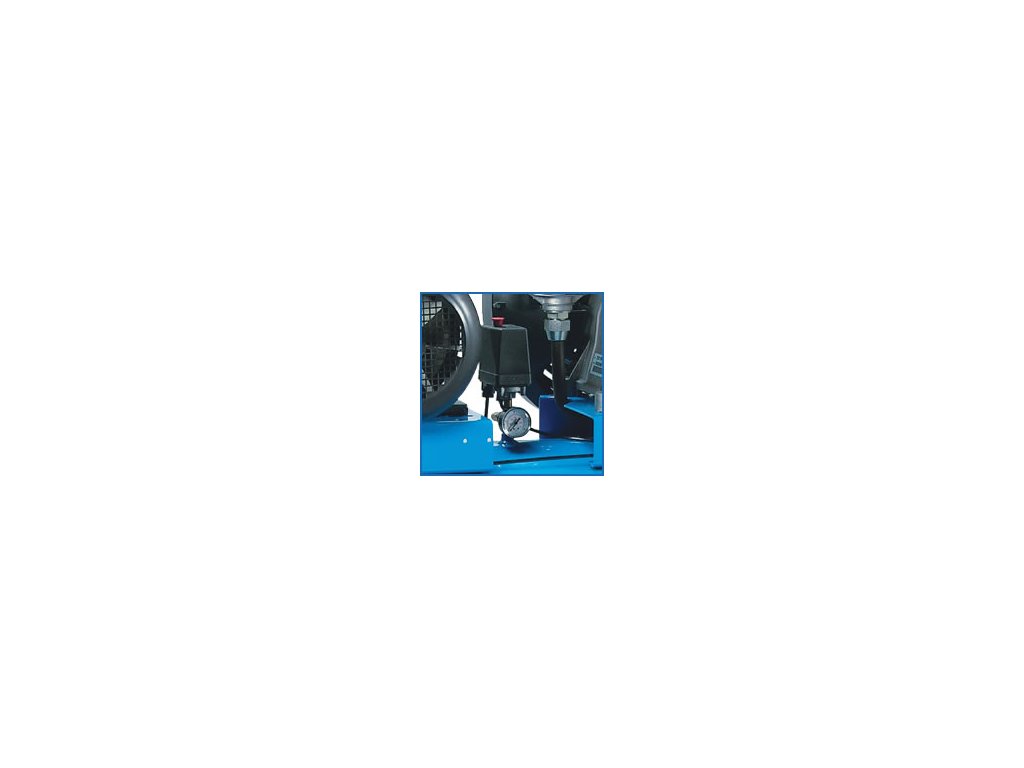

- shared pressure switch with a gauge and a timer relay — the pump units cut in according to the air consumption, while one is being serviced the other runs
- horizontal 900 l tank on feet with holes for bolting down, safety valve, condensate valve in the bottom; air outlet through a ball valve into the pipework (regulator, filter and quick couplings at the workstation)
- noise 100 dB Lwa, 80 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty (extension to 3 years at extra cost), 10 years on the tank against rusting through
Machine details
Where next if the B60-2x5.5-900FT is not the right fit
On a 500 we carry the same pair of B60 pump units as the B60-2x5.5-500FT; if you want more air on a 900, reach for the B70 pump units with 7.5 kW of the B70-2x7.5-900FT. The 900-litre machines of all brands are grouped together among compressors with a 900 l tank; how the cut-in and cut-out pressure of the shared switch is set is explained in our guide to pressure switches.
Values apply to a 50 Hz supply. Air intake is the sum of the air drawn in by both pump units; how much of it reaches the tool depends on the pressure and the tank. Motor power is the sum of both motors. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. The dimensions are those of the machine without packaging. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
For a production shop with pipework across the hall: the 900 holds a reserve between peaks, and the two B60 pump units start less often and run longer.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 8024900537567 |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 1,654 l/min |
| Air delivery: | 1274 l/min |
| Pressure vessel volume: | 900 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Ball valve 1/2" |
| Motor power: | 11 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 100 dB - Lwa, 80 dB - Lwp(4m) |
| Weight: | 500 kg |
| Accessories: | Ball cock |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Dimensions: | 2 070 × 800 × 1 570 mm |
