Compressor Expert Zero A29B0P-2,2-150CM, 150 l, 230 V motor power 2.2 kW, air intake 320 l/min, pressure 10 bar, air receiver 150 l, voltage 230/50 V/Hz, 96 dB Lwa / 76 dB at 4 m
Code: A29B0P-2-2-150CM
Related products
Product detailed description

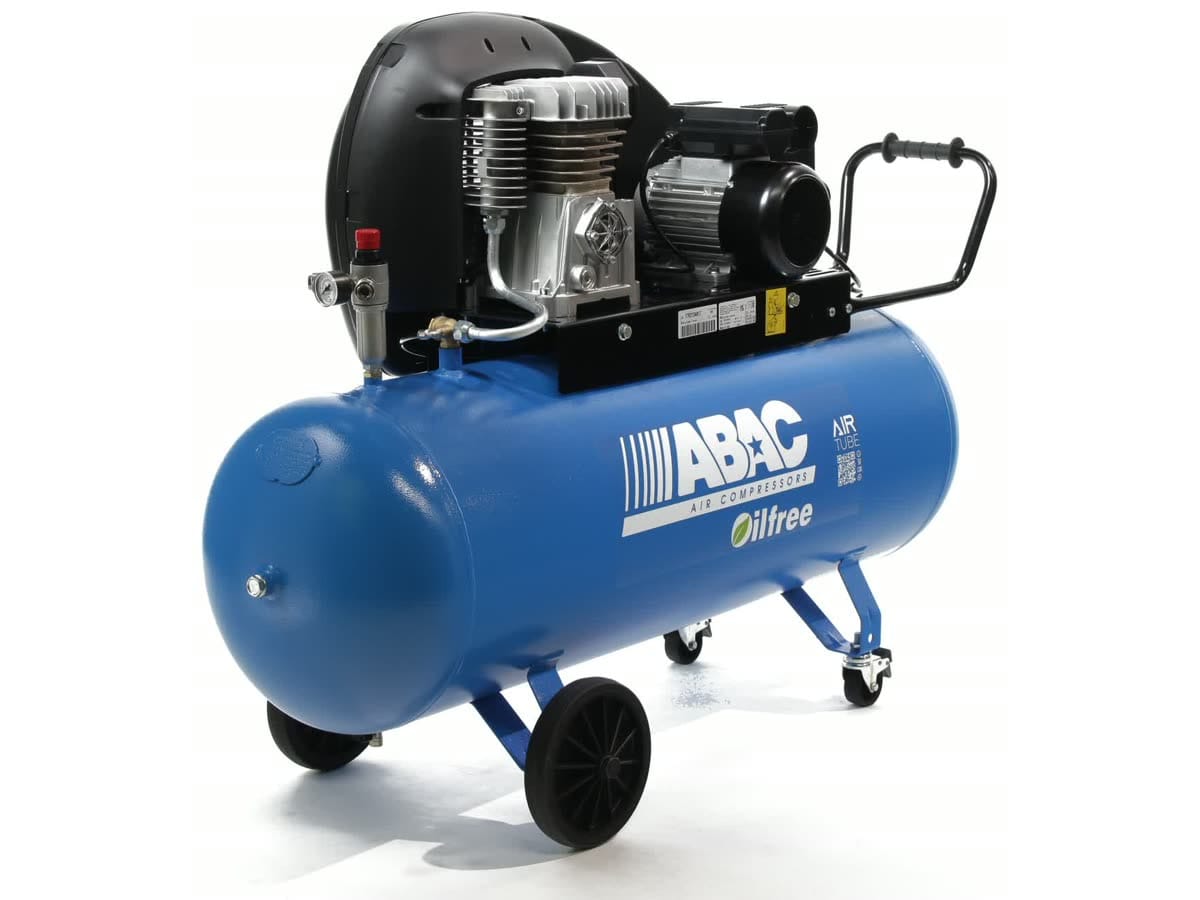

150 l · 230 V · 320 l/minThe 150 for spraying from an ordinary socket. The A29B0P-2,2-150CM holds 150 l of reserve for the A29B0 pump with a 2.2 kW motor on 230 V — 320 l/min at 1,300 rpm, 10 bar, 80 kg on castors. The gun draws on the tank for longer before the motor starts, and the air goes through a filter-regulator without a drop of oil — for a painter or an upholsterer who has no 400 V at the machine.
A hundred and fifty litres: a reserve for surfaces, not for bursts
A spray gun draws air continuously, and that is exactly where the tank decides: from 150 l the gun covers a longer surface before the pressure drops to the cut-in point of the switch, and the pump runs in long cycles with long pauses. The machine is 139 cm long and weighs 80 kg — round the workshop it goes on castors, into the car with two of you. If you spray bigger surfaces or for two people, take the A39B0 pump or 200 l.
Equipment and details
What the A29B0P-2,2-150CM has from the factory
- oil-free single-stage A29B0 pump with Teflon-coated cylinders, V-belt drive, 1,300 rpm
- 2.2 kW electric motor, 230 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 320 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 150 l tank, ball valve for draining condensate
- filter-regulator with a gauge and a DN 7.2 quick coupling on the outlet
- two front swivel castors with brakes, two fixed wheels at the rear, closed handle with a rubber grip
- noise 96 dB Lwa, 76 dB at 4 m
- QR code on the tank opens service videos in the AirTube app; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A29B0P-2,2-150CM is not the right fit
If shorter spraying will do and you want 15 kilos less, take the A29B0P-2,2-90CM; if you have a 400 V supply, choose the A29B0P-2,2-150CT. The table of all twenty machines is on the Expert Zero range page; other 150 l machines across brands can be compared among compressors with a 150 l tank. Behind the machine in a paint shop, add filtration for spray equipment.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The 150 on 230 V is the painter's oil-free machine when there is no three-phase socket — a reserve for the surface, no oil.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Air delivery: | 208 l/min |
| Pressure vessel volume: | 150 L |
| Design of pressure vessel: | Lying down |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oil-free |
| Noise: | 96 dB - Lwa, 76 dB - Lwp(4m) |
| Dimensions: | 1391 × 500 × 973 mm |
| Weight: | 80 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional, Industrial |
| Development: | Mobile |
ABAC ZERO - Environmentally friendly oil-free compressors
Belt replacement
Commissioning
Compressor installation
Compressor Service KIT and Replacement
Condensate discharge
Maintenance of the suction filter
Product rating
Be the first who will post an article to this item!
ABAC is an Italian compressor brand, founded in 1981 and part of the Atlas Copco Group since 2007. We carry machines from a carry-case compressor you lift with one hand, through workshop piston compressors, to industrial and screw machines for an entire hall.
Besides standard oil-lubricated machines, ABAC also makes oil-free compressors for paint shops and surgeries, soundproofed machines in an acoustic cabinet and engine-driven compressors for building sites. They are complemented by ABAC DRY refrigerated dryers, oils and service kits.
Manuals in the AirTube appABAC compressor ranges
ABAC Line — for a standard socket
For tradespeople and smaller workshops. Direct-drive piston machines, from a one-hand carry case to a twin-cylinder unit on wheels.
- 1.1–2.2 kW, 230 V
- intake 160–355 l/min, 8–10 bar
- for work with breaks between cycles
ABAC Pro Line — V-belt drive
Daily work in workshops and service. Oil-lubricated single- and two-stage machines, on wheels, on feet or as a tandem.
- 1.5–7.5 kW, intake 178–2,420 l/min
- 10, 11 or 15 bar
- 50–900 l receiver
ABAC Silent — soundproofed
When the compressor stands next to you. Pump, motor and belt are enclosed in an acoustic cabinet; some machines also house a dryer.
- 81–89 dB Lwa in the cabinet
- on 270 and 500 l receivers or tankless
- 1.5–7.5 kW
ABAC Expert Zero — oil-free
For paint shops, upholstery and food. An oil-free pump with Teflon-coated cylinders, driven by V-belts.
- intake 255–486 l/min, 10 bar
- 50–270 l receiver
- 230 and 400 V
ABAC Tech — industrial
Runs without cooling breaks. Cast-iron pump and an S1 motor rated for a 100% duty cycle, oil-lubricated or oil-free.
- 1.5–15 kW
- 10 to 30 bar
- on a base frame or a receiver
ABAC SPINN and CROSS — screw
When air flows all shift long. Six ranges from a workshop unit to a station for a whole hall, stand-alone or with receiver and dryer.
- 2.2–22 kW, delivery 272–3,090 l/min
- 10 bar, 57–71 dB(A)
- SPV with a variable speed drive
Engine Air — petrol and diesel
Air where there is no socket. Piston compressors with a combustion engine: portable in a frame, on wheels or stationary.
- intake 275–1,038 l/min
- 10–14 bar
- Honda and Kohler engines
Clean Air — dental
For dental surgeries and laboratories. Oil-free 8 bar compressors with an adsorption dryer or in an acoustic cabinet.
- for 1 to 5 dental chairs
- dew point −40 °C with dryer
- 64 dB(A) at 1 m in the cabinet
Not sure which range to pick? The Compressors page has a selection calculator and a table of how much air each tool uses.
Choose a compressorABAC ranges side by side
| Range, use, design, intake, pressure and power supply | |||||
|---|---|---|---|---|---|
| Range | For whom | Design | Intake | Pressure | Power |
| ABAC Line | tradespeople, smaller workshops | piston, direct drive | 160–355 l/min | 8–10 bar | 230 V |
| ABAC Pro Line | daily work in workshops and service | piston, V-belts | 178–2,420 l/min | 10–15 bar | 230 / 400 V |
| ABAC Silent | machine next to the workstation | piston, soundproofed | 255–1,070 l/min | 8–11 bar | 230 / 400 V |
| ABAC Expert Zero | oil-free air | oil-free piston, V-belts | 255–486 l/min | 10 bar | 230 / 400 V |
| ABAC Super Silent OS | quiet work in occupied rooms | oil-free piston, direct drive | 140–230 l/min | 8–9 bar | 230 V |
| ABAC Tech | industry, non-stop operation | piston, S1 motor | 204–1,716 l/min | 10–30 bar | 230 / 400 V |
| ABAC SPINN and CROSS | continuous air demand | screw | delivery 272–3,090 l/min | 10 bar | 400 V, one model 230 V |
| Engine Air | sites without electricity | piston, petrol or diesel | 275–1,038 l/min | 10–14 bar | combustion engine |
| Clean Air CLR | dental surgeries and laboratories | oil-free piston | 240–480 l/min | 8 bar | 230 V |
Intake is the air the pump draws in; less of it reaches the tool. For screw compressors the manufacturer states the delivery.
How to choose an ABAC compressor
1. Work out the air demand
Add up the consumption of all tools running at the same time and add a reserve. Compare it with the delivery, not the intake: on piston machines the delivery is roughly a quarter lower.
2. Match the running time
For work with breaks, a Line or Pro Line piston machine is enough. If air has to flow all shift long, choose ABAC Tech with an S1 motor or a screw compressor.
3. Check power and space
Smaller machines run from a 230 V socket, more powerful ones need a three-phase 400 V supply. In the code of an electric piston machine, M stands for a 230 V motor and T for 400 V.
4. Maintain regularly
On oil-lubricated machines, check the level in the sight glass and drain the condensate after work. ABAC piston pumps have service kits: the basic LK1 for yearly and the advanced PK1 for two-year maintenance.
Frequently asked questions
- Who makes ABAC compressors?
- ABAC is an Italian compressor brand founded in 1981. It is based in Robassomero near Turin and has been part of the Atlas Copco Group since 2007. Its production quality is backed by ISO 9001 certification.
- Piston or screw compressor?
- It depends on running time. A piston machine fills the receiver and rests, so it suits intermittent work in a workshop. A screw compressor is built for continuous operation and pays off where air is used all shift long. For its screw machines ABAC states roughly 30% higher energy efficiency and about 20 dB(A) less noise.
- Which ABAC compressors are oil-free?
- The Expert Zero range, the quiet Super Silent OS, the ATF and ATFS versions of ABAC Tech, the Clean Air dental compressors and the SUITCASE carry case compress air without oil. They suit paint shops, food production, laboratories and surgeries.
- How quiet is an ABAC compressor?
- The rating plate shows the sound power level Lwa; 4 m from the machine you will measure about 20 dB less. Silent machines in a cabinet have 81 to 89 dB Lwa, the quiet Super Silent OS 63 to 65 dB at 4 m and the screw compressors 57 to 71 dB(A).
- Do I need a dryer with my compressor?
- Compressed air always contains water that condenses in the pipework. For painting or a long pipe network you need a dryer: the ABAC DRY refrigerated dryer brings the air to a pressure dew point of +4 °C and comes in 17 sizes from 266 to 18,000 l/min. Some Pro Line, Silent and SPINN machines have a dryer fitted at the factory.
- Where do I find the manual and which oil should I use?
- Manuals and service videos open via the QR code on the machine in the AirTube app. ABAC piston machines use Altair and ABAC Pro oils, screw machines Rotair oils, including the food-grade Rotair Foodgrade. The manual tells you which oil your machine needs.
Manuals and service videos for ABAC compressors are in the AirTube app via the QR code on the machine. Technical data are manufacturer figures. ABAC is a brand of the Atlas Copco Group.
