Compressor A29B-2.2-90CM, 90 l, 230 V — clearance previous-generation clearance, 2.2 kW motor, 320 l/min, 10 bar, 90 l receiver, 230/50 V/Hz, 93 dB Lwa / 73 dB at 4 m
Code: A29B-2-2-90CM
Related products
Product detailed description

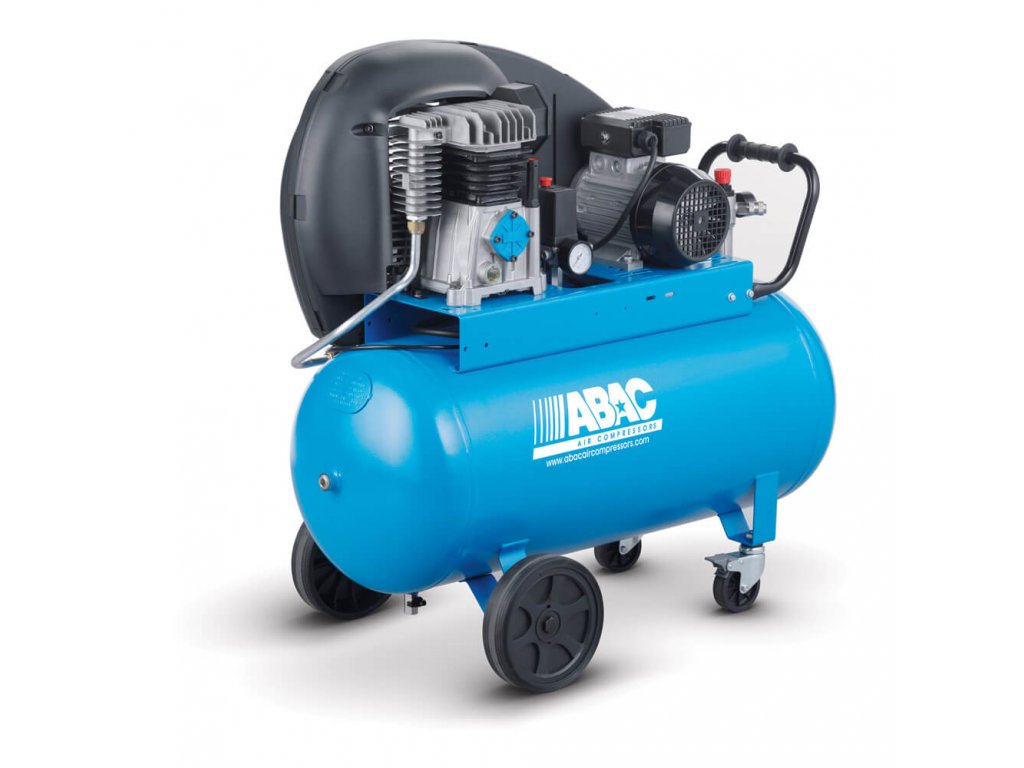

clearance · 90 l · 230 V · 320 l/minThe previous generation on clearance. The A29B-2.2-90CM has the A29B pump with a 2.2 kW motor for a 230 V socket and a 90 l tank: 320 l/min of displacement at 1,300 rpm, 10 bar, 56 kg on castors. A belt-driven machine with a moulded belt guard and an aftercooler, as it was built before the Extensive range; its place in the line-up is taken by the A29BT-2.2-90CT on 400 V.
What is different from the Extensive
The A29B pump, the 2.2 kW motor, the 320 l/min of displacement, the moulded belt guard and the aftercooler are the same as on the new generation; what differs is the frame and tank of the previous generation (56 kg, 1,010 × 415 × 900 mm) and the outlet with two DN 7.2 quick couplings next to the regulator. The motor runs from an ordinary 230 V socket, which the current A29B range does not offer on the ninety; one front swivel castor with a brake and an open handle are as on the Extensive. Noise 93 dB Lwa, 73 dB at 4 m. Spare parts for the pump are shared with the new generation.
Equipment and details
What the A29B-2.2-90CM has from the factory

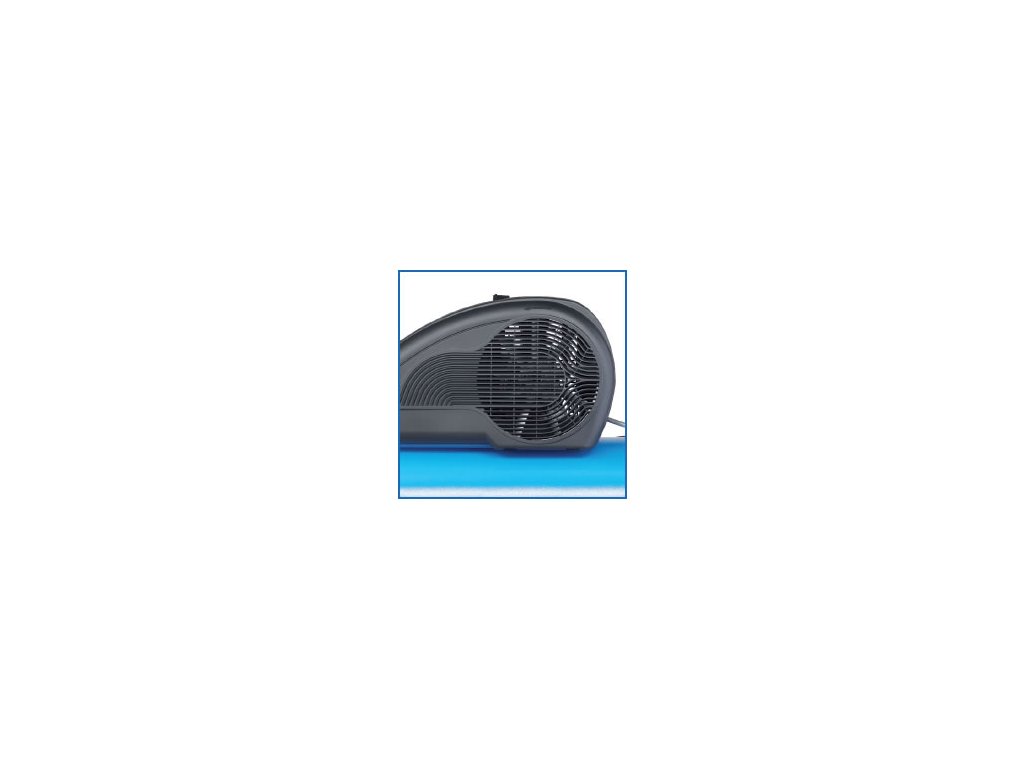

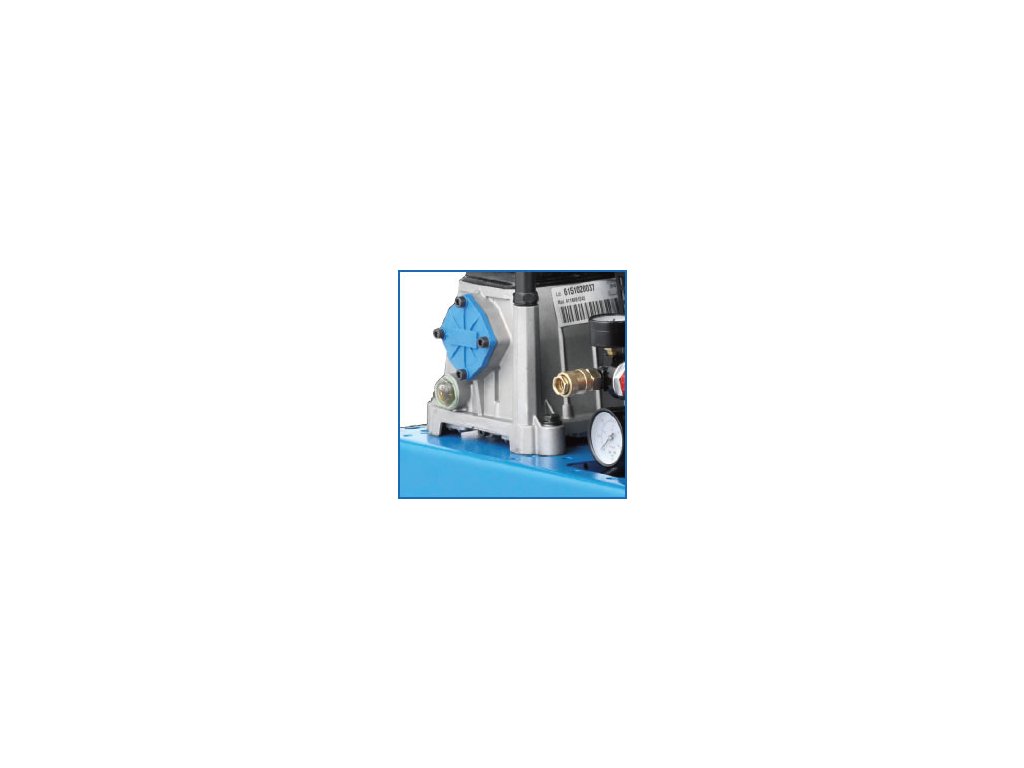

- single-stage twin-cylinder oil-lubricated A29B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,300 rpm
- single-phase 2.2 kW (3 hp) electric motor, 230 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 320 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 90 l tank with a valve for draining condensate
- pressure regulator, two gauges and two DN 7.2 quick couplings
- one front swivel castor with a brake, two rear wheels, open handle
- noise 93 dB Lwa, 73 dB at 4 m
- 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A29B-2.2-90CM is not the right fit
The successor with the same pump on 400 V is the A29BT-2.2-90CT; a ninety for a 230 V socket with a 1.5 kW motor is offered by the Export range. The new generation is compared on the A29B range page; the sister A-X range with its wire guard is being sold off under the Pro Line A-X clearance. Parts for the pump are supplied by our workshop.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
A ninety with 2.2 kW for a 230 V socket from the previous generation — the new A29B range has it only on 400 V, so if you want it for a socket, do not hesitate.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| EAN: | 0745125779294 |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Air delivery: | 230 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 230/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
| Dimensions: | 1 010 × 415 × 900 mm |
| Weight: | 56 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| In stock: | External warehouse |
