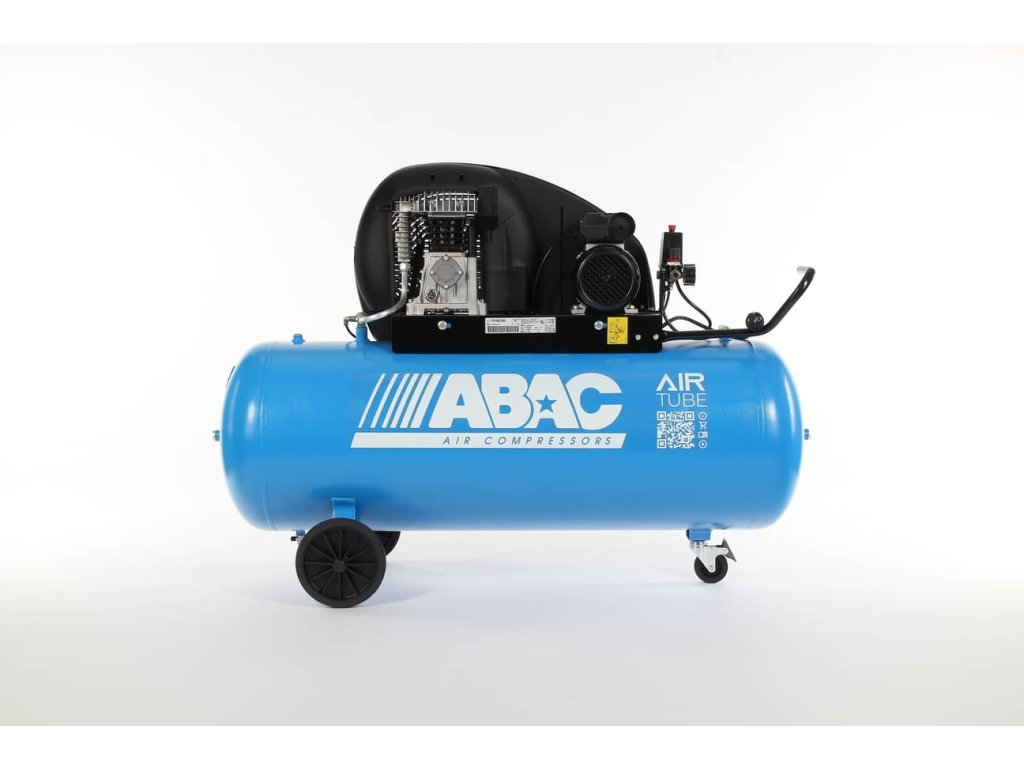

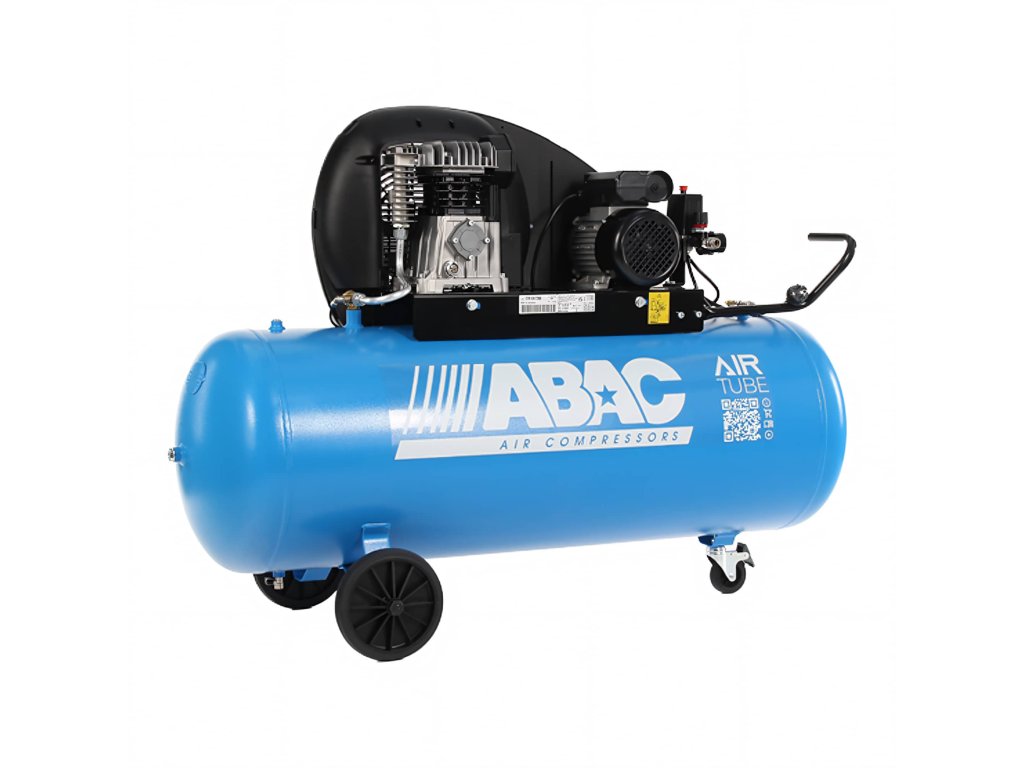

Compressor Pro Line Extensive A29BT-2.2-200CT, 200 l, 400 V Extensive, motor power 2.2 kW, air intake 320 l/min, pressure 10 bar, air receiver 200 l, voltage 400/50 V/Hz, 95 dB Lwa / 75 dB at 4 m
Code: A29BT-2-2-200CT
Related products
Product detailed description
Extensive · 200 l · 400 V · 320 l/minThe biggest reserve and a three-phase motor. The A29BT-2.2-200CT: a three-phase 2.2 kW motor on 400 V, the A29B pump and a 200 l tank — 320 l/min at 1,300 rpm, 10 bar; 102 kg, the same as the version for a socket. A tank for the longest bursts in the A29B range — a gun, a sander or blowing off — and a three-phase motor that runs from a 400 V socket outside the single-phase circuit of the workshop.
Why 200 l on 400 V
If you draw air in long bursts, you need reserve more than displacement: 200 l gives the gun a good run before the pump with 320 l/min cuts in, and the three-phase motor starts as often as it has to without loading the single-phase circuit. Compared with the version for a 230 V socket, the only difference is the motor and the socket. A hundred and two kilograms and 1,411 mm in length mean a machine that stays in one place. For more air than 320 l/min the bigger pump is next in line. The noise of 95 dB Lwa and 75 dB at 4 m does not change with the tank size.
Equipment and details
What the A29BT-2.2-200CT has from the factory

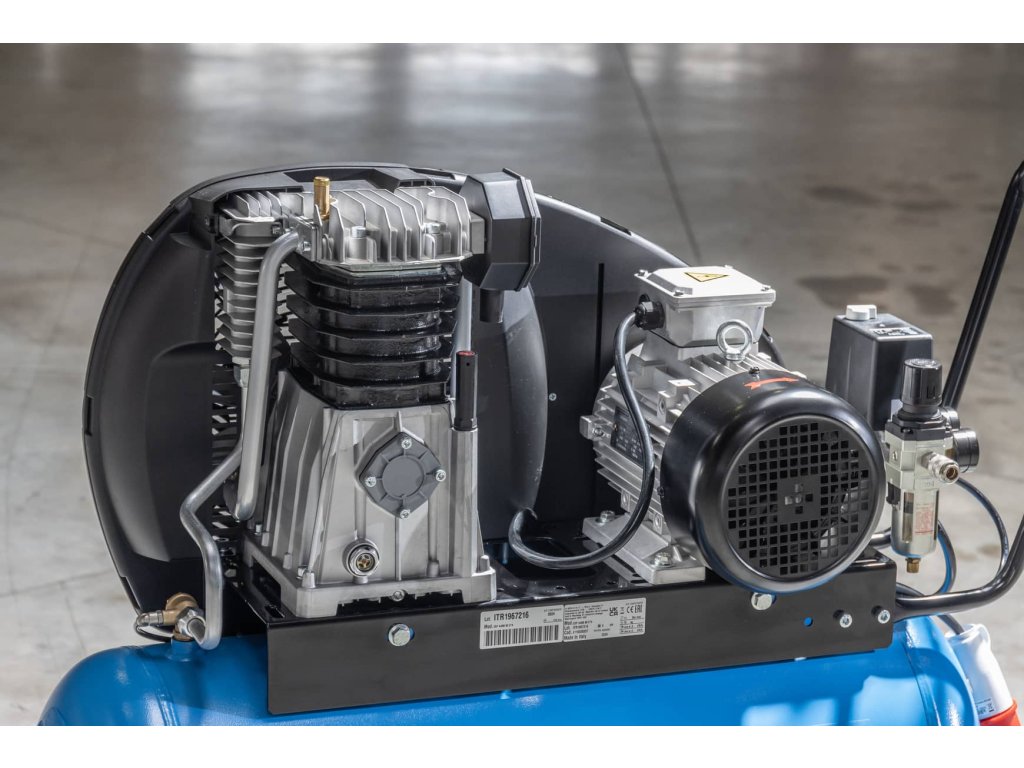

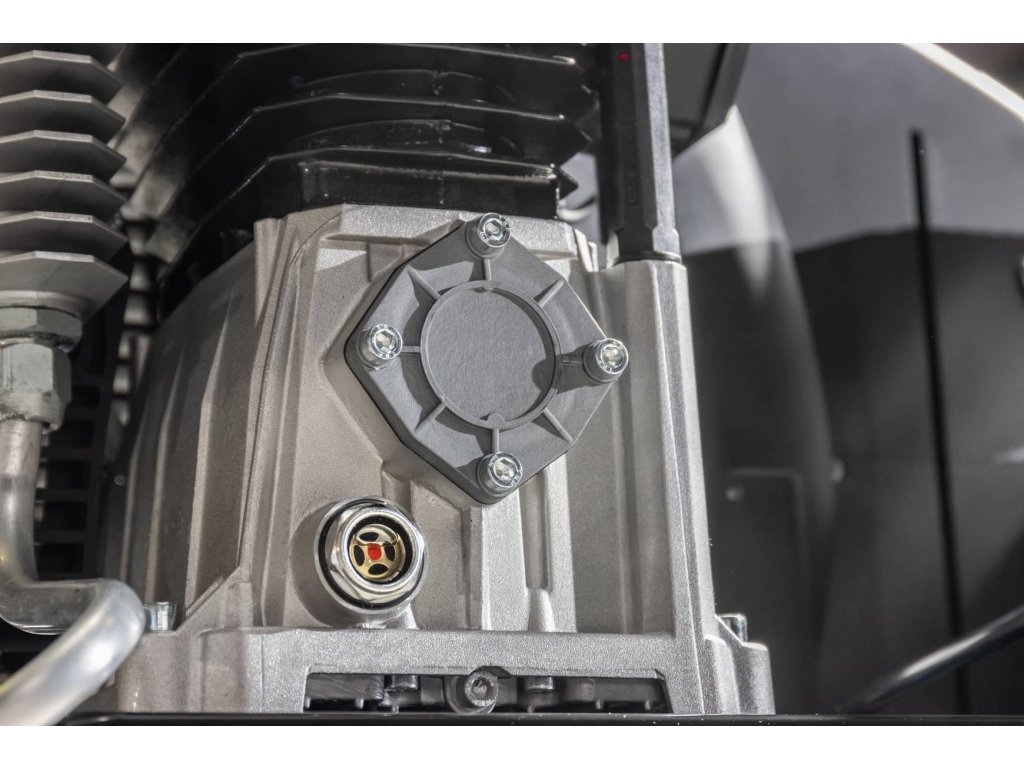

- single-stage twin-cylinder oil-lubricated A29B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,300 rpm
- three-phase 2.2 kW (3 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 320 l/min, 10 bar, aftercooler on the pump outlet
- horizontal 200 l tank with a ball valve for draining condensate
- pressure regulator, two gauges (tank and outlet) and a DN 7.2 quick coupling

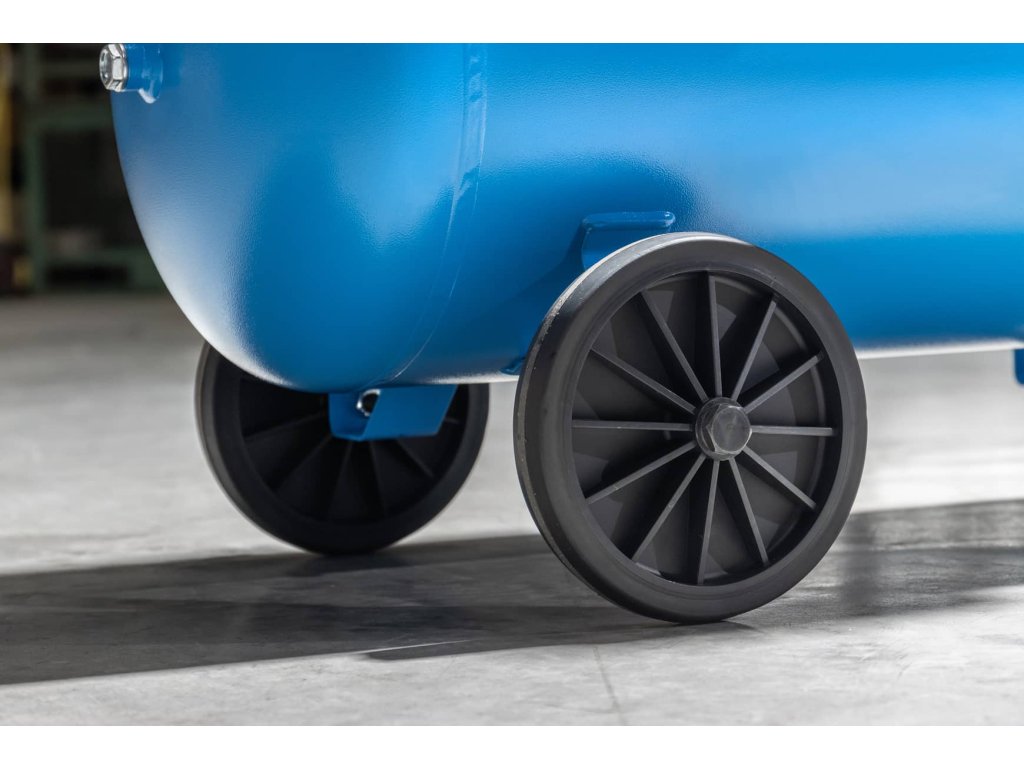

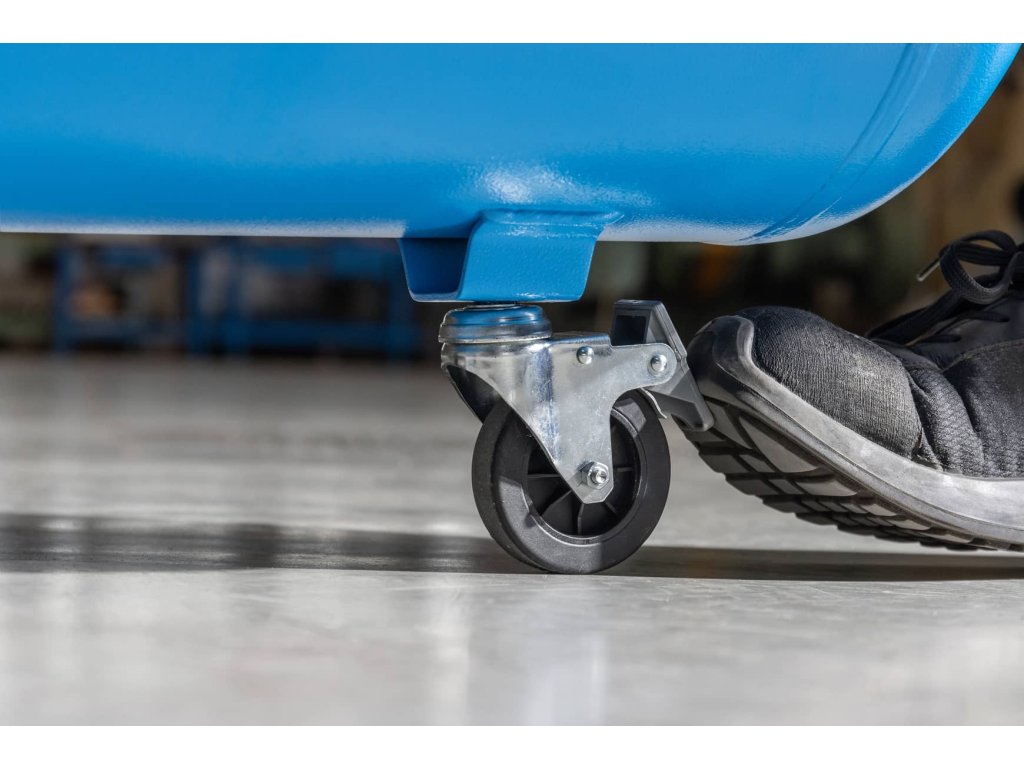

- one front swivel castor with a brake, two 200 mm rear wheels, open tubular handle
- noise 95 dB Lwa, 75 dB at 4 m

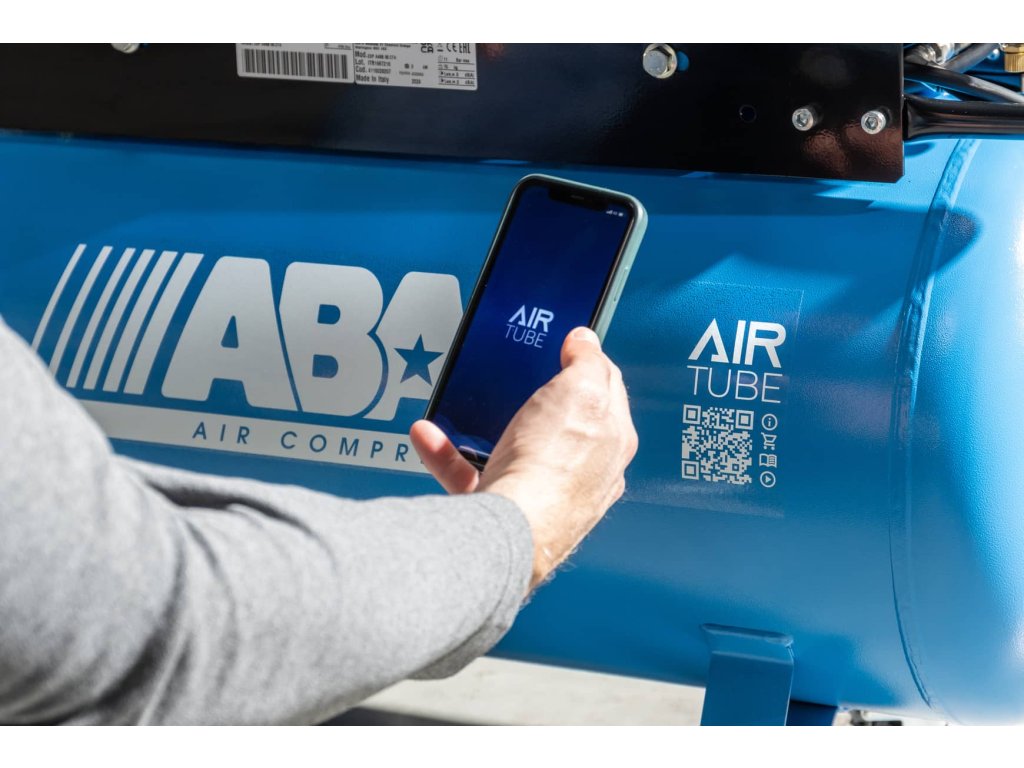

- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A29BT-2.2-200CT is not the right fit
The same machine for a 230 V socket is the A29BT-2.2-200CM, one tank size down the A29BT-2.2-150CT. The smaller tanks and the 1.5 kW motor are side by side on the A29B range page; other brands with the same tank are grouped together under compressors with a 200 l tank. A 200 l machine with the bigger pump and 393 l/min is among the machines with the A39B pump.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The biggest tank with a three-phase motor: 200 l and 400 V for the longest bursts — beyond this there is only the bigger pump.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 320 l/min |
| Air delivery: | 208 l/min |
| Pressure vessel volume: | 200 L |
| Design of pressure vessel: | Lying down |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 95 dB - Lwa, 75 dB - Lwp(4m) |
| Weight: | 102 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 1 411 x 572 x 1 003 mm |
