Industrial ABAC Tech compressor - ATL-2,2-90FT motor 2.2 kW, 210 l/min at 10 bar, intake 504 l/min, 90 l receiver, supply 400/50 V/Hz, 99 dB Lwa / 79 dB at 4 m
Code: ATL-2-2-90FT
Related products
Product detailed description

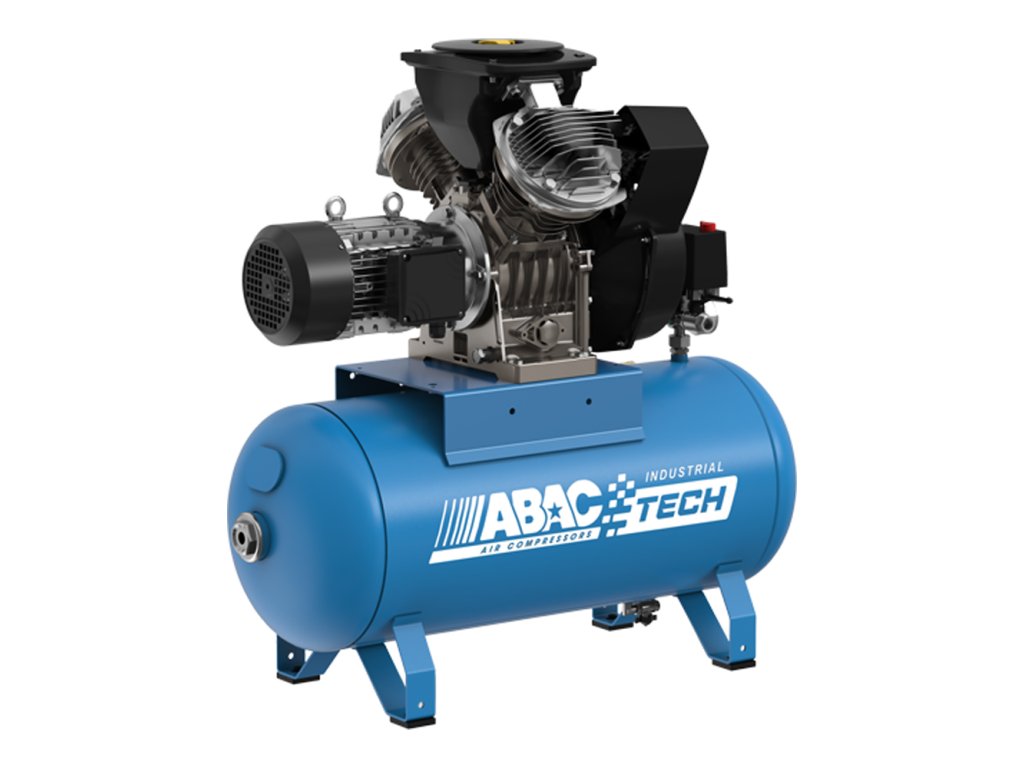

ABAC Tech ATL · S1 100 % · 90 lIndustrial air on the smallest footprint. ATL-2.2-90FT joins an S1 pump and a ninety-litre horizontal receiver into one piece that is stood on the floor and connected. It delivers 210 l/min at 10 bar and may run continuously while doing so. At 996 mm long it is the shortest machine in the category.
Who ninety litres is for
The smaller tank earns its place where the air is drawn steadily — air tools in constant use, continuous blowing off, one workstation. The motor keeps up as it goes and the tank only smooths out short swings in pressure. At the same time the machine fits where there is no room for a longer assembly.
If the draw comes in bursts, look at 270 litres: the motor then cuts in less often and the pressure in the pipework swings less. What decides is the peak draw, not the output of the compressor.
Equipment and details
What ATL-2,2-90FT does as delivered
- single-stage oil-lubricated pump with two cylinders in a V, 1,500 rpm
- 2.2 kW motor in duty type S1, that is a 100% duty cycle with no pauses to cool down
- direct drive without belts — the pump sits straight on the motor
- horizontal 90 l pressure vessel forms the base of the machine; condensate drained through a valve
- electric motor 400/50 V/Hz, three-phase supply, direct starting
- intake 504 l/min, 210 l/min delivered at a working pressure of 10 bar
- aluminium-silicon cylinders with heavy finning, stainless valves, bearings greased for the whole service life
- the machine stands on feet with anti-vibration mounts — no bolting down
- weight 93 kg, dimensions 996 × 504 × 979 mm; noise 99 dB Lwa, at 4 m 79 dB
- two-year warranty
Machine details
Where to go if ATL-2,2-90FT does not fit
A bigger tank and almost twice the air are in ATL-4-270FT. Without a tank the same pump is in the basic version without a tank. The whole overview is in the overview of the whole category.
The delivered figure is the air the machine supplies at a working pressure of 10 bar; the intake is the volume the pump draws in. Noise is given as the sound power level Lwa from the machine plate and as the sound pressure at 4 m from the machine. Performance data according to ISO 1217, Annex C, noise according to ISO 2151.
Ventilek recommends
Ninety litres is not small — it is a different way of working. When the air is drawn all the time, a big tank adds nothing; when it is drawn in bursts, a small one will hold you back.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 10 bars |
| Suction power: | 504 l/min |
| Air delivery: | 210 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1500 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 1 – single-stage compressor |
| Lubrication: | Oleic |
| Noise: | 99 dB - Lwa, 79 dB - Lwp(4m) |
| Dimensions: | 996 × 504 × 979 mm |
| Weight: | 93 kg |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Industrial |
| Development: | Stationary |
