Compressor Pro Line Expert A49BP-2.2-90CT, 90 l, 400 V Expert, motor power 2.2 kW, air intake 444 l/min, pressure 11 bar, air receiver 90 l, voltage 400/50 V/Hz, 93 dB Lwa / 73 dB at 4 m
Code: A49BP-2-2-90CT
Related products
Product detailed description

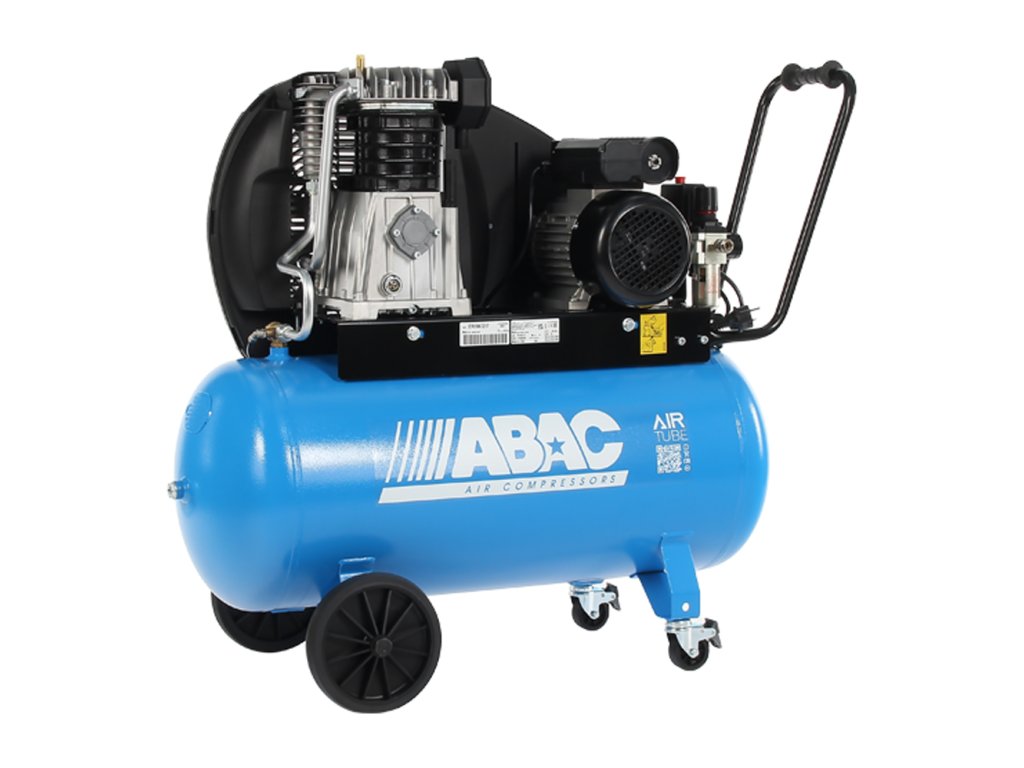

Expert · 90 l · 400 V · 444 l/min · 11 barThe ninety on 400 V. The A49BP-2.2-90CT puts the two-stage A49B pump with a three-phase 2.2 kW motor on a 90 l tank: 444 l/min of displacement at 1,050 rpm, 11 bar, 65 kg — the lightest machine in the range. For a garage with a 400 V socket by every lift, where the machine is wheeled about every day.
Why 2.2 kW on 400 V with a 90 l tank
The three-phase 2.2 kW motor is easier on the breaker than a single-phase one, and at 65 kg this is the lightest machine in the range — two front swivel castors with brakes and a handle with a rubber grip let one person wheel it. The A49B pump gives 444 l/min in two stages at 11 bar, so an impact wrench or a ratchet draws from the 90 l for longer than on a single-stage ninety. The filter-regulator with a bowl catches condensate before it reaches the ratchet. If 444 l/min is not enough, there is the same tank with a 3 kW motor. On 400 V the noise stays the same as on its single-phase sister: 93 dB Lwa, 73 dB at 4 m.
Equipment and details
What the A49BP-2.2-90CT has from the factory
- two-stage twin-cylinder oil-lubricated A49B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,050 rpm
- three-phase 2.2 kW (3 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 444 l/min, 11 bar, aftercooler on the pump outlet
- horizontal 90 l tank with a ball valve for draining condensate
- filter-regulator with a bowl and a gauge next to the pressure switch, DN 7.2 quick coupling, two gauges (tank and outlet)
- two front swivel castors with brakes, two rear wheels, closed handle with a rubber grip
- noise 93 dB Lwa, 73 dB at 4 m
- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A49BP-2.2-90CT is not the right fit
More air into the same tank comes from the A49BP-3-90CT; the same motor for an ordinary socket is on the A49BP-2.2-90CM. Where it stands among the other thirteen is shown on the A49B range page; nineties of all brands are compared among compressors with a 90 l tank. By the lift it pairs well with a spiral hose.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The lightest A49B: 65 kg, 11 bar and a filter on the outlet — for a garage where the machine is wheeled about.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 444 l/min |
| Air delivery: | 333 l/min |
| Pressure vessel volume: | 90 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 2.2 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1050 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 93 dB - Lwa, 73 dB - Lwp(4m) |
| Weight: | 65 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Filtration |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 1 123 x 502 x 935 mm |
