Compressor Pro Line Expert A49BP-4-270CT, 270 l, 400 V Expert, motor power 4 kW, air intake 595 l/min, pressure 11 bar, air receiver 270 l, voltage 400/50 V/Hz, 97 dB Lwa / 77 dB at 4 m
Code: A49BP-4-270CT
Related products
Product detailed description

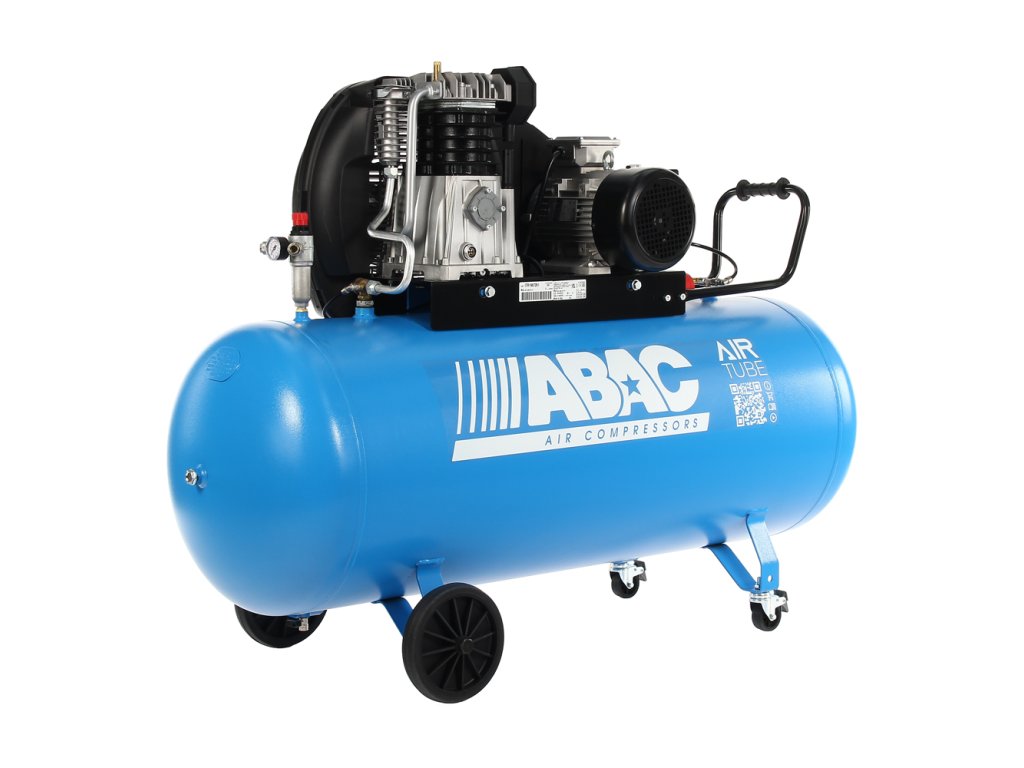

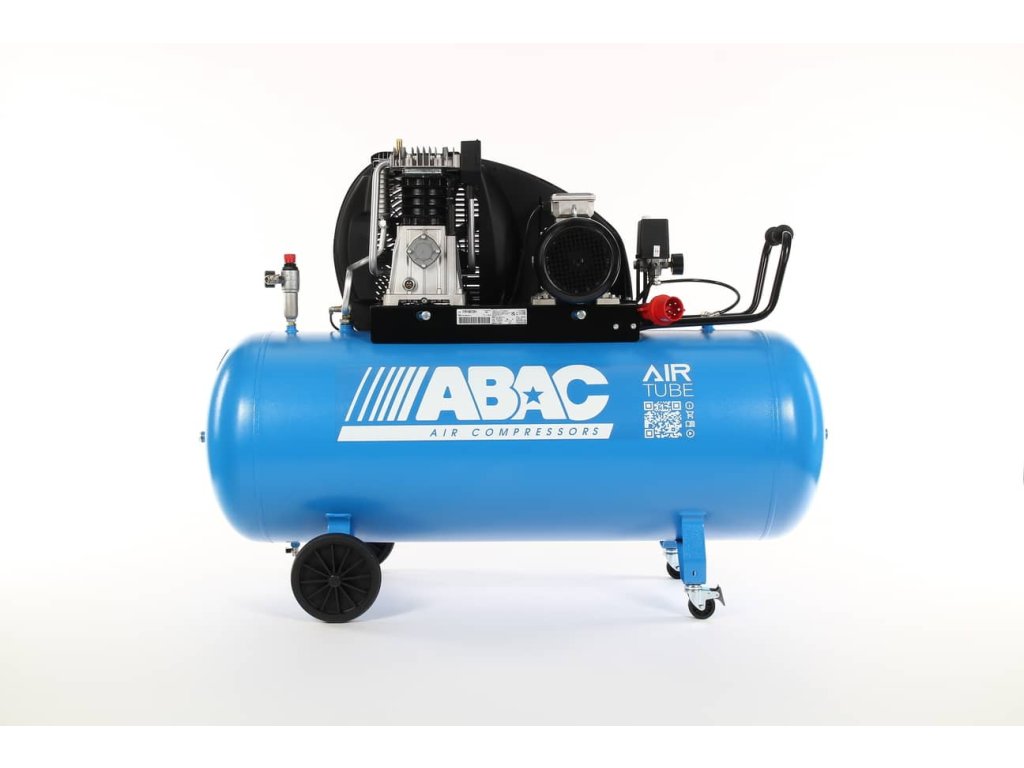

Expert · 270 l · 400 V · 595 l/min · 11 barThe top of the range: 4 kW, 270 l and the Expert spec. The A49BP-4-270CT: the two-stage A49B pump, a 4 kW motor on 400 V, a 270 l tank, a handle and two quick couplings — 595 l/min at 1,400 rpm, 11 bar, 145 kg. For a paint shop, a sandblasting gun and a workshop where two people draw air at once and the machine should be on castors.
Why 4 kW with 270 l in the Expert spec

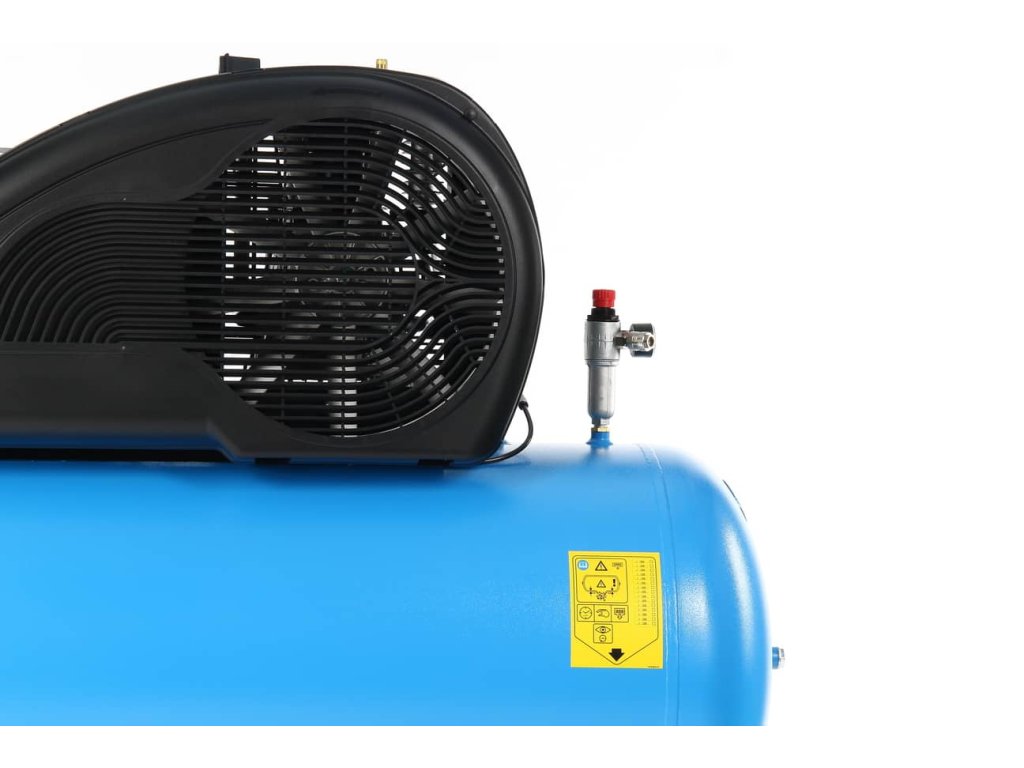

The same pump, motor and tank as on the Extensive A49BT-4-270CT — 595 l/min in two stages into 270 l at 11 bar — but with two front swivel castors with brakes, a closed handle with a rubber grip and a filter-regulator with two quick couplings on the tank neck. It pays off where the 145 kg does get moved now and then and where two hoses are to run from one machine: a sandblasting gun and blowing off, or two people with sanders. If you need more than 595 l/min, you move up to the bigger two-stage pumps. The noise is the same as on the Extensive with 4 kW: 97 dB Lwa, 77 dB at 4 m.
Equipment and details
What the A49BP-4-270CT has from the factory

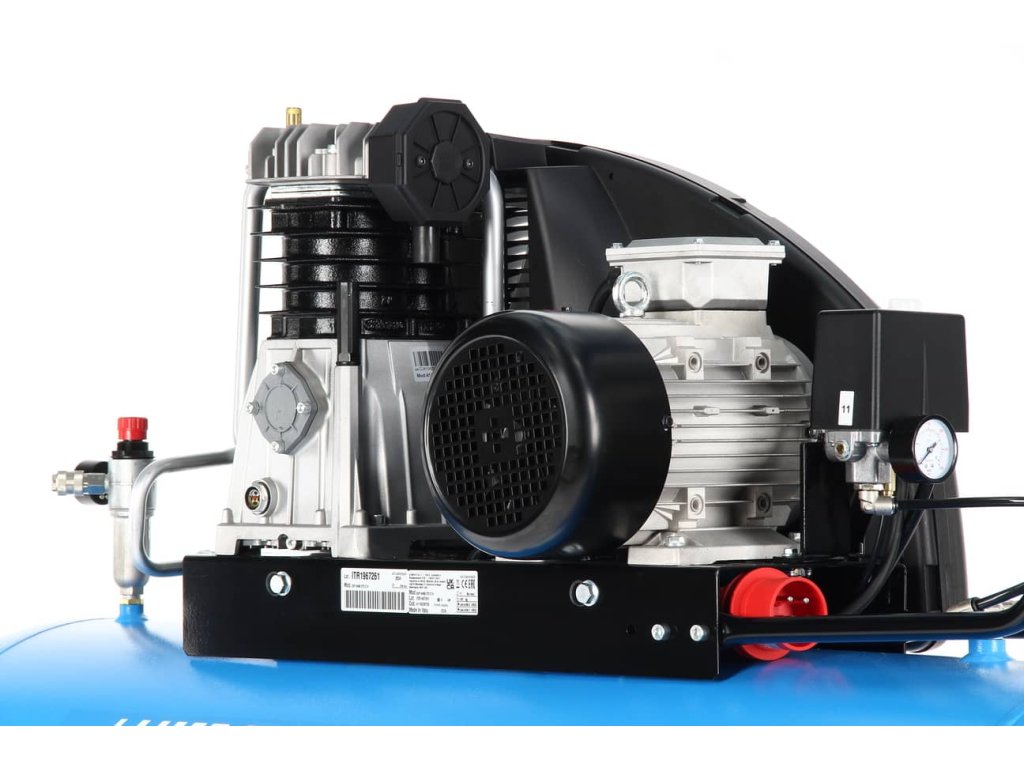

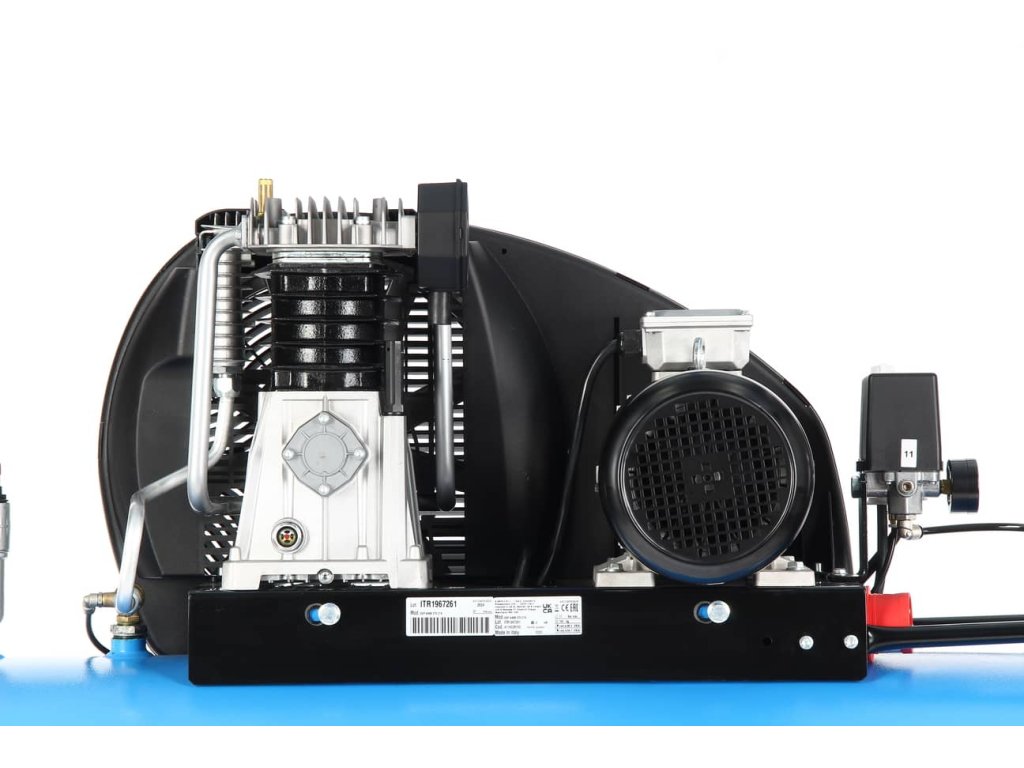

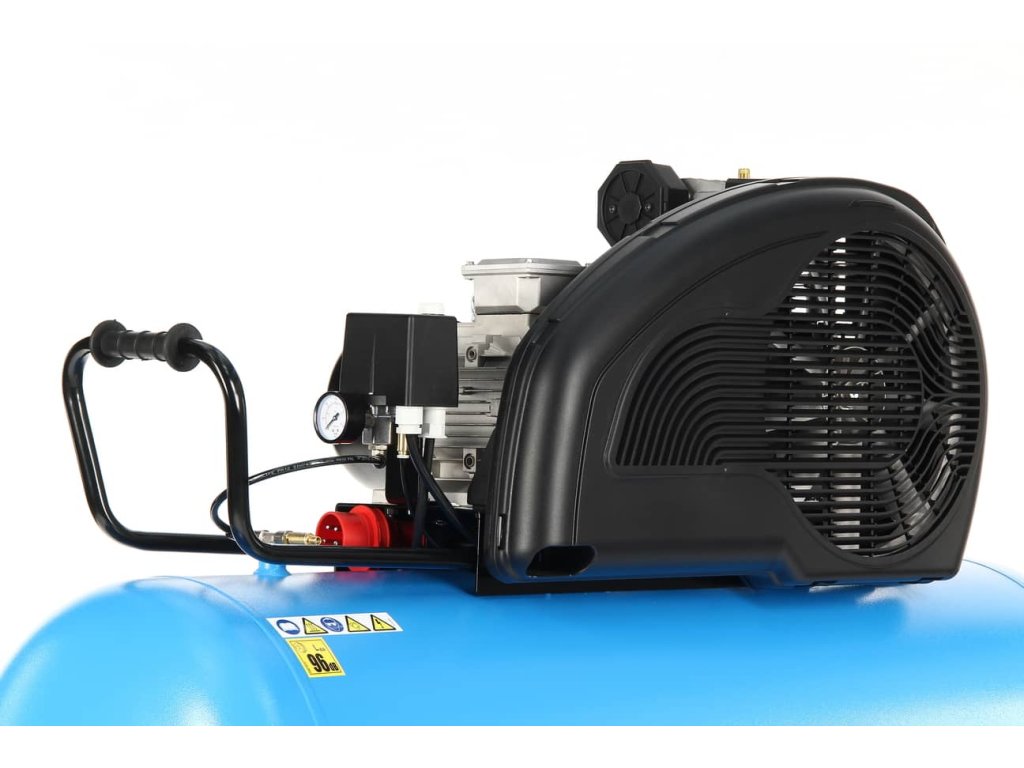

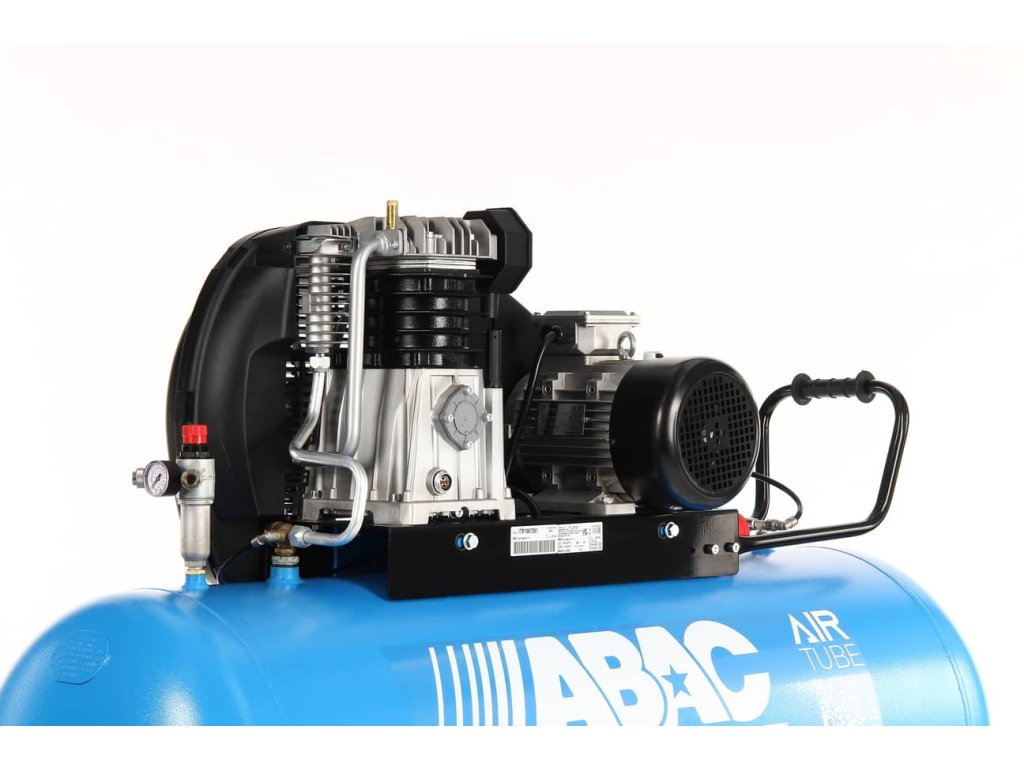

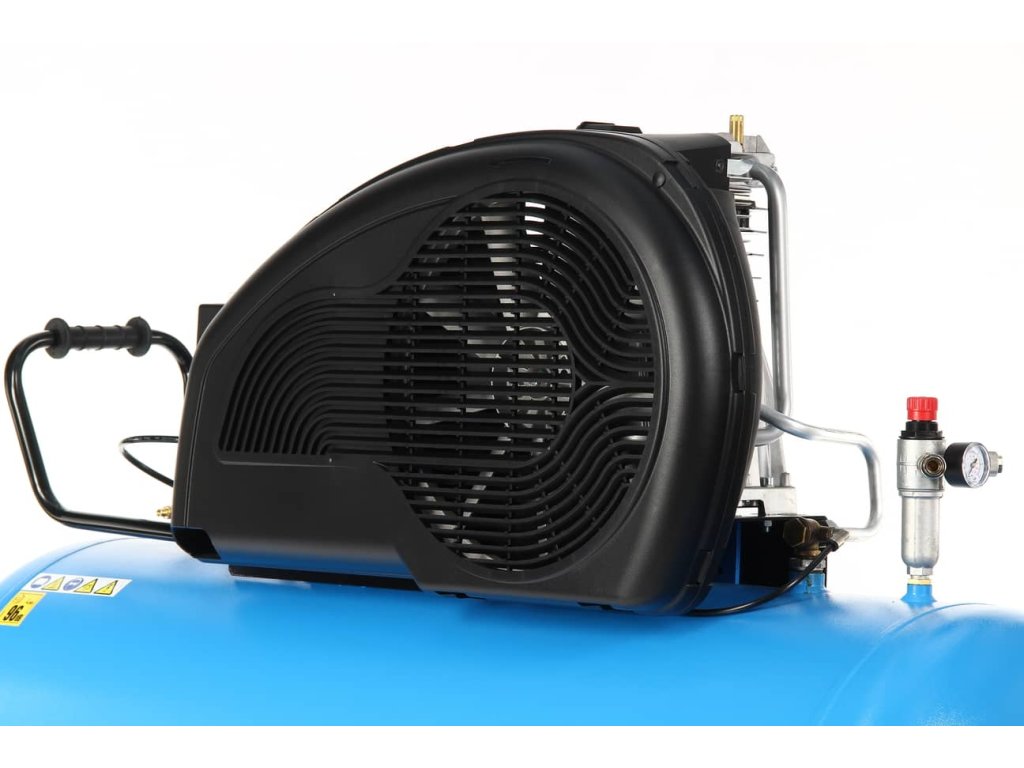

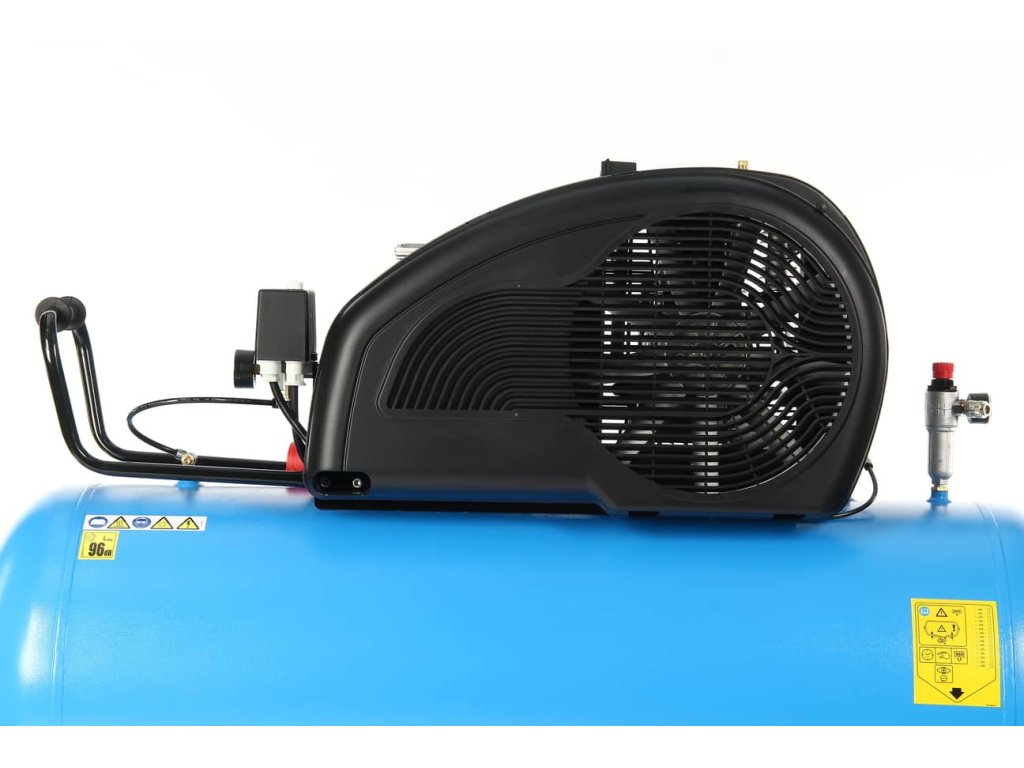

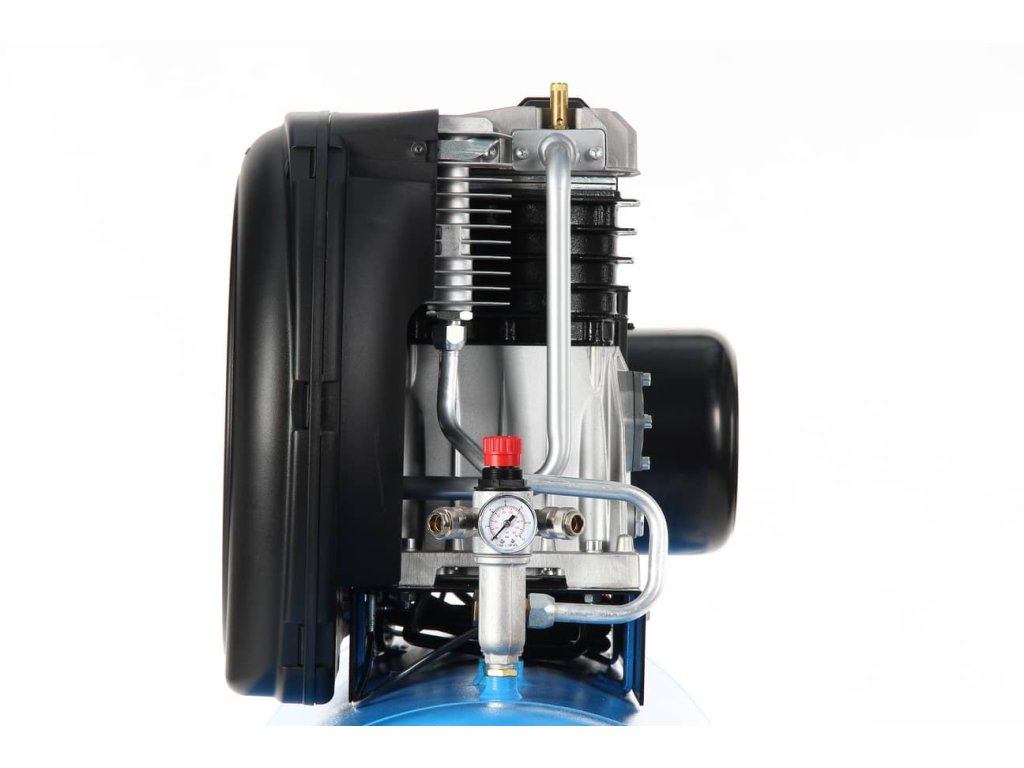

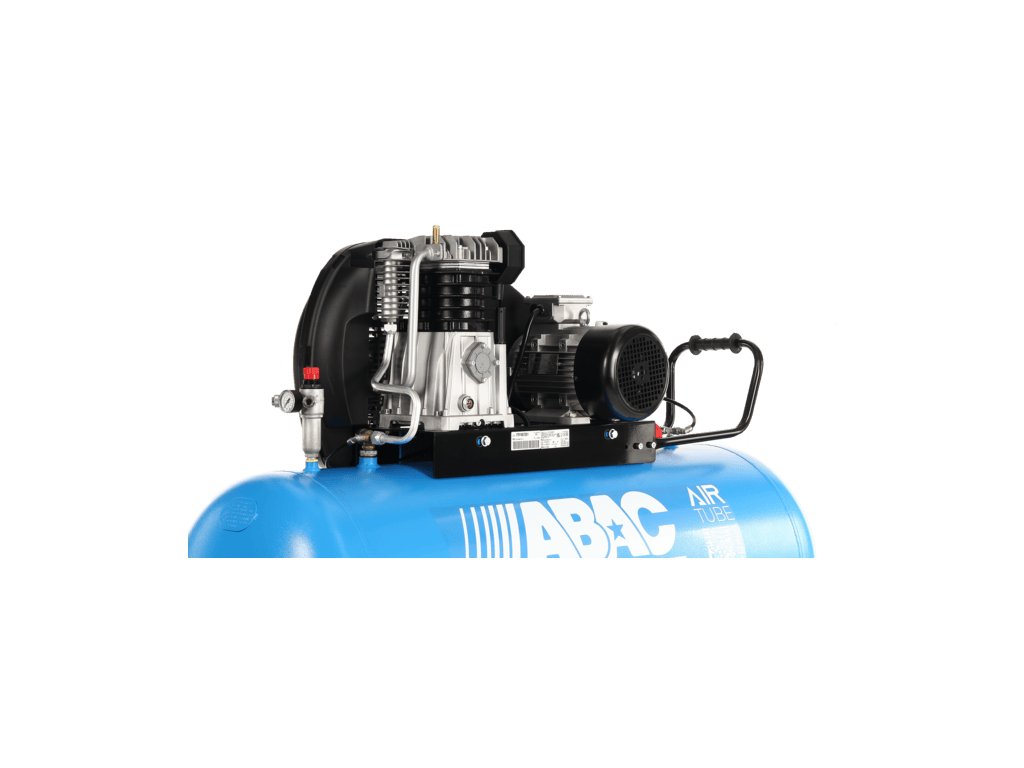

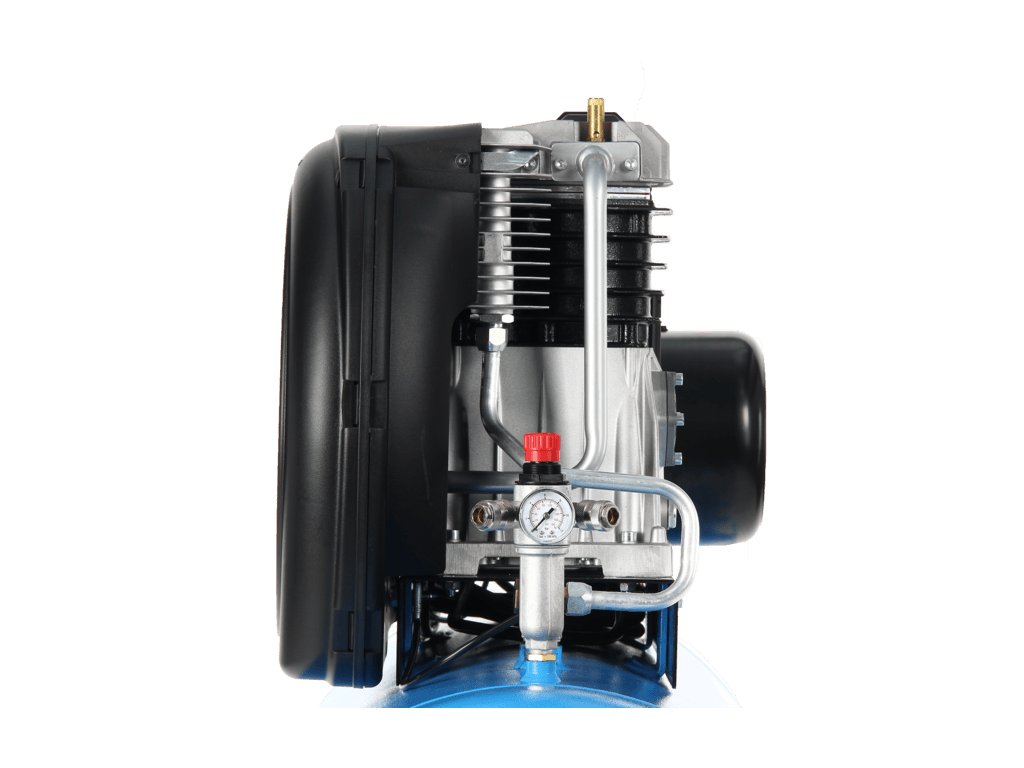

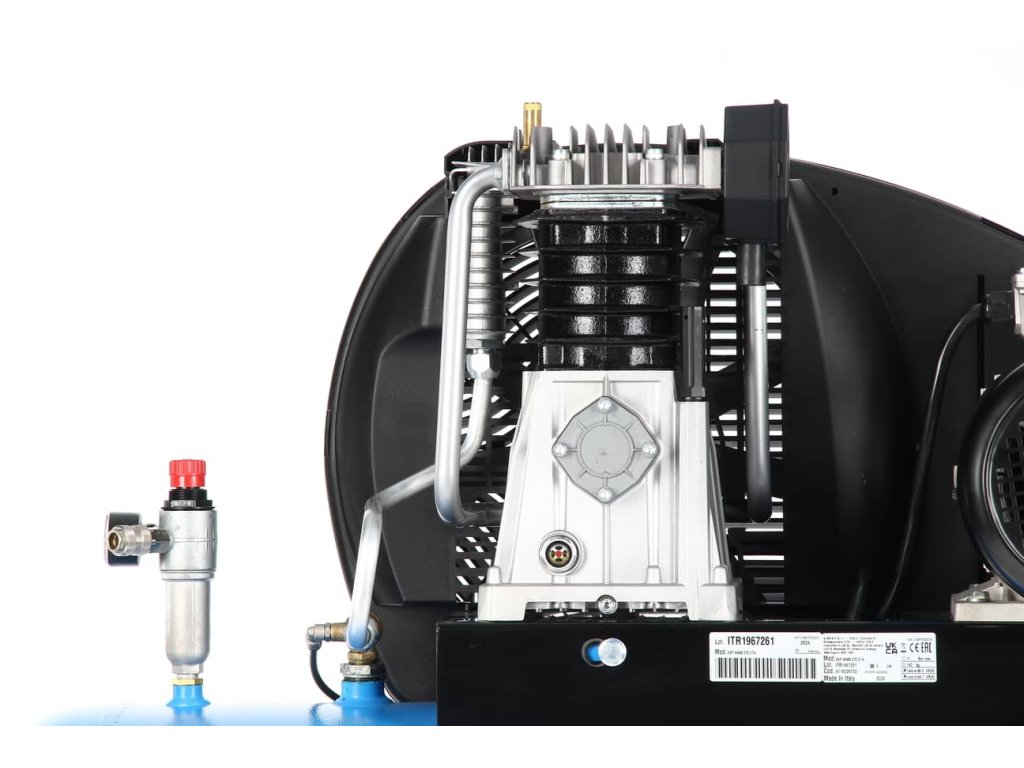

- two-stage twin-cylinder oil-lubricated A49B pump with an oil sight glass, V-belt drive under a moulded belt guard, 1,400 rpm

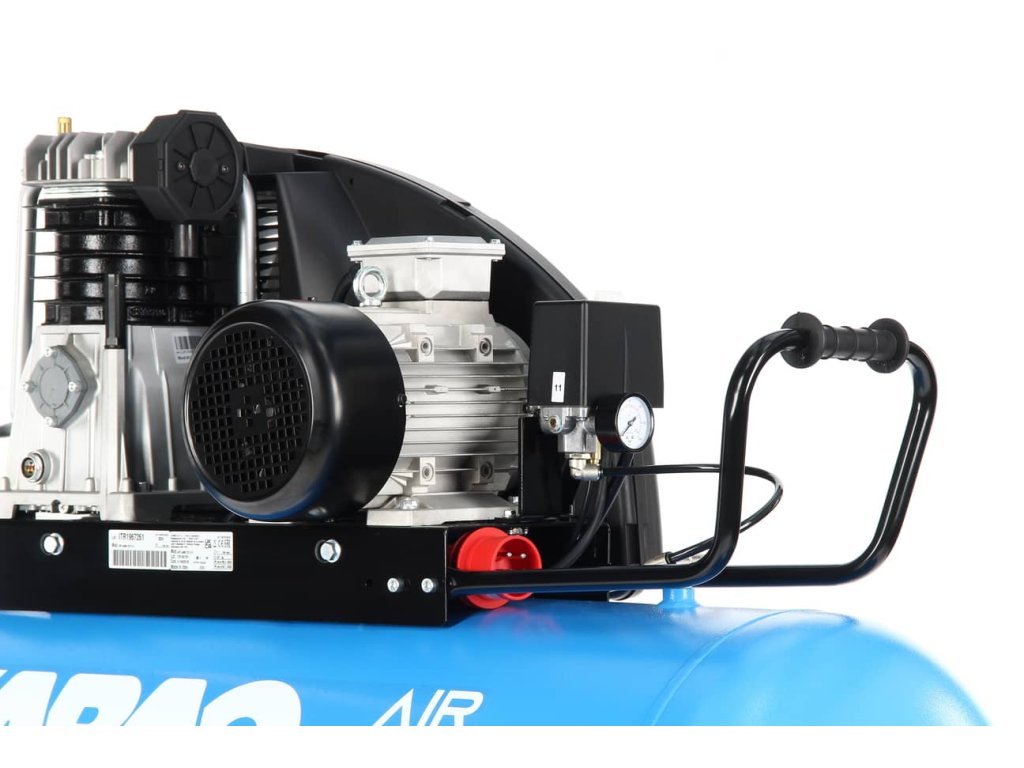

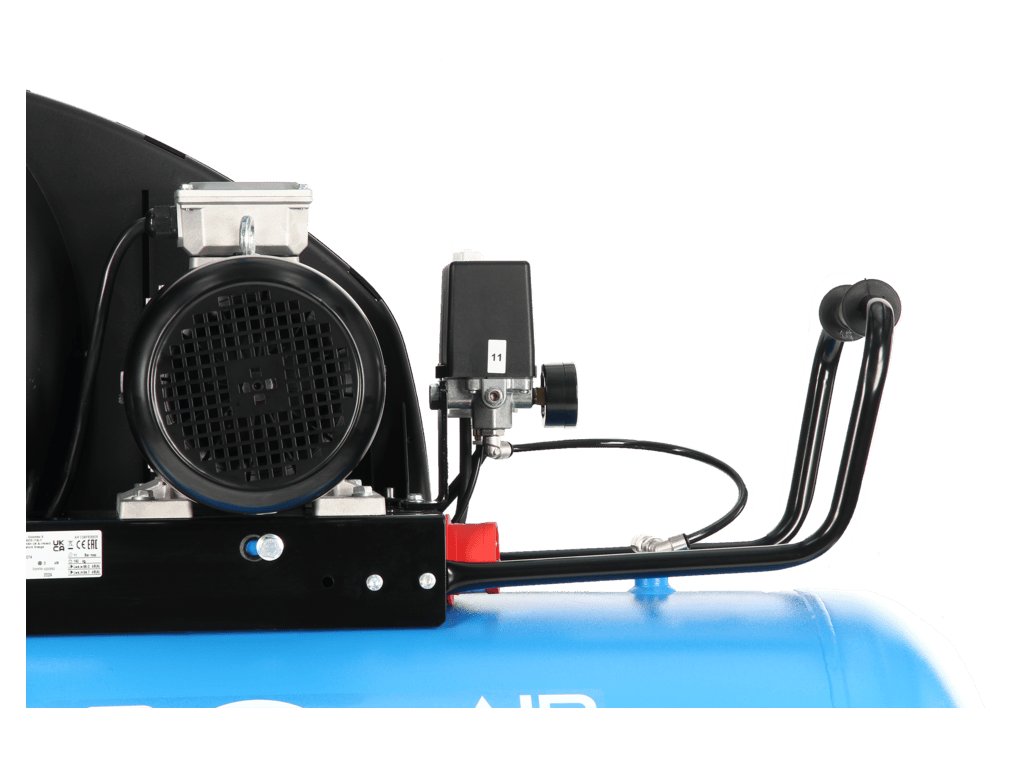

- three-phase 4 kW (5.5 hp) electric motor, 400 V / 50 Hz, thermal overload protection; automatic stop/start pressure switch
- air intake 595 l/min, 11 bar, aftercooler on the pump outlet

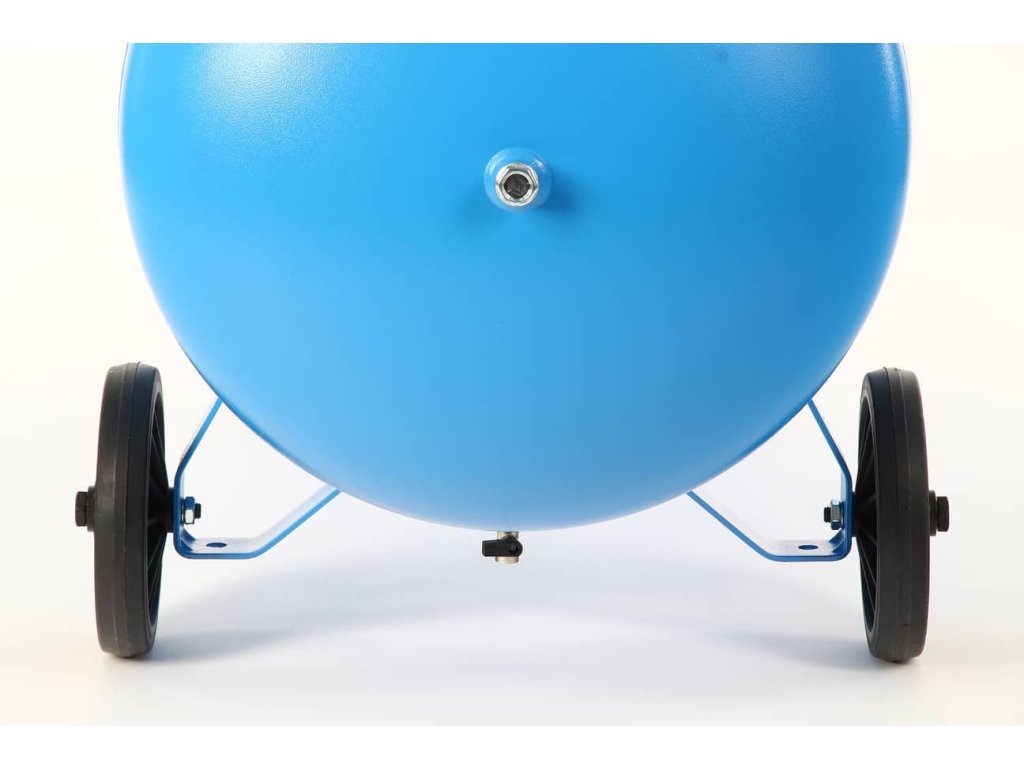

- horizontal 270 l tank with a ball valve for draining condensate

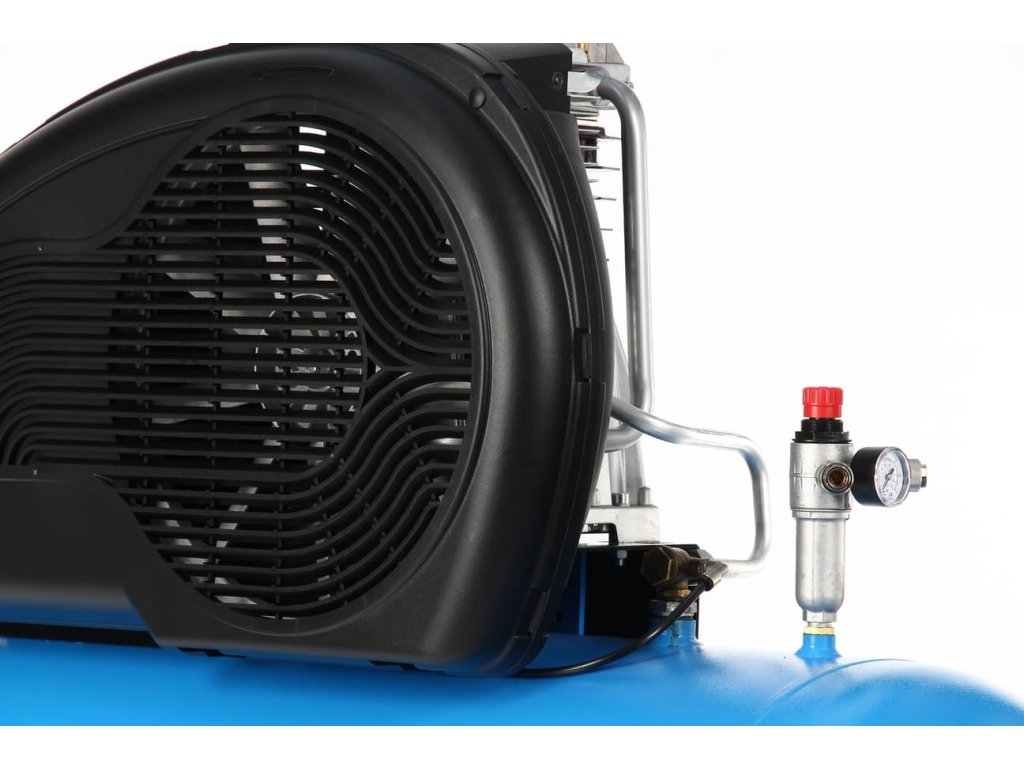

- filter-regulator with a gauge and two DN 7.2 quick couplings on the tank neck, two gauges (tank and outlet)

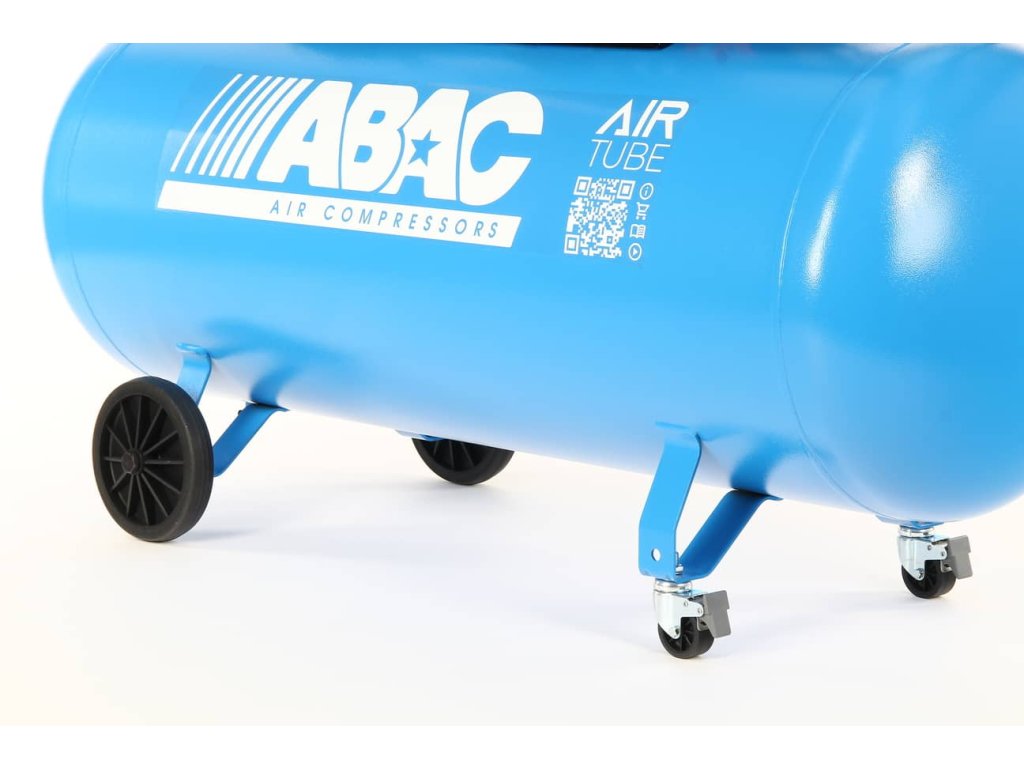

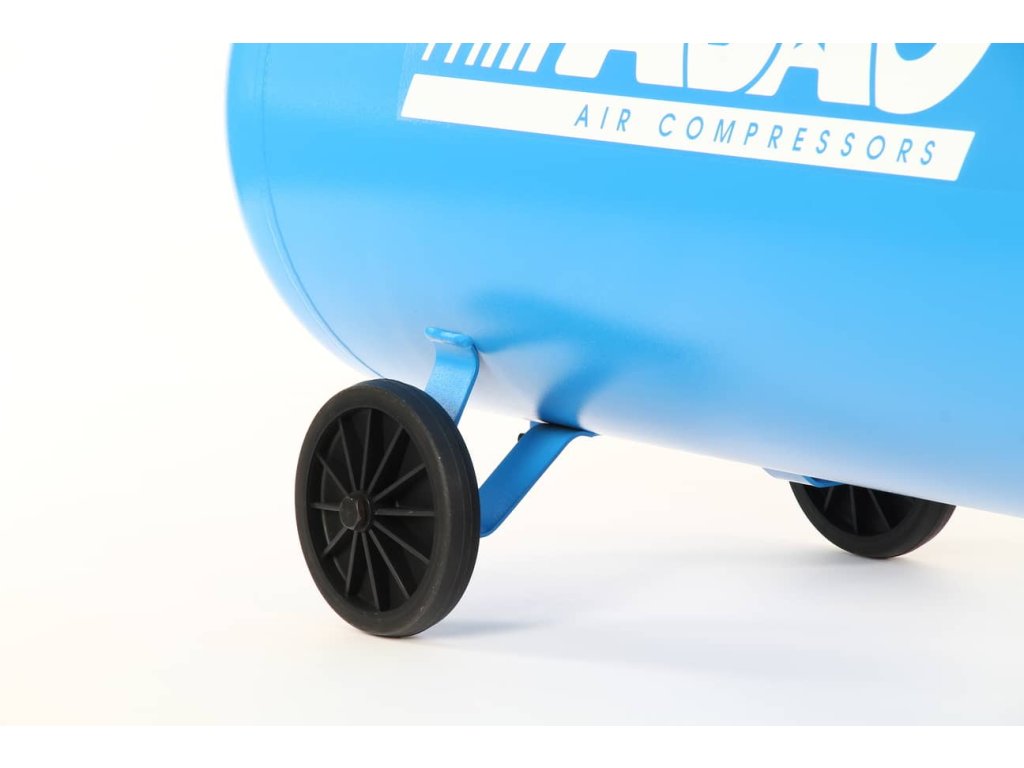

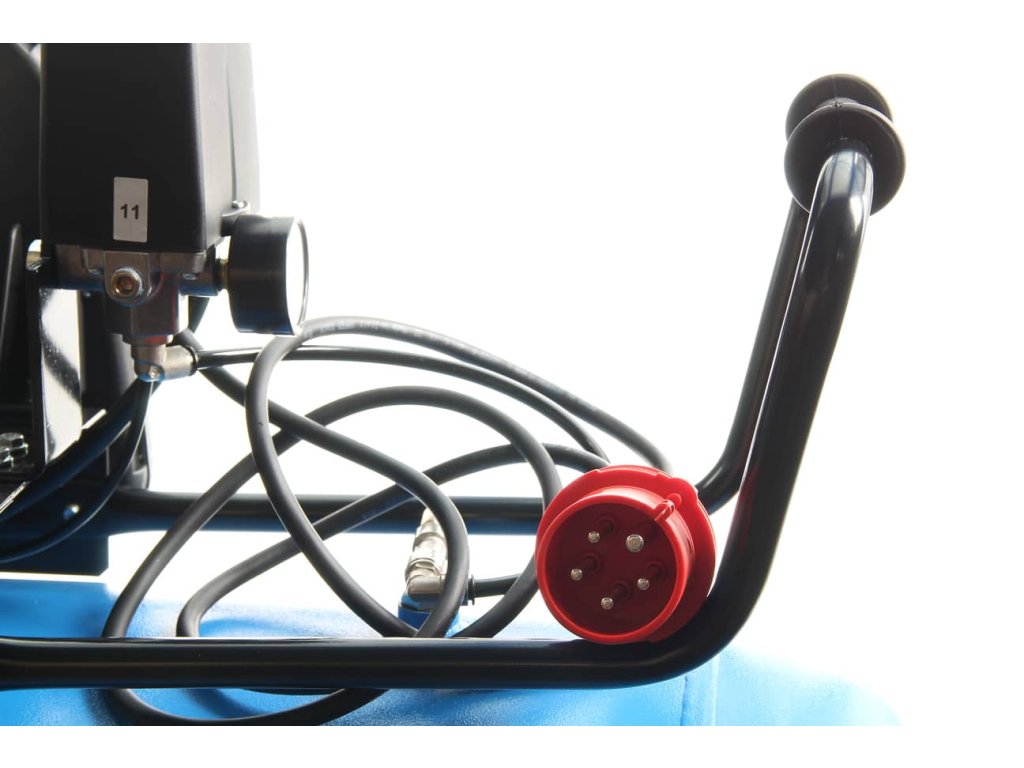

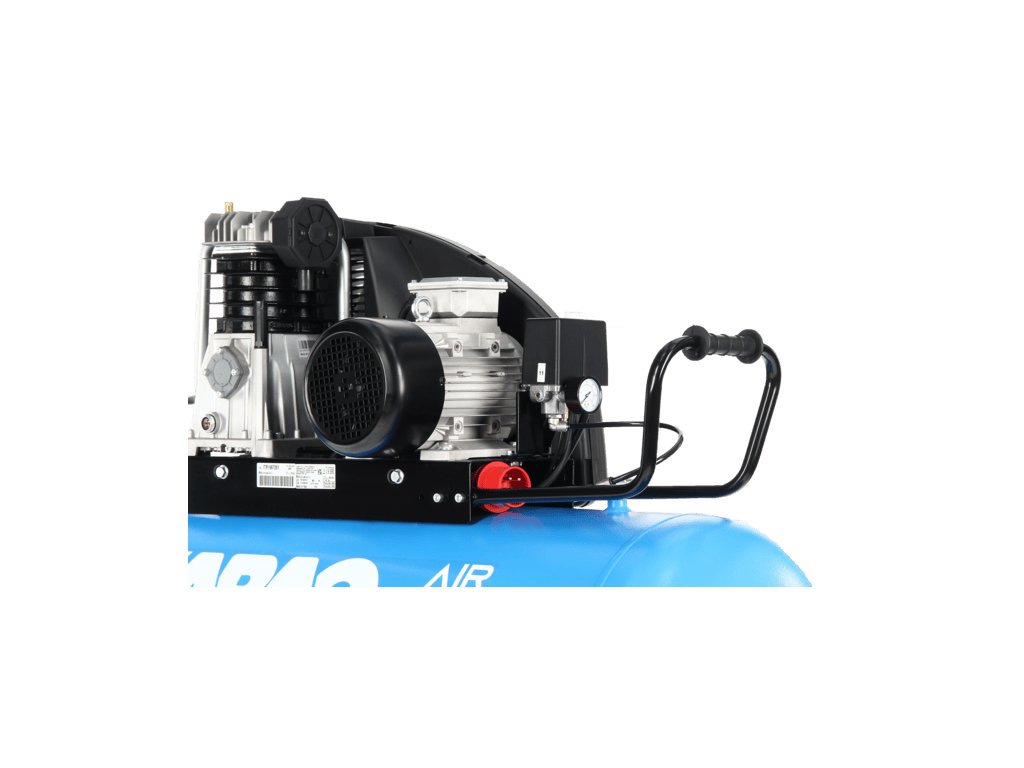

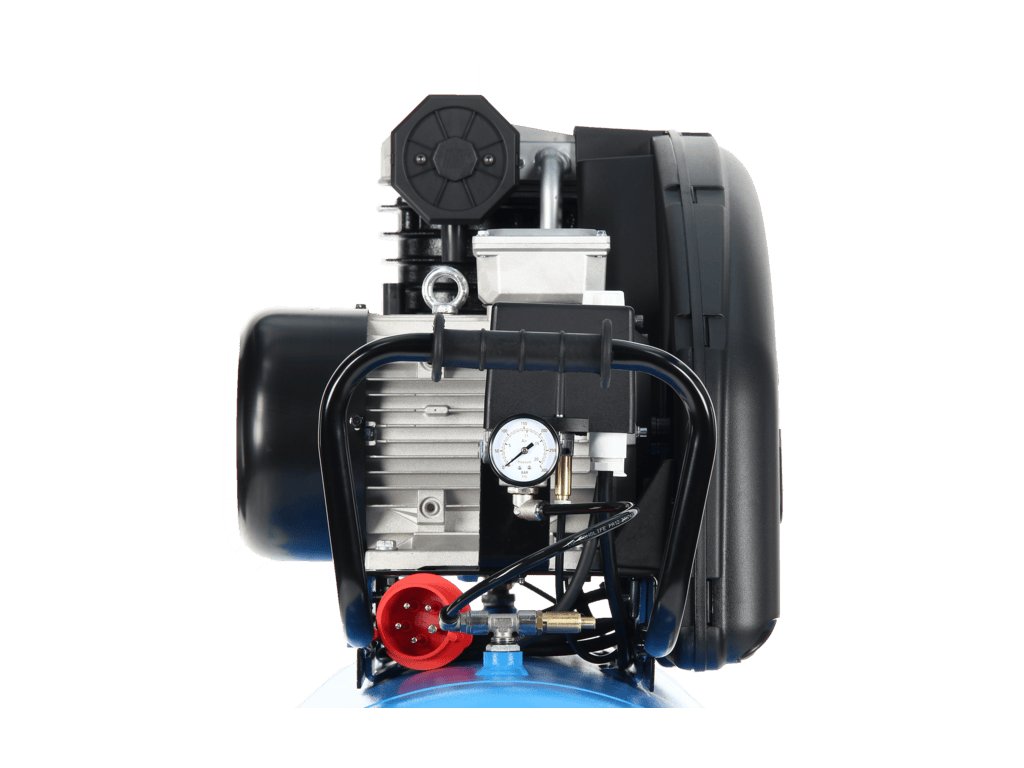

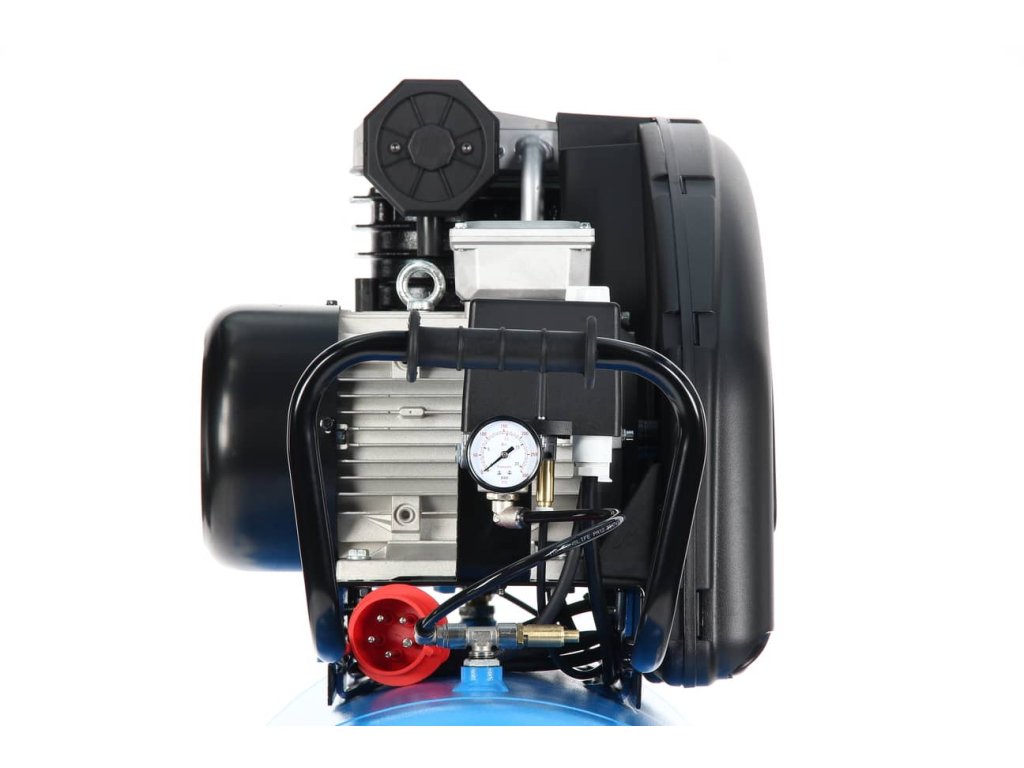

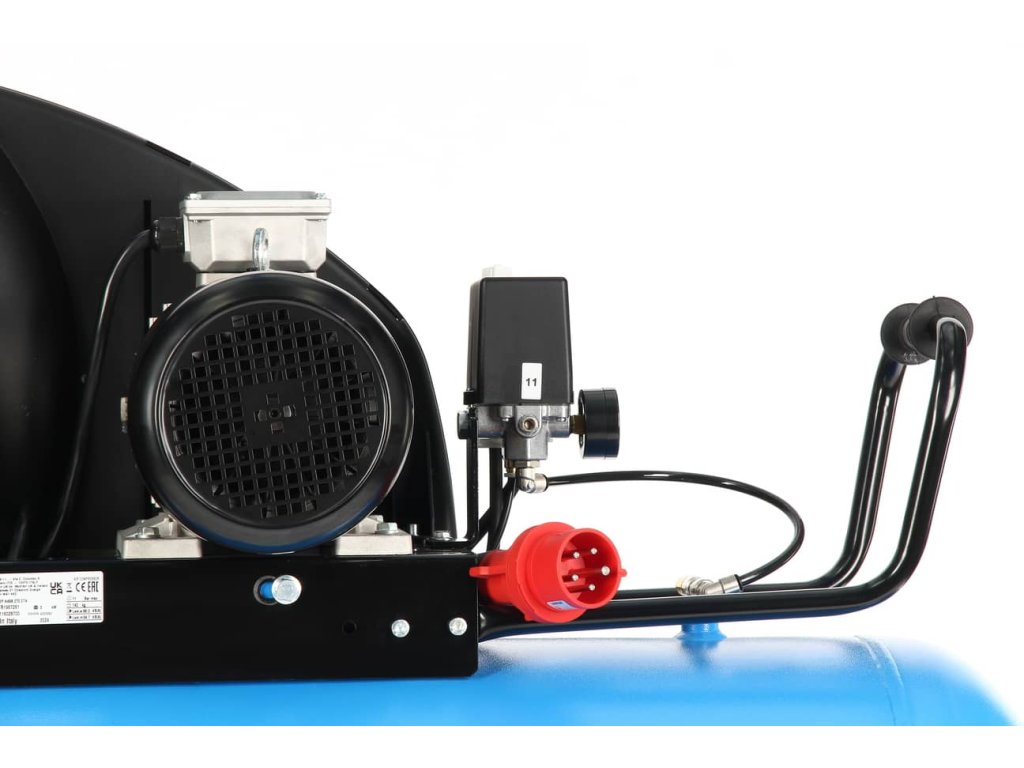

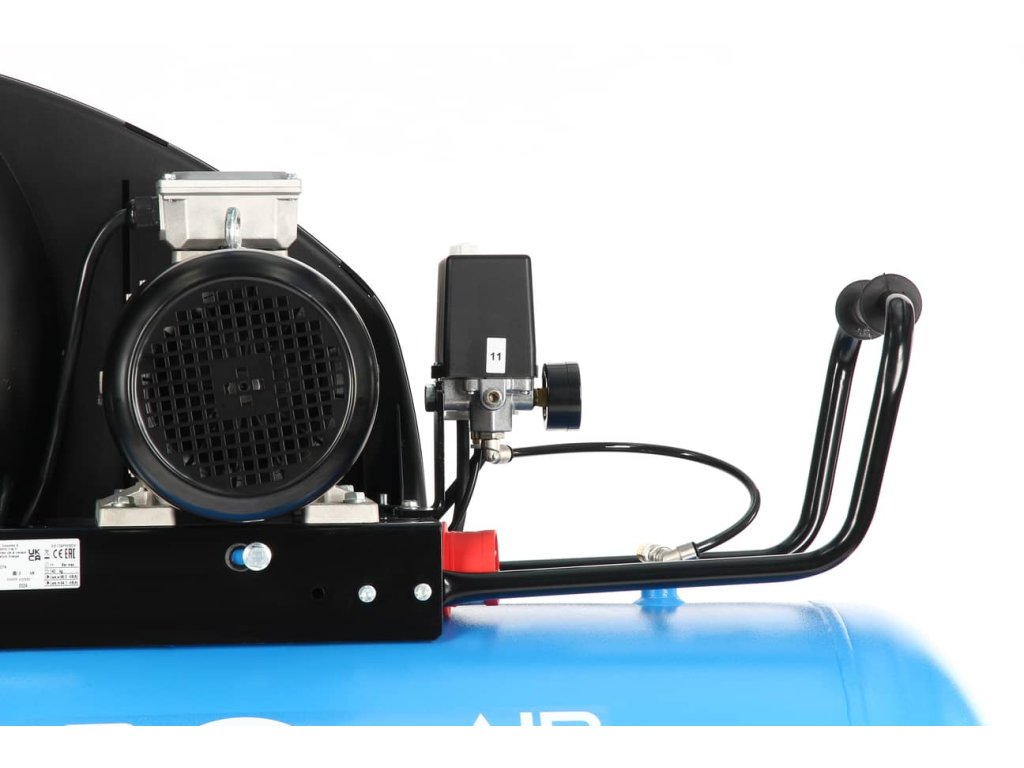

- two front swivel castors with brakes, two rear wheels, closed handle with a rubber grip
- noise 97 dB Lwa, 77 dB at 4 m

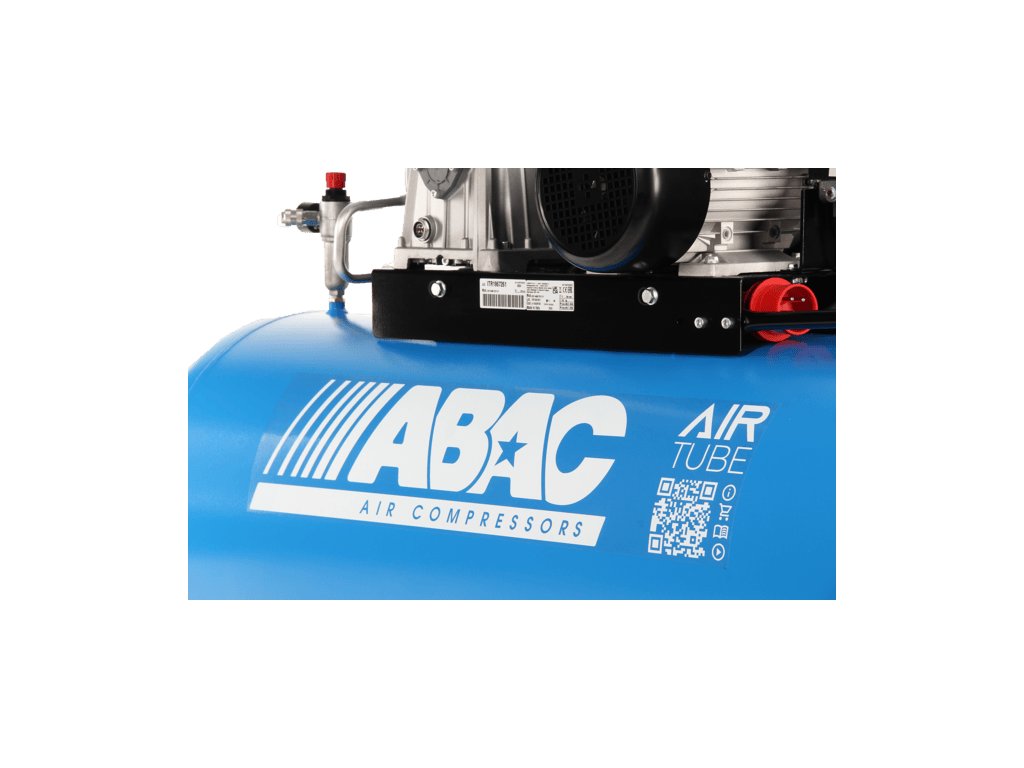

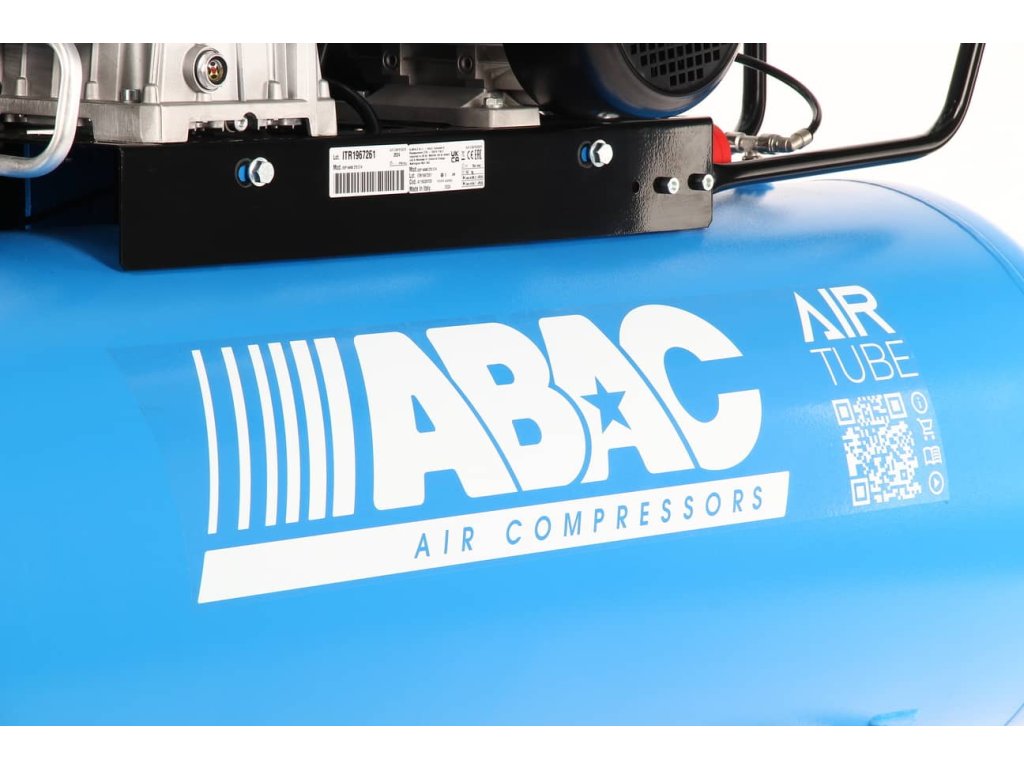

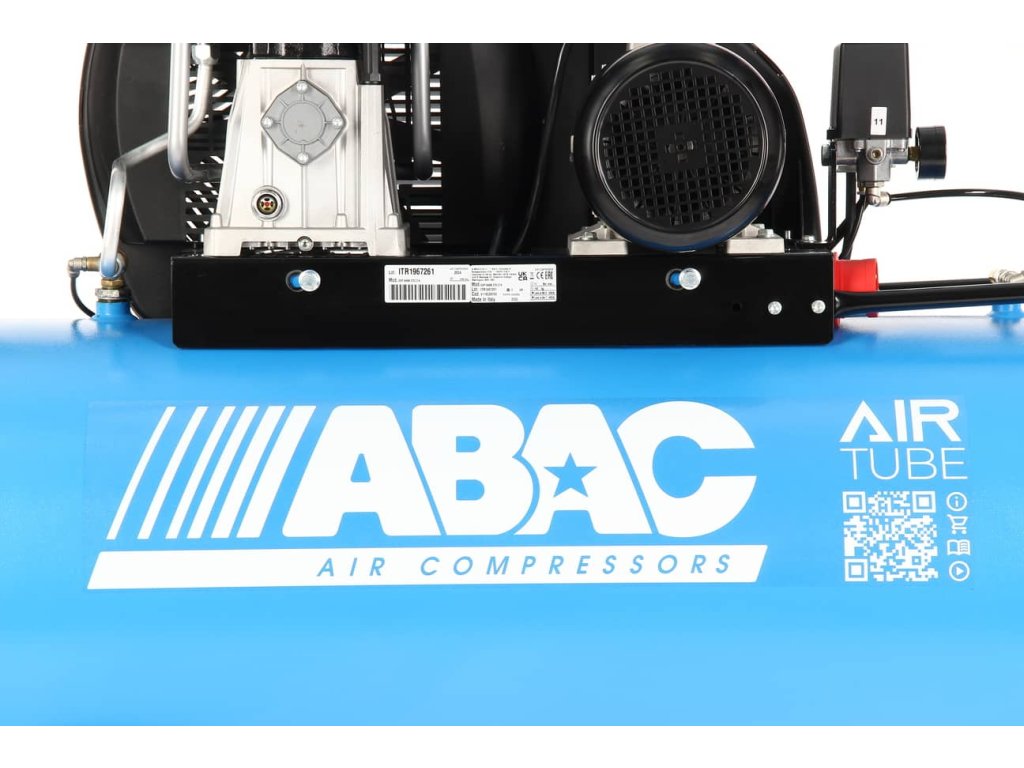

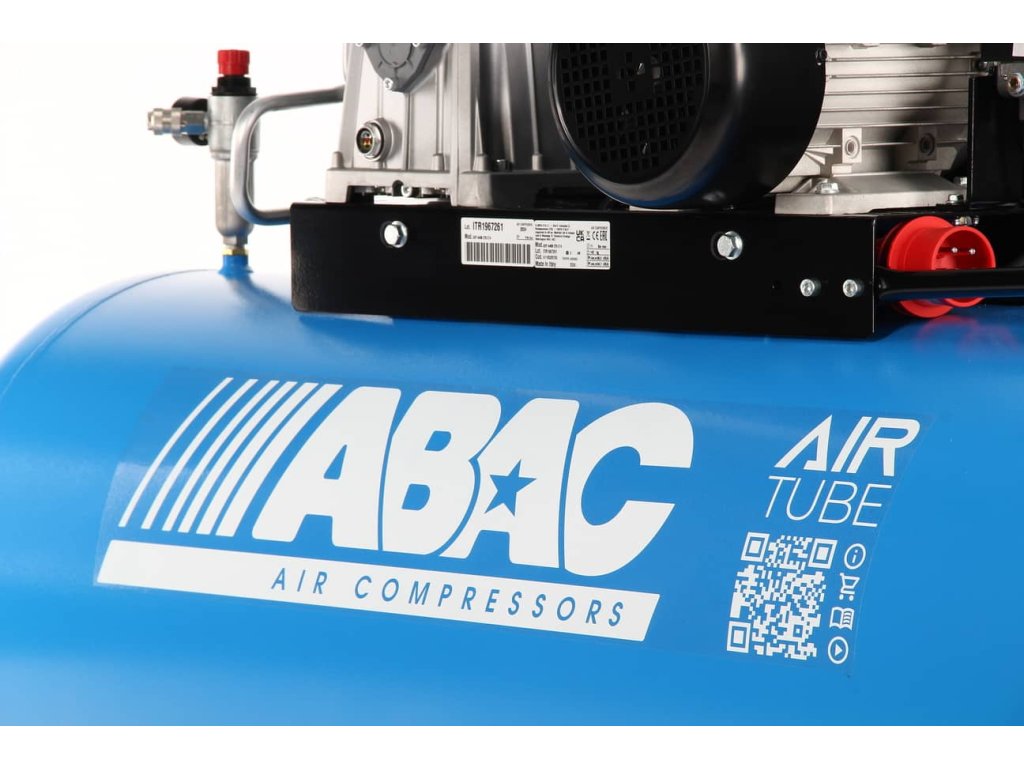

- AirTube QR code on the tank opens service videos; 2-year warranty, 10 years on the tank against rusting through
Machine details
Where next if the A49BP-4-270CT is not the right fit
The same motor and tank with an open handle instead of the closed one and with one front castor is the A49BT-4-270CT; the same motor on a shorter tank is the A49BP-4-200CT. The top of the range is set against the other thirteen on the A49B range page; if you need more than 595 l/min, you will find it in the B59–B70 range. The two quick couplings are there for two spiral hoses.
Values apply to a 50 Hz supply. Air intake is the amount of air the pump draws in; how much of it reaches the tool depends on the pressure and the tank. Noise is given as the sound power level Lwa and the sound pressure at 4 m from the machine. A piston compressor works in cycles (topping up the tank and pausing), not continuously.
Ventilek advises
The top of the range: 595 l/min, 270 l and two hoses from one machine; 145 kg with a handle and front castors with brakes.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 2 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 595 l/min |
| Air delivery: | 446 l/min |
| Pressure vessel volume: | 270 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 – two-stage compressor |
| Lubrication: | Oleic |
| Noise: | 97 dB - Lwa, 77 dB - Lwp(4m) |
| Weight: | 145 kg |
| Accessories: | Pressure regulator, Wheels, Handle, Quick coupler, Filtration |
| Engine: | Electric |
| Soundproofed: | No |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Mobile |
| Dimensions: | 1,495 x 588 x 1,082 mm |
Belt replacement
Commissioning
Compressor installation
Compressor Service KIT and Replacement
Condensate discharge
Maintenance of the suction filter
Oil change at the compressor
