Screw Compressor CRS-4/10 Power input 4 kW, output 498 l/min, pressure 10 bar, without air receiver, voltage 400/50 V/Hz
Code: CRS-4/10
Related products
Product detailed description
A floor-mounted rotary screw compressorfor workshops that already have a receiver and only need to replace the air source. It takes up690 × 480 mmof floor space and weighs 99 kg.
It delivers498 litres of air per minuteat 10 bar. The variable speed drive matches speed to demand, so the machine never runs flat out.
First service after 2,000 hours
What to know before you buy
Continuous duty
Unlike a piston compressor it needs no cool-down breaks — it runs a whole shift.
400 V supply
A three-phase connection is required. Soft start loads your fuses far less than a piston machine.
Service after 2,000 h
The first service is due after two thousand operating hours or one year.
Smooth running
Two rotors compress the air continuously — none of the pulsation a piston machine sends into your piping.
What it looks like in service

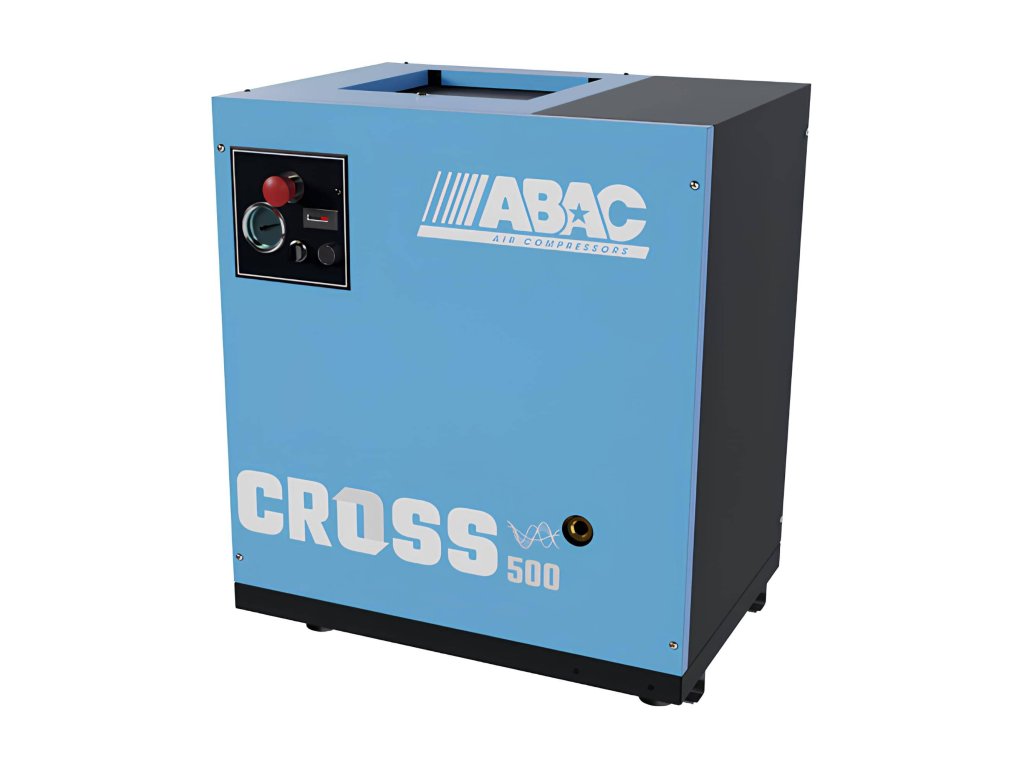

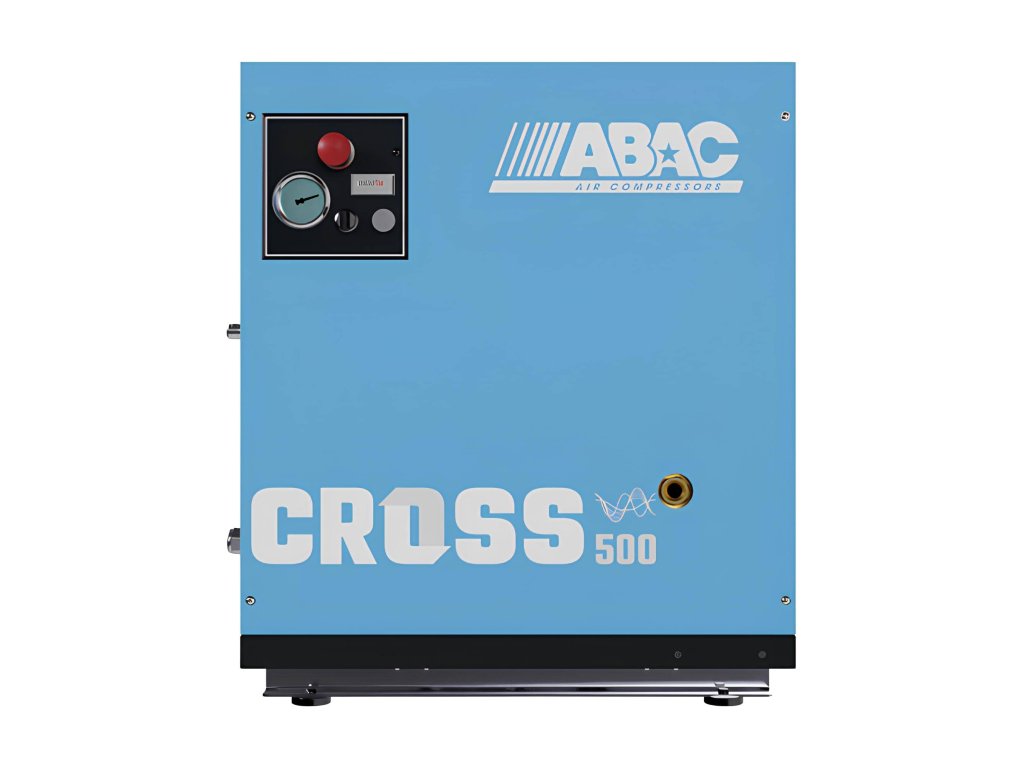

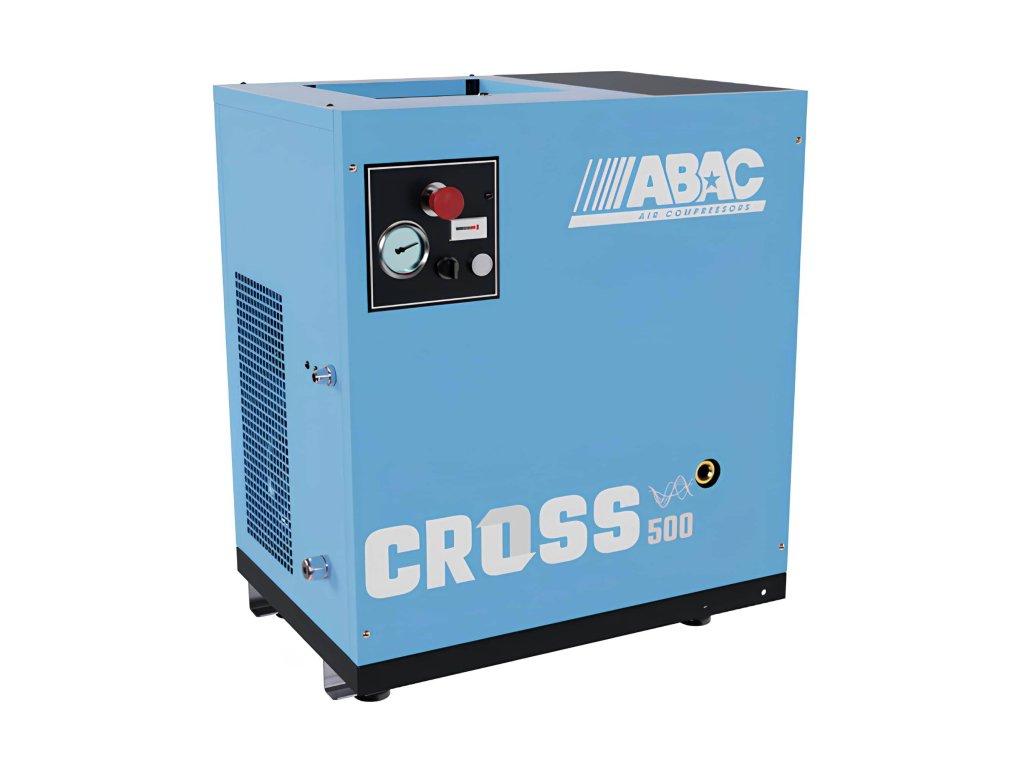

The bare unit without a tank. It stands next to an existing receiver and takes barely half a square metre.
At 60 dB(A) the machine stands in the workshop itself — no separate compressor room and no long pipe run, usually the most expensive part of the installation in a small shop.
Who this particular model is for
Screwdrivers and jigs with short bursts of demand.
Inflation and cleaning, where a smaller air reserve is enough.
Nail guns and sanders, when you already have a receiver.
Which CROSS to choose
The usual question is not whether to buy a screw compressor, but which one from the range. Here is this model next to its closest neighbours.
Compared with the closest models | ||||
|---|---|---|---|---|
| Model | Air delivery | Motor power | Air receiver | Dryer |
| CRS-4/10 — this model | 498 l/min | 4 kW | — | — |
| CRS-4/10-100 | 498 l/min | 4 kW | 100 l | — |
| CRS-4/10-200 | 498 l/min | 4 kW | 200 l | — |
Frequently asked questions about this model
- Can I connect it to a receiver I already own?
- Yes, and that is exactly what it is for. The vessel must be rated for at least 10 bar and hold a valid inspection. Go for 100 litres or more — anything smaller would make the compressor cycle too often.
- Why does it weigh the same as the stronger CROSS 900?
- The enclosure, frame and cooling are identical on both versions; only the motor and the air end differ. That is why the weight and footprint match — 99 kg and 690 × 480 mm.
- Will it fit under a workbench?
- At 787 mm it is a tight fit under most benches. Allow extra clearance for cooling as well — the maker asks for free space around the machine.
Air delivery measured per ISO 1217 ed. 4 (2009), annex E, at a reference pressure of 9.5 bar; noise per ISO 2151 (2004).
On its own this is only a source of air — you have to have the tank. With a 100-litre receiver it is sold as the CRS-4/10-100, with a 200-litre one as the CRS-4/10-200. If you do not need a variable speed drive because demand in the workshop barely fluctuates, fixed speed will do — that is the ABAC SPINN Mini series.
On its own it pushes air straight into the pipework. With nowhere to breathe it cycles over and over — which does no good to the machine or to your electricity bill.
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Displacement: | 495 l/min |
| Pressure vessel volume: | It isn't |
| Connecting: | 1/2" |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Noise: | 59 dB - Lwp(4m) |
| Weight: | 99 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | Direct |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| Frequency converter: | Yes |
| Length: | 690 mm |
| Width: | 480 mm |
| Height: | 787 mm |
