Screw compressor SPV-5,5/10D-200 input power 5.5 kW, air delivery 780 l/min, pressure 10 bar, air receiver 200 l, voltage 400/50 V/Hz + dryer
Code: SPV-5-5/10D-200
Related products
Product detailed description
The widest regulation rangeThe top of the SPINN SPV range. The 337 to 757 l/min range is the widest of all four models — the machine drops deep in quiet running yet still covers the peak when the whole workshop draws at once. That is paid for in noise: 61 dB(A) is four decibels more than the smaller models.
For operations where demand changes a lot through the day — one workstation in the morning, three in the afternoon. That profile is exactly what the drive is built for.
What sets the SPV-5,5/10D-200 apart
Range 1:2.2, the widest in absolute numbers
From 337 to 757 l/min is 420 litres of span. The wider the band, the bigger the swings in demand the machine covers without idling.
757 l/min at peak
Enough for several pneumatic tools at once, or for the continuous draw of a grinder or a sandblasting gun.
61 dB(A)
Four decibels more than the smaller models in the range. If the machine is to stand among people, allow for it.
Same set, more output
Air receiver 200 l, dryer and dimensions 1,430 × 600 × 1,260 mm remain unchanged. Compared to the four, only 10 kg is added.
What's inside

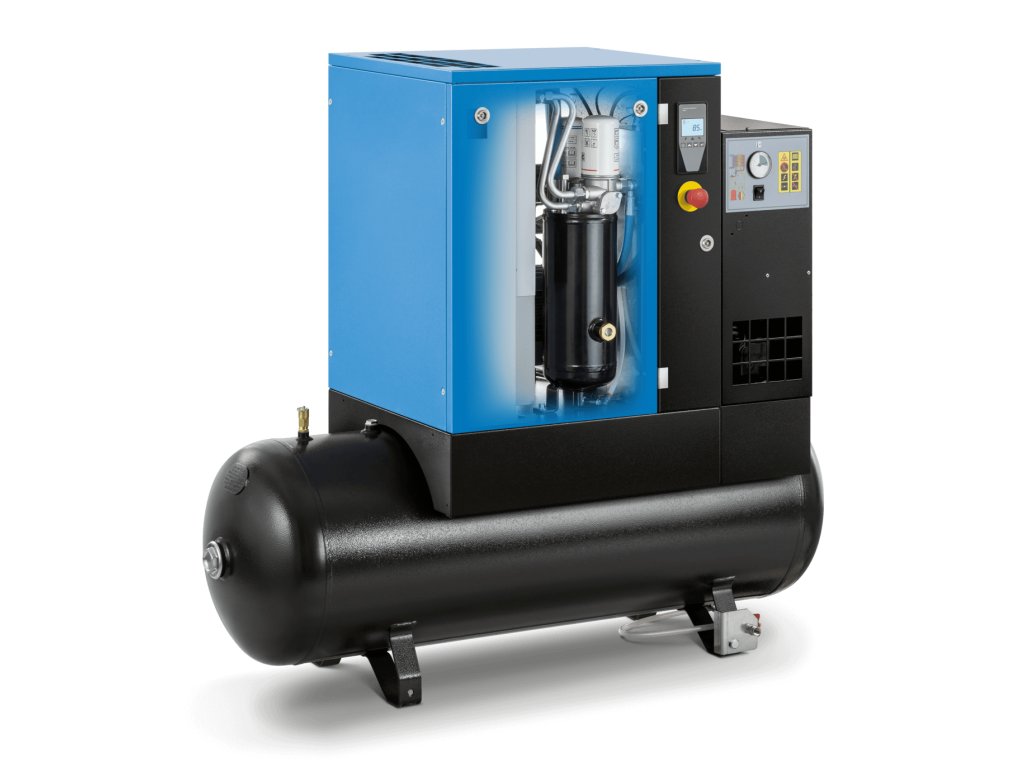

Under the canopy sits the C43 screw block driven from the motor by V-belts, a refrigerant dryer and a central automatic condensate drain.

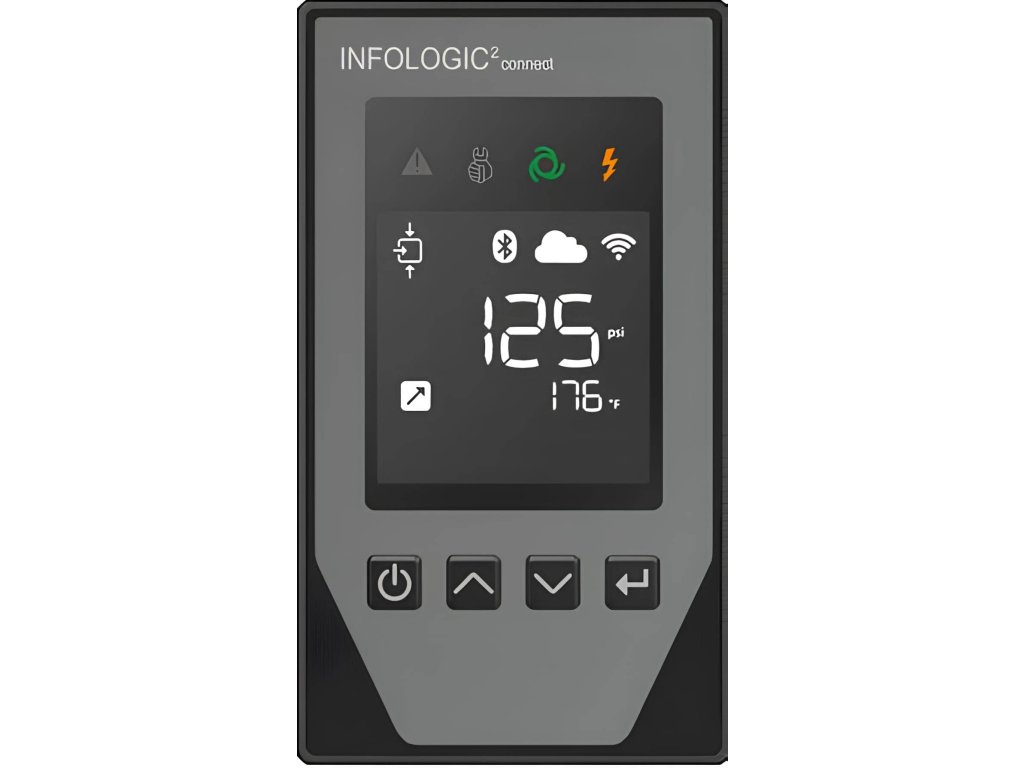

Control is handled by the Infologic2 Connect unit with a colour display. It tracks the 2,000 – 4,000 – 6,000 running hours service intervals and allows machine monitoring and precise setting of the outlet pressure.
Machine details
Parameters of SPV-5,5/10D-200
- Regulation range 337 – 757 l/min at 10 bar
- Input power 5.5 kW, noise 61 dB(A)
- A 200-litre receiver with a refrigerant dryer in one frame
- Dimensions 1,430 × 600 × 1,260 mm, weight 210 kg, outlet G 1/2"
- Service intervals 2,000 – 4,000 – 6,000 running hours, tracked by the Infologic2 Connect unit
- Ten years against rust-through of the two-hundred-litre air receiver
Where the SPV-5,5/10D-200 sits in the range
| Technical specifications of the ABAC SPINN SPV range | ||||
|---|---|---|---|---|
| Model | Control range | Power input | Noise level | Weight |
| SPV-2,2/10D-200 | 131 – 293 l/min | 2.2 kW | 57 dB(A) | 190 kg |
| SPV-3/10D-200 | 139 – 360 l/min | 3.0 kW | 57 dB(A) | 195 kg |
| SPV-4/10D-200 | 270 – 503 l/min | 4.0 kW | 58 dB(A) | 200 kg |
| SPV-5,5/10D-200 — this model | 337 – 757 l/min | 5.5 kW | 61 dB(A) | 210 kg |
Every model: pressure 10 bar, 200 l receiver, refrigerant dryer, power supply 400/50 V/Hz, three-phase, outlet G 1/2", dimensions 1,430 × 600 × 1,260 mm. Service intervals 2,000 – 4,000 – 6,000 running hours.
254 l/min weaker and three decibels quieter is the SPV-4/10D-200. Above 5.5 kW the range does not continue — stronger machines start at 696 l/min in the ABAC SPINN Maxi range, though at fixed speed. A variable speed drive is also fitted to the ABAC CROSS range.
The difference between the minimum and maximum for this 5.5 is bigger than the entire output of the 2kW model. That's the whole point of the inverter — one machine covers the workshop both at idle and at peak.
Additional parameters
| Category: | Air compressors |
|---|---|
| Warranty: | 5 years |
| Compressor type: | Screw compressor |
| Pressure: | 10 bars |
| Air delivery: | 757 l/min |
| Pressure vessel volume: | 200 L |
| Design of pressure vessel: | Lying down |
| Connecting: | 1/2" |
| Motor power: | 5.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Lubrication: | Oleic |
| Dimensions: | 1 430 × 600 × 1 260 mm |
| Weight: | 210 kg |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | Yes |
| Retrieved from: | Professional |
| Development: | Stationary |
| Inverter: | Yes |
| Minimum displacement: | 337 l/min |
| Maximum displacement: | 757 l/min |
Product rating
Be the first who will post an article to this item!
ABAC is an Italian compressor brand, founded in 1981 and part of the Atlas Copco Group since 2007. We carry machines from a carry-case compressor you lift with one hand, through workshop piston compressors, to industrial and screw machines for an entire hall.
Besides standard oil-lubricated machines, ABAC also makes oil-free compressors for paint shops and surgeries, soundproofed machines in an acoustic cabinet and engine-driven compressors for building sites. They are complemented by ABAC DRY refrigerated dryers, oils and service kits.
Manuals in the AirTube appABAC compressor ranges
ABAC Line — for a standard socket
For tradespeople and smaller workshops. Direct-drive piston machines, from a one-hand carry case to a twin-cylinder unit on wheels.
- 1.1–2.2 kW, 230 V
- intake 160–355 l/min, 8–10 bar
- for work with breaks between cycles
ABAC Pro Line — V-belt drive
Daily work in workshops and service. Oil-lubricated single- and two-stage machines, on wheels, on feet or as a tandem.
- 1.5–7.5 kW, intake 178–2,420 l/min
- 10, 11 or 15 bar
- 50–900 l receiver
ABAC Silent — soundproofed
When the compressor stands next to you. Pump, motor and belt are enclosed in an acoustic cabinet; some machines also house a dryer.
- 81–89 dB Lwa in the cabinet
- on 270 and 500 l receivers or tankless
- 1.5–7.5 kW
ABAC Expert Zero — oil-free
For paint shops, upholstery and food. An oil-free pump with Teflon-coated cylinders, driven by V-belts.
- intake 255–486 l/min, 10 bar
- 50–270 l receiver
- 230 and 400 V
ABAC Tech — industrial
Runs without cooling breaks. Cast-iron pump and an S1 motor rated for a 100% duty cycle, oil-lubricated or oil-free.
- 1.5–15 kW
- 10 to 30 bar
- on a base frame or a receiver
ABAC SPINN and CROSS — screw
When air flows all shift long. Six ranges from a workshop unit to a station for a whole hall, stand-alone or with receiver and dryer.
- 2.2–22 kW, delivery 272–3,090 l/min
- 10 bar, 57–71 dB(A)
- SPV with a variable speed drive
Engine Air — petrol and diesel
Air where there is no socket. Piston compressors with a combustion engine: portable in a frame, on wheels or stationary.
- intake 275–1,038 l/min
- 10–14 bar
- Honda and Kohler engines
Clean Air — dental
For dental surgeries and laboratories. Oil-free 8 bar compressors with an adsorption dryer or in an acoustic cabinet.
- for 1 to 5 dental chairs
- dew point −40 °C with dryer
- 64 dB(A) at 1 m in the cabinet
Not sure which range to pick? The Compressors page has a selection calculator and a table of how much air each tool uses.
Choose a compressorABAC ranges side by side
| Range, use, design, intake, pressure and power supply | |||||
|---|---|---|---|---|---|
| Range | For whom | Design | Intake | Pressure | Power |
| ABAC Line | tradespeople, smaller workshops | piston, direct drive | 160–355 l/min | 8–10 bar | 230 V |
| ABAC Pro Line | daily work in workshops and service | piston, V-belts | 178–2,420 l/min | 10–15 bar | 230 / 400 V |
| ABAC Silent | machine next to the workstation | piston, soundproofed | 255–1,070 l/min | 8–11 bar | 230 / 400 V |
| ABAC Expert Zero | oil-free air | oil-free piston, V-belts | 255–486 l/min | 10 bar | 230 / 400 V |
| ABAC Super Silent OS | quiet work in occupied rooms | oil-free piston, direct drive | 140–230 l/min | 8–9 bar | 230 V |
| ABAC Tech | industry, non-stop operation | piston, S1 motor | 204–1,716 l/min | 10–30 bar | 230 / 400 V |
| ABAC SPINN and CROSS | continuous air demand | screw | delivery 272–3,090 l/min | 10 bar | 400 V, one model 230 V |
| Engine Air | sites without electricity | piston, petrol or diesel | 275–1,038 l/min | 10–14 bar | combustion engine |
| Clean Air CLR | dental surgeries and laboratories | oil-free piston | 240–480 l/min | 8 bar | 230 V |
Intake is the air the pump draws in; less of it reaches the tool. For screw compressors the manufacturer states the delivery.
How to choose an ABAC compressor
1. Work out the air demand
Add up the consumption of all tools running at the same time and add a reserve. Compare it with the delivery, not the intake: on piston machines the delivery is roughly a quarter lower.
2. Match the running time
For work with breaks, a Line or Pro Line piston machine is enough. If air has to flow all shift long, choose ABAC Tech with an S1 motor or a screw compressor.
3. Check power and space
Smaller machines run from a 230 V socket, more powerful ones need a three-phase 400 V supply. In the code of an electric piston machine, M stands for a 230 V motor and T for 400 V.
4. Maintain regularly
On oil-lubricated machines, check the level in the sight glass and drain the condensate after work. ABAC piston pumps have service kits: the basic LK1 for yearly and the advanced PK1 for two-year maintenance.
Frequently asked questions
- Who makes ABAC compressors?
- ABAC is an Italian compressor brand founded in 1981. It is based in Robassomero near Turin and has been part of the Atlas Copco Group since 2007. Its production quality is backed by ISO 9001 certification.
- Piston or screw compressor?
- It depends on running time. A piston machine fills the receiver and rests, so it suits intermittent work in a workshop. A screw compressor is built for continuous operation and pays off where air is used all shift long. For its screw machines ABAC states roughly 30% higher energy efficiency and about 20 dB(A) less noise.
- Which ABAC compressors are oil-free?
- The Expert Zero range, the quiet Super Silent OS, the ATF and ATFS versions of ABAC Tech, the Clean Air dental compressors and the SUITCASE carry case compress air without oil. They suit paint shops, food production, laboratories and surgeries.
- How quiet is an ABAC compressor?
- The rating plate shows the sound power level Lwa; 4 m from the machine you will measure about 20 dB less. Silent machines in a cabinet have 81 to 89 dB Lwa, the quiet Super Silent OS 63 to 65 dB at 4 m and the screw compressors 57 to 71 dB(A).
- Do I need a dryer with my compressor?
- Compressed air always contains water that condenses in the pipework. For painting or a long pipe network you need a dryer: the ABAC DRY refrigerated dryer brings the air to a pressure dew point of +4 °C and comes in 17 sizes from 266 to 18,000 l/min. Some Pro Line, Silent and SPINN machines have a dryer fitted at the factory.
- Where do I find the manual and which oil should I use?
- Manuals and service videos open via the QR code on the machine in the AirTube app. ABAC piston machines use Altair and ABAC Pro oils, screw machines Rotair oils, including the food-grade Rotair Foodgrade. The manual tells you which oil your machine needs.
