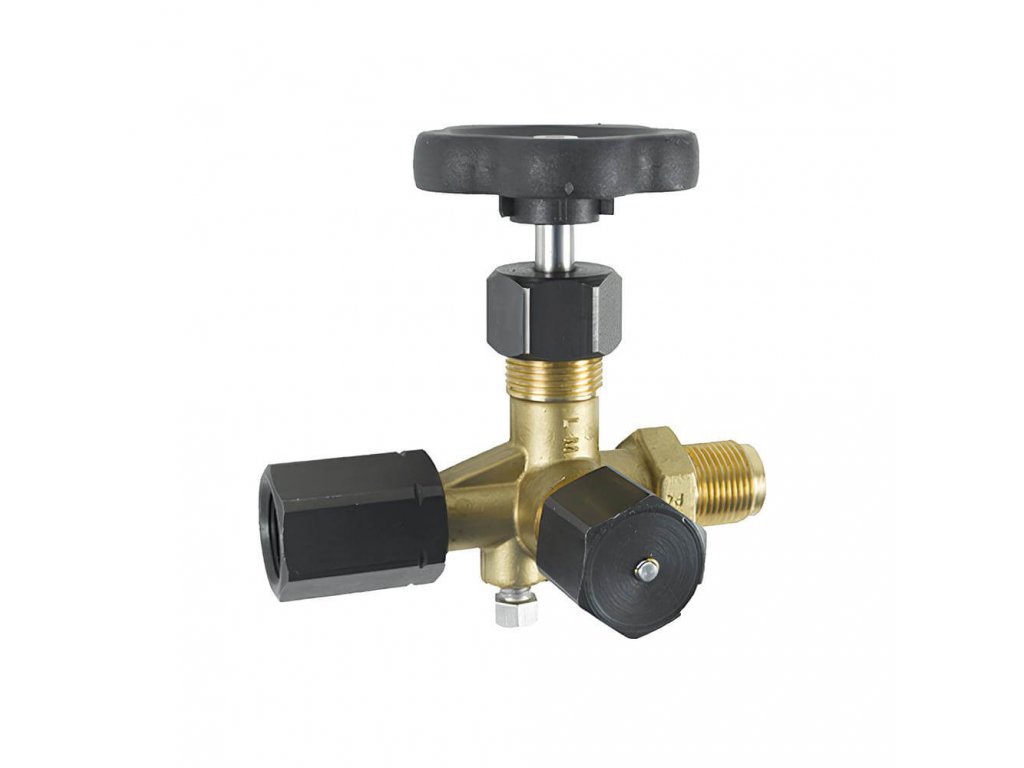

Test pressure gauge valve VZ-400-M20-O

Not rated

€94,26 / pcs €77,90 excl. VAT

Set up a watchdog

We deliver to:

17.07.2025

Delivery offer

pcs

The working pressure is 400 bar. Connection is M20 × 1.5. The valve body is made of steel.

Detailed information

Add to comparison Add to inquiry

Code: VZ-400-M20-O

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Show all related products

Technical parameters

Pressure test valve VZ-400-M20-O

pressure gauge taps and valves are designed to shut off the medium supply to the gauge
the taps are operated by a lever and are used to close branches with pressure up to 25 bar
the valves are wheel operated and allow gradual closure of branches with higher pressures or where pressure surges are likely
the test version is equipped with an extra hole for connecting a check gauge; particularly suitable for facilitating gauge checks during inspections

Product is included in the following categories: Measuring technology Manometers Gauge accessories Taps and valves for pressure gauges Pressure gauge valves

Technical parameters

Category:	Test pressure gauge valves
Pressure:	400 bar
Material:	Steel
Medium:	Air, Water, Non-aggressive media
Standard:	AN 137517B
Thread:	M20 x 1.5
