    Nipples ESX male thread G

    Vsuvky do rychlospojky ESX DN7,2 s vnější trubkový závit
    • cost-effective quick coupler series in a single-sided, closable design
    • connecting parts, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring, ball: stainless steel
    • seal: perbunan
    • nipples: brass MS 58
    • designed for compressed air in industry and crafts

    Nipples for ESX quick couplings with external pipe thread DN 7,2
    Order
    number    		 Thread
    "    		 SW
    mm    		 Length
    mm    		 Clutch length
    mm    		 Thread length
    mm    		 Material
    ESX14NA 1/4" 17 32,2 20 11,9 brass MS 58
    ESX38NA 3/8" 19 32,7 20 11,9 brass MS 58
    ESX12NA 1/2" 24 35 20 11,9 brass MS 58

    Bestsellers

    ESX38NA VSUVKA DN72 LUDECKE
    from €1,77 up to –5 %
    Nipple ESX external thread G3/8"
    Stock (588 pcs)
    Code: ESX38NA
    Was: €1,77  (–5 %)
    from €1,68
    (from €1,39 excl. VAT)
    ESX14NA VSUVKA DN72 LUDECKE
    from €1,40 up to –5 %
    Nipple ESX external thread G1/4"
    Stock (588 pcs)
    Code: ESX14NA
    Was: €1,40  (–5 %)
    from €1,33
    (from €1,10 excl. VAT)
    Nipples with external thread R1/4"
    €2,54 –5 %
    Nipples with external thread R1/4"
    Stock (707 pcs)
    Code: ESX14NAR
    Was: €2,54  (–5 %)
    €2,41
    (€1,99 excl. VAT)
    ESX12NA VSUVKA DN72 LUDECKE
    from €3,05 up to –5 %
    Nipple ESX external thread G1/2"
    Stock (957 pcs)
    Code: ESX12NA
    Was: €3,05  (–5 %)
    from €2,90
    (from €2,40 excl. VAT)
    ESX14NA VSUVKA DN72 LUDECKE
    from €1,40 up to –5 %
    Nipple ESX male thread G1/8"
    Stock (175 pcs)
    Code: ESX18NA
    Was: €1,40  (–5 %)
    from €1,33
    (from €1,10 excl. VAT)
    Show more products
    5 items total
    Nipples with external thread R1/4"
    Tip Original parts
    €2,54 –5 %
    Nipples with external thread R1/4"
    Stock (707 pcs)
    €1,99 excl. VAT
    €2,41 / pcs

    Nipple EC - male quick coupling DN7,2 with external tapered thread R1/4". Pure brass version MS 58 with one-way closable valve at female quick coupling. New mandrel contour for...

    Code: ESX14NAR
    ESX14NA VSUVKA DN72 LUDECKE
    Tip
    from €1,40 up to –5 %
    Nipple ESX external thread G1/4"
    Stock (588 pcs)
    from €1,10 excl. VAT
    from €1,33 / pcs
    Detail

    Nipple for ESX DN7,2 quick coupling with 1/4" male pipe thread. Design in pure brass MS 58 free passage without valve. Only the female can be closed. Designed for compressed air...

    Code: ESX14NA
    ESX14NA VSUVKA DN72 LUDECKE
    Tip
    from €1,40 up to –5 %
    Nipple ESX male thread G1/8"
    Stock (175 pcs)
    from €1,10 excl. VAT
    from €1,33 / pcs
    Detail

    Nipple for ESX DN7,2 quick coupling with 1/8" male pipe thread. Design in pure brass MS 58 free passage without valve. Only the female can be closed. Designed for compressed air...

    Code: ESX18NA
    ESX38NA VSUVKA DN72 LUDECKE
    Tip
    from €1,77 up to –5 %
    Nipple ESX external thread G3/8"
    Stock (588 pcs)
    from €1,39 excl. VAT
    from €1,68 / pcs
    Detail

    Nipple for ESX DN7,2 quick coupling with 3/8" male pipe thread. Design in pure brass MS 58 free passage without valve. Only the female can be closed. Designed for compressed air...

    Code: ESX38NA
    ESX12NA VSUVKA DN72 LUDECKE
    Tip
    from €3,05 up to –5 %

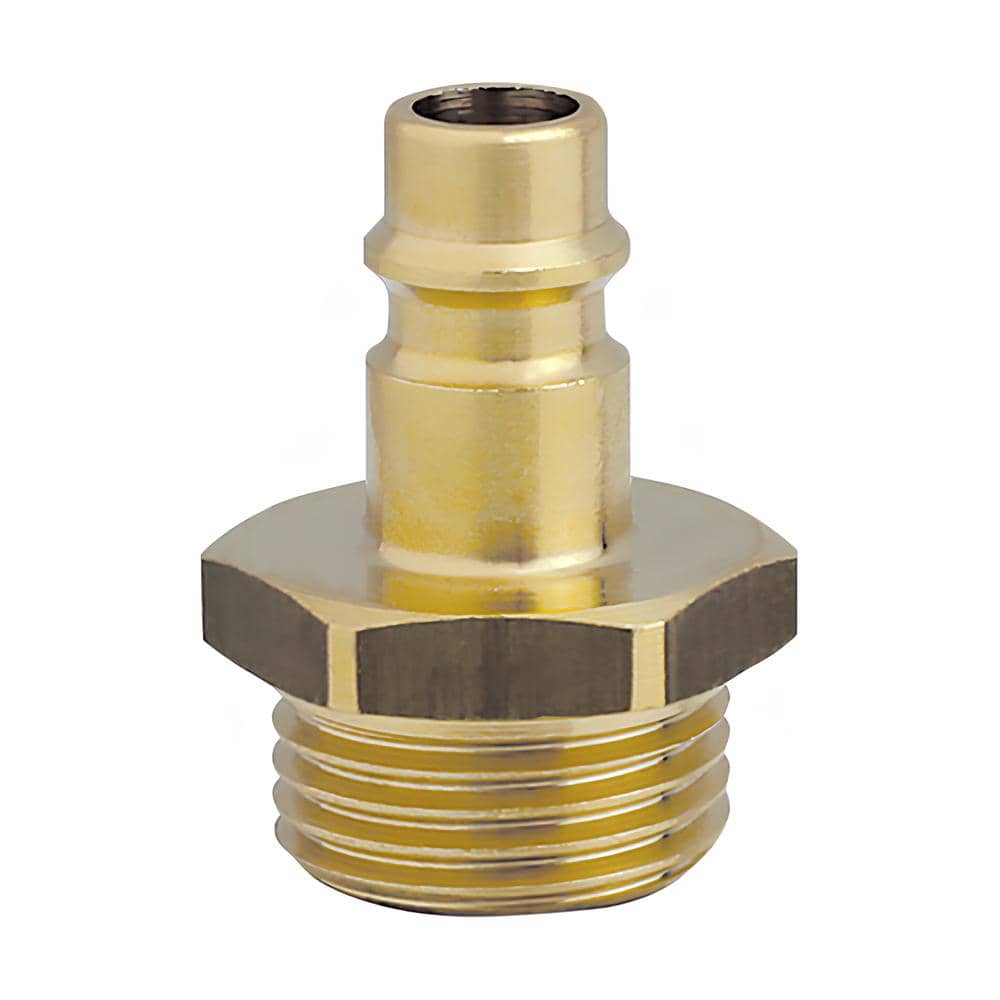

    Nipple ESX external thread G1/2"
    Stock (957 pcs)
    from €2,40 excl. VAT
    from €2,90 / pcs
    Detail

    Nipple for ESX DN7,2 quick coupling with 1/2" male pipe thread. Design in pure brass MS 58 free passage without valve. Only the female can be closed. Designed for compressed air...

    Code: ESX12NA
