AIRnet
piping system with easy installation
Revolution in compressed air distributionPipelines designed for compressed air (blue) and inert gases (green) of the brand AIRnet are a modern and reliable option for air ducting. They outperform their competitors in several areas, be it easy handling, low weight or absolutely effortless joining. Compared to steel pipes, it is also a more economical option, which is not subject to corrosion and its installation does not require any special tools. All you need are your own hands and possibly classic "home" tools. |
 |
 |

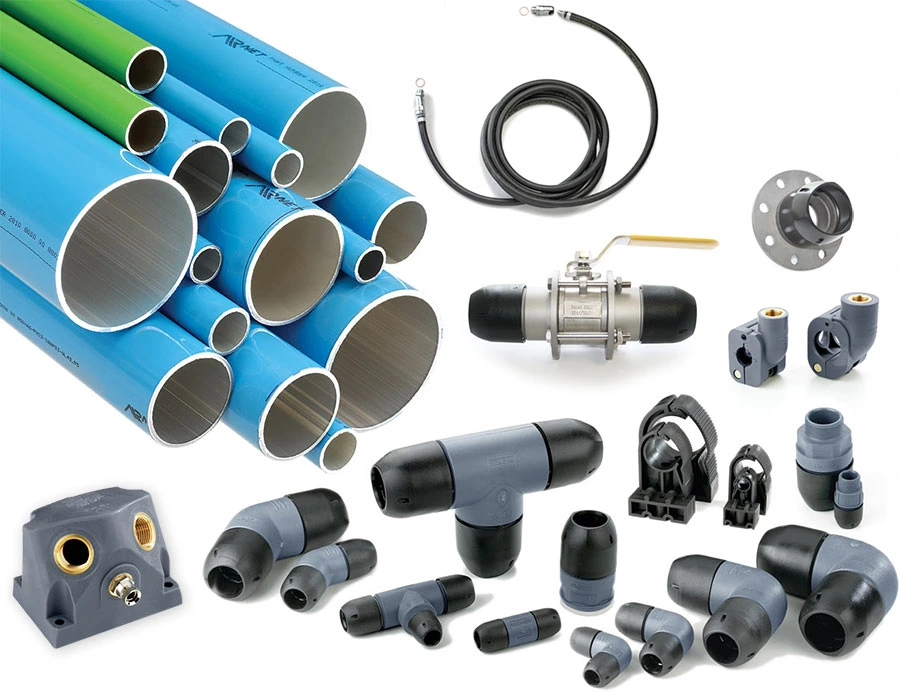

Cooperation of aluminium and polymerWhat is so special about AIRnet? The entire piping system is exclusively made of materials that are not subject to corrosion, which brings additional associated benefits such as eliminating the risk of contamination or a maximum operating pressure of PN13 for temperatures between -20 and 70°C, with a lowest dew point as low as -70°C. The entire system consists of aluminium pipes and polymer couplings with clearances from 20 to 100 mm (3/4" to 4"). The perfectly smooth surface inside the pipe does not allow air to circulate inside (the coefficient of friction is reduced by almost half compared to galvanized pipe), thus also achieving a minimum pressure gradient, which saves both the compressor and your wallet. |
Installation without a drop of sweatAnother great advantage of AIRnet is its high compatibility and ease of installation. The system can be connected to the vast majority of existing pipelines, its light weight (approx. 5 kg for 50 mm diameter) makes it easy to assemble by a single technician without special training, and no welding, gluing or pressing is required when using polymer couplings. The connection to the coupling itself is extremely fast and takes on average 2-3 minutes. |
 |
Another advantage of AirNet piping:
- 10 year warranty
- fast cutting of aluminum tubes
- quick and easy pipe deburring - pipes can be easily slid into the couplings
- piping modifications are easy - fittings and pipes can be easily dismantled and reused
The system offer AIRnet can be found below.
T-coupling series PF AIRnet with G1/2" thread and 20 mm coupling. The couplings are characterised by their simple and quick assembly. Operating pressure 13 bar, operating...
Torque wrench head for Airnet piping system installation
Torque wrench for installation of the Airnet piping system
Water-based lubricant for Airnet piping system assembly
Drill attachment holder for Airnet pipe system mounting
Drilling attachment for 24 mm diameter taps for mounting the Airnet piping system
Drilling attachment for 19 mm diameter branch pipes for mounting the Airnet piping system
Drilling attachment for 14 mm diameter branch pipes for mounting the Airnet piping system
Pipe edge scraper for Airnet pipe system installation
Metal deburring tool 20 - 25 mm for mounting the Airnet piping system
Plastic deburring tool with 20 - 25 mm size for mounting the Airnet piping system
Replacement wheel for pipe cutter 100 - 158 mm for mounting the Airnet pipe system
Replacement wheel for pipe cutter 20 - 50 mm for mounting the Airnet pipe system
Pipe cutter for pipe dimensions 100 - 158 mm for installation of the Airnet pipe system
Pipe cutter 50 - 100 mm for installation of the Airnet pipe system
Pipe cutter 20 - 50 mm for installation of the Airnet pipe system
Allen key 6 mm for mounting the Airnet piping system
Allen key 5 mm for mounting the Airnet piping system
Tightening Wrench 80 Standard for mounting the Airnet piping system
Tightening Wrench 63 Standard for mounting the Airnet piping system
Tightening wrench 50 PF for mounting the Airnet piping system
Airnet 40 PF tightening wrench for installation of the Airnet piping system
Tightening wrench 25 PF for mounting the Airnet piping system
Tightening wrench 20 PF for mounting the Airnet piping system
Tool case for Airnet pipe system installation
Mounting screws 100 mm. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
O-rings for 80 mm couplings. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
O-rings for 63 mm couplings. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
O-rings for taps 63 - 80 mm. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
O-rings for 40 - 50 mm taps. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
O-rings for 25 mm taps. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
Inner part of Airnet Classic 80 mm series couplings. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and...
Inner part of Airnet Classic 63 mm couplings. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion...
Profile hanger for mounting the Airnet system. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and...
Ceiling hanger with a range of 0.8 - 3 mm. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion...
Hinge with U-bolt. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
Airnet 4 - 6,5 mm hanging clamps. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
Airnet hanging clamps 1,5 - 4 mm. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
Clamps with Airnet 18 mm screw. The entire Airnet system is easy to install. Operating pressure 13 bar, operating temperature -20 to +70 °C. UV, oil and corrosion resistant.
Page 1 of 6 - 232 items total
