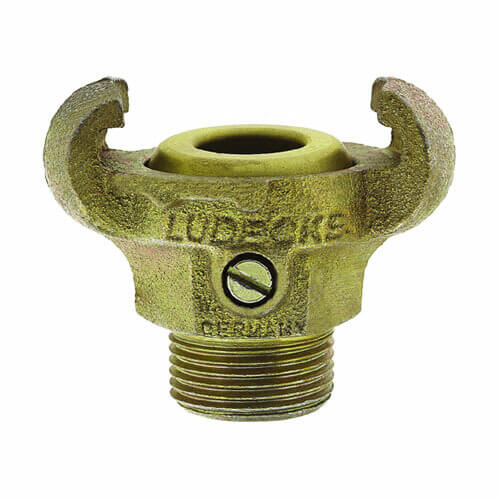

KAM bayonet couplings with external thread

robust couplings made of tempered cast iron, galvanised and yellow chromed, with safety double reed
with brass gasket, oil-resistant hose ring and galvanised screw
easy to connect, no spontaneous loosening of the seal
as a counteractant it is necessary to use a coupling with a rubber seal!
universal couplings for compressed air in construction and industry, e.g. on compressors or pneumatic tools

KAM bayonet couplings with external thread and brass seal
Order number	Thread mm	DN	b mm	h mm	SW (key)	Weight g
KAM12	G 1/2"	11	63	55	27	193
KAM34	G 3/4"	17	63	50	32	200
KAM10	G 1"	17	63	48	40	213

Bestsellers

€20,82 –5 %

Bayonet coupling with G 1" external thread and KAM brass seal

()

Code: KAM10

Was: €20,82 (–5 %)

€19,78

(€16,35 excl. VAT)

€18,56 –5 %

Bayonet coupling with G 3/4" external thread and KAM brass seal

()

Code: KAM34

Was: €18,56 (–5 %)

€17,63

(€14,57 excl. VAT)

€24,58 –5 %

Bayonet coupling with G 1/2" external thread and KAM brass seal

()

Code: KAM12

Was: €24,58 (–5 %)

€23,35

(€19,30 excl. VAT)

3 items total

€24,58 –5 %

Bayonet coupling with G 1/2" external thread and KAM brass seal

()

€19,30 excl. VAT

€23,35 / pcs

High-quality bayonet coupling with G 1/2" male thread and brass gasket for a stable compressed air connection system. For a simple and fast connection. Maximum pressure 10 bar...

Code: KAM12

€20,82 –5 %

Bayonet coupling with G 1" external thread and KAM brass seal

()

€16,35 excl. VAT

€19,78 / pcs

High-quality bayonet coupling with G 1" male thread and brass seal for a stable compressed air connection system. For a simple and fast connection. Maximum pressure 10 bar and...

Code: KAM10

€18,56 –5 %

Bayonet coupling with G 3/4" external thread and KAM brass seal

()

€14,57 excl. VAT

€17,63 / pcs

High-quality bayonet coupling with G 3/4" male thread and brass gasket for a stable compressed air connection system. For a simple and fast connection. Maximum pressure 10 bar...

Code: KAM34
