    Home / Fasteners / GEKA bayonet couplings; system for water applications / SSG bayonet couplings; 16 bar screw tightening / SSG-KSA bayonet couplings; with mandrel and clamps for securing

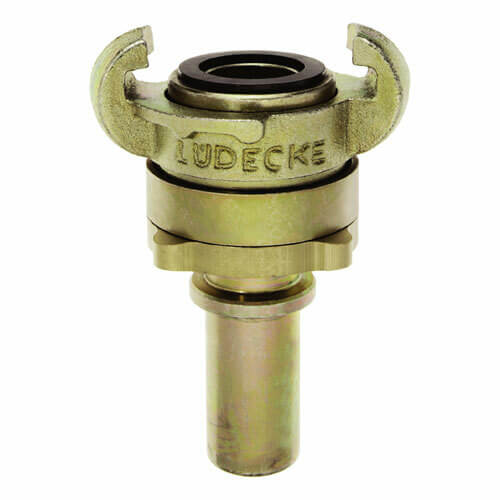

    SSG-KSA bayonet couplings with mandrel and clamps to secure

    SSGKSA-spojka-bajonetova-stavebni
    • high quality safety couplings, body made of tempered cast iron, hose shank made of steel, with special contour grooves, galvanized and yellow chromed, with safety double tongue
    • reinforced thread protection ring and seals inserted on both sides into the sealing seat
    • with oil-resistant seal, optionally with steam-resistant seal (up to +200 °C)
    • 100% tightness reduces the cost of compressed air production
    • easy to connect, secured against accidental opening: the coupling must be tightened after connection
    • designed for absolutely safe connections in industry and construction

    SSG-KSA bayonet couplings with hose barb for securing with KSA clamps
    Order number Hose barb
    mm    		 DN Ø Cap. ring
    mm    		 b
    mm    		 h
    mm    		 Weight
    g
    SSG19-KSA 19 mm 15 26 63 110 340
    *Use a clamp according to EN 14420 (formerly DIN 2817) to attach the hose.

    Bestsellers

    SSGKSA spojka bajonetova stavebni
    €32,52 –4 %
    Bayonet coupling with mandrel for 19 mm hose for securing with KSA SSG clamps
    up to 14 days
    Code: SSG19-KSA
    Was: €32,52  (–4 %)
    €30,90
    (€25,54 excl. VAT)
    1 items total

    List of products

    SSGKSA spojka bajonetova stavebni
    €32,52 –4 %
    Bayonet coupling with mandrel for 19 mm hose for securing with KSA SSG clamps
    up to 14 days
    €25,54 excl. VAT
    €30,90 / pcs

    SSG cast iron bayonet coupling with 19 mm hose shank for securing rings in standard design according to DIN 3238. Designed for compressed air lines in construction and...

    Code: SSG19-KSA
