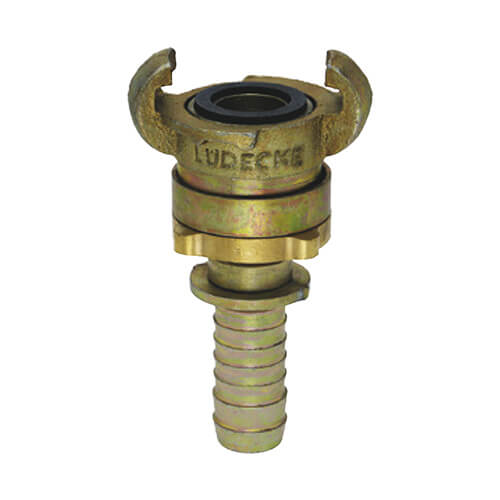

    SSG-S bayonet couplings with arbor and retaining ring

    SSGS-spojka-bajonetova-stavebni
    • high quality safety couplings, body made of tempered cast iron, hose shank made of steel, with special contour grooves, galvanized and yellow chromed, with safety double tongue
    • reinforced thread protection ring and seals inserted on both sides into the sealing seat
    • with oil-resistant seal, optionally with steam-resistant seal (up to +200 °C)
    • 100% tightness reduces the cost of compressed air production
    • easy to connect, secured against accidental opening: the coupling must be tightened after connection
    • designed for absolutely safe connections in industry and construction

    SSG-S bayonet couplings with hose shank with retaining ring
    Order number Hose barb
    mm    		 DN Ø Cap. ring
    mm    		 b
    mm    		 h
    mm    		 Weight
    g
    SSG10S 10 mm 6,5 21 63 103 323
    SSG13S 13 mm 10 24 63 110 321
    SSG15S 15 mm 11 27 63 112 343
    SSG19S 19 mm 15 34 63 112 350
    SSG25S 25 mm 18 39 63 112 386
