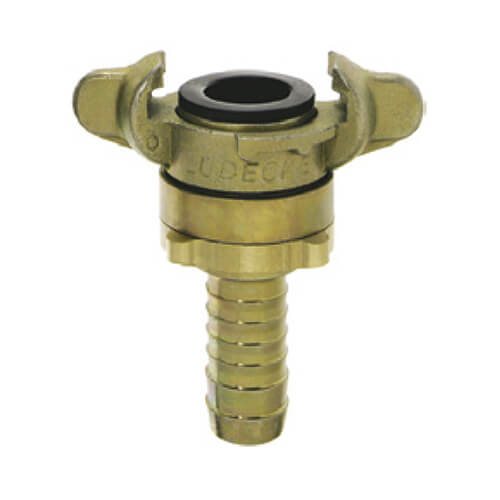

    SSGL bayonet clutches with mandrel and left-hand closing

    SSGL-spojka-bajonetova-stavebni
    • robust couplings made of tempered cast iron or steel, galvanised and yellow chromated, with safety double reed
    • with oil-resistant seal; on request, available with steam-resistant seal (up to +200 °C), partly with brass seal
    • important: due to the left-hand cap, they cannot be connected to standard bayonets!
    • use especially for joints in the chemical and petrochemical industry, where they are used to prevent damage caused by accidental disconnection by habit in other pipelines, e.g. compressed air, gaseous media, steam, etc.

    SSGL bayonet couplings with hose barb with left-hand closure
    Order number Hose barb
    mm    		 DN Type b
    mm    		 h
    mm    		 No. ring Weight
    g    		 Seals
    SSGL19 19 mm 16 FASHIONS 85 100 without 340 perbunan
    SSGL19S 19 mm 16 FASHIONS 85 112 s 367 perbunan
    SKML19 19 mm 16 MS-sealing 85 84 without 240 brass

    Bestsellers

    SSGL spojka bajonetova stavebni
    €20,21 –5 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SKML
    up to 14 days
    Code: SKML19
    Was: €20,21  (–5 %)
    €19,20
    (€15,87 excl. VAT)
    SSGL spojka bajonetova stavebni
    €44,39 –5 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SSGL19S
    up to 14 days
    Code: SSGL19S
    Was: €44,39  (–5 %)
    €42,17
    (€34,85 excl. VAT)
    SSGL spojka bajonetova stavebni
    €36,44 –4 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SSGL
    up to 14 days
    Code: SSGL19
    Was: €36,44  (–4 %)
    €34,62
    (€28,61 excl. VAT)
    3 items total

    List of products

    SSGL spojka bajonetova stavebni
    €44,39 –5 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SSGL19S
    up to 14 days
    €34,85 excl. VAT
    €42,17 / pcs

    SSGL bayonet coupling and locking ring with 19 mm hose shank, left-hand closing. Cannot be combined with standard bayonets. Mainly used in chemical industry e.g. compressed air,...

    Code: SSGL19S
    SSGL spojka bajonetova stavebni
    €20,21 –5 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SKML
    up to 14 days
    €15,87 excl. VAT
    €19,20 / pcs

    SKML bayonet coupling with 19 mm hose shank, left-hand closing. Cannot be combined with standard bayonets. Mainly used in chemical industry e.g. compressed air, gaseous media,...

    Code: SKML19
    SSGL spojka bajonetova stavebni
    €36,44 –4 %
    Bayonet coupling with mandrel for 19 mm hose, with left closure for SSGL
    up to 14 days
    €28,61 excl. VAT
    €34,62 / pcs

    SSGL bayonet coupling with 19 mm hose shank, left-hand closing. Cannot be combined with standard bayonets. Mainly used in chemical industry e.g. compressed air, gaseous media,...

    Code: SSGL19
