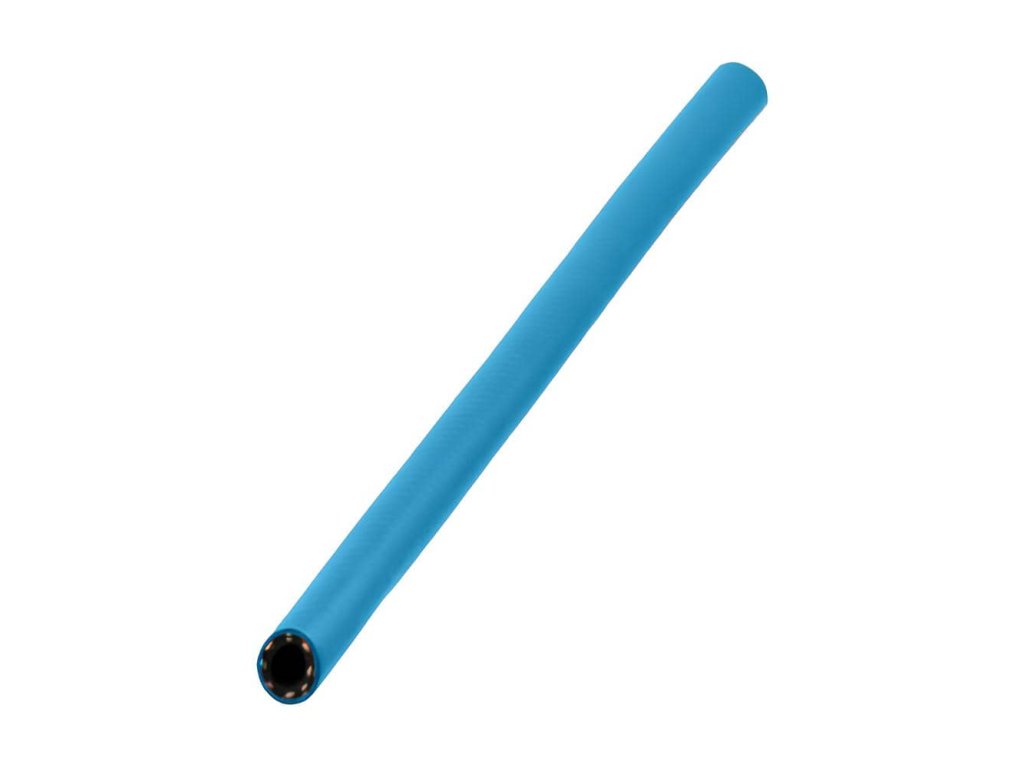

Hose Lock Profi ELP blue - 15.5/9.5 mm
Code: ELP-10B
Related products
Product detailed description
Lock Profi ELP – Maximum reliability in demanding environments
New to our range – Lock Profi ELP hoses for universal use in industrial operations. They are designed for the delivery of hot and cold water with very low concentrations of chemicals and wherever long life and resistance are key.
✅ Durability and compatibility: the hoses are fully compatible with Push Lock systems and are resistant to oil, abrasion, ozone and weathering.
✅ Wide temperature range: from -40 °C up to +135 °C.
✅ Construction for long life:
- Inner tube: special synthetic rubber and elastomer
- Reinforcement: synthetic high-strength textile braid
- Outer layer: smooth red or blue rubber
- Working pressure: 28 bar, burst pressure up to 112 bar

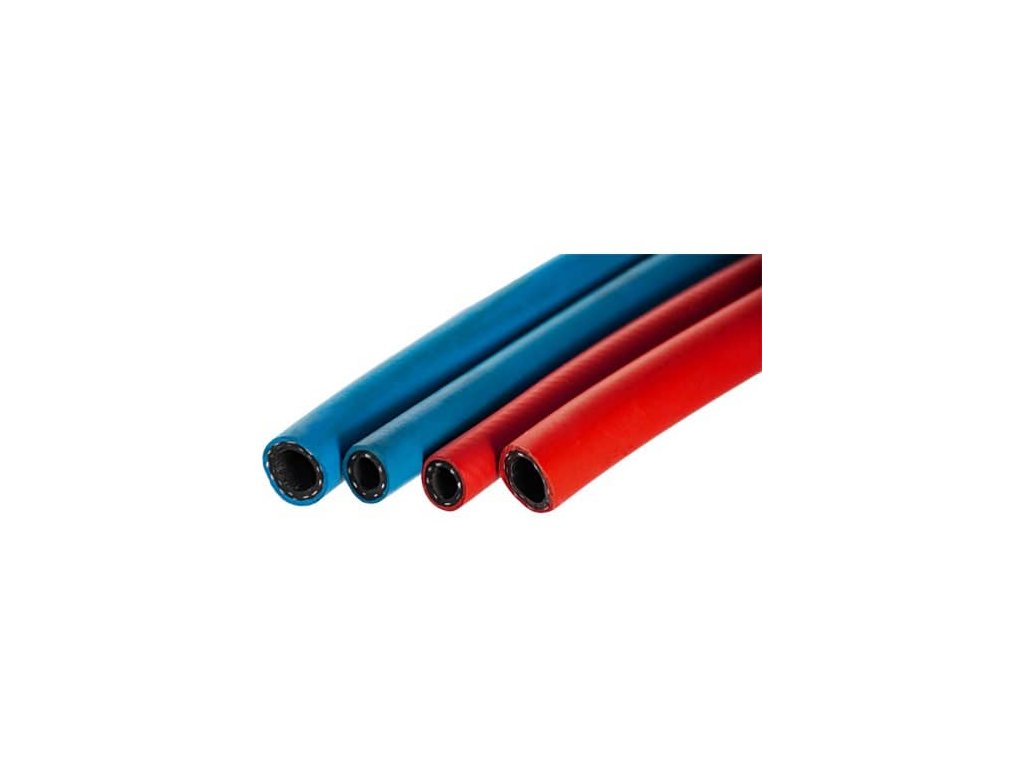

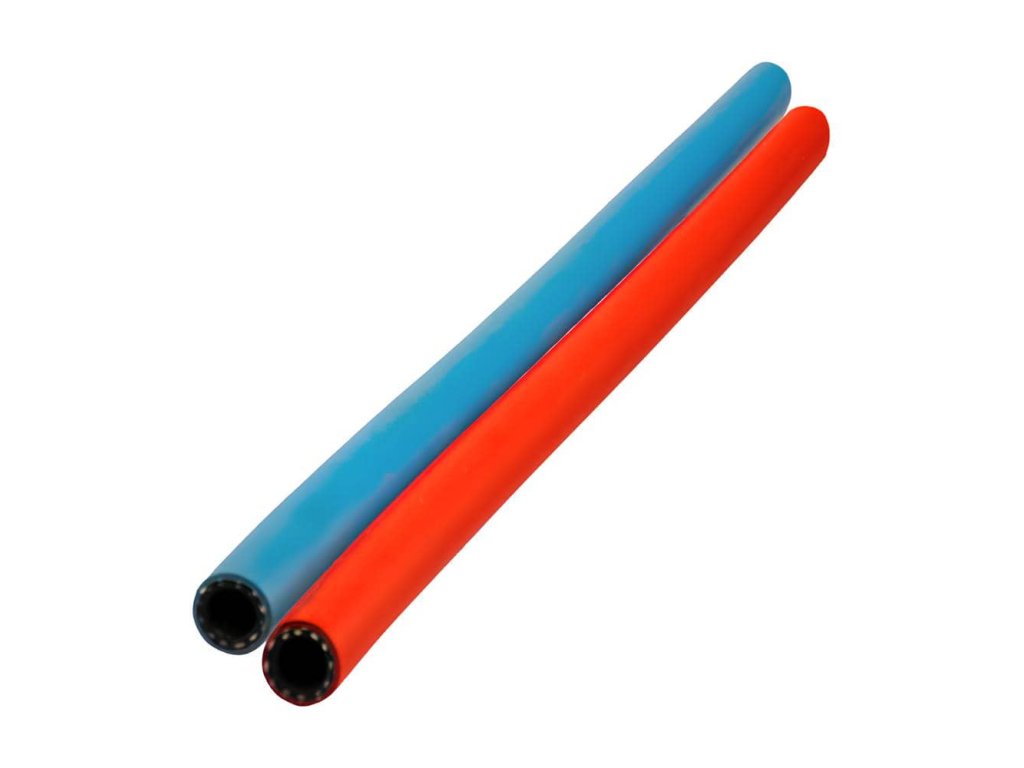

Available variants:
- ELP-10R – red, inner diameter 9.5 mm
- ELP-10B – blue, inner diameter 9.5 mm
- ELP-13R – red, inner diameter 12.7 mm
- ELP-13B – blue, inner diameter 12.7 mm
Lock Profi ELP hoses are the ideal solution for applications where reliability, flexibility and maximum safety are required.
Additional parameters
| Category: | Compressed air hose |
|---|---|
| Pressure: | 28 bar |
| Barva: | Blue |
| Material: | SBR, NBR |
| Medium: | Air, Water, Steam, Oils, Cooling water |
| Temperature: | -35 / +135 °C |
| Outer diameter: | 15.7 mm |
| Inner diameter: | 9.52 mm |
| Skladem: | Externí sklad |
| Connection system: | Push Lock |
| Breakdown pressure: | 112 bar |
| Weight (1m): | 150 g |
