Read about how compressors work and what parameters to consider when choosing a compressor for your workshop or operation. Article content: How do compressors work? How to proceed when choosing a compressor? Frequency of compressor use Calcula...
Aluminium pipe in 3 m bar 28/25 - 12,5 bar
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Related products
–3 %
Dismantling sleeve 28 mm
Removal sleeve for air distribution 28 mm. A simple sleeve that makes it...
–3 %
Dismantling pliers 28 mm
Pliers for removing couplings of the Air Push pipe system with a pipe...
–3 %
Direct coupling external thread 1" - 28 mm
Straight socket couplings for air piping with outer pipe thread G 1" for...
–3 %
Direct coupling internal thread 1" - 28 mm
Straight socket couplings for air piping with internal pipe thread G 1" for...
–3 %
Elbow external thread 1" - 28 mm
Corner socket fitting for air piping up to 16 atmospheres. Version with...
–3 %
Corner connectors 45° 28 mm
Corner socket coupling 28 mm for compressed air piping. Simple Air Push...
–3 %
Plug 28 mm
Socket for 28 mm pipes. Simple Air Push socket system that can be...
–3 %
T-coupling with reduced branch 28 - 22 mm
T-coupling for 28 mm pipes with reduced branch 22 mm. Simple Air Push...
–3 %
Direct coupling 28 mm
Socket coupling in straight version for 28 mm pipe. Simple Air Push socket...
–2 %
Corner connectors 90° 28 mm
Corner socket coupling 90° - 28 mm for compressed air piping. Simple Air...
–2 %
T-connectors 28 mm
Socket t-coupling for 28 mm pipes. Simple Air Push socket system that can...
Original parts
–3 %
Deburring scraper SR230-07
Manual deburring scraper for air ductwork. Easy and fast installation, low...
Original parts
–3 %
Pipe deburrer 15 - 50 mm
Pipe deburrer for pipe diameter 15 - 50 mm. Operating temperature -20 °C to...
Tip
–2 %
Termination box for air distribution G1/2" - 1 x G1/2"
Termination box with 1/2" inlet and 1 x 1/2" outlet for terminating...
Tip
–2 %
Termination box for air distribution G1/2" - 2 x G1/2"
Termination box with 1/2" inlet and 2 x 1/2" outlet for terminating...
Tip
–2 %
Termination box for air distribution G1/2" - 3 x G1/2"
Termination box with 1/2" inlet and 3 x 1/2" outlet for terminating...

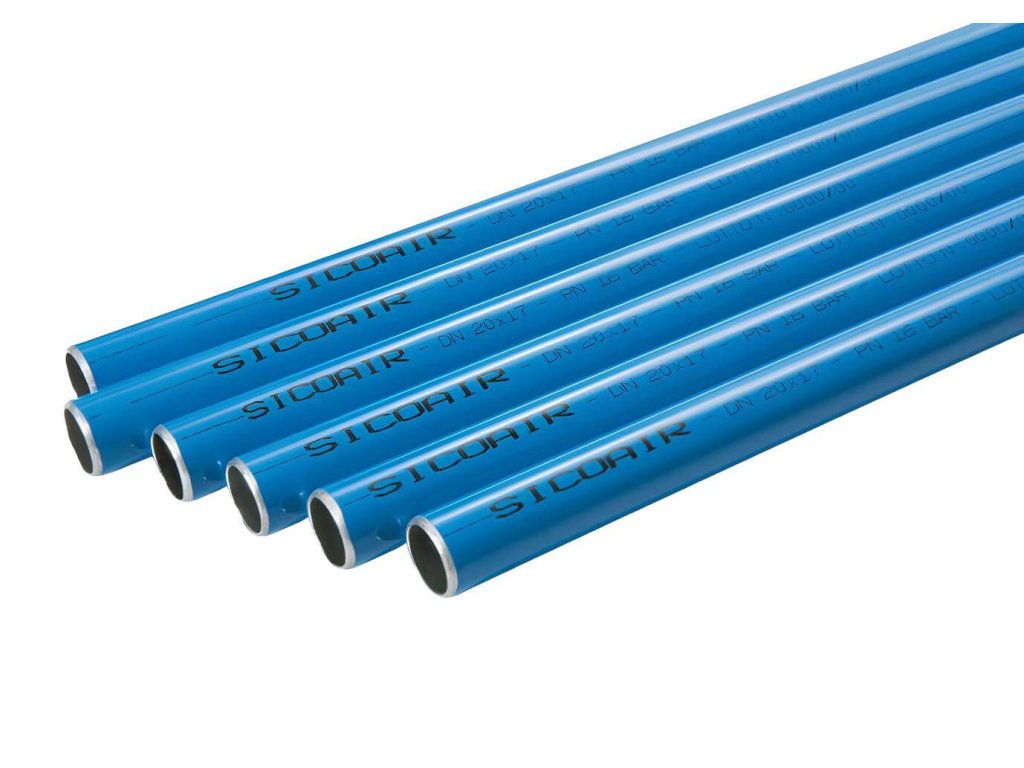

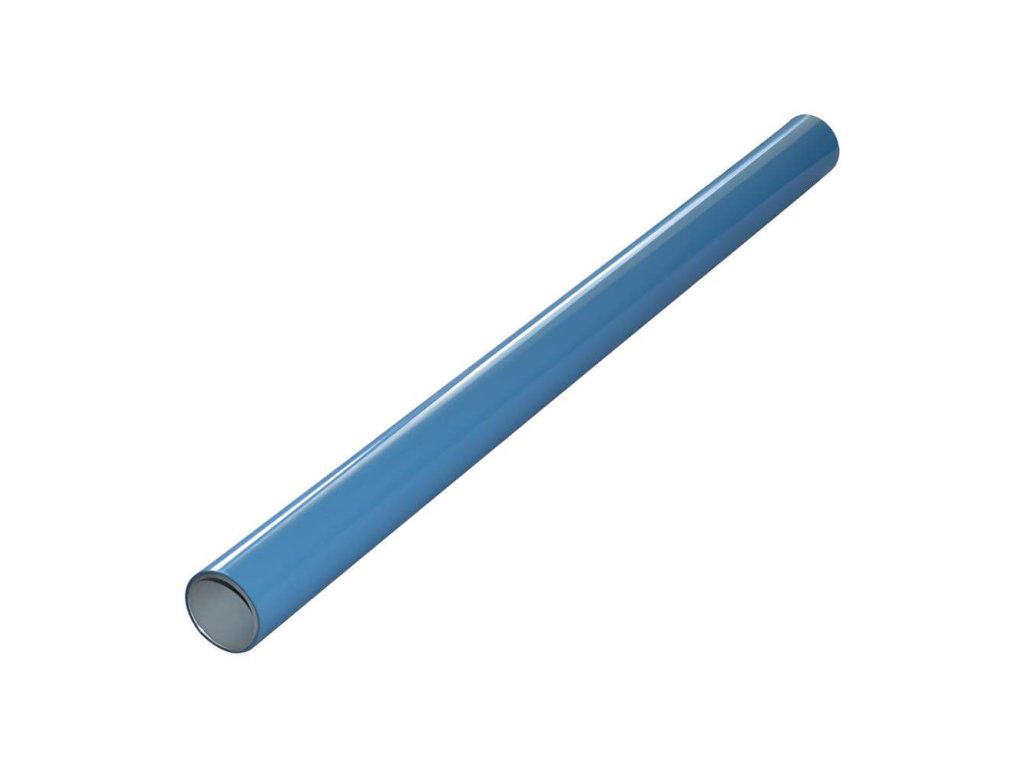

Aluminium tube in 3 m pole blue - TALB-T3-28
- Standards:EN 755-2
- ČSN EN 573-3
- ČSN EN 12020-2
- EN 13480 Part 3 and Part 8
- ČSN EN 15088
- eU Regulation 305/2011/EU - CPR - CE conformity marking
- powder coating according to EN ISO QUALICOAT
- Working pressure: 16 bar
- Operating temperature: up to +100 °C
- Material: aluminium alloy EN AW 6060 T6
- Inner sides anodized for condensation resistance
- Colour: ALB: blue (RAL 5012)
Technical parameters
| Category: | Compressed air piping systems |
|---|---|
| Version: | Trumpets |
| Pressure: | 12.5 bar |
| Barva: | Blue |
| Length: | 3 m |
| Material: | alloy AW-6060 T6 |
| Medium: | Compressed air |
| Working temperature: | -15 / +100 °C |
| Wall strength: | 1.5 mm |
| Outer diameter: | 28 mm |
| Inner diameter: | 25 mm |
| Conduit: | 28 mm |
Potrubní systém stlačeného vzduchu SICOMAT AIR
Příslušenství potrubního systému SICOMAT AIR
Trubky potrubního systému SICOMAT AIR
News Overload
We select articles from our advice room
How to properly select and use a compressor?
Be the first who will post an article to this item!
Be the first who will post an article to this item!
- About AluNet: AluNet is a leading manufacturer specializing in innovative compressed air piping solutions. Their products are designed to meet high standards of quality and reliability.
- Products and technologies:
- Lightweight and durable materials: AluNet piping systems are made of lightweight aluminum tubing for easy installation and durability.
- Energy efficiency: the systems are designed for minimum pressure loss, ensuring maximum energy efficiency and cost savings.
- Flexibility and adaptability: thanks to the modular design, the systems can be easily adapted to specific customer needs and allow easy expansion or reconfiguration.
- Areas of application: AluNet piping systems are ideal for use in a variety of industries such as automotive, manufacturing, food processing and other sectors where reliability and efficiency of compressed air distribution is key.
- Customer support: AluNet provides comprehensive support to its customers, from system design to installation and maintenance, ensuring smooth operation and maximum satisfaction.
