    Aluminium Profile BH 40-10, 40x80

    Code: 084.113.002
    Not rated
    €41,81 –1 %

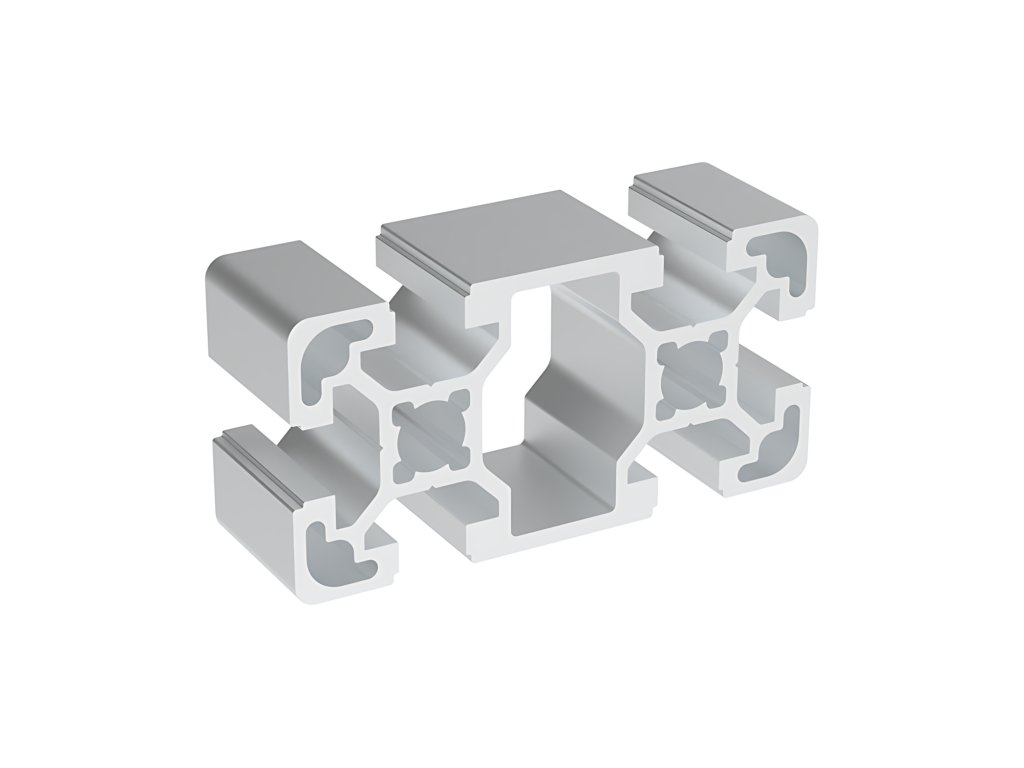

    2214 hlinikovy profil bh 40 10 40x80
    €41,81 –1 % €40,98 / m €33,87 excl. VAT €245,88 / 6 m
    Stock (30 m)
    Delivery to:
    11.11.2025
    Delivery options

    Aluminium profile with a modular cross-section dimension of 40x80 and with 8 BH 40-10 shaped grooves.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    708 sroub m8x20 s valcovou hlavou
    €0,24 –4 %
    M8x20 Cylindrical Head Screw
    Stock (>1000 pcs)
    €0,19 excl. VAT
    €0,23

    M8x20 galvanised steel cylindrical head screw

    Code: 084.301.003
    897 1 matice m8 s osazenim
    M8 Flange Nut
    Stock (593 pcs)
    €0,12 excl. VAT
    €0,14

    M8 nut with flange, made of galvanised steel.

    Code: 084.302.036
    1002 1 spojovaci deska se 2 otvory pro profily 40x40 a 45x45
    €9,45 –2 %
    Joining plate with 2 holes for 40x40 and 45x45 profiles
    Stock (20 pcs)
    €7,65 excl. VAT
    €9,26

    Joining plate for perpendicular connection of profiles with an edge width of 40 or 45 mm.

    Code: 084.710.002
    1212 1 kyvna spojka 40x80
    €109,85 –1 %
    Swivel Joint 40x80
    Stock (5 pcs)
    €88,98 excl. VAT
    €107,66

    Connector for creating a swivel joint between profiles with a 40x80 section.

    Code: 084.311.011
    1272 uhelnik 90 38x38 m8
    €3,39 –2 %
    Angle Bracket 90°, 38x38, M8
    Stock (496 pcs)
    €2,74 excl. VAT
    €3,32

    Universal angle bracket with a 90° angle and dimensions of 38x38 for connecting profiles from the outside using M8x20 screws.

    Code: 084.305.009
    1278 1 uhelnik 90 37x78 m8
    €6,97 –2 %
    Angle Bracket 90°, 37x78, M8
    Stock (103 pcs)
    €5,64 excl. VAT
    €6,83

    Universal angle bracket with a 90° angle and dimensions of 37x78 for joining profiles from the outside using M8x20 screws.

    Code: 084.305.024
    1281 1 uhelnik 90 78x78 m8
    €10,51 –2 %
    Angle Bracket 90°, 78x78, M8
    Stock (42 pcs)
    €8,51 excl. VAT
    €10,30

    Universal angle bracket with a 90° angle and dimensions of 78x78 for connecting profiles from the outside using M8x20 screws.

    Code: 084.305.022
    1455 1 podlahovy uhelnik pro profily se sirkou 40 mm
    €16,39 –1 %
    Floor Angle Bracket for 40 mm Wide Profiles
    Stock (20 pcs)
    €13,28 excl. VAT
    €16,07

    Floor bracket for mounting on 40 mm wide profiles using M8 screws.

    Code: 084.409.007
    1488 1 podstavec d 80 mm m16 nosnost 1000 kg
    €8,54 –1 %
    Base D=80 mm, M16, load capacity 1000 kg
    Stock (20 pcs)
    €6,92 excl. VAT
    €8,37

    Base with a diameter of 80 mm and an M16 connection thread. Base load capacity of 1000 kg.

    Code: 084.402.004
    1527 1 dvojdilny podstavec pro profily 40x80 40x120
    €38,69 –1 %
    Two-part base for profiles 40x80, 40x120
    up to 14 days
    €31,34 excl. VAT
    €37,92

    Two-part base for mounting on profiles with sections 40x80 and 40x120.

    Code: 084.409.005
    1572 otocne kolecko d 60 mm otvor 12 mm
    €18,22 –1 %
    Swivel castor D=60 mm, 12 mm bore
    Stock (20 pcs)
    €14,76 excl. VAT
    €17,86

    Swivel castor with a diameter of 60 mm for mounting using a central hole with a diameter of 12 mm.

    Code: 084.404.001
    1578 otocne kolecko d 60 mm otvor 12 mm s brzdou
    €29,11 –1 %
    Swivel castor D=60 mm, 12 mm bore, with brake
    Stock (20 pcs)
    €23,58 excl. VAT
    €28,53

    Swivel castor with a diameter of 60 mm for mounting using a central hole with a diameter of 12 mm, equipped with a brake.

    Code: 084.404.003
    1683 1 tesneni panelu cerne 3 mm drazka ac 8 im 8 5 mm drazka bh 10
    €1,78 –2 %
    Panel Seal Black, 3 mm Groove AC 8, IM 8 / 5 mm Groove BH 10
    Stock (69 m)
    €1,44 excl. VAT
    €1,74

    PVC seal for profile groove to attach 3 mm thick panels to grooves of AC 40-8, AC 45-8 and IM 40-8 series or 5 mm thick panels to grooves of BH 40-10, BH 45-10 and BH 50-10...

    Code: 084.512.030
    1842 1 polyamidovy zaves 50x70 pro profily 40 40
    €7,59 –1 %
    Polyamide Hinge 50x70, for 40/40 Profiles
    up to 14 days
    €6,15 excl. VAT
    €7,44

    Plastic hinge made of polyamide with dimensions 50x70, for 40/40 profiles.

    Code: 084.501.009
    Show all related products Previous product Next product

    Product detailed description

    Aluminium profile with a rectangular cross-section designed for creating standard structures with higher loads in the direction of the longer side.

    Standard version with a weight of 2.64 kg/m.

    Versatile connection options thanks to 8 grooves on all sides of the profile.

    Made from EN AW 6060 T5 aluminium alloy, anodised layer of more than 12 microns, tolerance according to EN 12020-2.

    Can be supplied in large bundles containing 60 bars.

    Compatibility

    This product can replace the following products on the market:

    Code Ord. C. Note
    REX 3 842 529 341 weight 2.70 kg/m; bundle of 12 bars
    REX 3842529341 weight 2.70 kg/m; bundle of 12 bars
    REX 3 842 993 130 weight 2.70 kg/m
    REX 3 842 993 131 weight 2.70 kg/m; machined - 2x M12 thread on one side
    REX 3 842 993 132 weight 2.70 kg/m; machined - 2x M12 thread on both sides
    REX 3 842 993 135 weight 2.70 kg/m; machined - 2x lateral hole D=17 on both sides
    REX 3 842 993 136 weight 2.70 kg/m; machined - 2x lateral hole D=17 on one side, perpendicular hole D=17 on the other side
    REX 3 842 993 137 weight 2.70 kg/m; machined - perpendicular hole D=17 on one side
    REX 3 842 993 138 weight 2.70 kg/m; machined - perpendicular hole D=17 on both sides
    REX 3 842 993 728 weight 2.70 kg/m
    REX 3842993130 weight 2.70 kg/m
    REX 3842993131 weight 2.70 kg/m; machined - 2x M12 thread on one side
    REX 3842993132 weight 2.70 kg/m; machined - 2x M12 thread on both sides
    REX 3842993135 weight 2.70 kg/m; machined - 2x lateral hole D=17 on both sides
    REX 3842993136 weight 2.70 kg/m; machined - 2x lateral hole D=17 on one side, perpendicular hole D=17 on the other side
    REX 3842993137 weight 2.70 kg/m; machined - perpendicular hole D=17 on one side
    REX 3842993138 weight 2.70 kg/m; machined - perpendicular hole D=17 on both sides
    REX 3842993728 weight 2.70 kg/m

    Warning: the alternative product we offer may have technical deviations from the original product. Please contact us to explain the differences.

    Joining profiles

    The choice of fixings between different profiles is very important in any assembly structure. The customer can choose from various solutions depending on the required implementation time or the nature of the load or load-bearing capacity.

    1. Joining with screws in the groove

    This is the simplest and fastest way to assemble. This connection system guarantees good perpendicularity between two surfaces (depending on the profile section) and good resistance of the mutual connection in the transverse direction to the groove.

    2. Joining with a connecting latch

    This assembly is very simple and safe and guarantees a firm connection even if the screws are loosened.

    3. Joining with joints or angles

    This method of joining is usually used where the greatest possibilities of adjustment and easy installation are required. Technical specifications for all products can be found in the product details of the relevant accessory.

    Profile threads

    It is recommended to respect the depth indicated in the table when creating a thread:

    Profile Screw diameter Recommended depth (mm)
    slot 6 M6 15
    slot 8 M8 25
    slot 10 M12 30

    The maximum tightening torques recommended for screws used in the ALUSIC system are:

    Profile Screw diameter Max. recommended tightening torque (Nm)
    slot 6 M6 10
    slot 8 M8 20
    slot 10 M12 35

    Compatible accessories for all types of panel connections can be found in the related products tab

    Additional parameters

    Category: Aluminum profiles BH 40x80
    Warranty: 2 years
    Hmotnost (kg/m): 2.64
    Řez profilu: 40×80
    Série: BH 40-10
    Skladem: Externí sklad
    Material: anodized aluminum
    Color: natural
    Profile length (mm): 6 040
    Moment of inertia lx (cm⁴): 62,26
    Moment of inertia ly (cm⁴): 17,35
    Sectional moment wx (cm³): 15,57
    Section moment wy (cm³): 8,68
    Cutting area (mm²): 980
    Minimum length (mm): 30
    Maximum length (mm): 6 000
    Rust: CUT-A
