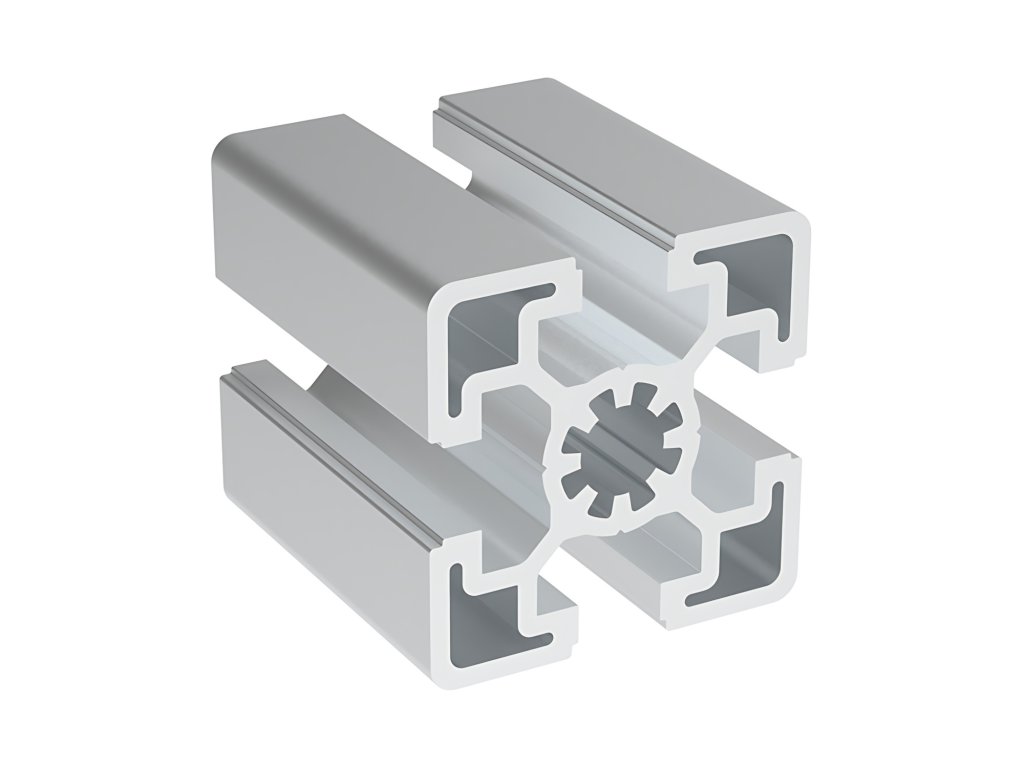

    Aluminium Profile BH 45-10, 45x45, Heavy Duty

    Code: 084.105.018
    Not rated
    €34,75 –2 %
    2253 hlinikovy profil bh 45 10 45x45 tezky
    €34,75 –2 % €34,05 / m €28,14 excl. VAT €204,30 / 6 m
    Stock (6 m)
    Delivery to:
    11.11.2025
    Delivery options

    Aluminium profile with a modular section dimension of 45x45 and 4 grooves of BH 45-10 shape. Heavy-duty version with a weight of 2.03 kg/m.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Related products

    708 sroub m8x20 s valcovou hlavou
    €0,24 –4 %
    M8x20 Cylindrical Head Screw
    Stock (>1000 pcs)
    €0,19 excl. VAT
    €0,23

    M8x20 galvanised steel cylindrical head screw

    Code: 084.301.003
    897 1 matice m8 s osazenim
    M8 Flange Nut
    Stock (593 pcs)
    €0,12 excl. VAT
    €0,14

    M8 nut with flange, made of galvanised steel.

    Code: 084.302.036
    1002 1 spojovaci deska se 2 otvory pro profily 40x40 a 45x45
    €9,45 –2 %
    Joining plate with 2 holes for 40x40 and 45x45 profiles
    Stock (20 pcs)
    €7,65 excl. VAT
    €9,26

    Joining plate for perpendicular connection of profiles with an edge width of 40 or 45 mm.

    Code: 084.710.002
    1209 1 kyvna spojka 45x45 ac 45 8 s aretaci imbusem
    €27,14 –2 %
    Swivel Joint 45x45, AC 45-8, with Allen Key Locking
    Stock (10 pcs)
    €21,98 excl. VAT
    €26,59

    Coupling for creating a pivoting joint between AC 45-8 series profiles with a 45x45 section, with the possibility of locking by tightening the Allen screw.

    Code: 084.311.020
    1206 1 kyvna spojka 45x45 s aretaci packou
    €23,42 –2 %
    Swivel Joint 45x45 with Lever Lock
    Stock (60 pcs)
    €18,97 excl. VAT
    €22,95

    Coupling for creating a pivoting joint between profiles with a 45x45 section, with the possibility of locking using a lever.

    Code: 084.311.019
    1284 1 uhelnik 90 43x43 m8
    €3,39 –2 %
    Angle Bracket 90°, 43x43, M8
    Stock (317 pcs)
    €2,74 excl. VAT
    €3,32

    Universal angle bracket with a 90° angle and dimensions of 43x43 for connecting profiles from the outside using M8x20 screws.

    Code: 084.305.003
    1461 1 podlahovy uhelnik pro profily se sirkou 45 mm
    €12,91 –2 %
    Floor Angle Bracket for 45 mm Wide Profiles
    Stock (3 pcs)
    €10,45 excl. VAT
    €12,65

    Floor angle bracket for mounting on profiles with a width of 45 mm.

    Code: 084.409.001
    1470 1 podstavec d 40 mm m8 nosnost 900 kg
    €6,77 –1 %
    Mounting Base D=40 mm, M8, load capacity 900 kg
    Stock (16 pcs)
    €5,49 excl. VAT
    €6,64

    Base with a diameter of 40 mm and an M8 connection thread. Base load capacity of 900 kg.

    Code: 084.401.001
    1533 1 podstavec pro profily 45x45
    €25,21 –1 %
    Base for profiles 45x45
    Stock (24 pcs)
    €20,42 excl. VAT
    €24,71

    Square base for mounting on profiles with a 45x45 section.

    Code: 084.409.002
    1572 otocne kolecko d 60 mm otvor 12 mm
    €18,22 –1 %
    Swivel castor D=60 mm, 12 mm bore
    Stock (20 pcs)
    €14,76 excl. VAT
    €17,86

    Swivel castor with a diameter of 60 mm for mounting using a central hole with a diameter of 12 mm.

    Code: 084.404.001
    1578 otocne kolecko d 60 mm otvor 12 mm s brzdou
    €29,11 –1 %
    Swivel castor D=60 mm, 12 mm bore, with brake
    Stock (20 pcs)
    €23,58 excl. VAT
    €28,53

    Swivel castor with a diameter of 60 mm for mounting using a central hole with a diameter of 12 mm, equipped with a brake.

    Code: 084.404.003
    1683 1 tesneni panelu cerne 3 mm drazka ac 8 im 8 5 mm drazka bh 10
    €1,78 –2 %
    Panel Seal Black, 3 mm Groove AC 8, IM 8 / 5 mm Groove BH 10
    Stock (69 m)
    €1,44 excl. VAT
    €1,74

    PVC seal for profile groove to attach 3 mm thick panels to grooves of AC 40-8, AC 45-8 and IM 40-8 series or 5 mm thick panels to grooves of BH 40-10, BH 45-10 and BH 50-10...

    Code: 084.512.030
    1845 1 polyamidovy zaves 50x70 pro profily 45 45
    €8,59 –1 %
    Polyamide Hinge 50x70, for 45/45 profiles
    Stock (11 pcs)
    €6,96 excl. VAT
    €8,42

    Plastic hinge made of polyamide with dimensions 50x70, for profiles 45/45.

    Code: 084.501.010
    3284 4 kolma spojka s matici bh 45 10 bh 50 10
    €2,92 –2 %
    Upright Connector with Nut, BH 45-10, BH 50-10
    Stock (80 pcs)
    €2,36 excl. VAT
    €2,86

    Connector with nut for perpendicular connection of profiles series BH 45-10 and BH 50-10. The list of aluminium profiles compatible with the perpendicular connector 084.312.014...

    Code: 084.312.014
    Show all related products Previous product Next product

    Product detailed description

    Aluminium profile with a square section designed for creating standard structures.

    Heavy-duty version with a weight of 2.03 kg/m.

    Versatile connection options thanks to 4 grooves on all sides of the profile.

    Made from EN AW 6060 T5 aluminium alloy, anodised layer of more than 12 microns, tolerance according to EN 12020-2.

    Available in large packs - small bundle of 2 bars, large bundle of 80 bars.

    Compatibility

    This product can replace the following products on the market:

    Code Ord. C. Note
    REX 3 842 553 614 weight 2.00 kg/m; bundle of 20 bars
    REX 3 842 990 517 weight 2.00 kg/m; machining - M12 thread on one side
    REX 3 842 990 518 weight 2.00 kg/m; machining - M12 thread on both sides
    REX 3 842 990 519 weight 2.00 kg/m; machining - M12 thread on one side, M16 thread on the other side
    REX 3 842 990 520 weight 2.00 kg/m
    REX 3 842 990 521 weight 2.00 kg/m; machining - M16 thread on one side
    REX 3 842 990 640 weight 2.00 kg/m; machining - M12 thread on one side, lateral bore D=17 on the other side
    REX 3 842 990 642 weight 2.00 kg/m; machining - M16 thread on one side, lateral bore D=17 on the other side
    REX 3 842 990 644 weight 2.00 kg/m; machining - lateral bore D=17 on both sides
    REX 3 842 990 646 weight 2.00 kg/m; machining - lateral bore D=17 on one side, perpendicular bore D=17 on the other side
    REX 3 842 990 648 weight 2.00 kg/m; machining - lateral bore D=17 on one side
    REX 3 842 992 969 weight 2.00 kg/m; machining - lateral bore D=9.8 on both sides
    REX 3 842 993 734 weight 2.00 kg/m
    REX 3842553614 weight 2.00 kg/m; bundle of 20 bars
    REX 3842990517 weight 2.00 kg/m; machining - M12 thread on one side
    REX 3842990518 weight 2.00 kg/m; machining - M12 thread on both sides
    REX 3842990519 weight 2.00 kg/m; machining - M12 thread on one side, M16 thread on the other side
    REX 3842990520 weight 2.00 kg/m
    REX 3842990521 weight 2.00 kg/m; machining - M16 thread on one side
    REX 3842990640 weight 2.00 kg/m; machining - M12 thread on one side, lateral bore D=17 on the other side
    REX 3842990642 weight 2.00 kg/m; machining - M16 thread on one side, lateral bore D=17 on the other side
    REX 3842990644 weight 2.00 kg/m; machining - lateral bore D=17 on both sides
    REX 3842990646 weight 2.00 kg/m; machining - lateral bore D=17 on one side, perpendicular bore D=17 on the other side
    REX 3842990648 weight 2.00 kg/m; machining - lateral bore D=17 on one side
    REX 3842992969 weight 2.00 kg/m; machining - lateral bore D=9.8 on both sides
    REX 3842993734 weight 2.00 kg/m

    Warning: the alternative product we offer may have technical deviations from the original product. Please contact us to explain the differences.

    Joining profiles

    The choice of fixings between different profiles is very important in any assembly structure. The customer can choose from various solutions depending on the required implementation time or the nature of the load or load-bearing capacity.

    1. Joining with screws in the groove

    This is the simplest and fastest way to assemble. This connection system guarantees good perpendicularity between two surfaces (depending on the profile section) and good resistance of the mutual connection in the transverse direction to the groove.

    2. Joining with a connecting latch

    This assembly is very simple and safe and guarantees a firm connection even if the screws are loosened.

    3. Joining with joints or angles

    This method of joining is usually used where the greatest possibilities of adjustment and easy installation are required. Technical specifications for all products can be found in the product details of the relevant accessory.

    Profile threads

    It is recommended to respect the depth indicated in the table when creating a thread:

    Profile Screw diameter Recommended depth (mm)
    slot 6 M6 15
    slot 8 M8 25
    slot 10 M12 30

    The maximum tightening torques recommended for screws used in the ALUSIC system are:

    Profile Screw diameter Max. recommended tightening torque (Nm)
    slot 6 M6 10
    slot 8 M8 20
    slot 10 M12 35

    Compatible accessories for all types of panel connections can be found in the related products tab

    Additional parameters

    Category: Aluminum profiles BH 45x45
    Warranty: 2 years
    Hmotnost (kg/m): 2.03
    Řez profilu: 45×45
    Série: BH 45-10
    Skladem: Externí sklad
    Material: anodized aluminum
    Color: natural
    Profile length (mm): 6 040
    Moment of inertia lx (cm⁴): 14,82
    Moment of inertia ly (cm⁴): 14,82
    Sectional moment wx (cm³): 6,59
    Section moment wy (cm³): 6,59
    Cutting area (mm²): 750
    Minimum length (mm): 30
    Maximum length (mm): 6 000
    Rust: CUT-A
    Cut link: /profile-a-corrosion/
