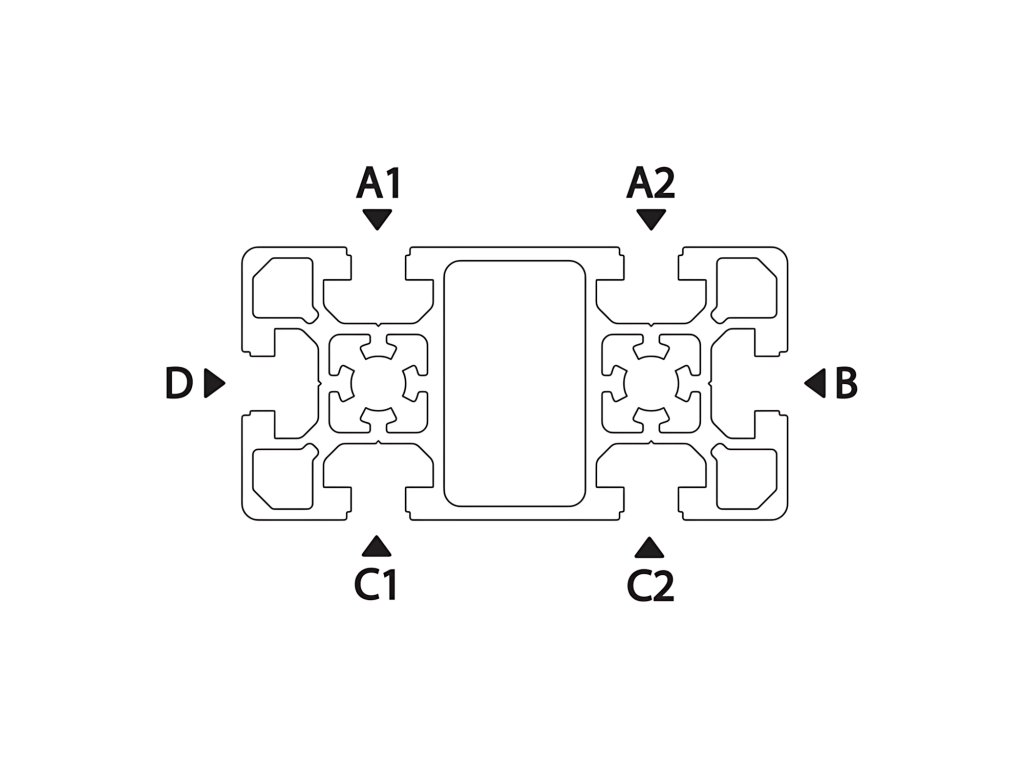

Aluminium Profile BH 50-10, 50x100
Code: 084.109.002
Related products
Product detailed description
Robust aluminium profile with a rectangular cross-section designed for creating standard structures with higher loads in the direction of the longer side.
Universal connection options thanks to 6 grooves on all sides of the profile.
Made from EN AW 6060 T5 aluminium alloy, anodised layer of more than 12 microns, tolerance according to EN 12020-2.
Possible to supply packaging in a large bundle containing 20 bars.
Compatibility
This product can replace the following products on the market:
| Code | Ord. C. | Note |
|---|---|---|
| REX | 3 842 537 825 | weight 4.60 kg/m; bundle of 10 bars |
| REX | 3 842 993 163 | weight 4.60 kg/m |
| REX | 3 842 993 165 | weight 4.60 kg/m; machining - 2x M12 thread on one side |
| REX | 3 842 993 166 | weight 4.60 kg/m; machining - 2x M12 thread on both sides |
| REX | 3 842 993 167 | weight 4.60 kg/m; machining - 2x side hole D=17 on both sides |
| REX | 3 842 993 168 | weight 4.60 kg/m; machining - 2x side hole D=17 on one side, perpendicular hole D=17 on the other side |
| REX | 3 842 993 169 | weight 4.60 kg/m; machining - perpendicular hole D=17 on one side |
| REX | 3 842 993 170 | weight 4.60 kg/m; machining - perpendicular hole D=17 on both sides |
| REX | 3 842 993 663 | weight 4.60 kg/m |
| REX | 3842537825 | weight 4.60 kg/m; bundle of 10 bars |
| REX | 3842993163 | weight 4.60 kg/m |
| REX | 3842993165 | weight 4.60 kg/m; machining - 2x M12 thread on one side |
| REX | 3842993166 | weight 4.60 kg/m; machining - 2x M12 thread on both sides |
| REX | 3842993167 | weight 4.60 kg/m; machining - 2x side hole D=17 on both sides |
| REX | 3842993168 | weight 4.60 kg/m; machining - 2x side hole D=17 on one side, perpendicular hole D=17 on the other side |
| REX | 3842993169 | weight 4.60 kg/m; machining - perpendicular hole D=17 on one side |
| REX | 3842993170 | weight 4.60 kg/m; machining - perpendicular hole D=17 on both sides |
| REX | 3842993663 | weight 4.60 kg/m |
| FMS | 05.01702.00 | weight 5.00 kg/m |
| FMS | 05.01721.00 |
Warning: the alternative product we offer may have technical deviations from the original product. Please contact us to explain the differences.
Joining profiles
The choice of fixings between different profiles is very important in any assembly structure. The customer can choose from various solutions depending on the required implementation time or the nature of the load or load-bearing capacity.
1. Joining with screws in the groove
This is the simplest and fastest way to assemble. This connection system guarantees good perpendicularity between two surfaces (depending on the profile section) and good resistance of the mutual connection in the transverse direction to the groove.
2. Joining with a connecting latch
This assembly is very simple and safe and guarantees a firm connection even if the screws are loosened.
3. Joining with joints or angles
This method of joining is usually used where the greatest possibilities of adjustment and easy installation are required. Technical specifications for all products can be found in the product details of the relevant accessory.
Profile threads
It is recommended to respect the depth indicated in the table when creating a thread:
| Profile | Screw diameter | Recommended depth (mm) |
| slot 6 | M6 | 15 |
| slot 8 | M8 | 25 |
| slot 10 | M12 | 30 |
The maximum tightening torques recommended for screws used in the ALUSIC system are:
| Profile | Screw diameter | Max. recommended tightening torque (Nm) |
| slot 6 | M6 | 10 |
| slot 8 | M8 | 20 |
| slot 10 | M12 | 35 |
Compatible accessories for all types of panel connections can be found in the related products tab
Additional parameters
| Category: | Aluminum profiles BH 50x100 |
|---|---|
| Warranty: | 2 years |
| Hmotnost (kg/m): | 4.34 |
| Řez profilu: | 50×100 |
| Série: | BH 50-10 |
| Skladem: | Externí sklad |
| Material: | anodized aluminum |
| Color: | natural |
| Profile length (mm): | 6 040 |
| Moment of inertia lx (cm⁴): | 161,80 |
| Moment of inertia ly (cm⁴): | 41,40 |
| Sectional moment wx (cm³): | 32,40 |
| Section moment wy (cm³): | 16,56 |
| Cutting area (mm²): | 1 606 |
| Minimum length (mm): | 30 |
| Maximum length (mm): | 6 000 |
| Rust: | REZ-B |
| Cut link: | /profile-res-b/ |
