L-coupling high rotation 8 - G1/4"

Not rated

€92,15 –9 %

€92,15 –9 % €82,94 / pcs €68,55 excl. VAT

Set up a watchdog

We deliver to:

09.06.2025

Delivery offer

pcs

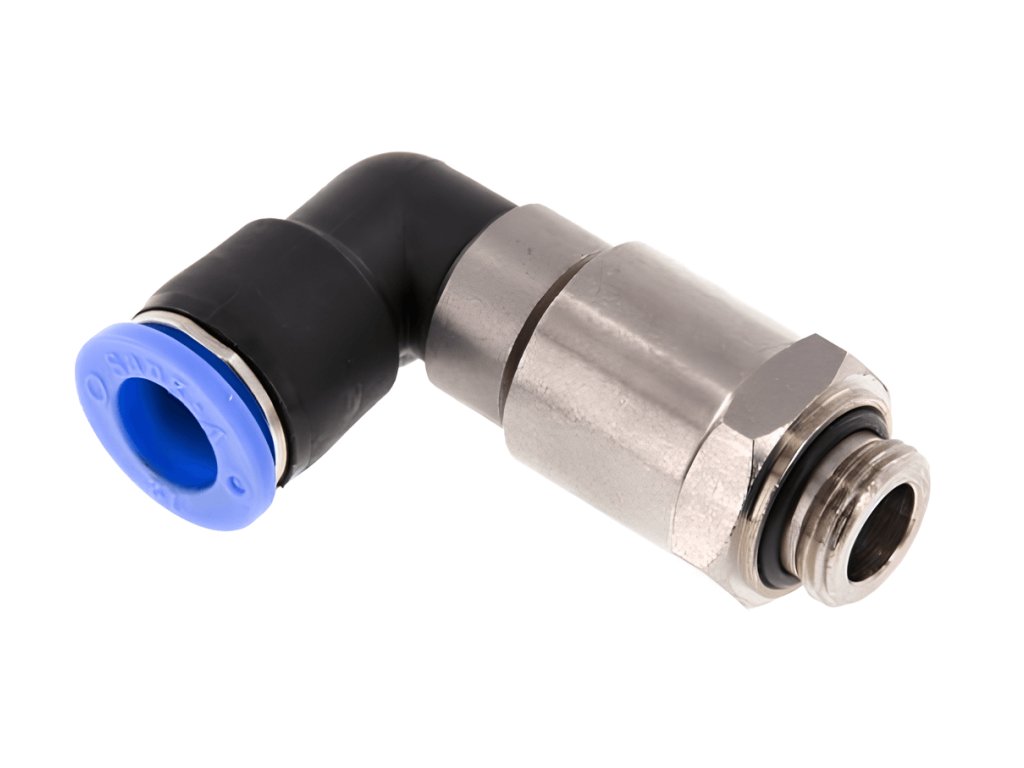

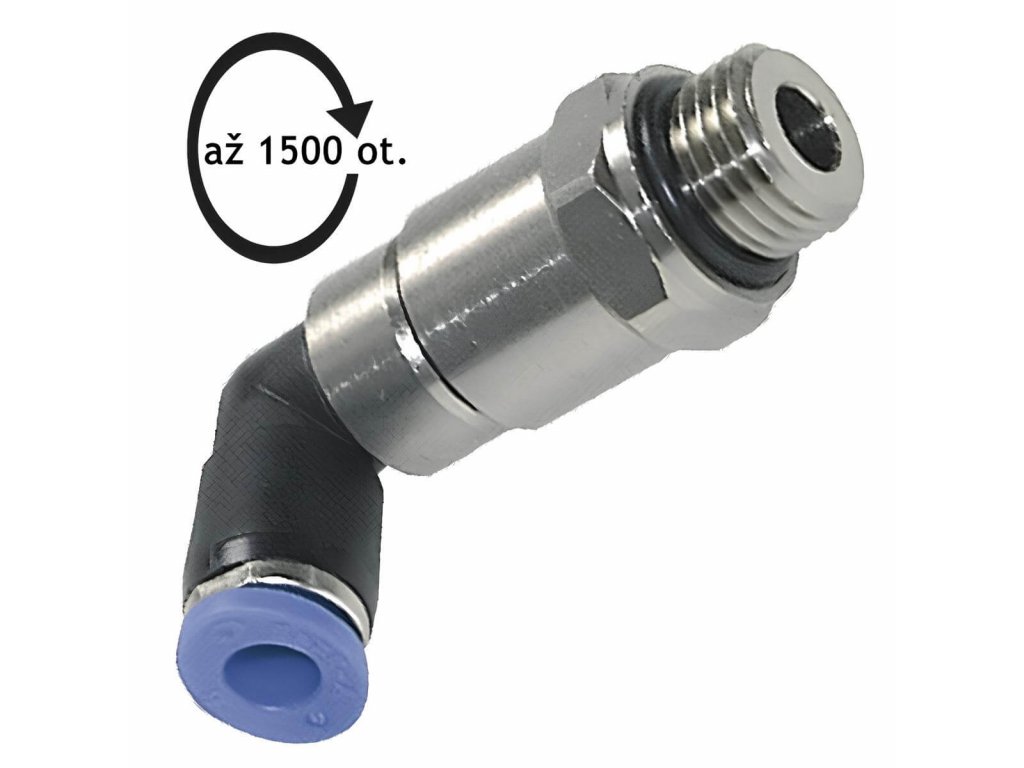

The 8 mm Angle Nipple Rotary Coupling with G1/4" male pipe thread is a special ball bearing coupling designed for applications where increased coupling rotation requirements up to 1200 rpm are required. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Add to comparison

Code: NHRLG-148

Brand: Pneumatics & Hydraulics

Add to inquiry

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Technical parameters

High speed rotary plastic corner socket with external pipe thread - NHRLG-148

Special ball bearing couplings designed for applications where
Increased demands on coupling rotation
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Product is included in the following categories: Fasteners Plastic rotary couplings L-couplings rotary

Technical parameters

Category:	Socket rotary couplings corner external thread G
Pressure:	10 bars
Functions:	Rotary clutch up to 1 200 rpm
A tube:	8 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	0 / +60 °C
Thread design:	Outer tube G
Seals:	NBR
Thread:	G 1/4"
Connection system:	Plug-in system
