Angle Bracket 90°, 43x86, M8, with Lugs
Code: 084.305.028
Free shipping
For purchases over 5,000 CZK
We guarantee
Extended warranty and service
Discount voucher
For every purchase
Return of goods within 30 days
Completely at our expense
Related products
Product detailed description

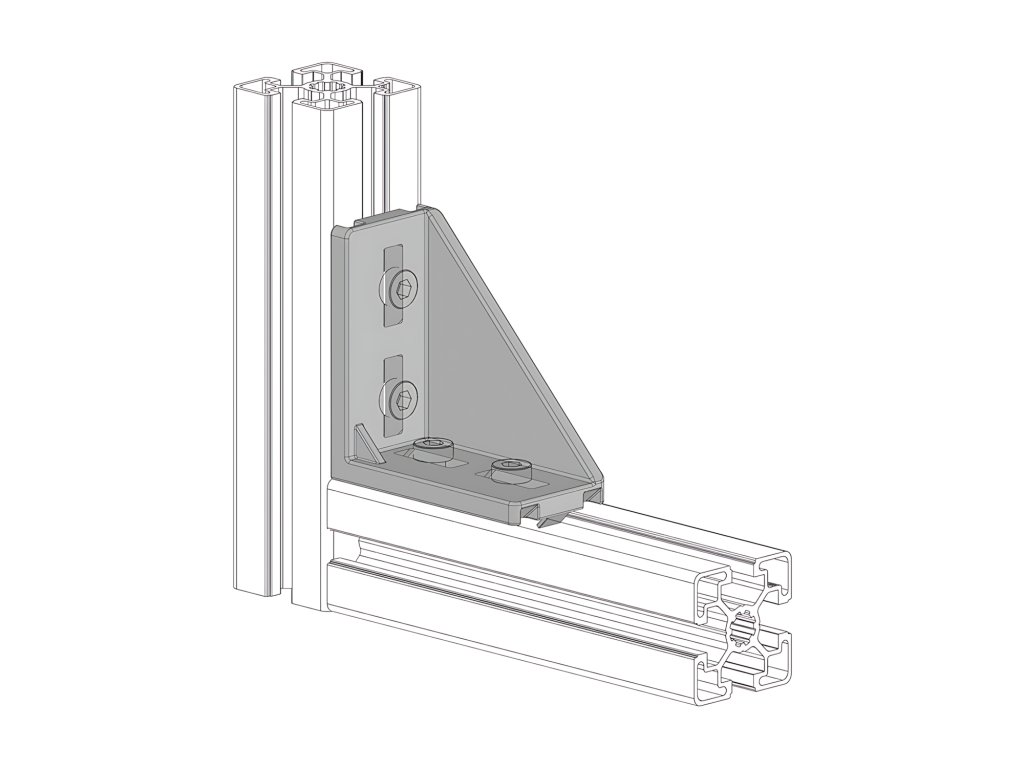

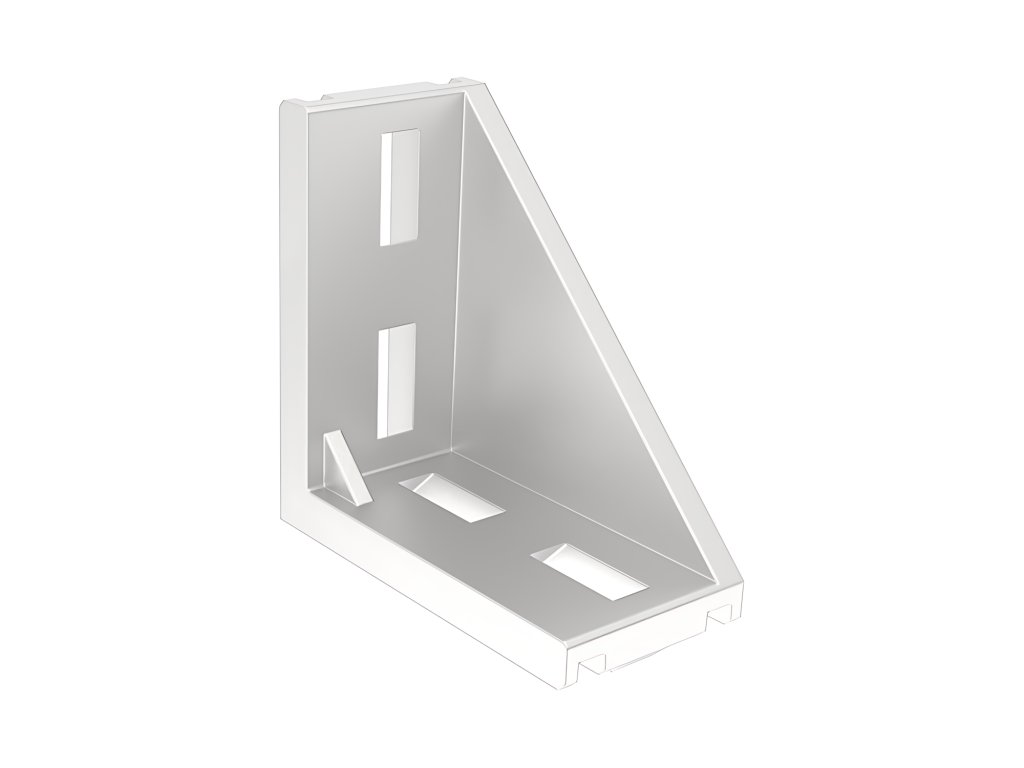

Universal angle bracket with a 90° angle and dimensions of 43x86 for connecting profiles from the outside using M8x20 screws.
Especially suitable for profiles with a 45x45 section.
Equipped with guide tongues into the 10 mm groove to improve joint strength.
Screws are not included.
Made from blasted aluminium.
Compatibility
This product can replace the following products on the market:
| Code | Ord. C. | Note |
|---|---|---|
| FMS | 05.01152.00 | |
| FMS | 05.01152.05 | set with screws and nuts for BH 45-10 groove |
Warning: the alternative product we offer may have technical deviations from the original product. Please contact us to explain the differences.
Additional parameters
| Category: | 90° angles |
|---|---|
| Warranty: | 2 years |
| Material: | Aluminium |
| Otvory (mm): | 9 |
| Série: | BH 45-10, BH 50-10 |
| Skladem: | Externí sklad |
| Šířka (mm): | 43 |
| Výška (mm): | 86 |
| For screws: | M8×20 |
| Weight (g): | 162 |
