Automatic lubricator Simalube SL00-125
Code: SL00-125
Related products
Product detailed description

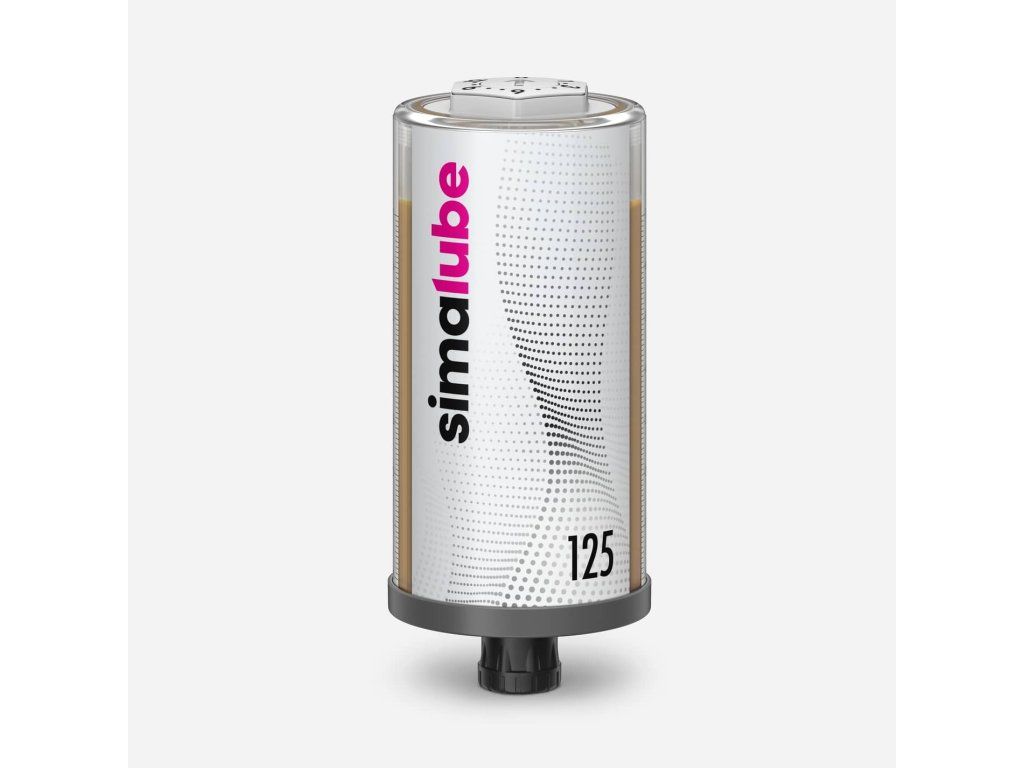

simalube SL00-125 automatic lubricator — Empty – for custom filling
simalube SL00-125 is an automatic single-point lubricant dispenser with a volume of 125 ml for filling with your own lubricant. You can choose exactly the lubricant prescribed by your machine manufacturer. Size 125 ml: high volume – longer service interval or higher lubricant consumption.
- ✔ custom filling
- ✔ universal holder
- ✔ service flexibility
Main advantages
What is the purpose of the empty SL00 cartridge
The simalube 125 ml empty cartridge allows you to use the exact lubricant prescribed by your machine manufacturer. You fill it with your own grease or oil, activate it by turning, and achieve continuous automatic lubrication with full flexibility in lubricant choice. Ideal for applications where the machine requires a special or original lubricant, yet you still want automatic dosing.
Additional technical data | |
| Weight full / empty | ~190 g / ~75 g |
|---|---|
| Dosing quantity | 0.04–8.3 ml/day (depending on setting and size) |
| Shelf life | activate within 2 years from date of manufacture |
| Storage temperature | recommended 20 °C ± 5 °C |
| ATEX marking | II 1G Ex ia IIC T6 Ga · II 1D Ex ia IIIC T200 80 °C Da · I M1 Ex ia I Ma |
| Certificates | KEMA 09ATEX0098X · IECEx DEK 20.0032X |
How simalube works
After activation by turning the numbered screw, pressure is created inside the cell (dry hydrogen gas cell — without battery and without cables), which evenly and continuously pushes the precise amount of lubricant directly into the lubricated point. The remaining amount is visible through the transparent inspection window, and dispensing can be stopped and restarted at any time. One dispenser replaces dozens of manual interventions with grease guns — day after day, for an entire year.
Size 125 ml — and other sizes

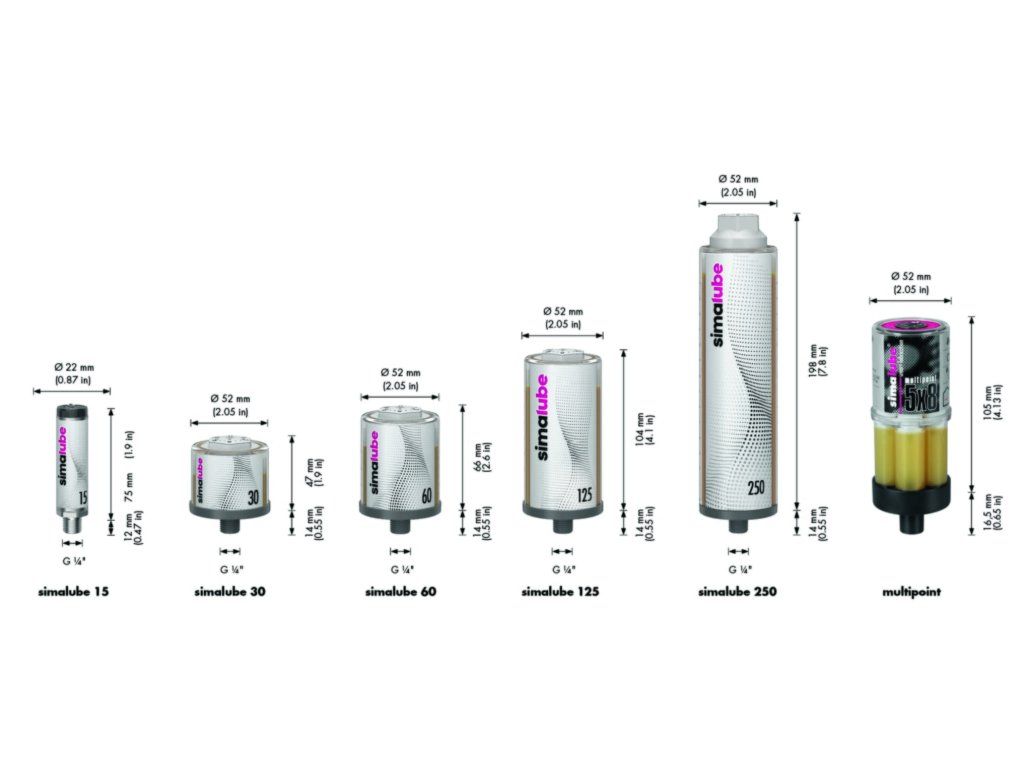

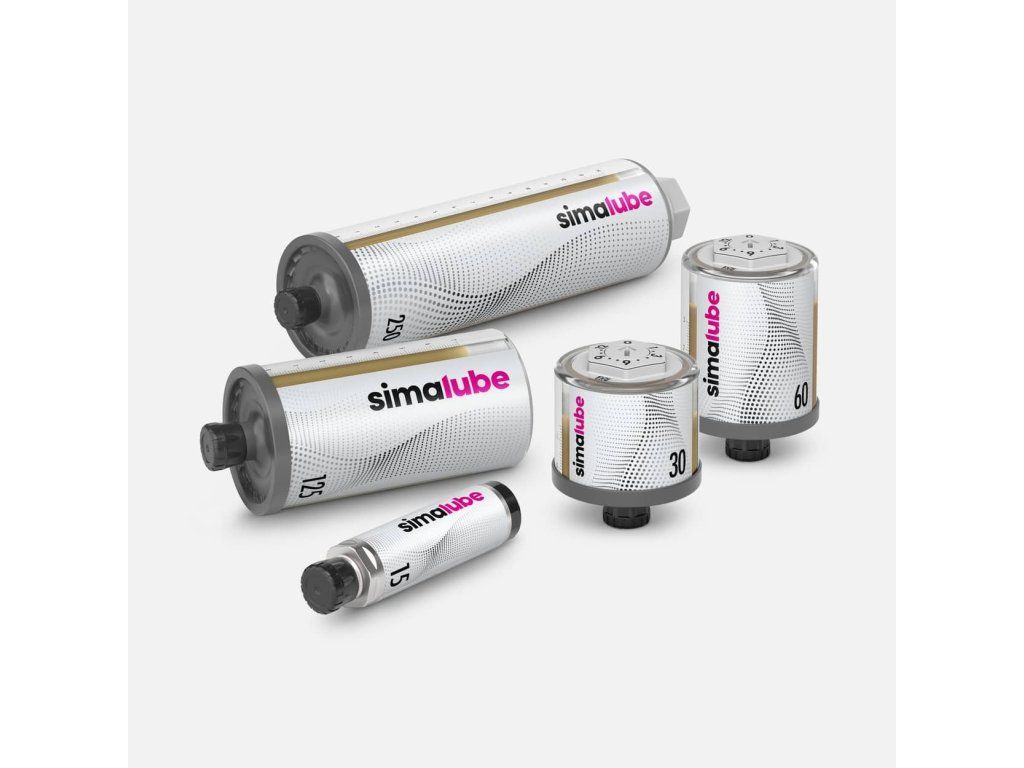

High volume – longer service interval or higher lubricant consumption. Larger volume = longer interval between replacements; smaller volume = lubricant savings and fitting into confined spaces. The same lubricant (empty cartridge) is also available in other sizes: 15 ml · 30 ml · 60 ml · 125 ml · 250 ml.
Why choose an automatic lubricator over manual lubrication
The grease gun depends on people, time, and memory. simalube dispenses on its own — continuously, precisely, and even where you can't safely reach with a gun.
- Saves maintenance time and personnel
- Increased work safety — fewer interventions on running machines and at heights
- Hard-to-reach places are lubricated permanently
- Lower lubricant consumption
Manual lubrication fluctuates between extremes — either there's too little lubricant (seized bearing), or too much (damaged seal, leakage, dirt). simalube maintains the precise dosage throughout the cycle.
- Reduced component wear
- Fewer unplanned downtimes
- Higher machine performance and reliability
The sealed construction with IP68 rating prevents lubricant mix-ups and the ingress of dirt into the lubricated point — it works even underwater.
- No lubricant mix-ups
- Lower risk of contamination
- The lubricated point remains clean
The simalube range is certified for demanding and explosive environments and complies with European and British regulations.
- Ex certification (ATEX) in all zones
- Increased workplace safety
- Recycling and disposal according to regulations — without burdening the environment
- CE and UKCA compliance
simalube IMPULSE connect — digital monitoring
For demanding operations, an optional simalube IMPULSE connect unit is available for digital monitoring and configuration via Bluetooth — connecting with the "World of Maintenance" app and automatic electronic lubrication plans.
Frequently Asked Questions
What temperatures is the cartridge suitable for? Depending on the chosen lubricant; the dispenser operates from −20 °C to +55 °C.
Can the lubricator be refilled? Yes, up to 3× (refill lubricant + new drive unit) — further cost savings.
Does it work in damp conditions and underwater? Yes, IP68 rating (dust-tight and waterproof).
Is it suitable for Ex environments? Yes, Ex/ATEX all zones, CE/UKCA.
Does it require a battery or power supply? No, powered by a dry hydrogen gas cell — no cables.
How long does one filling last? Depending on the setting, 1 to 12 months of continuous lubrication.
VENTILEK ADVISES:
SL00 is your "wild card" — when the machine requires a specific lubricant, you fill the cartridge yourself and get automatic lubrication without compromise. Just ensure cleanliness during filling.
Additional parameters
| Category: | SIMALUBE automatic lubricators |
|---|---|
| Connecting: | R 1/4" |
| Application: | Empty container |
| Certification: | ATEX |
| Dispenser time: | 1 - 12 months |
| Coverage: | IP68 |

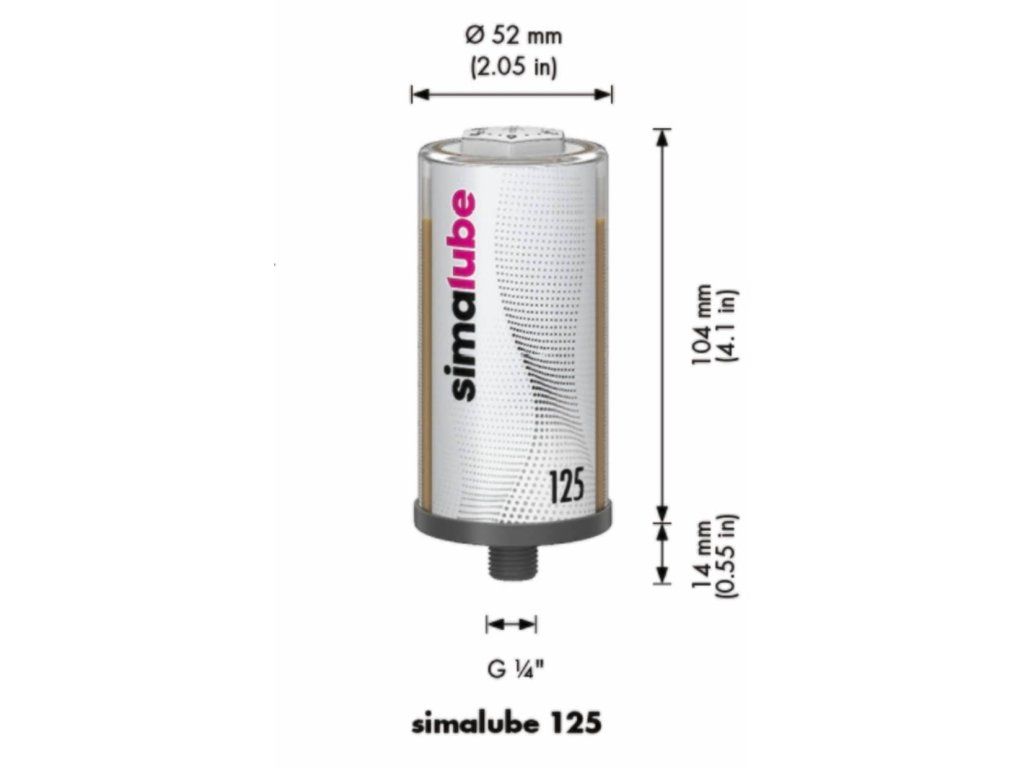

| Vessel volume: | 125 ml |
| Repeated use: | Yes, when replacing the act.bolt |
| Average: | 52 mm |
| Temperature range: | Empty container |
| Height: | 104 mm |
| Thickener: | Empty container |
| Base oil: | Empty container |
| In stock: | In store, External warehouse |
