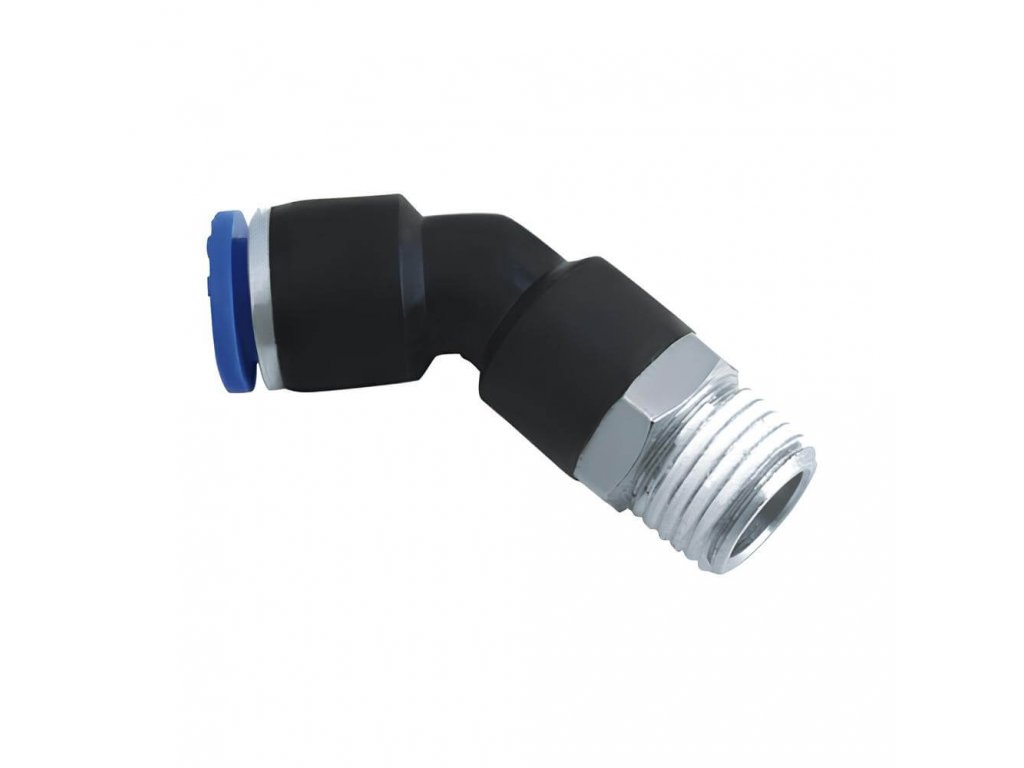

L-coupling angle 45° - 12 - R1/2"

Not rated

€7,73 –9 %

Tip

€7,73 –9 % €6,96 / pcs €5,75 excl. VAT

22 pcs

Set up a watchdog

In store 0 pcs

External warehouse 22 pcs

We deliver to:

20.05.2025

Delivery offer

pcs

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Detailed information

Add to comparison

Code: PLH-1212

Brand: Pneumatics & Hydraulics

Add to inquiry

Free shipping

For purchases over 5,000 CZK

We guarantee

Extended warranty and service

Discount voucher

For every purchase

Return of goods within 30 days

Completely at our expense

Technical parameters

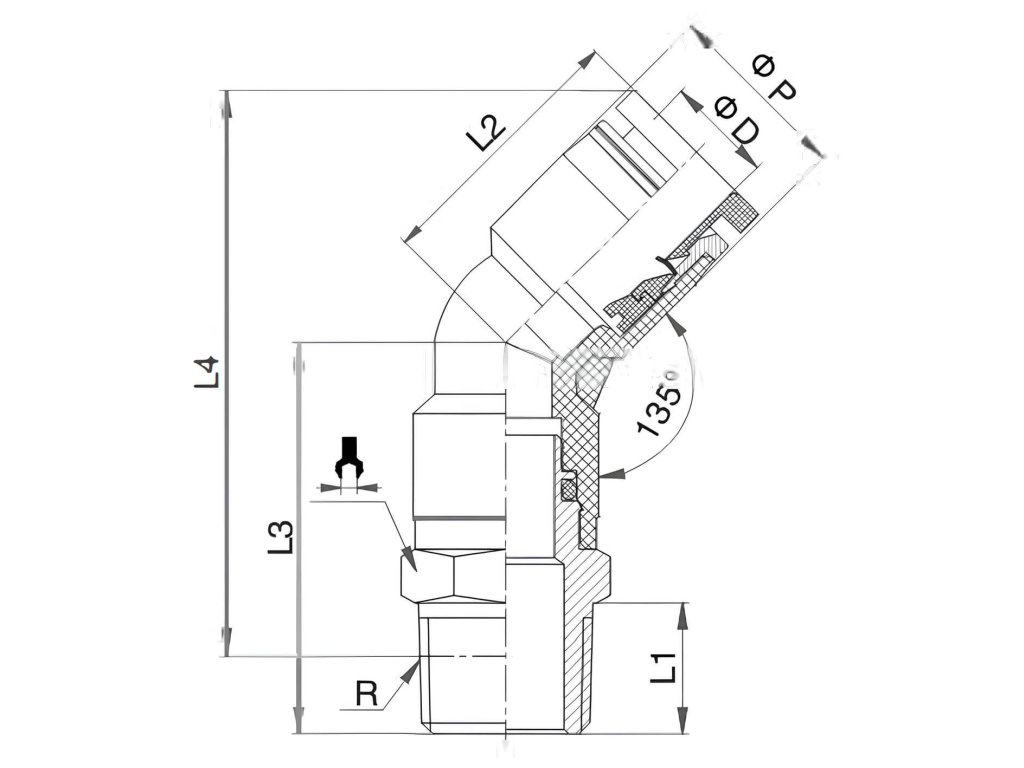

45° corner fitting with external tapered thread 12 - R 1/2"
in plastic design

Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

Product is included in the following categories: Fasteners Plastic socket couplings L-couplings angled 45°

Technical parameters

Category:	L-couplings male thread R angle 45°
Pressure:	10 bars
A tube:	12 mm
Material:	Brass, PU
Medium:	Compressed air
Working temperature:	-10 / +60 °C
Thread design:	Kuželový R
SW (key):	21
Width:	36 mm
Seals:	PTFE
Thread:	R 1/2"
Connection system:	Plug-in system
