Check valves RVD600 - DN40
Code: RVD600-040Related products
T-coupling with a diameter of 40 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20...
Socket for 18 mm pipe. Simple Air Push socket system that can be disassembled again. No special tools are required for the installation of the air distribution system....
Plastic roll 25 m - PA12 for compressed air piping. Pipe size 15/12 mm with recommended operating pressure 14 bar. Classic blue colour as marking for air ducts. Easy connection...
Powder-coated blue aluminium pipe with a dimension of 25 / 22.2 mm and a length of 3 m designed for piping of compressed air and inert gases up to 12.5 bar. Pipe material -...
Adapter with 3/8" female thread for 15 mm pipe for compressed air piping. Simple SQ socket system that can be disassembled and reused. No special tools are required for...
Socket t-coupling for 22 mm pipes. Simple Air Push socket system that can be disassembled again. No special tools are required for the installation of the air distribution...
Straight socket coupling 15 mm for compressed air piping with external pipe thread G 1/2". Simple SQ socket system that can be disassembled and reused. No special tools are...
Plastic pipe PA12 for compressed air piping. Pipe size 28 / 24 mm with recommended operating pressure 10 bar. Classic blue colour as marking for air ducts. Easy connection with...
Corner socket coupling 15 mm for compressed air piping. Simple SQ socket system that can be disassembled and reused. No special tools are required for installation, which is...
Plastic roll 25 m - PA12 for compressed air piping. Pipe size 22/18 mm with recommended operating pressure 13 bar. Classic blue colour as marking for air ducts. Easy connection...
Blind socket coupling 28 mm for compressed air piping. Simple SQ socket system that can be disassembled and reused. No special tools are required for installation, which is...
28 mm T-connector for compressed air piping with 1/2" female thread in the branch. Simple SQ socket system that can be disassembled and reused. No special tools are required for...
Drilling tool for drilling under pressure, thread G1" . Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion....
T-coupling with internal thread G1/2", diameter 25 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating...
Straight socket coupling 18 mm for compressed air piping. Simple SQ socket system that can be disassembled and reused. No special tools are required for installation, which is...
Cutting ring 25 mm. Easy and fast installation, low pressure gradient, resistant to mechanical damage, UV radiation and corrosion. Operating temperature -20 °C to 70 °C,...
Product detailed description

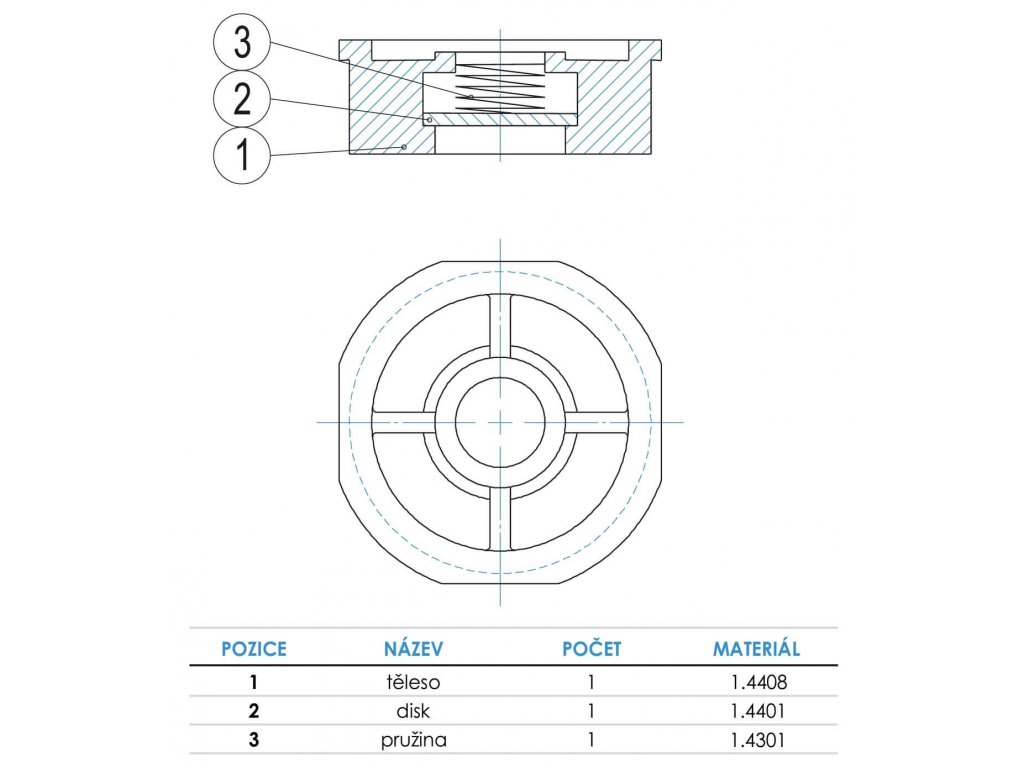

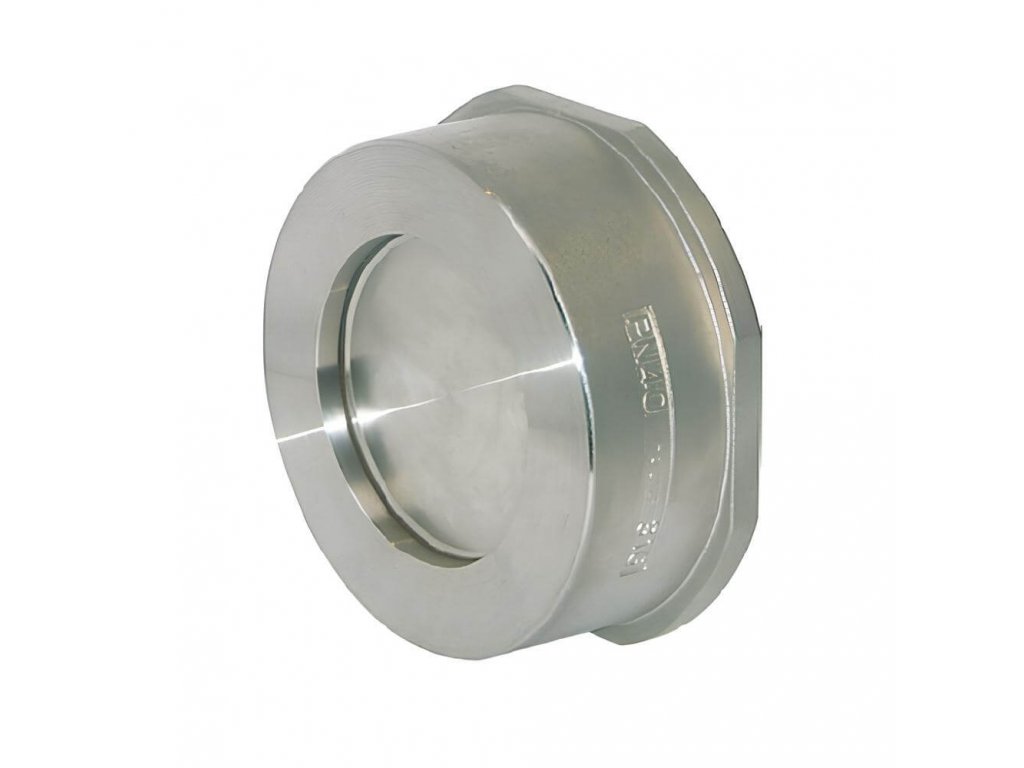

Check valves RVD600 DN40
- clearance DN 40
- working pressure 40 bar
- temperature up to +180°C
- material stainless steel 1.4408
Additional parameters
| Category: | Check valves RVD600 stainless steel flanged |
|---|---|
| Pressure: | 40 bar |
| Connecting: | Flange |
| Material: | Stainless steel |
| Medium: | Air, Water |
| Brightness DN: | 40 |
| Seals: | PTFE |
| Design of fittings: | Direct, Check valves/dampers |
