Automatic lubricator Simalube SL24-15

Product detailed description

Simalube SL24-15 - Wide Temperature Range EP Lubricant

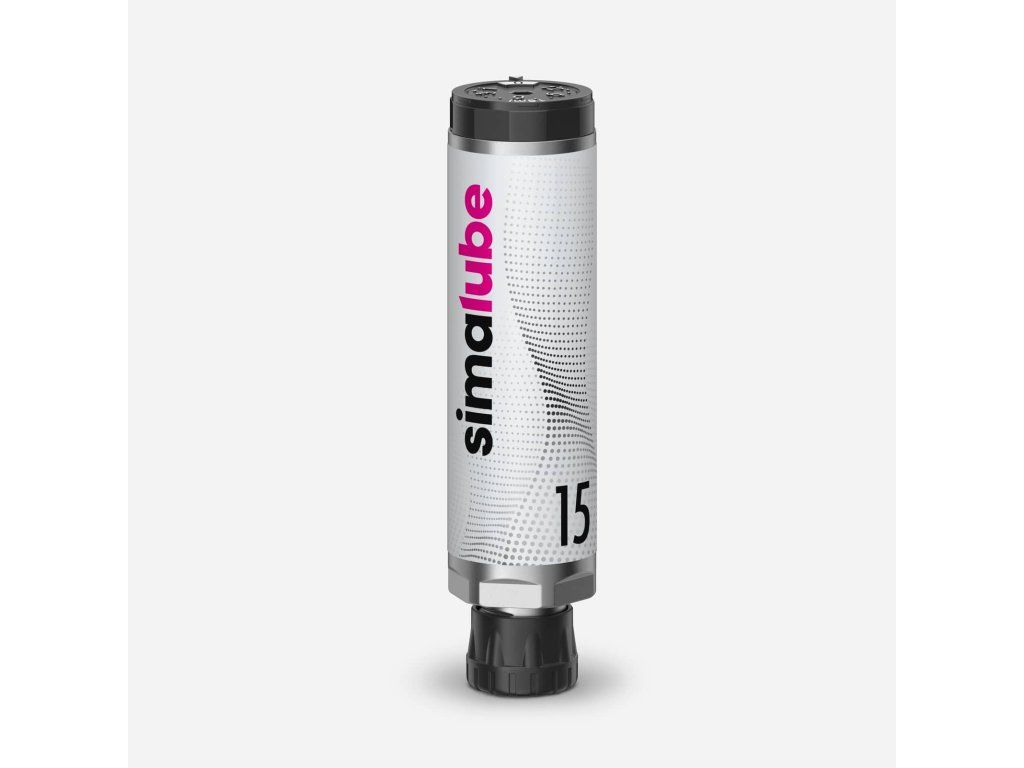

simalube SL24-15 is an automatic single-point lubricant dispenser with a volume of 15 ml and a wide temperature range EP lubricant fill. It is activated by a single turn and then manages lubrication automatically — continuously, precisely, and even in locations inaccessible with a grease gun. Size 15 ml: the smallest – for miniature and confined spaces where a larger dispenser cannot be installed.

• ✔ wide range −30/+140 °C
• ✔ EP load
• ✔ outdoor equipment

Main advantages

Applications for which SL24 lubricant is intended

Universal EP grease for fluctuating temperatures and medium to high loads – construction and mobile machinery, outdoor equipment. The lubricant refill operates in the range of −30 °C to +140 °C, and the dispenser itself in the range of −20 °C to +55 °C. Classification according to DIN 51502: KP2N-30. Base: mineral oil, Li/complex thickener.

Typical SL24 applications

• ✔ Construction and mobile equipment
• ✔ Outdoor machinery with fluctuating temperatures
• ✔ Medium to high-load joints
• ✔ Universal year-round application

Deployment across industries: Automation and Manufacturing · Food and Beverage · Automotive · Cement and Construction · Steelworks and Mining · Paper and Printing · Plastics, Textiles, Wood · Water Management and WWTP and others. simalube works underwater (IP68) and in explosive environments (Ex/ATEX).

Additional technical data
Weight full / empty	~36 g / ~22.5 g
Dosing quantity	0.04–8.3 ml/day (depending on setting and size)
Shelf life	activate within 2 years from date of manufacture
Storage temperature	recommended 20 °C ± 5 °C
ATEX marking	II 1G Ex ia IIC T6 Ga · II 1D Ex ia IIIC T200 80 °C Da · I M1 Ex ia I Ma
Certificates	KEMA 09ATEX0098X · IECEx DEK 20.0032X

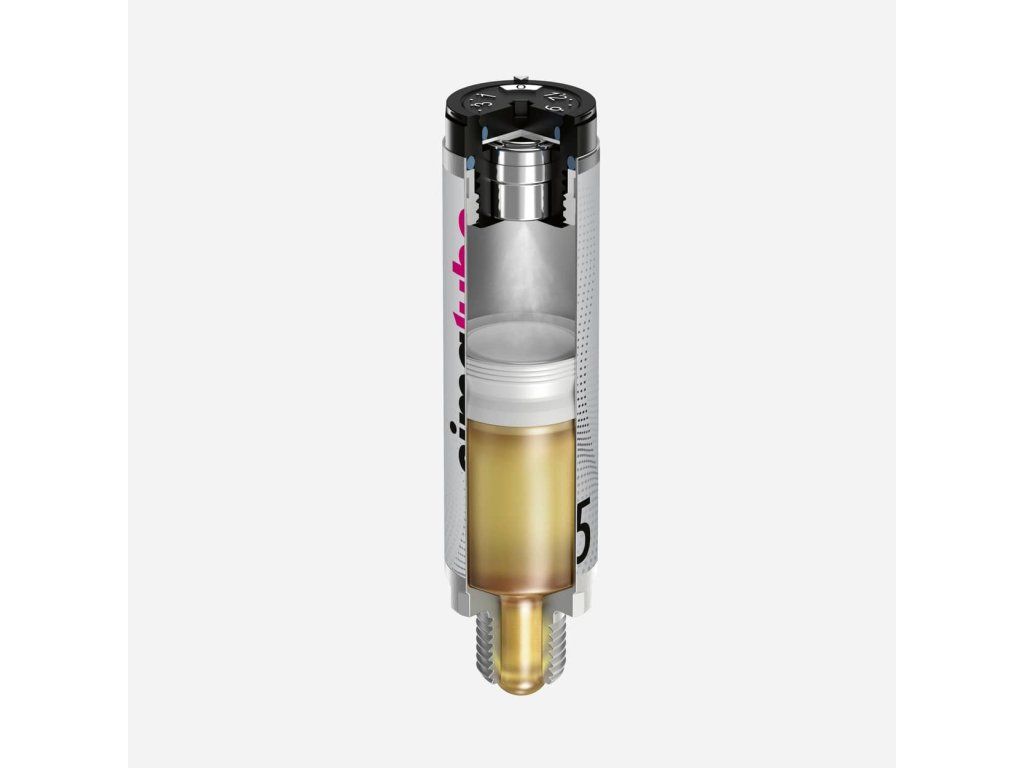

How simalube works

After activation by turning the numbered screw, pressure is created inside the cell (dry hydrogen gas cell — without battery and without cables), which evenly and continuously pushes the precise amount of lubricant directly into the lubricated point. The remaining amount is visible through the transparent inspection window, and dispensing can be stopped and restarted at any time. One dispenser replaces dozens of manual interventions with grease guns — day after day, for an entire year.

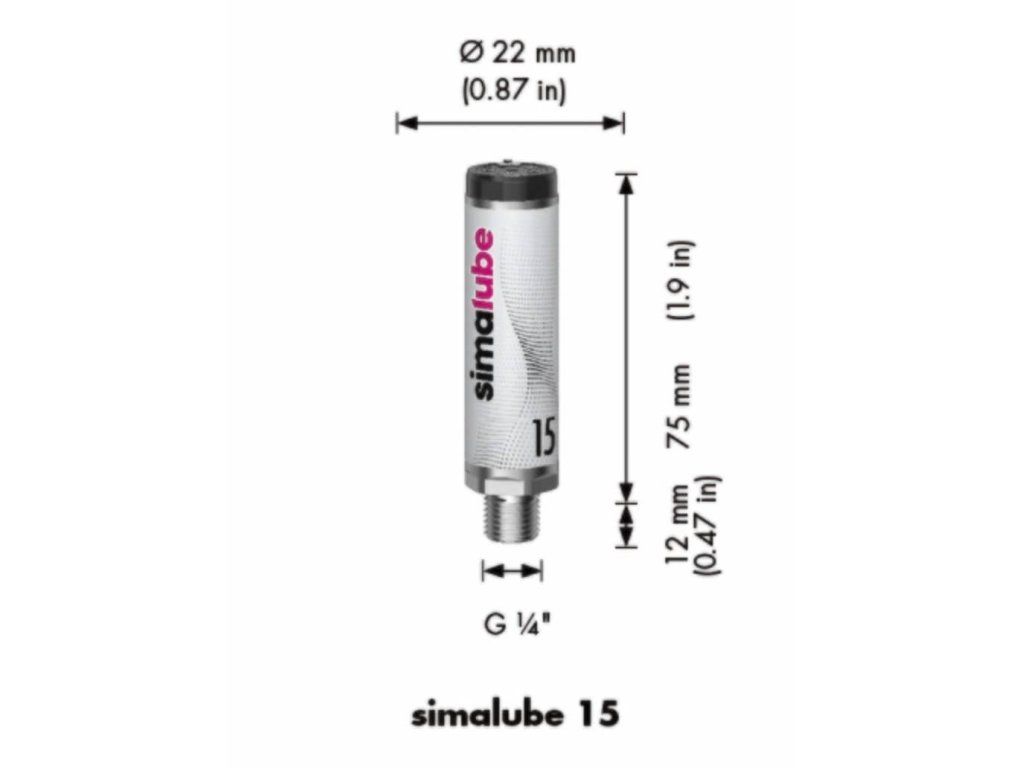

Size 15 ml — and other sizes

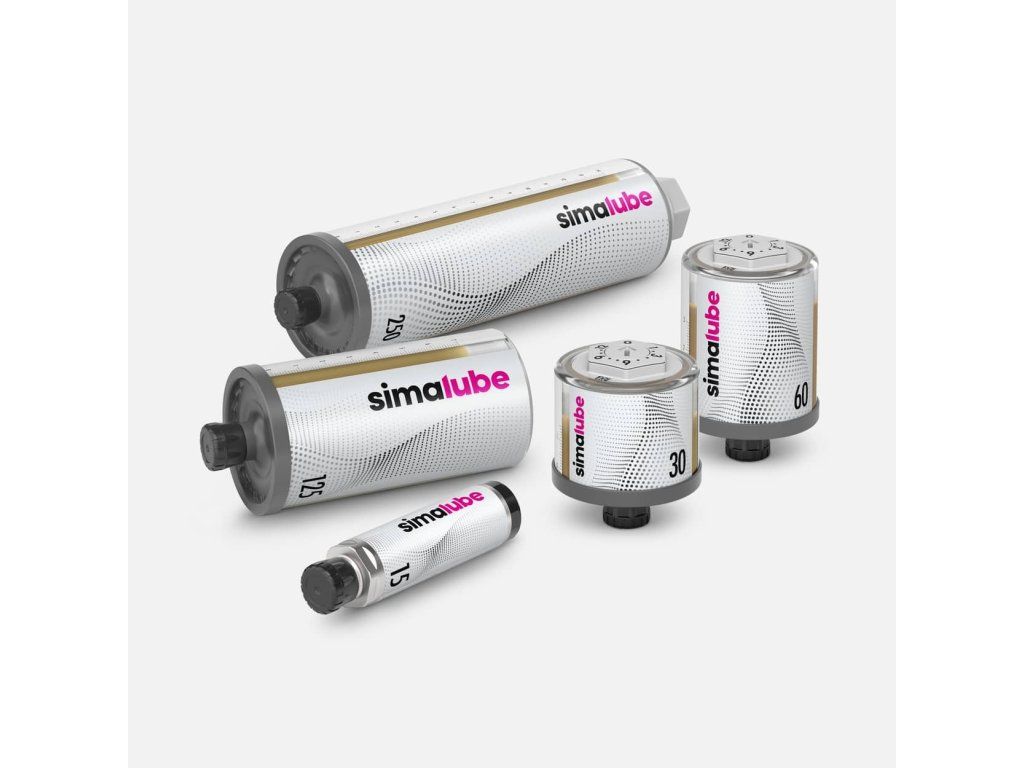

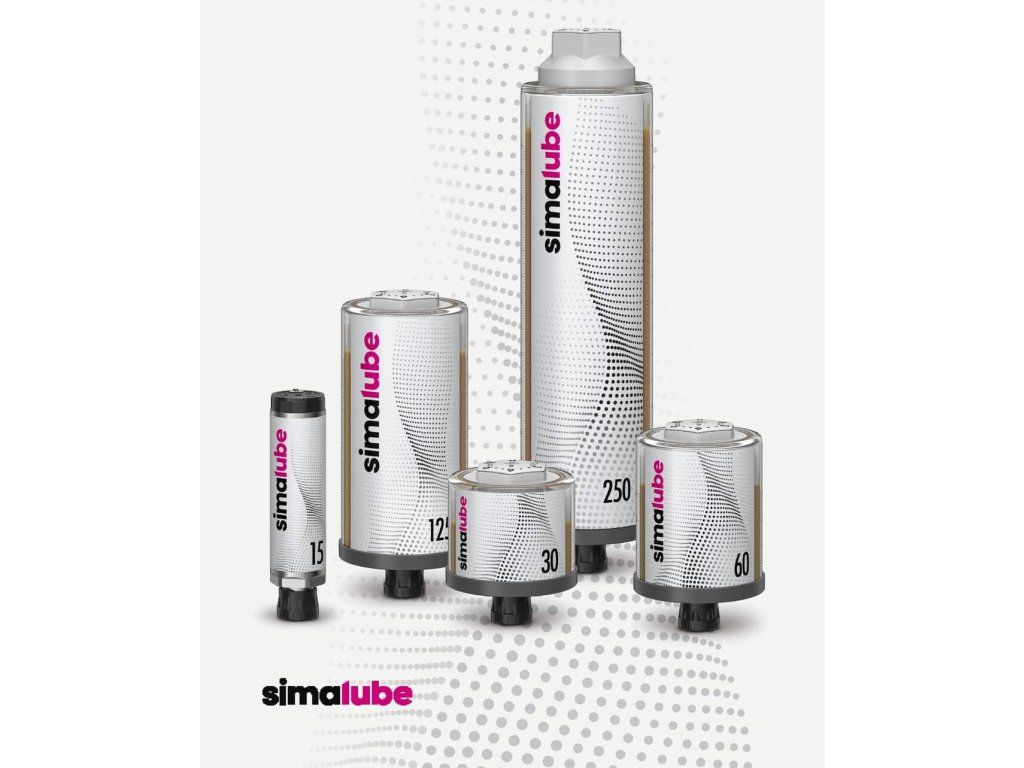

Smallest – for miniature and confined spaces where a larger dispenser cannot be installed. Larger volume = longer interval between replacements; smaller volume = lubricant savings and fitting into confined spaces. The same SL24 lubricant is also available in other sizes: 15 ml · 30 ml · 60 ml · 125 ml · 250 ml.

Why choose an automatic lubricator over manual lubrication

simalube IMPULSE connect — digital monitoring

For demanding operations, an optional simalube IMPULSE connect unit is available for digital monitoring and configuration via Bluetooth — connecting with the "World of Maintenance" app and automatic electronic lubrication plans.

Frequently Asked Questions

For what temperatures is the SL24 lubricant suitable? Lubricant −30 °C to +140 °C, dispenser −20 °C to +55 °C.
Can the lubricator be refilled? Yes, up to 3× (refill lubricant + new drive unit) — further cost savings.
Does it work in damp conditions and underwater? Yes, IP68 rating (dust-tight and waterproof).
Is it suitable for Ex environments? Yes, Ex/ATEX all zones, CE/UKCA.
Does it require a battery or power supply? No, powered by a dry hydrogen gas cell — no cables.
How long does one filling last? Depending on the setting, 1 to 12 months of continuous lubrication.

VENTILEK ADVISES:

This refill (SL24) is designed for: wide range −30/+140 °C, EP load, outdoor equipment. If this suits your operation, do not hesitate. Choose the size based on how long you want maintenance-free operation — 15 ml is the smallest – for miniature and confined spaces where a larger dispenser cannot be installed.

↪ View all simalube lubricant types and sizes
