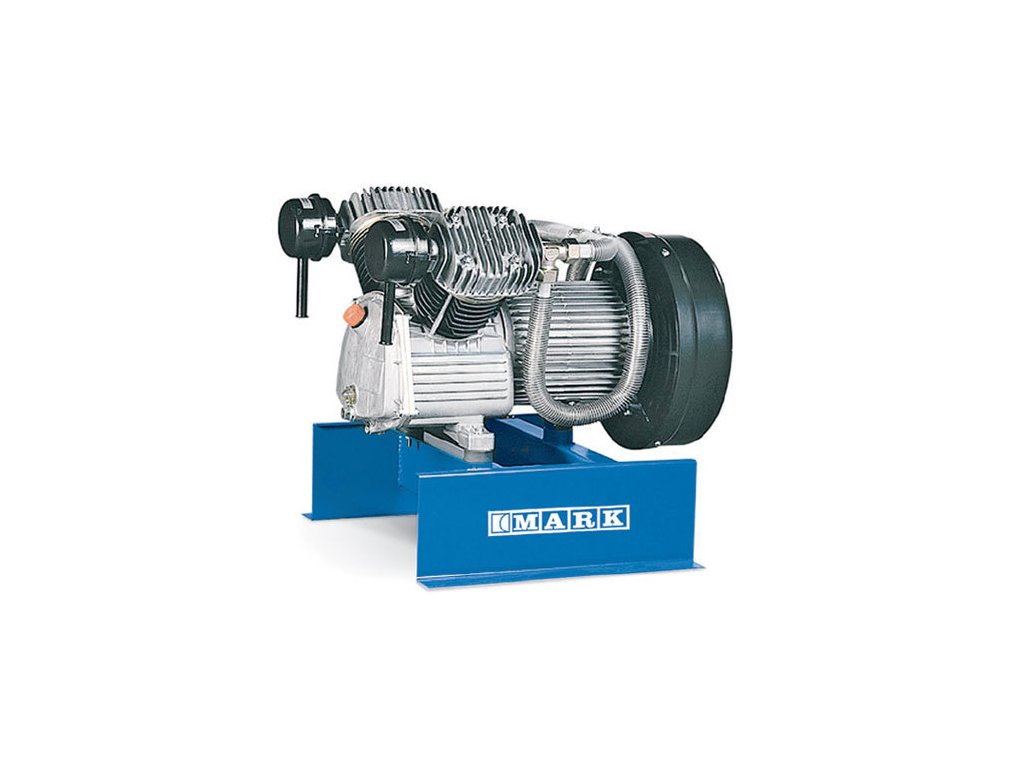

Compressor on the frame - RH20-15B
Code: RH20-15B
Product detailed description
Compressors on the frame
compressors with motor mounted on a mounting frame
- Designed especially for mounting on an existing pressure vessel
- RL series - Single stage design with 10 bar pressure, oil lubricated
- RH Series - Two-stage design with pressures of 10 bar and 15 bar, oil lubricated
- RK series - Two-stage oil-free design
- Compressor connected directly to the engine : higher compression efficiency, no V-belts, perfectly aligned
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Version: | Industrial piston compressor |
| Pressure: | 15 bar |
| Displacement: | 196 l/min |
| Pressure vessel volume: | It isn't |
| Motor power: | 1.5 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1400 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oleic |
| Noise: | 74 dB(A) |
| Dimensions: | 530 x 420 x 500 mm |
| Weight: | 54 kg |
| Warranty: | 2 years + 6 months |
| Gift: | Replacement oil |
| The item has been sold out… | |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Export from Italy to the whole worldAmong the leading manufacturers of compressors and various products for compressed air treatment is the company with Italian roots MARK. A world-renowned company that surpasses even its older competitors with its wide portfolio of products. Today, MARK has one of the largest distribution programs worldwide and thanks to a sophisticated network of sister companies and more than 40 partners, people can meet the products produced in northern Italy literally all over the world. In addition, the company has been a member of the Atlas Copco Group, the largest compressor manufacturer ever, since 1998. |
 |
 |
Cooperation with the largest manufacturer of compressorsIt is thanks to the cooperation with the Alas Copco Group that the product range has been able to be expanded by hundreds and hundreds of new products, while the existing products have been extensively modernised. As a result, MARK now offers more than 300 models of reciprocating compressors, screw compressors with motors from 2.2 to 160 kW, Ecolife and WIS oil-free compressors and thousands of other air treatment products. All this with ISO 9001:2000 and ISO 14001 quality certificates. You can rely on the MARK brand and with proper use their products will serve you for many years. |
The MARK range can be found below.
