Product detailed description

Class 0 Oil-Free Air

Compressed air quality is defined by the ČSN ISO 8573-1 standard. This standard defines air quality classes in terms of individual contaminants: water, solid contaminants and oil.
The output oil content of the SCR-XA series scroll compressors achieves the highest possible Class 0 according to this standard and is certified by the renowned notified body TÜV Rheinland.

Oil-Free Air Applications

More and more users are demanding the highest possible compressed air quality from compressors. This is especially true of oil content, which is undesirable in many industrial and service applications.

Dentistry and hospitals	Pharmaceuticals	Laboratories	Semiconductor manufacturing
Beverage industry	Paint shops	Plastics industry	Food industry

Functional principles

The scroll compressor produces compressed air based on the principle of volumetric compression in a scroll block, which consists of a fixed and a moving scroll. The moving scroll performs a circular motion, during which air is drawn in from the surroundings into the space between the two scrolls from the outer peripheral side. During movement, the air is carried towards the centre of the assembly, reducing its volume and increasing pressure.

Top-class scroll blocks

SCR-XA compressors use scroll blocks from the world's largest manufacturer, the Japanese company ANEST IWATA. All blocks are manufactured by a robotic production line, ensuring first-class quality and excellent technical parameters.

Models with power inputs up to 30 kW

The SCR-XA series of scroll compressors are available in a wide range of outputs, including rated machine power inputs from 2.2 up to 30 kW. Starting with the SCR 7 XA model, the compressors are supplied in a so-called multi-version and are equipped with several scroll blocks. This arrangement makes it possible to adapt the air supply to the current consumption by controlled switching on of the compressor units.

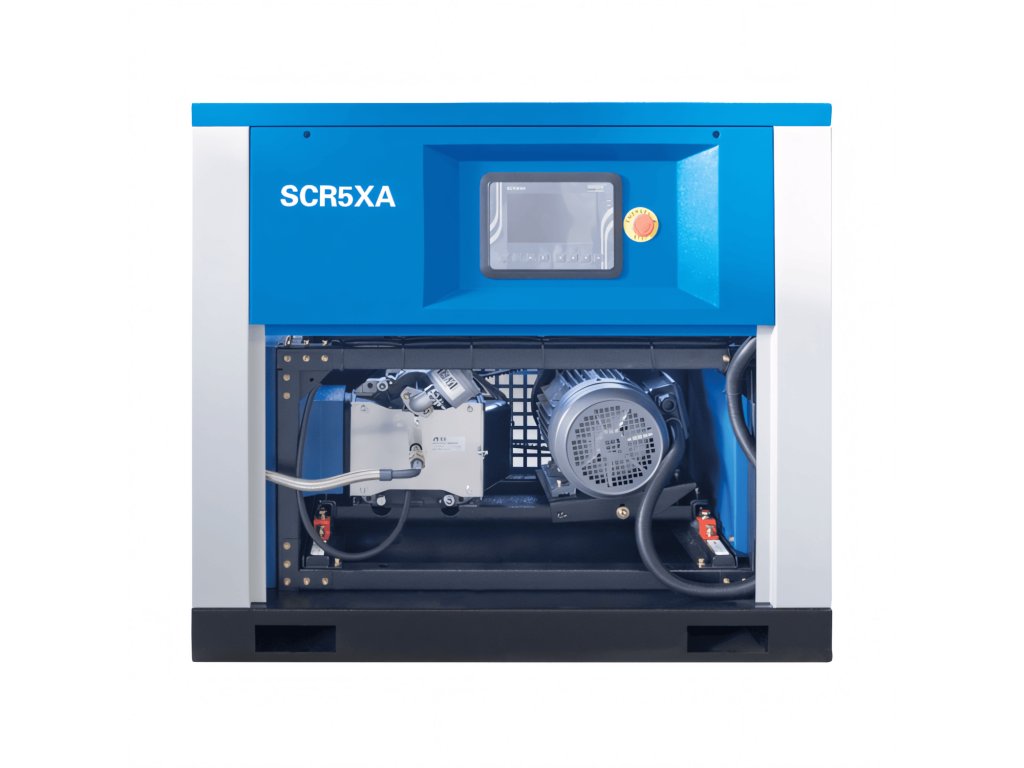

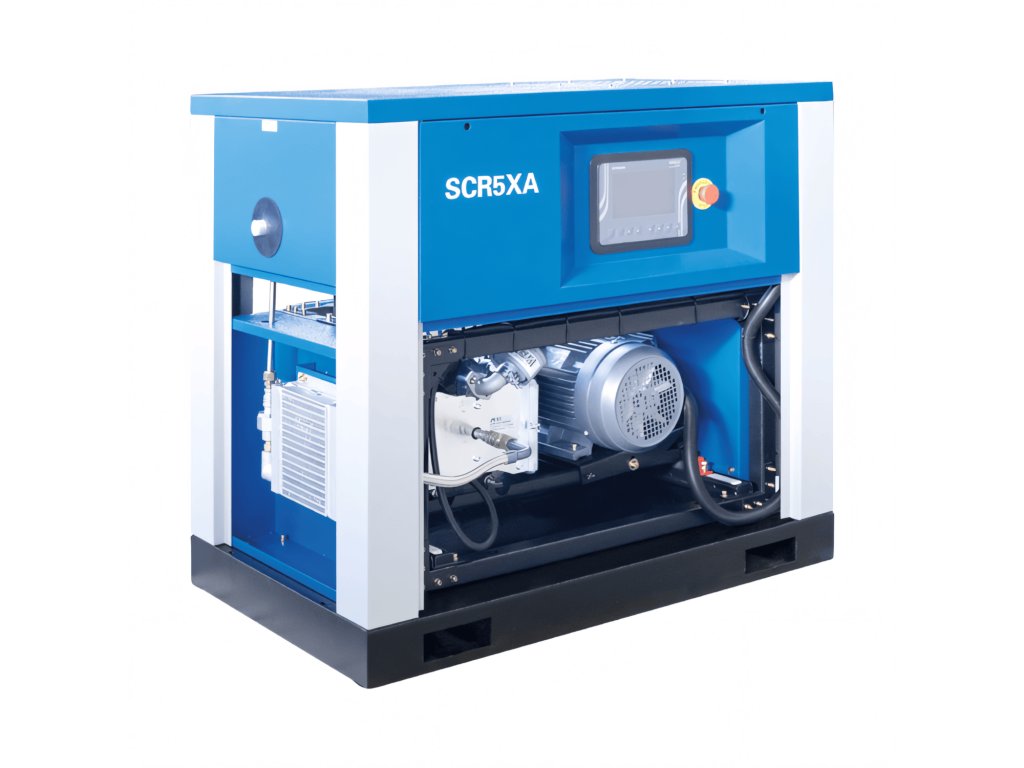

Design arrangement

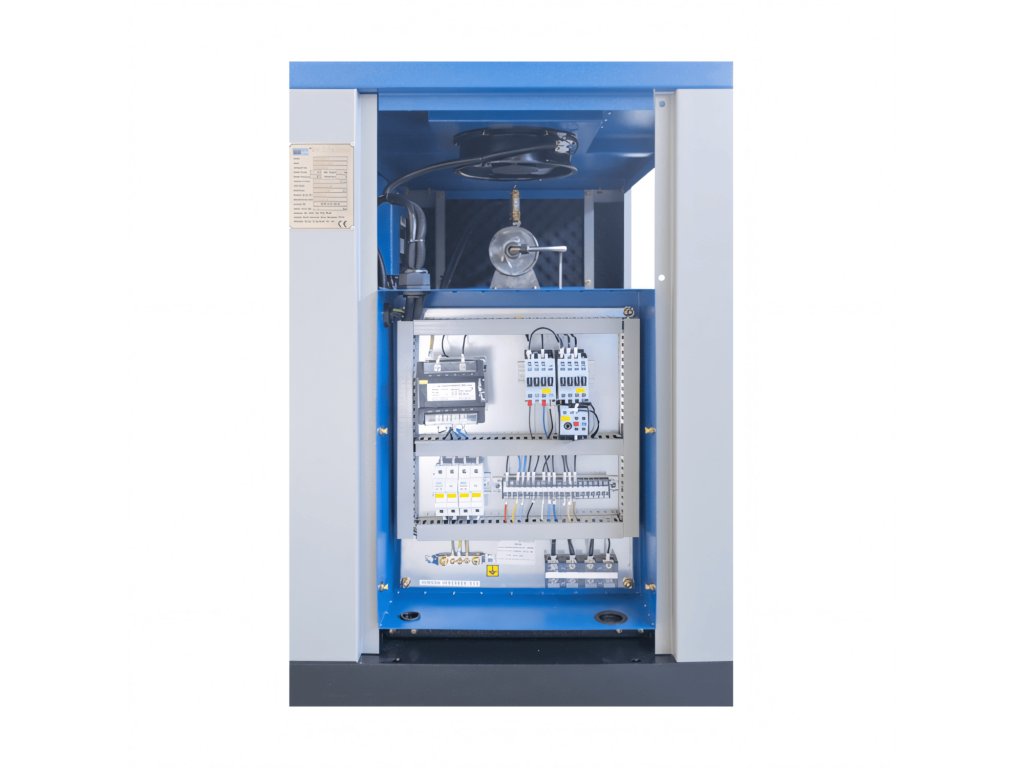

Modern electronic control unit

The operation of the SCR-XA series compressors is ensured by a modern SCR9000 electronic control unit with simple operation via a colour 7" touch display or eight navigation buttons. The SCR9000 unit has many useful features for monitoring compressor status, operating and service settings and necessary alarms.

For SCR-XA compressors with several scroll blocks, the SCR9000 control unit ensures their sequential automatic switching on and off according to air consumption requirements. This results in significant running optimisation. Additionally, the operational status of the units is taken into account during operation to ensure they are evenly loaded.

Dimensions and weights
	Model	Length mm	Width mm	Height mm	Weight kg
	SCR-2XA	550	470	770	110
	SCR-4XA	1 100	650	980	230
	SCR-7XA	1 200	650	998	280
	SCR-11XA	1 300	800	1 403	450
	SCR-15XA	1 300	800	1 808	650
	SCR-22XA	1 400	1 300	1 410	900
	SCR-30XA	1 400	1 300	1 808	1 300

Minimal maintenance and service Scroll compressors are characterised by a very simple design with the absence of an oil circuit system. This significantly reduces regular maintenance to the absolute minimum number of tasks. Maintenance and service of SCR-XA compressors are provided by an extensive network of service partners, ensuring that all necessary services are available as quickly as possible and with minimal technician call-out costs.

Rent a compressor for 5 years!

Thanks to the SCRent programme, you no longer have to invest large sums of money in purchasing a new compressor. In cooperation with Raiffeisenbank, we offer a modern method of financing through a long-term lease of the machine for 5 years and its repayment through monthly instalments.

you get a new compressor immediately and without having to free up large sums of money for investment monthly lease payments are direct company costs and are not subject to depreciation in the accounts Clear costs for 5 years - within the SCRent lease, all compressor costs are "all inclusive" except for energy.

What's included in the lease payment?

The SCRent lease is a comprehensive financial service that covers all costs associated with the operation of the compressor and compressed air treatment technology. The only thing the customer pays for is the electricity consumed. The monthly lease payment isn't just the machine's price multiplied by 60 installments; SCRent includes everything you can expect during the compressor's operation for 5 years:

	price of the selected model SCR scroll compressor		Regular maintenance for the entire duration of the lease is already included in the price, with no limit on the number of operating hours
	price of selected types of air treatment equipment		we take care of the free environmentally responsible disposal of oils and filter cartridges
	rental includes attractive discounts on equipment purchased, spare parts and oils		the rental also includes necessary pressure vessel inspections
	the price includes transport of all equipment to the installation site		all costs of breakdowns during the rental period are our concern; breakdown service is included in the rental
	all compressors and air treatment equipment professionally installed we install		compressors and air treatment equipment are insured for the entire duration against damage or theft
	We will train the operators to ensure correct operation and basic maintenance of the technology		... and after 5 years, you can buy the compressor for its residual price
