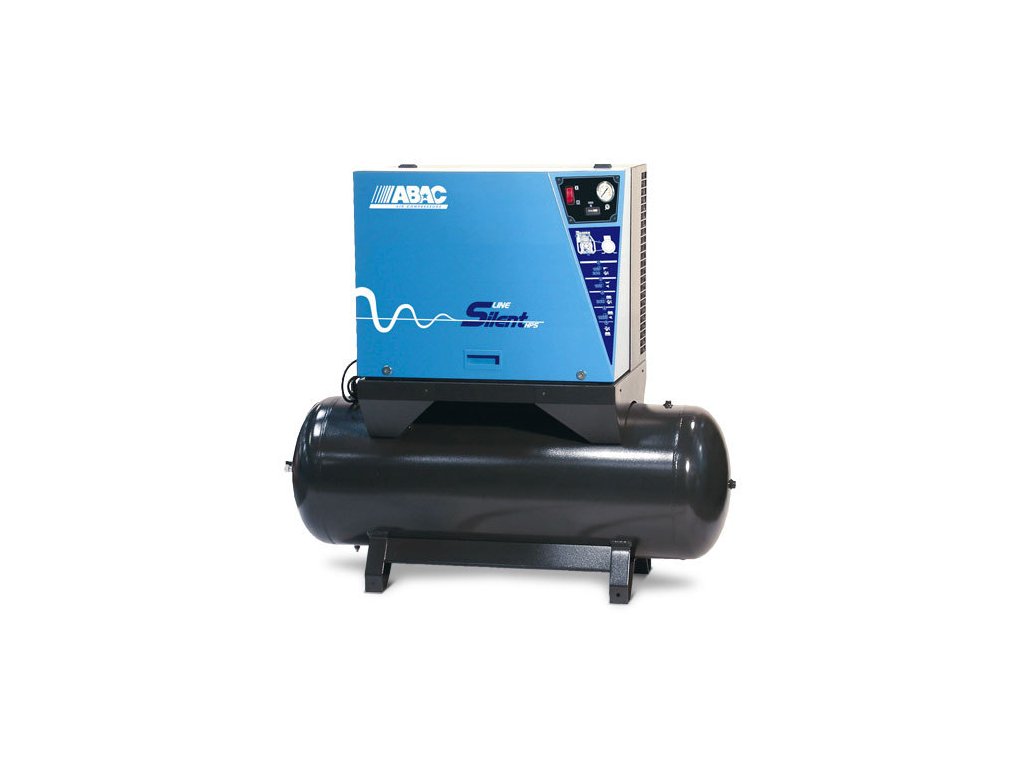

Silent piston compressor on air tank - B59-4-500FTZ
Code: B59-4-500FTZ
Related products
Product detailed description
Soundproofed reciprocating compressor on air chamber - B59-4-500FTZ Massively soundproofed reciprocating compressors with a panel design filled with soundproofing foam The enclosure reduces the noise level to 85 dB(A) depending on the size of the machine Optimally directed air flow into the machine for best cooling For power outputs of 5.5 kW and 7,5 kW, an additional fan is added for improved cooling Oil-lubricated, V-belt driven compressors equipped with two-stage, 11 bar, twin-piston units Robust cast iron cylinders for high durability Slow-speed compressor design to ensure low air temperature and higher air quality 500-litre pressure vessel design for stationary use 4 kW electric motor with 400 V/50Hz electrical voltage Automatic run control via pressure switch Available with star-star switchtriangle for reduced current spikes and more convenient machine start-up Control is centralised in the console, which includes: oN/OFF switch to turn the machine on, motor hour counter, pressure regulator pin for adjusting output pressure, pressure gauge for reading the pressure at the compressor outlet Electronic fault indication via LED-lEDs on the panel and practical display of the service plan by icons on the machine Exit of the machine by ball valve Easy condensate drainage by ball valve Designed for professional workshop applications with high noise requirements and high-end machine equipment Soundproof reciprocating compressors Damped reciprocating compressors Damped reciprocating compressors Damped reciprocating compressors Easy access to all machine parts Centralised panel including hour meter and fault indication Extra fan for efficient cooling of larger machines Service schedule display on machine frame
Additional parameters
| Category: | Compressors for all applications - hobby and industrial |
|---|---|
| Warranty: | 3 years |
| Compressor type: | Piston compressor |
| Pressure: | 11 bars |
| Suction power: | 570 l/min |
| Displacement: | 439 l/min |
| Pressure vessel volume: | 500 L |
| Design of pressure vessel: | Lying down |
| Connecting: | Quick coupling DN 7.2 |
| Motor power: | 4.0 kW |
| Mains voltage: | 400/50 V/Hz |
| Speeds: | 1,300 rpm |
| Number of cylinders: | 2 |
| Number of grades: | 2 stage |
| Lubrication: | Oleic |
| Noise: | 81 dB(A) |
| Dimensions: | 2 020 x 1 000 x 1 600 mm |
| Accessories: | Silent blocks, Pressure regulator, Quick coupler, Cover |
| Engine: | Electric |
| Soundproofed: | Yes |
| Drive: | V-belts |
| Air dryer: | No |
| Retrieved from: | Professional |
| Development: | Stationary |
| The item has been sold out… | |
Instalace kompresoru
Odpouštění kondenzátu
Servisní KIT kompresoru a výměna
Údržba sacího filtru
Uvedení do provozu
Výměna oleje u kompresoru
Výměna řemenu
Be the first who will post an article to this item!
Be the first who will post an article to this item!
The company ABAC has been one of the most important manufacturers of piston compressors on the world market since its establishment in 1980 . Currently, the brand ABAC is owned by ATLAS COPCO, the largest compressor manufacturer in the world and is part of the multinational group PAD (Professional Air Division). The goal of the ABAC brand is to become a world leader in the development, production and sale of piston compressors.
Production at company ABAC
ABAC compressors are manufactured in 5 production centers around the world, with an annual production of almost 2 million compressors. The brand's parent plant ABAC in Turin, Italy employs around 250 employees and is primarily focused on the design and production of professional V-belt compressors with a daily production capacity of over 600 machines. The ABAC plant also has extensive warehouse facilities with several thousand compressors available for immediate delivery.
Innovative concept
ABAC does not only mean compressor production. We are directly involved in the development of key innovations and advanced solutions and set trends in the compressor market. The efforts of our designers have resulted in, for example, an aerodynamic pulley housing for temperature reduction of up to 35°C, the revolutionary XPAND hose reel compressor or the PRO LINE ZERO oil-free compressors with V-belts. In the ABAC program you will always find the most modern and unique solution for compressed air production on the market.
A modern solution
We are a modern company that is aware of the current trends around us. We are bringing advanced technologies to the compressor industry, such as the use of QR codes and the AIR TUBE app to make it easier for the user of our compressor to access the information they need. We use social media, chat and multimedia instead of traditional marketing and documentation formats. With compressors ABAC you will always have convenient access to all the necessary information.
Compressor program
In the supplier program of the ABAC brand you will find 100%. The basic range includes 100% from small portable compressors for home applications to larger stationary compressors for permanent deployment.
